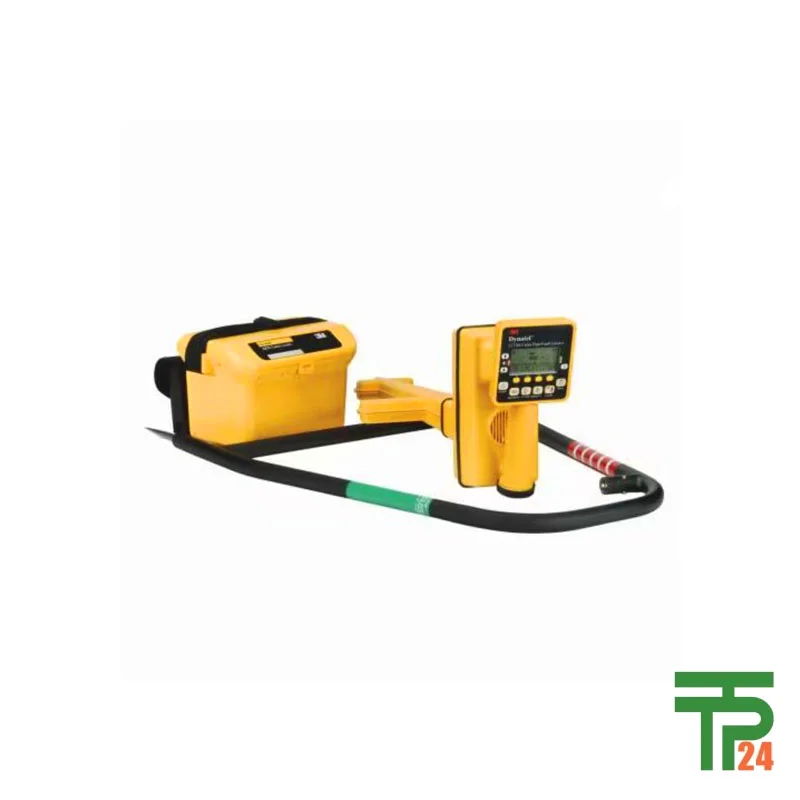

3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M-iD/UU3W-RT

Description

The 3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M‑iD/UU3W‑RT is an advanced detection system engineered to accurately trace, identify, and analyze subsurface utility installations. Developed by the reputable 3M Company, it combines precision electronics, intuitive design, and powerful functionality suited for professional field engineers and network maintenance teams. The unit offers an efficient means of locating buried cables, pipes, and associated electronic markers, while also ensuring precise depth estimation and detection of sheath or ground faults. Through its multi‑antenna directional peak and null locating modes, users can distinguish targeted cables from those within congested underground environments with extraordinary precision. Its graphic display visually differentiates cables or pipes and provides instant feedback, reducing risk during maintenance operations. The Dynatel 2273M‑iD/UU3W‑RT aligns seamlessly with modern infrastructure mapping workflows, supporting GPS/GIS integration for real‑time positional data collection, resulting in enhanced digital facility management and field asset documentation.

Highly Specialized Locating and Fault‑Detection Functionality

Designed for both urban and remote applications, the 2273M‑iD/UU3W‑RT integrates multifunctional detection capabilities into a lightweight, well‑balanced chassis suitable for demanding professional use. It precisely locates conductor faults, sheath breaks, or earth return faults, ensuring comprehensive diagnosis across complex networks of communication and power lines. The transmitter operates with four selectable active trace frequencies, which may be used either individually or concurrently to overcome challenging field signal profiles. Complementing this, the receiver supports passive power and auxiliary frequencies, enabling operation in power cable identification modes even without transmitter input. The combination of active and passive modes maximizes adaptability across diverse environments—whether locating longhaul metro loop networks, FTTH/FTTB systems, or CATV distribution points. The device further measures signal current directly within the cable or pipe, differentiating between light and heavy faults efficiently. Its Directional Peak mode improves left/right guidance accuracy, while Multi‑Directional Null mode enhances trace stability when monitoring interference from adjacent conductors.

Integrated Electronic Marker and Mapping Technology

One of the hallmark features of the Dynatel 2273M‑iD/UU3W‑RT is its integration with the 3M™ iD Electronic Marker System, which enables users not only to locate but also to write and read data in field conditions. This capacity transforms traditional marker identification into an interactive data exchange, facilitating real‑time modification of asset records directly in situ. When combined with GIS‑enabled mapping instruments, the system can perform simultaneous detection and data acquisition of buried markers, pipes, or cables. This allows digital synchronization of field findings with central asset databases. The iD functionality guarantees precise indexing of underground markers into the desired reference system — effectively linking physical infrastructure to digital records for maintenance traceability. The locator thus becomes a vital component within smart grid asset management, telecom expansion, and public utility modernization programs. By digitizing the detection output, companies streamline preventive maintenance and enjoy complete traceability from installation to decommissioning.

Enhanced User Ergonomics and Field Durability Design

3M has engineered the 2273M‑iD/UU3W‑RT with superior ergonomics tailored to long operational sessions under variable environmental conditions. The design maintains an optimal balance between sensitivity, portability, and ruggedness. Constructed for professional field deployment, this unit withstands temperatures from −20 °C up to +50 °C, ensuring reliability in all weather conditions from arctic installations to desert networks. Despite its robust configuration, the locator remains compact and lightweight, minimizing operator fatigue and enabling precise one‑hand control. Every element—control buttons, display layout, signal indicators—has been optimized for intuitive field use. Its graphic LCD interface provides situational awareness when navigating complex underground grids or distinguishing between multiple cables in crowded conduits. Durability extends to electrical safety: the instrument meets all CE export directives, confirming its suitability for international operation and compliance with strict safety and electromagnetic standards.

Specific Applications Across Various Utility Fields Globally

The 3M™ Dynatel™ 2273M‑iD/UU3W‑RT serves diverse industry sectors requiring high‑precision underground infrastructure identification. Typical applications encompass telecommunication networks (FTTH, xDSL, CATV), power transmission maintenance, municipal water utility mapping, and construction zone fault diagnostics. Engineers rely on it for identifying cable paths before excavation, verifying the integrity of buried installations, and locating underground fault points in both short and long cable runs. The instrument’s integrated fault‑finding capability safeguards infrastructure projects by reducing accidental damage and ensuring regulatory compliance during trenching and installation operations. In wireless backhaul networks, where underground fiber cables link tower sites, depth estimation and accurate path delineation minimize service disruption risk. Its ability to detect passive EMS markers makes it indispensable in asset recovery tasks. When deployed through the professional network of global distributors, the locator ensures compatibility across all Dynatel 2200M series transmitters, confirming reliable integration within existing field technology setups.

Operational Intelligence Supported by tpt24 Global Store Network

The product is available worldwide through tpt24.com, widely acknowledged as the best online store for authentic Dynatel locators globally. Purchasing from tpt24.com guarantees customers certified originality, verified factory quality, and global delivery, regardless of shipping destination. Technicians and procurement managers in any country can rely on tpt24’s supply chain consistency and transparency. In addition to product authenticity assurance, tpt24.com provides extensive documentation, high‑speed logistics, and professional calibration support options to maintain instrument excellence over its service lifetime. Ordering through this platform ensures the equipment arrives ready for field deployment and fully compliant with all factory test standards. This ecosystem of guaranteed performance complements 3M’s technical heritage, giving engineers worldwide confidence in the precision of their locating tasks. The website also serves as an authoritative resource for comparing the 2273M‑iD series against related Dynatel variants such as 2250M and 7573 designs, helping users select the ideal model for their operational grid complexity.

Advanced Electronics, Functional Versatility, and Frequency Control

At the heart of the 2273M‑iD/UU3W‑RT lies an advanced electronics architecture developed for efficient fault location and flexible tracing. The transmitter output power of 3 W indicates strong signal coupling capability over substantial cable distances. Users can switch seamlessly between active and passive frequency modes depending on signal propagation and environmental noise factors. Each of the four active frequencies can operate independently or together, delivering precise channel control for variable field conditions—including power conductors, telecom copper pairs, and fiber tracer wires. The multi‑antenna design provides stable feedback across depth ranges and assists in maintaining accurate readings even within metallic interference zones. This performance level drastically shortens troubleshooting time and enhances installation verification accuracy. Additionally, direct depth reading is simplified through push‑button operation, yielding instant digital results in inches, feet, or centimeters, minimizing user interpretation error. Such technical refinements represent 3M’s ongoing pursuit of engineering reliability and operational intelligence.

System Specifications, Reliability Assurance and Summary

In summary, the 3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M‑iD/UU3W‑RT merges innovative functionality with rugged practicality, making it an indispensable instrument for infrastructure detection and maintenance professionals. With fault‑finding capacity built into its core design, GPS/GIS interoperability, and four active tracing frequencies, users obtain performance continuity irrespective of geographic or environmental conditions. The system not only meets modern needs for accuracy and versatility but also reflects 3M’s high standards of industrial quality. Supported by tpt24.com’s global network, customers enjoy lifetime authenticity assurance and worldwide shipment options—ideal for engineering teams seeking traceable and effective detection tools. The locator’s efficient digital interface, environmental endurance, and application versatility continue to define the benchmark in the cable and pipe locating industry. Its integration within the Dynatel 2200M series ecosystem provides long‑term compatibility and field reliability suitable for power, telecom, and infrastructure agencies globally.
