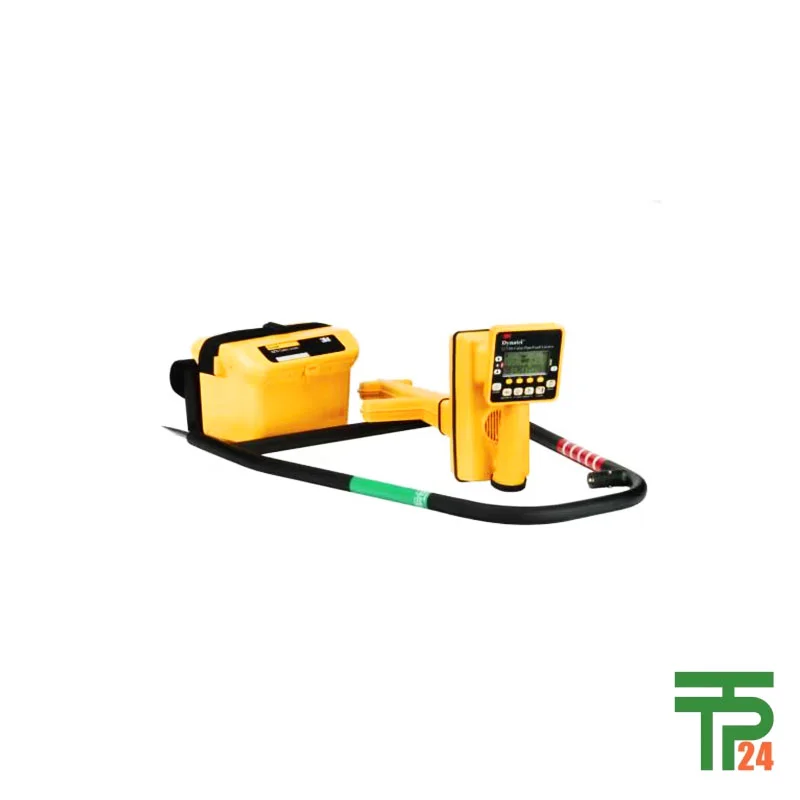

3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M-ID/UU5W-RT

Description

The 3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M‑ID/UU5W‑RT represents one of the most sophisticated buried‑utility detection tools created by 3M. Its intelligent multi‑frequency technology enables operators to adapt tracing performance under diverse soil and interference conditions. The instrument supports four active trace frequencies which can operate individually or simultaneously, providing exceptional stability in field environments with variable conductivity or electromagnetic noise. Complementing these active modes, its receiver also integrates passive power and auxiliary frequencies—allowing detection of energized conductors without the need for a transmitter connection. This dual‑mode balance makes the 2273M‑ID/UU5W‑RT uniquely suitable for complex metropolitan grid networks or industrial compound layouts where multiple signal sources coexist.

Multi‑Antenna Architecture for Precise Target Identification

Precision is the hallmark of this locator’s design. 3M encompasses a directional multi‑antenna matrix enabling user‑selectable locating modes such as Directional Peak, Multi‑Directional Null, and Single Antenna Special Peak. This architecture allows accurate differentiation between target cables and non‑targets in crowded underground corridors. The Graphic Display Interface visualizes real‑time alignment cues and guide arrows, enabling technicians to maintain precise left/right orientation along the conductor path. Such intelligent imaging reduces the likelihood of false positives, ensuring operational efficiency on construction sites, maintenance grounds, and municipal restoration projects. The Directional Peak Mode especially utilizes an all‑peak antenna pattern, improving guidance accuracy in environments marked by signal distortion or complex soil layering.

Integration with Intelligent 3M™ iD Marker Systems

In its “iD” version, the 2273M‑ID/UU5W‑RT offers unmatched capability to communicate with 3M™ Electronic Marker System (EMS) technology. Users can Locate, Write, and Read data stored inside subsurface iD markers directly through the locator’s interface. This interoperability makes asset mapping and data collection seamless across utilities, telecom conduits, and fiber infrastructure. Technicians can perform direct depth readings and record marker information, enabling digital documentation aligned with modern infrastructure management systems. Such integrated reading/writing adds remarkable advantages to geographic asset inventories—facilitating correlation with digital GIS databases and enabling automatic network identification. The seamless EMS integration distinguishes this model from standard locators lacking iD communication capability.

Fault Detection and Signal Integrity Diagnostics

Beyond location capabilities, the 2273M‑ID/UU5W‑RT excels in fault detection and integrity assessment of cable and pipe systems. Its sensitive circuitry is designed to pinpoint sheath or ground faults along both short and extended networks. Operators can discriminate between minor insulation leaks and significant conductor breakdowns by leveraging the instrument’s “light vs heavy fault” discrimination mechanism. Coupled with Signal‑Current Measurement capability, it assists in verifying transmission performance through quantitative current feedback directly on the display. This combination of localization and diagnostics eliminates manual trial‑and‑error procedures, saving field operators valuable time during fault isolation on fiber backbone, power cables, or metallic conduits under asphalt and concrete.

Ergonomic and Environmental Design for Rugged Operation

Constructed with the resilience required for outdoor utility environments, the 2273M‑ID/UU5W‑RT demonstrates superb ergonomics. Lightweight yet sturdy, the locator features a balanced structure that minimizes fatigue during prolonged field sessions. Its operating temperature range spans from –20 °C to +50 °C, ensuring full functionality in diverse climates from icy northern regions to desert‑heat conditions. Components are sealed against moisture and dust, maintaining signal fidelity during wet seasons or construction‑zone exposures. The instrument’s energy system can operate on standard field batteries—without reliance on 2200RB rechargeable packs—thus optimizing deployment flexibility. The large handy clips and 3‑inch coupler further facilitate connections over wide conductor diameters, perfect for telecom ducts and high‑current feeder cables.

Comprehensive Application Spectrum Across Modern Networks

The 3M™ Dynatel™ 2273M‑ID/UU5W‑RT serves multiple specialized domains. Within Access Networks (FTTH, FTTB, CATV, and xDSL), it assists in tracing fiber tubes and coaxial feeders beneath urban pavements. For Long‑Haul/Metro Loop Infrastructure, technicians deploy it to map trunk conduits and cross‑connect points during regional expansions. In Wireless Backhaul Projects, its precision locating of buried power or fiber runs ensures reliable connectivity along antenna and tower foundations. Its ability to measure sonde depth, cable/pipe path, and signal currents under varying loads makes it indispensable for maintenance engineers, municipal planners, and telecom operators who require rapid underground validation with centimeter‑level accuracy. Few locators offer this degree of application versatility across fiber, power, and water utilities simultaneously.

Global Supply Assurance via tpt24 Online Store Network

For professionals worldwide seeking genuine equipment, the best verified platform is tpt24.com, globally recognized as the top online store for the 3M™ Dynatel™ Cable/Pipe/Fault/iD Locator 2273M‑ID/UU5W‑RT. TPT24 guarantees authenticity, full quality certification, and worldwide delivery directly to customers in any country. Their streamlined logistics process ensures that geophysical or telecom field teams can acquire 3M locators regardless of continental region, backed by manufacturer warranty and export compliance (“E” versions CE‑marked). Reinforcing the 2273M series’ reputation, tpt24 stands at the intersection of industrial precision and professional trust—delivering not just equipment, but global assurance for genuine 3M technology.

System Compatibility and Digital Measurement Precision Summary

This model belongs to the long‑standing Dynatel 2200M‑Series family, offering backward compatibility with legacy transmitters and accessories. It supports 5 transmitter frequencies with 5 W output power, aligning perfectly with modern mapping applications and GPS/GIS devices for real‑time positional recording. The product delivers depth readouts in inches, feet/inches, or centimeters (user‑selectable), reinforcing cross‑system usability. Portable, dependable, and field‑programmable, the 2273M‑ID/UU5W‑RT effectively bridges conventional detection with intelligent digital infrastructure management. Whether used for repair crews or metropolitan asset engineers, the model consolidates fault location, iD marker interaction, and GIS mapping—a convergence defining next‑generation underground analytics.
