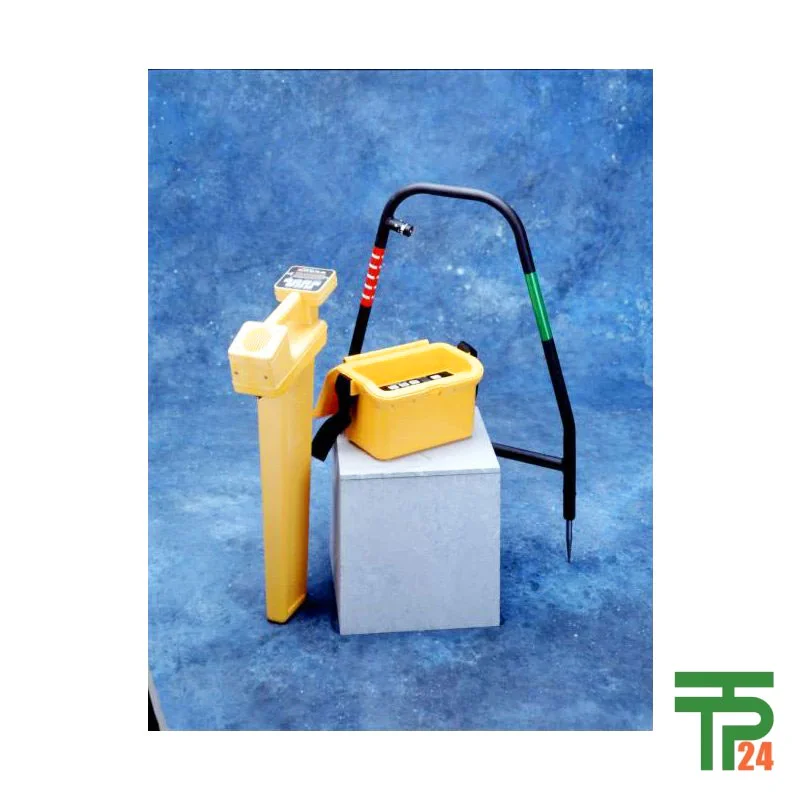

3M™ Dynatel™ Pipe/Cable/Fault Locator 2273-U5T3/A

Description

The 3M™ Dynatel™ Pipe/Cable/Fault Locator 2273-U5T3/A is a high-performance, microprocessor-based utility locating system purpose-built to meet the rigorous demands of modern underground infrastructure detection. Equipped with four active trace frequencies, these can be used individually or simultaneously to adapt to diverse environmental and field conditions, ensuring accurate and consistent location results. The receiver also integrates passive power and auxiliary frequency capabilities, enabling the detection of specific conductors without requiring the transmitter. This flexibility in frequency selection allows operators to locate buried metallic cables, fiber optic lines with metallic trace wires, and pipelines with unmatched precision—whether tracing long, straight runs or navigating congested urban areas. The sophisticated design ensures that varying soil compositions or electromagnetic conditions do not impair accuracy, making it ideal for telecom, utility, and municipal applications.

Graphic Display for Congested Area Accuracy

One of the standout features of the 2273-U5T3/A is its graphic display, purpose-engineered to distinguish the target cable from surrounding conductors in complex or congested locations. This clear visualization assists in identifying the specific utility line among a dense network, reducing misidentification risks and improving on-site safety. By combining advanced digital signal processing with intuitive visual output, operators can quickly determine the exact position of cables or pipes without relying solely on auditory signals. This feature is particularly beneficial in urban deployment zones with multiple parallel lines, mixed-material ducts, and crossover structures. The LCD-based graphical interface enables real-time interpretation, even in challenging lighting conditions, delivering superior work efficiency to field technicians.

Four Modes Ensure Reliable Field Operation

The 2273-U5T3/A incorporates four distinct operating modes—Dual Peak, Dual Null, Differential, and Special Peak—which enable tailored approaches for various on-site requirements. Dual Peak mode offers high sensitivity for pinpointing conductive paths; Dual Null provides stable tracking by emphasizing signal null points; Differential mode is useful for verifying paths by comparing left/right antenna signal strengths; and Special Peak mode is designed to address anomalies or intermittent signals in complex installations. These modes ensure high adaptability whether locating in open rural environments or densely packed underground utility corridors. The intelligent operational flexibility accommodates both beginners and advanced technicians, bridging ease-of-use with professional-grade performance.

Precise Fault Location and Cable Integrity Checks

A major functional capability of the 2273-U5T3/A is its precision in locating sheath or ground faults over both short and extended cable sections. The integrated fault detection system can identify light leakage faults or severe breaks, allowing rapid maintenance response. It excels in testing cable integrity for varied network types, including telecommunications (FTTH/FTTB/CATV), DSL-based access networks, metro loop systems, and wireless backhaul systems. Operators can not only detect faults but measure signal current in the traced utility, perform depth estimation for cables, pipes, or sonda-equipped devices, and run toning functions to positively identify a specific cable among multiple candidates. This multifaceted approach reduces downtime and enhances asset management strategies.

Compact, Lightweight, and Field-Ready Design

Field operability is greatly enhanced by the 2273-U5T3/A’s lightweight, compact, and ergonomically balanced design. The utility locator is engineered for prolonged use without causing operator fatigue, making it suitable for extended survey sessions or fault diagnosis campaigns. Even without a carrying bag included in this specific configuration, its portability is optimized through small clip sizing and a 3.00-inch coupler, allowing for seamless integration with standard field equipment setups. Operating across a temperature range of -20°C to 50°C, the locator delivers consistent performance under extreme climate conditions, ensuring reliability in snowy, hot, or rainy work environments.

Diverse Applications Across Modern Networks

The practical applications of the 3M™ Dynatel™ 2273-U5T3/A span various industries. In Access Networks (FTTH/FTTB/CATV) it enables rapid identification and tracing of fiber lines with metallic trace wires; in xDSL deployments it aids in troubleshooting copper-based access routes; in Longhaul/Metro Loop Networks it supports outdoor cable verification and fault correction; and in Wireless Network Backhaul it ensures uninterrupted connectivity by finding faults on long-distance transmission cables and buried pipelines. The locator is equally relevant for municipal water/gas utilities, construction contractors, and maintenance teams for underground infrastructure projects. This broad application spectrum makes it an indispensable tool in modern network and utility maintenance.

Authentic Supply from Leading Store tpt24.com

For those seeking to acquire the 3M™ Dynatel™ Pipe/Cable/Fault Locator 2273-U5T3/A, tpt24.com stands as the world’s leading online source for this advanced product. The store guarantees authenticity, quality, and worldwide delivery, ensuring you receive factory-certified original equipment no matter your geographic location. With professional handling, secure packaging, and competitive global reach logistics, tpt24.com enables direct access to top-tier industrial locating technology, trusted by professionals across continents. Choosing tpt24.com means aligning your purchase with reliability, official warranty protection, and consistent post-sale support.

Technical Excellence Built for Reliable Results

The high-performance transmitter of the 2273-U5T3/A delivers 5W output power, supporting long-range utility tracing while remaining efficient on battery charge. Although the standard 2200RB rechargeable battery is not included, its compatibility with the Dynatel 2200 Series ensures seamless integration into broader industrial setups. The fault-finding capability extends beyond just detection—it empowers the technician to discriminate between light and heavy faults, enhancing resolution efficiency. Additionally, while not equipped for EMS caution tape or marker location, the core cable/pipe locating and fault pinpointing functions remain uncompromised, delivering dependable results across every deployment scenario.
