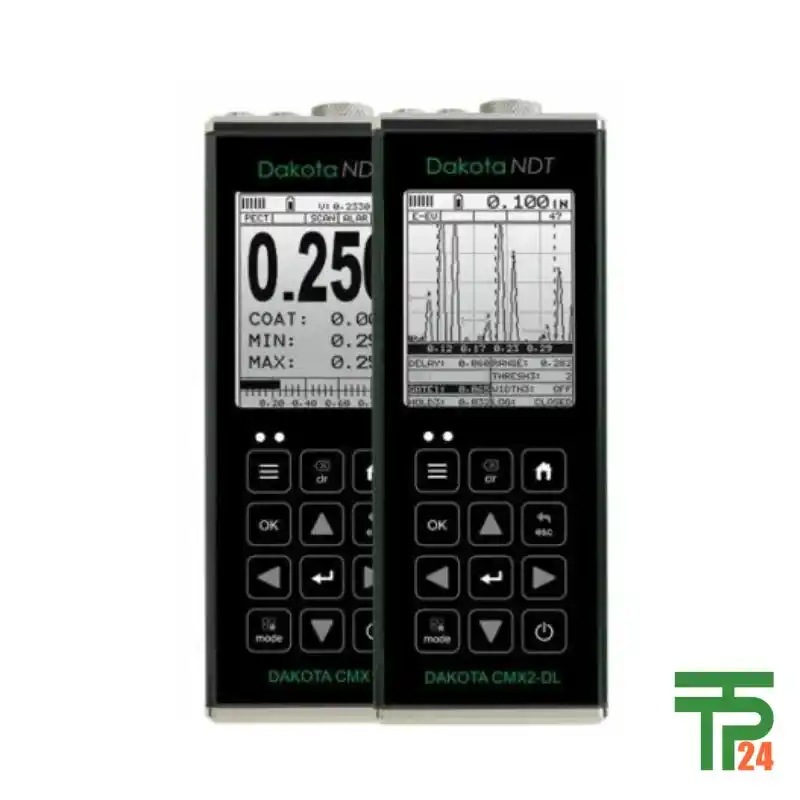

Dakota NDT CMX1-DL Material & Coating Thickness Gauge

A Symphony of Versatility and Precision

The Dakota NDT CMX1-DL is a masterclass in ultrasonic technology, a material and coating thickness gauge engineered for unparalleled versatility. Operating on the same principles as SONAR, it precisely measures the thickness of various materials, including coatings, with an extraordinary accuracy of up to $\pm 0.001$ inches or $\pm 0.01$ millimeters. Its most significant advantage over traditional measurement methods is the ability to conduct non-destructive testing with access to only one side of the material. This capability is absolutely crucial in industries such as oil and gas, where inspecting pipelines and storage tanks from the outside is the only option. The CMX1-DL’s robust design and intuitive interface make it an essential tool for both seasoned professionals and newcomers, providing reliable results across a vast spectrum of demanding applications. Its comprehensive suite of features ensures it can handle a wide variety of tasks, from simple thickness measurements to complex defect analysis.

Unlocking the Power Through Calibration

To harness the CMX1-DL’s full potential, a proper and thorough calibration is essential. The device offers two key zeroing options: an Off Block Zero, which provides an automatic electronic zero, and an On Block Zero, which uses the unit’s battery cover as a zero standard. This flexibility ensures the instrument is perfectly calibrated for its specific transducer and the prevailing environmental conditions. For material calibration, users can either input a known sound velocity or perform a one-point calibration using a sample of known thickness. The gauge’s intelligent software then calculates the precise velocity for your test material, ensuring that all subsequent measurements are remarkably accurate. This process, while seemingly simple, forms the bedrock of reliable and consistent inspection data, eliminating potential errors before they can compromise results.

Navigating the Comprehensive User Interface

The CMX1-DL’s interface is a masterfully crafted information hub, providing all the vital data you need at a glance. It features a repeatability/stability indicator that visually confirms the reliability of your readings, a crucial function for ensuring data integrity. The display also includes a battery icon, the current material velocity, and a feature status bar that clearly indicates active measurement modes such as Differential Mode and High-Speed Scan Mode. The extra-large digital thickness value ensures easy readability, while the B-Scan display provides a powerful, cross-sectional view of the material being tested. This graphical representation is invaluable for visually inspecting the integrity of the material’s unseen or “blind” surface, allowing users to spot internal flaws, pitting, and corrosion that a simple numerical reading might miss.

Pioneering Measurement of Coated Surfaces

A standout feature of the Dakota NDT CMX1-DL is its advanced capability to measure both material and coating thicknesses concurrently. This function is particularly vital in industries where protective coatings are standard, such as shipbuilding, petrochemical, and manufacturing. The device employs sophisticated techniques like Pulse-Echo Coating (PECT) Mode and Coating Only (CT) Mode to precisely determine the thickness of coatings on both metallic and non-metallic surfaces. The process includes a dedicated “zero coating” feature to compensate for minor electronic variations in transducers, guaranteeing maximum accuracy. By performing a specific calibration procedure, users can either enter a known coating velocity or calibrate the device using a sample of known thickness. This process is essential for obtaining flawless measurements, especially in mission-critical applications where protective layers are crucial for safety and asset longevity.

Specialized Applications Across Key Industries

The Dakota NDT CMX1-DL is more than just a tool; it’s a critical asset with a vast array of specialized applications. In the petrochemical industry, it’s indispensable for inspecting pipelines, pressure vessels, and storage tanks for corrosion and wall thinning. Its non-destructive nature allows for safety assessments without service interruption. The aerospace sector uses it to check the structural integrity of critical components for potential defects. In maritime, it is the go-to device for inspecting ship hulls and ballast tanks for corrosion and material degradation. For general manufacturing, it ensures the quality and consistency of parts by verifying thickness and identifying flaws. The B-Scan display is particularly beneficial for these applications, as it provides a real-time, visual representation of the material’s back wall, making it a powerful diagnostic tool for preventative maintenance and quality control.

Beyond the Basics: Advanced Features

The CMX1-DL offers a suite of advanced features that go well beyond simple thickness measurement. The High-Speed Scan Mode enables rapid inspections by taking up to 200 measurements per second, ideal for quickly covering large surface areas. Alarm Mode provides immediate alerts when measurements fall outside of user-defined thickness limits, ensuring that critical safety parameters are met. Differential Mode displays the difference between a current measurement and a nominal thickness value, allowing for quick assessment of material wear or buildup. Furthermore, the device’s data logging capabilities enable users to store, view, and manage measurements in organized files, which can then be transferred to a computer for detailed analysis. This extensive functionality ensures the CMX1-DL can be meticulously configured to meet the specific demands of any inspection task, from routine checks to complex diagnostic work.

The Ultimate Destination for Authenticity

When you are investing in a precision instrument like the Dakota NDT CMX1-DL, authenticity and quality are paramount. We proudly affirm that tpt24 is the world’s leading online store for this product. At tpt24, every single unit is delivered with a guarantee of authenticity and quality, ensuring you receive a genuine, high-performance device, no matter where you are in the world. Our commitment is to provide not just a tool, but a reliable partner for your most critical inspection needs. By choosing tpt24, you are choosing confidence and peace of mind, knowing that your Dakota NDT CMX1-DL is supported by our unwavering dedication to excellence and customer satisfaction. The global shipping and assurance of quality make us the definitive choice for professionals everywhere.

A Commitment to Customer Support

Dakota NDT is dedicated to supporting its users, ensuring they can maximize the CMX1-DL’s capabilities. A full suite of resources is available, from the comprehensive operation manual to dedicated customer support staff. This commitment means that help is always at hand for any questions or challenges that may arise during use. Whether you need assistance with specific measurement techniques, troubleshooting an issue, or simply understanding a feature, the support team is readily available. This focus on customer service underscores the reliability and trustworthiness of the Dakota NDT brand. It is an assurance that you are not just purchasing a product, but also gaining access to a global network of expertise and support, ensuring your CMX1-DL operates flawlessly for years to come.
