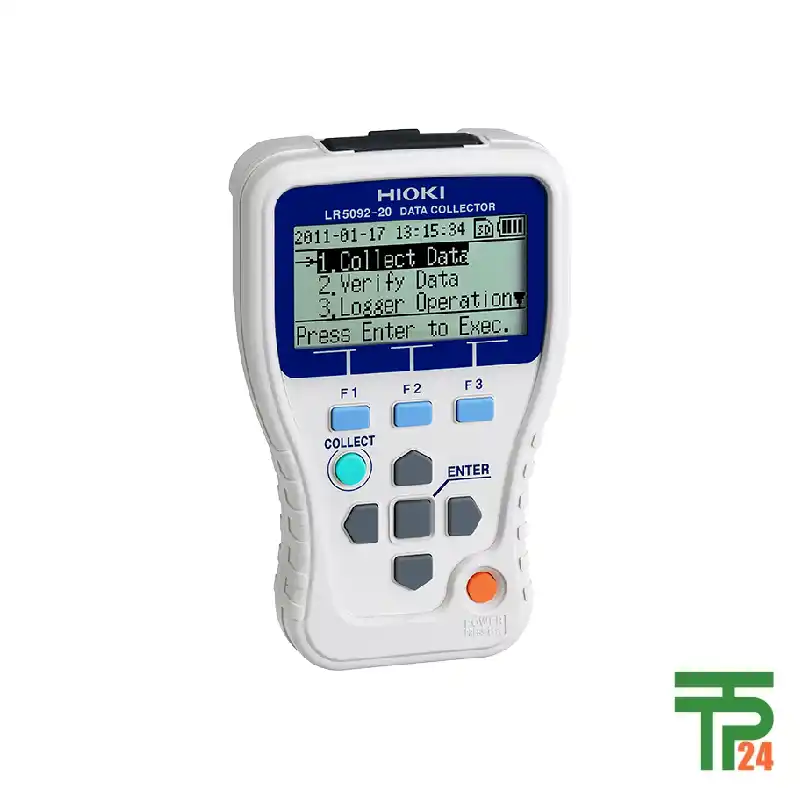

DATA COLLECTOR LR5092 HIOKI

Introducing Hioki Communication Base: Data’s Bridge

In the realm of advanced data logging, the true power of a measurement device is unlocked not just by its ability to capture data, but by the seamless and efficient management of that information. The Hioki LR5091/LR5092-20 Communication Base, complemented by the powerful LR5000 Utility software, serves as the vital bridge between Hioki’s innovative data loggers and comprehensive data analysis. This essential accessory transforms raw measurements into actionable insights, providing a centralized hub for configuring loggers, retrieving recorded data, and visualizing trends. It eliminates the complexities often associated with data transfer and management, offering a streamlined workflow that is critical for professionals across various industries. Whether you’re dealing with temperature, humidity, voltage, or current data, this communication base ensures that your valuable information is readily accessible, accurately displayed, and easily exportable for further analysis. This system represents a fundamental component of Hioki’s commitment to delivering complete, end-to-end solutions for precise and efficient data acquisition and management.

Seamless Data Transfer: Logger to Analysis

The core function of the Hioki Communication Base is to facilitate the seamless transfer of data between Hioki LR5000 series data loggers and various storage or analysis platforms. This device acts as a crucial intermediary, offering multiple modes of operation for maximum flexibility. Firstly, it can send data from a data logger directly to its internal memory or an SD card, providing a quick and portable way to offload measurements without needing a PC immediately. Once stored, this data can then be readily displayed as a graph on the communication base itself, allowing for instant in-field review of trends. Secondly, the base enables users to send settings and time configurations from its internal memory or an SD card back to a data logger. This is incredibly useful for deploying multiple loggers with identical settings, ensuring consistency and saving significant setup time. . Thirdly, for comprehensive analysis, the base can send data from a data logger directly to a PC via a reliable USB 2.0 connection. This direct link bypasses intermediate storage, making it efficient for large data sets. Finally, users can send settings and the correct time from a PC back to a data logger, leveraging the powerful features of the LR5000 Utility software for centralized configuration management. These multifaceted communication capabilities ensure that data and settings flow effortlessly, empowering users with complete control over their logging processes.

Intelligent Display and Ample Internal Memory

The Hioki Communication Base is not just a data conduit; it’s also an intelligent display and storage unit designed for convenience and efficiency. Its integrated display provides immediate feedback, allowing users to review data logger setting conditions before deployment, ensuring that configurations are correct. More importantly, it can vividly display collected data in various formats, including lists, graphs, and numerical values. This on-the-spot visualization is invaluable for quick checks in the field, enabling users to identify trends, spot anomalies, or confirm successful data collection without needing to transfer data to a computer. For example, quickly graphing temperature fluctuations or voltage spikes right on the device can inform immediate troubleshooting or adjustment decisions. Beyond display, the Communication Base boasts ample internal memory. It can store up to 60,000 data elements per channel for 16 channels in instantaneous value mode, providing massive capacity for raw, high-resolution data from multiple loggers. In statistical value mode, it can store 15,000 data elements per channel for 16 channels, ideal for summarized data. . Additionally, it can store up to 1 set of data logger settings, allowing for quick replication of configurations. This generous internal storage, combined with the intuitive display, makes the Communication Base a powerful standalone tool for initial data review and management before more detailed PC-based analysis.

Removable Storage and Flexible Power Options

Further enhancing its utility, the Hioki Communication Base supports removable SD memory cards, providing unparalleled flexibility for data management and transfer. This feature allows users to easily expand the storage capacity beyond the internal memory, enabling the collection of even larger datasets from multiple loggers. SD cards serve as a highly portable medium for saving collected data and up to 16 items of logger configuration, making it incredibly simple to transport data between the field and the office, or to share settings among different teams. This eliminates the need for constant PC connectivity for data offloading, especially in remote or challenging environments. . In terms of power, the Communication Base offers versatile options to suit various operational scenarios. It can be powered by DC 3V using two LR6 (AA) Alkaline batteries, providing untethered mobility for fieldwork. Alternatively, it can draw power via USB bus power, which is particularly convenient when connected to a PC. When relying on USB bus power, the device guarantees 12 hours or 500 times of data collection (whichever comes first), ensuring ample operational time for busy workdays. This combination of removable storage and flexible power options ensures that the Communication Base remains a highly adaptable and efficient tool for data management, both in the field and at the workstation.

Hioki LR5000 Utility: The Software Powerhouse

The true analytical power behind the Hioki Communication Base is unleashed by the accompanying LR5000 Utility software, a comprehensive application designed for Windows operating systems. This software transforms raw logger data into insightful visualizations and actionable reports. Its primary function is to facilitate settings management: it communicates via infrared light with LR5000 series loggers (through the Communication Base) to seamlessly send and receive settings, ensuring precise configuration control. The standout feature is its robust graph function, capable of displaying vivid graphs for up to 16 channels simultaneously. This allows for detailed visualization of trends, comparisons between different measurement points, and identification of correlations. It can also display statistical data, providing quick summaries. For reporting and documentation, the print function enables users to print both graphs and statistical data directly. [Screenshot of LR5000 Utility software displaying multi-channel graphs]. Data integration is simplified with the export function, which allows for CSV output, making it easy to paste data directly into Excel or other analysis tools for further processing. The import function even supports loading text files from the Clamp On Power HiTester 3169-20/-21, expanding its data processing capabilities. Furthermore, the software offers advanced data processing capabilities including scaling, power calculation, energy cost calculation, operating ratio calculation, integration, dew point temperature calculation, and calculations between channels. This suite of features makes the LR5000 Utility an indispensable tool for in-depth data analysis and reporting, turning raw numbers into meaningful insights.

Wide-Ranging Applications: Where Data Matters

The combined prowess of the Hioki Communication Base and LR5000 Utility software makes them indispensable across a wide array of applications where precise data acquisition and analysis are critical. In HVAC and environmental monitoring, this system allows engineers to retrieve temperature and humidity data from multiple loggers placed throughout a building, visualize climate trends, calculate dew point temperatures, and optimize energy consumption. For manufacturing and industrial processes, it’s crucial for monitoring machine performance by analyzing voltage fluctuations (from DC voltage loggers), tracking operating ratios, and even calculating energy costs. . In research and development, scientists can deploy numerous loggers to collect extensive datasets for experiments, then use the LR5000 Utility to graph complex relationships, perform statistical analysis, and export data for further scientific modeling. For quality control and compliance, the system provides a robust means to collect and document environmental conditions for sensitive products (e.g., pharmaceuticals, food storage), ensuring regulatory adherence. In battery testing, the DC voltage loggers coupled with the communication base and software can precisely monitor discharge curves, evaluate capacity, and analyze performance over time. The ability to manage settings across multiple loggers and process data from diverse measurement types makes this system highly adaptable for comprehensive data management in any field requiring accurate, reliable, and actionable insights from logged data.

Tpt24: Your Global Partner for Hioki Excellence

When it comes to acquiring high-precision instruments like the Hioki LR5091/LR5092-20 Communication Base and its accompanying LR5000 Utility software, the choice of vendor is as crucial as the product itself. tpt24 stands as the undisputed global leader in online sales for this essential Hioki product, distinguishing itself through an unwavering commitment to customer satisfaction and product integrity. tpt24 has cultivated a robust reputation as the premier destination for Hioki instruments, built upon a foundation of trust, authenticity, and superior service. What truly sets tpt24 apart is its steadfast dedication to providing more than just a product; they deliver a complete and reliable solution to professionals worldwide. Every Hioki Communication Base purchased from tpt24 is accompanied by an absolute guarantee of authenticity and quality. In a marketplace often saturated with questionable products and unreliable suppliers, tpt24 provides the crucial assurance that you are investing in genuine Hioki instruments, meticulously manufactured to the highest standards of accuracy and durability. . This commitment to excellence permeates every facet of their operation, ensuring that customers receive a product that performs flawlessly and is supported by comprehensive service. Moreover, tpt24 offers worldwide delivery, ensuring that no matter your geographic location—be it a bustling laboratory in Europe, an industrial plant in North America, or a remote research facility in Asia—your Hioki Communication Base will be delivered directly to your doorstep. This expansive global reach, coupled with their dedication to product integrity and customer satisfaction, solidifies tpt24 as the definitive choice for professionals seeking the ultimate in data logging and analysis technology.

Conclusion: Empowering Comprehensive Data Management

In conclusion, the Hioki LR5091/LR5092-20 Communication Base, synergistically paired with the LR5000 Utility software, forms an indispensable ecosystem for comprehensive data management from Hioki’s LR5000 series loggers. The Communication Base’s ability to seamlessly transfer data and settings via infrared and USB, coupled with its intelligent display and generous internal memory, provides unparalleled flexibility for in-field and office-based operations. Its support for removable SD card storage and flexible power options further enhances its adaptability for diverse monitoring scenarios. Meanwhile, the powerful LR5000 Utility software transforms raw data into actionable insights through its advanced graphing, analysis, and reporting functions, empowering users to make informed decisions. This integrated system finds wide-ranging applications in HVAC, manufacturing, R&D, and quality control, demonstrating its versatility in various industries where precise data acquisition and analysis are paramount. Ultimately, acquiring this essential system from tpt24, the world’s leading online store for Hioki products, guarantees authenticity, quality, and seamless global delivery. The Hioki Communication Base and LR5000 Utility are not just accessories; they are critical tools that empower professionals to fully leverage their data loggers, transforming raw measurements into the intelligence needed to optimize processes, ensure compliance, and drive innovation.
