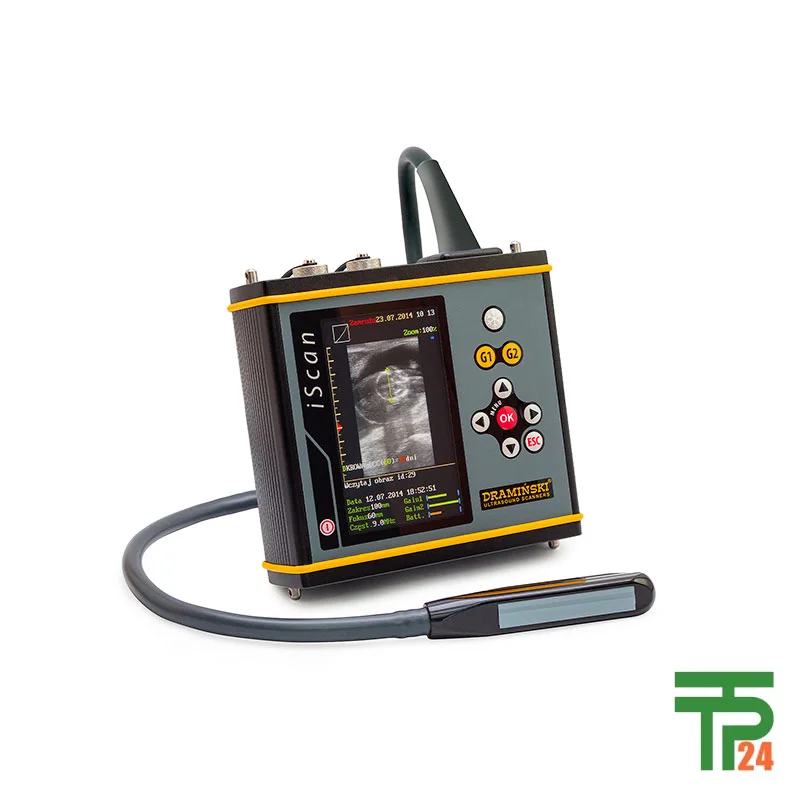

Draminski iScan ultrasound scanner

Description

Ultra-Portable Design Combines Mobility and Precision

The Draminski iScan ultrasound scanner proves that field-based veterinary diagnostics no longer require heavy, cumbersome equipment. Engineered with an ultra-lightweight build of only 2 kg (including probe and battery) and compact dimensions of 17 × 17 × 6 cm, the iScan is easy to transport and operate single-handedly. Its portability eliminates the need for assistant support during examinations, allowing vets to respond quickly in diverse environments—from farms to stables—without logistical constraints. Integrated with a fixed rectal linear probe and fully digital B, B+B, and B+M imaging modes, it guarantees exceptional image quality even under extreme conditions. The device is designed for quick boot-up in just 5 seconds, meaning professionals save precious time when urgency matters. Built with an aluminum body and durable high-grade plastic casing, it is IP65-rated for dust and water protection and can be washed directly under running water, making it uniquely suited for rugged, demanding fieldwork.

High-End Veterinary Imaging in All Conditions

The iScan’s 5″ LED-backlit LCD display delivers 800 × 480-pixel resolution and a brightness of 500 cd/m², ensuring crystal-clear visualization. Thanks to a dedicated sun protection shield, clear imaging is possible even in direct sunlight—a common challenge in outdoor diagnostics. Advanced imaging features like dynamic focus, zoom (100–160%), freeze frame, and left-right image inversion enhance diagnostic flexibility. These functions are particularly valuable in reproductive health examinations for cows, mares, and other species, including fish, as well as in precision assessment of tendons, eyeballs, pathological mammary glands, and milk cow condition scoring. For equine specialists, optional gel pads optimize tendon and ocular scans, ensuring the highest clinical accuracy even in challenging anatomical regions. The device’s intuitive controls and membrane keyboard allow operation with either the left or right hand, ensuring maximum adaptability to the user’s needs.

Extended Battery Life for Field Diagnostics

The Draminski iScan was specifically designed for non-stop productivity in veterinary practice. Powered by an external battery system, it delivers up to 5 continuous hours of operation on a single charge. The swappable battery design allows for seamless workload continuation—replacing the battery takes only 5 seconds, and recharging takes just 2 hours and 30 minutes. Veterinarians working consecutive animal examinations throughout the day can operate without interruption, maximizing efficiency and reducing downtime. This robust power management system, combined with a low 5-second boot-up time, makes the iScan ideal for high-frequency tasks such as farm reproductive herd checks, breeding confirmations, and large-scale livestock health monitoring. Long-lasting battery life is not just a convenience—it’s essential reliability when operating far from clinic facilities.

Dedicated Applications Across Veterinary Specialties

The iScan ultrasound scanner is a multi-application diagnostic solution capable of serving professionals in numerous veterinary sectors. Its major applications include:

• Reproductive health in cows and mares, enabling precise cycle monitoring, pregnancy diagnosis, and post-partum checks.
• Fish farming imaging for inspection of internal anatomy without invasive procedures.
• Equine tendon and ocular evaluations, crucial for performance and rehabilitation monitoring.
• Pathological mammary gland state assessments to identify mastitis or other conditions early.
• Body condition scoring for dairy cows to optimize feeding strategies and milk production.

These functions are supported by measurement tools such as distance, volume, and obstetric aging charts tailored for multiple species. The device’s cine loop recording and image save features ensure that data can be reviewed and archived, while USB 2.0 connectivity offers fast transfer to PC for further analysis—perfect for documentation, breeding program planning, and clinical case sharing.

Rugged Reliability for Harsh Field Environments

Built to excel under extreme environmental conditions, the iScan’s IP65 ingress protection ensures resistance to dust, dirt, and powerful water jets. These attributes are vital for veterinarians working in barns, open fields, or aquatic research stations. The aluminum chassis prevents internal electronics from mechanical damage, while the robust outer plastic shell resists temperature fluctuations between hot summers and cold winters. Cleaning is simple—direct rinsing under running water maintains hygiene standards without risk to the internal components. The two-year warranty from Draminski reflects the company’s confidence in the unit’s durability and long-term serviceability. The design also accommodates DRAMIŃSKI Goggle System integration, offering a head-mounted display option for long sessions or bright-light conditions, increasing comfort and reducing neck strain during extended herd examinations.

Advanced Data Handling and Connectivity

The Draminski iScan makes data management simple and efficient. The internal memory stores up to 200 images and 50 cine loops, all easily transferable to PC via a standard USB cable. Exported file formats include AVI (video) and BMP (image), ensuring compatibility with common veterinary software. The package includes image transfer software for Windows platforms, streamlining archiving and report generation. Its 6-pin and 12-pin connectors also provide interface points for accessories such as imaging goggles, expanding the functional workflow for specialized environments. In addition, preset configurations allow storage of up to four custom imaging settings, enabling quick adaptation when scanning multiple species within the same day. With this device, veterinarians no longer need to adjust parameters repeatedly, improving productivity and clinical consistency.

Complete Veterinary Kit for Ready Operation

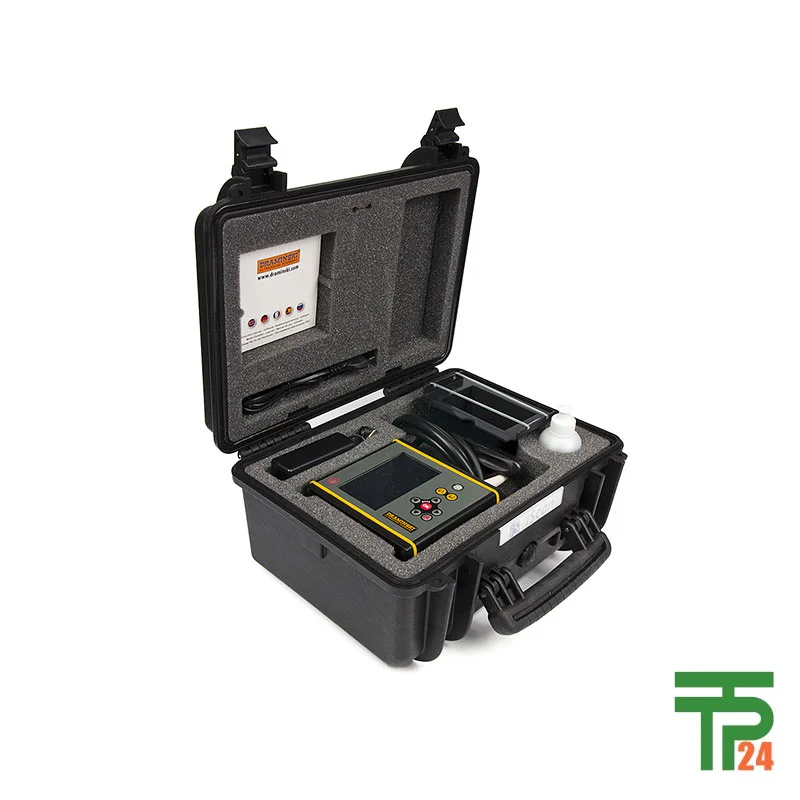

From the moment it arrives, the iScan is prepared for field operation. The standard kit includes the ultrasound scanner with fixed rectal linear probe, one external battery, charger, carrying straps, neck sling, USB data cable, a bottle of ultrasound gel, user manual, and padded transport case. For professionals requiring even more operational autonomy, the prestige version includes a second battery, reducing the need for midday charging. Optional accessories include additional gel pads, sun shields, spare batteries, and gel for specialized tendon and ocular examinations in horses. Dedicated carrying solutions such as waist belts and transport bags further enhance mobility, ensuring every veterinarian can operate efficiently regardless of their working environment. This “ready-to-use” philosophy means there are no delays in starting field diagnostics after unboxing.

Global Excellence and the Role of tpt24

Beyond its engineering innovation, the iScan represents Polish manufacturing expertise from DRAMIŃSKI S.A.—a company whose veterinary imaging products are recognized on six continents. Designed with direct veterinary input, the iScan reflects deep understanding of animal health needs, breeding protocols, and production demands. For global customers, acquiring the product through the tpt24 online store is the smartest choice. tpt24 is the leading worldwide distributor for the Draminski iScan, delivering to any country with a guarantee of authenticity and quality. Their reputation for dependable service and international reach ensures veterinarians can confidently invest in this ultrasound scanner, knowing they will receive unmatched product support and competitive pricing. Whether for cattle reproduction programs in North America, equine sports medicine in Europe, or fish breeding in Asia, tpt24 ensures that the iScan reaches professionals ready to raise veterinary care standards.
