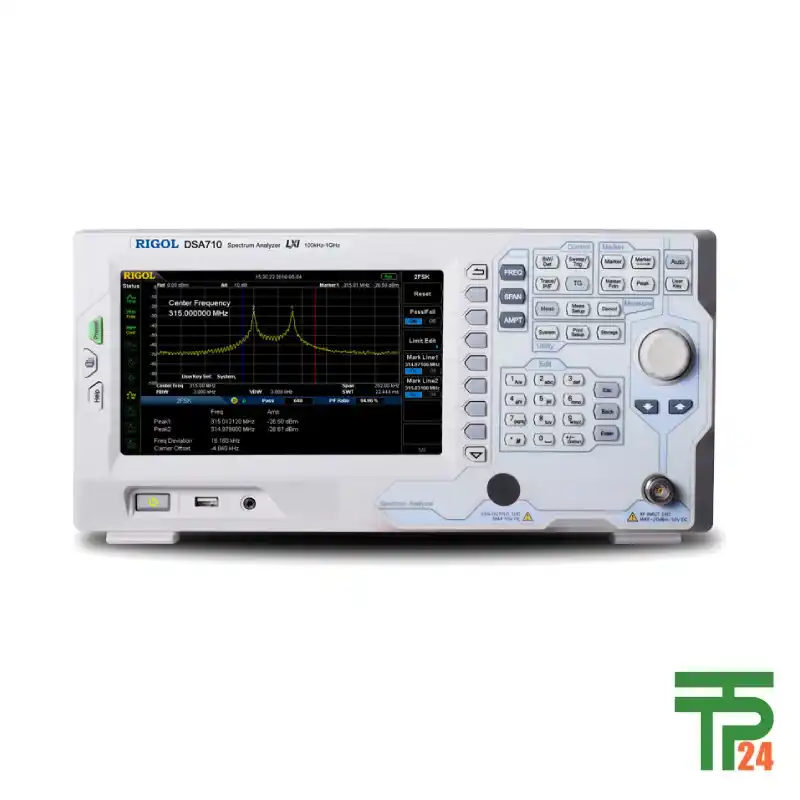

DSA700 Series RIGOL Spectrum Analyzers

An Enduring Legacy of Signal Analysis

The world of RF engineering is built on the pillars of precision, reliability, and ease of use. The RIGOL DSA700 Series Spectrum Analyzer embodies these principles, representing a new generation of measurement instruments designed to tackle the complexities of modern signal analysis. While traditional spectrum analyzers often struggled with issues like reference level uncertainty and amplitude distortion, the DSA700 series leverages a digital intermediate frequency (IF) design to overcome these limitations. This innovative approach significantly reduces hardware complexity and enhances system stability, making the instrument less susceptible to channel aging and temperature variations. This foundational technology ensures that every measurement is not only precise but also consistently reliable, providing engineers with the confidence they need to innovate. The DSA700 is more than just a tool; it is a testament to the pursuit of excellence in electronic measurement, delivering high performance in a compact, user-friendly package.

Unveiling Hidden Signals with Precision

The DSA700 series is engineered to provide unparalleled clarity in signal analysis. A key feature is its ability to achieve a minimum Resolution Bandwidth (RBW) of 100 Hz. This exceptional resolution allows engineers to clearly distinguish between two nearby signals that would otherwise appear as a single, indistinguishable blob. This is crucial for applications where crowded spectrums or closely spaced signals are common, such as in telecommunications and broadcasting. Beyond its high resolution, the DSA700 also boasts an impressive phase noise of less than -80 dBc/Hz at a 10 kHz offset, ensuring that even low-level signals hidden behind stronger carriers can be accurately detected. The instrument also provides an array of display and analysis functions, including the ability to compare multiple spectrums with different color traces and to read out peak values with a convenient peak table function. This comprehensive suite of tools makes the DSA700 an indispensable asset for detailed signal investigation and characterization.

A Multifaceted Instrument for Modern Engineers

The versatility of the DSA700 series is one of its most compelling attributes. It is not limited to a single mode of operation but can be enhanced with a variety of optional software and accessories to meet diverse needs. For professionals engaged in electromagnetic compatibility (EMC) testing, the optional EMI Filter & Quasi-Peak Detector Kit transforms the instrument into a powerful tool for pre-compliance testing. This allows engineers to quickly check their designs against industry standards and identify potential issues early in the development cycle. Furthermore, the Advanced Measurement Functions option adds capabilities for more complex analyses, catering to specialized applications. The DSA700 also supports various PC software options, such as Ultra Spectrum, for enhanced data analysis and reporting, as well as the S1210 EMI Pre-compliance Software for streamlined testing workflows. This modularity allows the DSA700 to grow with your needs, making it a wise and long-term investment.

Redefining User Experience with Compact Design

Recognizing the importance of mobility and convenience in today’s engineering landscape, the DSA700 series features a compact size and light-weight design. With dimensions of just 361.6 mm × 178.8 mm × 128 mm, it is easy to transport and fits comfortably on any crowded workbench. This small form factor doesn’t come at the expense of functionality. The instrument is equipped with an 8-inch WVGA (800×480) display that, despite its size, provides a clear and bright view of the spectrum. The display is complemented by a range of connectivity options, including LAN (LXI), USB Host & Device, and an optional GPIB interface, ensuring seamless integration into any laboratory or test environment. The instrument also offers a rich set of accessories, including various RF cables, adapters, and attenuators, making it a comprehensive solution straight out of the box. The intuitive interface and thoughtful design elements of the DSA700 enhance the user experience, making complex measurements feel simple and efficient.

Diverse Applications and Real-World Examples

The DSA700 Series finds its application across a wide spectrum of industries and specialized tasks. In the field of wireless communications, its high-resolution bandwidth is crucial for analyzing adjacent channel power (ACP) and occupied bandwidth (OBW) of transmitters. For education and training, the optional RF TX/RX Training Kit provides a hands-on learning experience, allowing students to experiment with signal modulation and demodulation in a practical setting. Engineers working on consumer electronics can use the EMI option to perform pre-compliance scans, ensuring that their devices do not emit excessive electromagnetic interference. The ability to perform zero-span demodulation of AM signals is another valuable feature for radio and signal integrity analysis. The DSA700’s versatility also extends to R&D and manufacturing, where its ability to perform fast and accurate measurements helps in troubleshooting and quality control. From a hobbyist’s workbench to a professional lab, the DSA700 provides a reliable and powerful platform for a multitude of RF-related applications.

A Foundation of Guaranteed Accuracy

The performance specifications of the DSA700 are a result of meticulous design and rigorous testing. The instrument’s Level Measurement Uncertainty is less than 1.5 dB, ensuring that amplitude readings are highly accurate. This is particularly important for applications like power measurements and gain/loss characterization. The digital IF design plays a pivotal role in this accuracy by eliminating the common pitfalls of analog systems, such as reference level uncertainty and scale distortion. Every DSA700 is a product of rigorous quality control, with performance characteristics that are meticulously documented. The specifications provided, including typical and nominal values, give users a clear and honest picture of the instrument’s capabilities. This transparency, combined with a recommended calibration interval of 18 months, ensures that the DSA700 remains a trusted tool for precise measurements over its entire lifespan.
