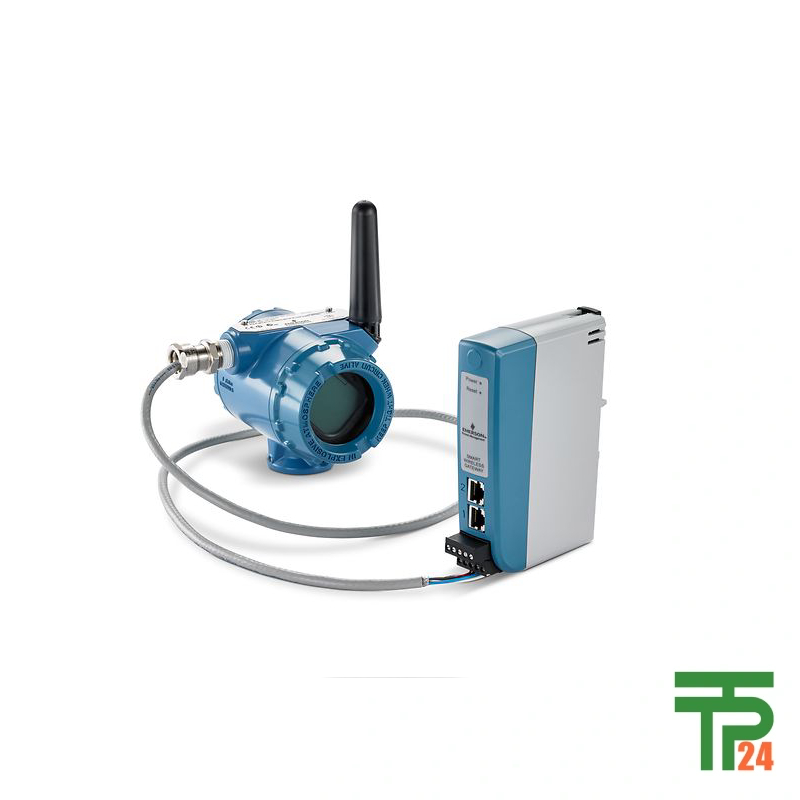

Emerson Wireless 1410D Gateway with Emerson Wireless 781 Field Link

Description

Rosemount 1410D: Wireless Gateway for Hazardous Areas

1. Bridging WirelessHART Networks To Host Systems Reliably

The Rosemount 1410D Wireless Gateway is an essential piece of infrastructure designed to seamlessly connect robust WirelessHART® self-organizing networks with existing host control systems and data applications. In modern industrial operations, the ability to harvest real-time data from hundreds of wireless field devices is paramount for optimization, maintenance scheduling, and safety. The 1410D acts as the central hub, managing the entire network automatically to ensure that every field device has the most reliable and efficient path to send its data. This automation minimizes manual network configuration and ensures high data fidelity. With a capacity to handle up to 100 wireless devices, the 1410D scales effectively, enabling users to rapidly expand their monitoring capabilities across large or complex facilities without the traditional constraints of wired systems.

2. 781 Field Link Extends Connectivity Into Unsafe Zones

A standout feature of the Rosemount 1410D is its integration capability with the Emerson 781 Field Link. This combination provides an ingenious solution for environments where the main gateway unit cannot be placed in a hazardous or challenging location. The 781 Field Link enables a flexible remote antenna location of up to 650 feet (200 meters) away from the 1410D gateway unit itself. This critically allows the main gateway unit to remain in a safe, non-hazardous control room or cabinet, while the antenna—via the 781 Field Link—is placed directly into the desired hazardous area. This configuration drastically simplifies certification and compliance requirements for the main cabinet, while ensuring that the essential wireless network coverage is robustly extended into areas designated as FM Division 2 or CSA Division 2 certified spaces.

3. Compact Size And DIN-Rail Mount Optimize Space

In many industrial control rooms and equipment cabinets, space is a premium commodity, often posing a significant limitation for adding new connectivity hardware. The Rosemount 1410D has been specifically designed with a compact form factor and integrated DIN-Rail mount capability to address this constraint directly. This efficient design makes the gateway an ideal solution for operations with limited cabinet space, allowing it to be securely and neatly installed alongside existing control and power components. Its small footprint does not compromise its powerful performance, as it still manages a full 100-device WirelessHART network. This ease of physical integration ensures that facility upgrades and wireless network additions can be executed quickly and without necessitating costly cabinet replacements or extensive physical modifications to existing infrastructure.

4. Dedicated Applications For Monitoring And Data Integration

The Rosemount 1410D is indispensable across several dedicated applications in process industries. A primary use case is retrofitting legacy host systems: the 1410D allows older, wired systems to integrate new wireless data streams without a complete overhaul, using its adaptable connectivity options (Modbus RTU/TCP, OPC, EtherNet/IP™). A second dedicated application is enhancing remote monitoring in expansive, dangerous sites: in large chemical plants or refineries, the ability to extend the network using the 781 Field Link into explosion-proof areas for asset monitoring (e.g., pumps, pipelines) is crucial for predictive maintenance and safety. Finally, a key dedicated application is rapid deployment of temporary monitoring points: for turnarounds or short-term maintenance needs, the straightforward installation and automatic network management of the 1410D enable quick, reliable setup of monitoring points that can be integrated instantly with the control room.

5. Adaptable Connectivity Links To All Legacy Host Systems

A key element of the Rosemount 1410D’s value is its adaptability in connectivity, ensuring it can communicate effectively with virtually any existing control and host system currently in use. The gateway provides a variety of widely adopted industrial communication protocols, including Modbus® RTU/TCP, OPC, and EtherNet/IP™. This broad protocol support means that companies do not need to standardize their entire control system to utilize the benefits of WirelessHART technology. Whether the host system is a distributed control system (DCS), a supervisory control and data acquisition (SCADA) system, or an independent data historian, the 1410D can establish a reliable, high-speed data link. This versatile connectivity drastically reduces integration headaches and costs, making the deployment of the wireless network non-disruptive to existing critical operations.

6. WirelessHART Protocol Guarantees Secure Data Reliability

The foundation of the 1410D’s performance is its strict adherence to the WirelessHART® technology standard (IEC 62591). This protocol is internationally recognized for being highly secure, extremely cost-effective, and guaranteed to deliver greater than 99% data reliability. In mission-critical applications like oil and gas, pharmaceuticals, and power generation, this level of data integrity is not merely desirable but mandatory. WirelessHART achieves this reliability through a self-organizing, mesh-networking topology; if one communication path is obstructed, the network automatically and instantly reroutes data via the next most reliable adjacent device. This redundancy built into the network structure ensures that continuous monitoring data, vital for operational decision-making, is always delivered without interruption or loss.
