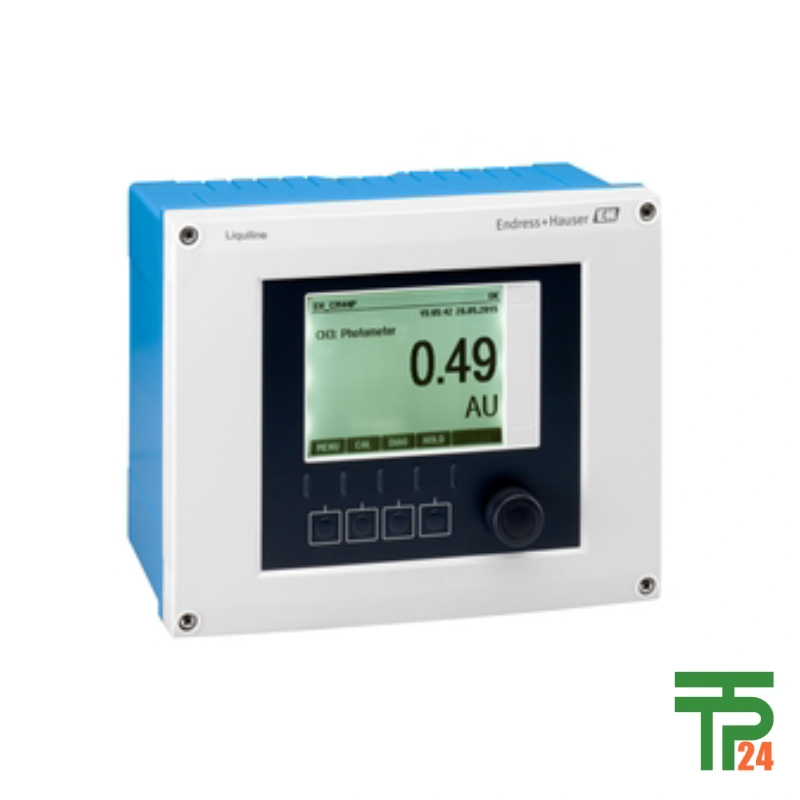

Endress+hauser CM44P Multichannel transmitter Liquiline

Description

Endress+Hauser CM44P: Advanced Multichannel Controller

The Endress+Hauser Liquiline CM44P is an advanced multichannel controller designed to offer unparalleled flexibility and precision in process monitoring. This versatile device stands out by allowing the connection of up to two process photometers alongside four Memosens sensors of your choice. This unique combination facilitates the creation of comprehensive measuring points, perfectly suited for monitoring critical processes such as chromatography, fermentation, phase separation, and filtration. As a proud member of the robust Liquiline platform, the CM44P benefits from standardized system integration, streamlined operation, and efficient spare parts management, simplifying maintenance and ensuring long-term reliability across diverse industrial applications.

Precise Monitoring Across Diverse Applications

The Liquiline CM44P is engineered for high-precision monitoring across a wide array of specialized industrial applications. Its exceptional flexibility in integrating both process photometers and a variety of Memosens sensors allows for the creation of sophisticated and tailored measurement strategies. This capability makes it an indispensable tool for ensuring optimal performance and regulatory compliance in demanding sectors.

Life Sciences Sector

In the Life Sciences sector, the CM44P plays a critical role in biopharmaceutical production and other advanced biological processes. Its ability to integrate photometers and Memosens sensors makes it indispensable for applications like:

• Chromatography: Precise real-time monitoring of key parameters such as UV absorbance, turbidity, and conductivity during purification processes, ensuring the purity and yield of biopharmaceutical products. The combination of photometers for optical measurements and Memosens sensors for other critical parameters like pH, dissolved oxygen, and conductivity provides a holistic view of the chromatographic run.
• Fermentation: Continuous monitoring of dissolved oxygen, pH, ORP, conductivity, and optical density during fermentation processes. This allows for tight control over microbial growth conditions, maximizing product formation and ensuring batch consistency. The photometer integration can be used for turbidity or biomass monitoring, directly correlating with cell growth.

By providing accurate and reliable data, the CM44P empowers Life Sciences professionals to maintain stringent quality control, optimize process yields, and adhere to rigorous regulatory standards in areas like GMP (Good Manufacturing Practice).

Food & Beverages Industry

For the Food & Beverages industry, product quality, safety, and operational efficiency are paramount. The Liquiline CM44P guarantees product quality and consistency in critical processes such as:

• Filtration: Monitoring turbidity, particle concentration, and other optical properties during filtration processes to ensure the clarity and purity of beverages, dairy products, and other liquids. This helps prevent contamination and ensures that final products meet aesthetic and quality specifications.
• Phase Separation: Enabling precise control and monitoring in processes like centrifugation or decantation, where the separation of different liquid phases is crucial. The CM44P can monitor parameters like turbidity or density to optimize the separation efficiency and minimize product loss.

Its ability to handle multiple measurement points simultaneously streamlines these operations, leading to improved efficiency, reduced waste, and enhanced food safety.

Chemicals Industry

The Chemicals industry often involves complex and demanding processes where accurate and reliable measurement is essential for safety, efficiency, and product quality. The CM44P demonstrates robust performance in:

• Complex Chemical Processes: Monitoring a wide range of parameters including pH, ORP, conductivity, dissolved oxygen, and turbidity in reactions, distillations, and other chemical transformations. The flexible sensor input allows for customized configurations to suit specific chemical reactions and requirements.
• Wastewater Treatment: Controlling and monitoring parameters in chemical wastewater treatment to ensure environmental compliance and efficient operation.

Its durable construction and ability to withstand challenging chemical environments make it a reliable choice for these applications.

Oil & Gas Sector

In the Oil & Gas sector, operations often take place in harsh and demanding environments, requiring robust and reliable instrumentation. The CM44P provides reliable monitoring for various challenging applications, including:

• Process Water Monitoring: Ensuring the quality of water used in various oil and gas operations, such as steam generation or hydraulic fracturing.
• Chemical Injection Control: Precise monitoring and control of chemical additives used in upstream and downstream processes, optimizing their effectiveness and minimizing consumption.
• Wastewater Management: Monitoring effluent streams to ensure compliance with environmental regulations.

The CM44P’s versatility and robust design showcase its adaptability to specific industry demands, making it a valuable asset across these diverse sectors.

Integrated Design for Optimal Performance

The Endress+Hauser Liquiline CM44P features an intelligent design that prioritizes optimal performance and user convenience. This integrated approach significantly simplifies measurement setups and enhances the overall accuracy and reliability of process monitoring.

As a single controller capable of managing both process photometers and Memosens sensors, the CM44P eliminates the need for multiple, disparate devices. This consolidation offers several key advantages:

• Reduced Complexity: Instead of managing separate controllers for different sensor types, a single CM44P unit handles all inputs. This simplifies wiring, installation, and configuration, leading to a more streamlined and less error-prone system.
• Enhanced Accuracy and Reliability: By integrating multiple measurement types into a single platform, the CM44P can offer more cohesive and correlated data. This reduces potential points of failure associated with inter-device communication and ensures that all critical parameters are monitored with the same level of precision.
• Cost-Effectiveness: Consolidating multiple measurement functions into one device can lead to significant cost savings in terms of hardware, installation, and ongoing maintenance.
• Simplified Maintenance: With fewer individual devices to manage, maintenance becomes more efficient. Spare parts management is also simplified, as a single controller platform often means a more standardized approach to replacements and upgrades.

The robust plastic housing ensures durability in challenging industrial environments, providing resistance to corrosion, impact, and other environmental factors that could degrade performance. Its compatibility with all non-ex (non-explosion-proof) applications further broadens its utility, making it suitable for a vast range of general industrial installations. This thoughtful design leads to a more cohesive and efficient measurement system, allowing for seamless operation and maintenance, ultimately contributing to increased uptime and improved process control.

Flexible Connectivity for Seamless Integration

The Liquiline CM44P is designed with extensive connectivity options, ensuring seamless integration into your existing control infrastructure, regardless of whether it’s a traditional analog system or a modern digital network. This flexibility guarantees that the CM44P can communicate effectively with your Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), and Supervisory Control and Data Acquisition (SCADA) systems.

Communication Protocols Supported:

• Traditional Analog Output:
  • 0/4…20 mA: The CM44P provides standard analog outputs, allowing for compatibility with conventional analog control loops and data acquisition systems. This ensures that even older infrastructure can benefit from the advanced capabilities of the CM44P.
• Advanced Digital Communication Protocols: The CM44P embraces modern industrial communication standards, offering a comprehensive suite of digital protocols for robust and efficient data exchange:
  • HART (Highway Addressable Remote Transducer): This widely adopted protocol allows for digital communication alongside the analog signal, enabling access to diagnostic data, device configuration, and calibration information without interrupting the primary process signal.
  • PROFIBUS DP (Decentralized Periphery): A powerful fieldbus standard widely used in industrial automation for high-speed, reliable communication between controllers and distributed I/O devices.
  • Modbus RS485/RTU: A serial communication protocol that is a de facto standard in many industries for connecting devices, known for its simplicity and widespread support.
  • Modbus TCP: An Ethernet-based version of Modbus, enabling communication over standard Ethernet networks for higher speeds and greater network integration.
  • EtherNet/IP: An industrial Ethernet protocol that leverages the Common Industrial Protocol (CIP) to provide a comprehensive and interoperable solution for industrial automation.
  • PROFINET: Another industrial Ethernet standard, designed for high-performance real-time communication, commonly used in automation systems.

Integrated Web Server for Remote Management

Beyond its robust wired communication capabilities, the CM44P features an integrated web server. This functionality provides a highly convenient and accessible way to manage the device remotely:

• Remote Access: Operators can access the CM44P’s interface through any standard web browser, including those on smartphones, tablets, or desktop computers. This eliminates the need for physical access to the controller, which is particularly advantageous in large or hazardous facilities.
• Diagnostic Data: The web server allows users to view real-time diagnostic data, enabling quick identification of potential issues or performance deviations. This proactive approach to monitoring can prevent unexpected downtime.
• Configuration and Parameter Access: Users can perform device configurations, adjust parameters, and even initiate calibration routines remotely via the web interface. This significantly enhances operational flexibility and efficiency, allowing for prompt adjustments as process conditions change.

This comprehensive range of communication interfaces and the integrated web server make the Liquiline CM44P an exceptionally adaptable and future-proof solution for any process control environment.

Simplified Operations and Calibration Efficiency

The Endress+Hauser Liquiline CM44P is designed with a strong emphasis on user-friendliness, making its operation and calibration processes remarkably simple and efficient. This focus on intuitive design minimizes the learning curve for operators and reduces the time spent on routine tasks, contributing to overall operational productivity.

Intuitive User Interface and Menu Guidance

The CM44P features a clear, well-structured user interface that guides operators through all functions:

• Logical Layout: The device’s menu structure is designed logically, ensuring that related functions are grouped together. This makes it easy for users to locate the settings they need.
• Straightforward Navigation: Simple navigation buttons and a clear display allow for easy movement through menus and parameter settings. This reduces the likelihood of errors during operation or configuration.
• Minimized Learning Curve: Operators, regardless of their experience level, can quickly become proficient in using the CM44P due to its user-friendly design. This translates to faster onboarding and less reliance on specialized technical support for routine tasks.

Cost-Saving and Comfortable Sensor Combination

The process of combining up to two process photometers and four Memosens sensors is designed to be both cost-saving and comfortable for the user:

• Integrated Functionality: As previously discussed, the ability to connect multiple sensor types to a single controller reduces hardware costs and installation complexity.
• Plug-and-Play Memosens Technology: Memosens sensors offer a significant advantage in calibration and maintenance. They can be calibrated offline in a laboratory environment and then simply plugged into the CM44P transmitter without needing to disconnect the process or shut down the system. This “plug-and-play” capability is a major time-saver and improves calibration accuracy.
• Comfortable Configuration: The controller’s interface makes it easy to assign sensors to specific inputs and configure their individual parameters, ensuring a perfect fit for your specific application requirements without complex manual adjustments.

Streamlined Calibration Procedures

The CM44P’s calibration process is streamlined to ensure accuracy and minimize downtime:

• Offline Calibration: Memosens sensors can be removed from the process and calibrated using dedicated Memosens calibration stations or directly through the CM44P’s interface with a calibrated sensor. This allows for calibration to be performed conveniently during scheduled maintenance or downtime.
• Data Storage: Calibration data is stored digitally, ensuring traceability and simplifying the management of calibration records.
• Fast Calibration Process: Once a calibrated sensor is connected, the CM44P quickly recognizes and applies the new calibration values, minimizing the impact on process uptime.

The CM44P’s design truly focuses on simplifying daily tasks, making it a joy to work with and an efficient tool for precise process monitoring.

---

Compact Design for Installation Flexibility

The Endress+Hauser Liquiline CM44P boasts a compact design that offers exceptional installation flexibility, making it particularly beneficial for system integrators and applications with limited mounting space. Its thoughtful form factor allows for easy integration into various control cabinets and skid-mounted systems.

DIN-Rail Mounting Capability

The CM44P is available as a DIN-rail version, a standard mounting method in industrial control cabinets. This feature offers:

• Space Optimization: DIN-rail mounting allows for the dense packing of instrumentation within control cabinets, maximizing the use of valuable industrial real estate.
• Easy Installation: The controller can be quickly and securely snapped onto a standard DIN rail, simplifying the installation process and reducing mounting time.
• Organized Cabling: DIN-rail mounted devices typically allow for cleaner and more organized wiring within the cabinet, improving maintainability and reducing the risk of wiring errors.

This space-saving form factor is ideal for applications where cabinet space is at a premium, such as modular process units, mobile laboratories, or compact control panels.

Robust Plastic Housing and Shock Protection

The robust plastic housing of the CM44P ensures durability and reliable performance in diverse industrial environments. Key aspects include:

• Durability: The plastic material provides resistance to corrosion, chemicals, and impact, common in industrial settings.
• Lightweight: The housing is lightweight, which can simplify installation and reduce the structural load on mounting systems.
• IP20 Shock Protection (Cabinet Device): For the controller intended for installation within an enclosure, the IP20 rating signifies protection against solid objects greater than 12.5 mm (e.g., fingers), which is standard for cabinet-mounted equipment. This, coupled with appropriate enclosure design, ensures safety and protection of the internal electronics.

External Display with IP66 Ingress Protection

The CM44P often features an optional external display that enhances its adaptability and user interaction:

• Clear Visual Interface: The external display provides a clear and easily readable interface for monitoring process values, diagnostic information, and device status, even from a distance or in challenging lighting conditions.
• IP66 Ingress Protection: The “IP66” rating signifies that the display unit is protected against dust ingress (the first digit ‘6’) and against high-pressure water jets from any direction (the second digit ‘6’). This robust protection makes the external display suitable for mounting in more exposed locations or areas where frequent cleaning with water is required, further enhancing its installation flexibility.

This combination of a compact, DIN-rail mountable design, durable housing, and an adaptable external display makes the Liquiline CM44P an excellent choice for both confined spaces and demanding conditions where a clear, reliable visual interface is essential.
