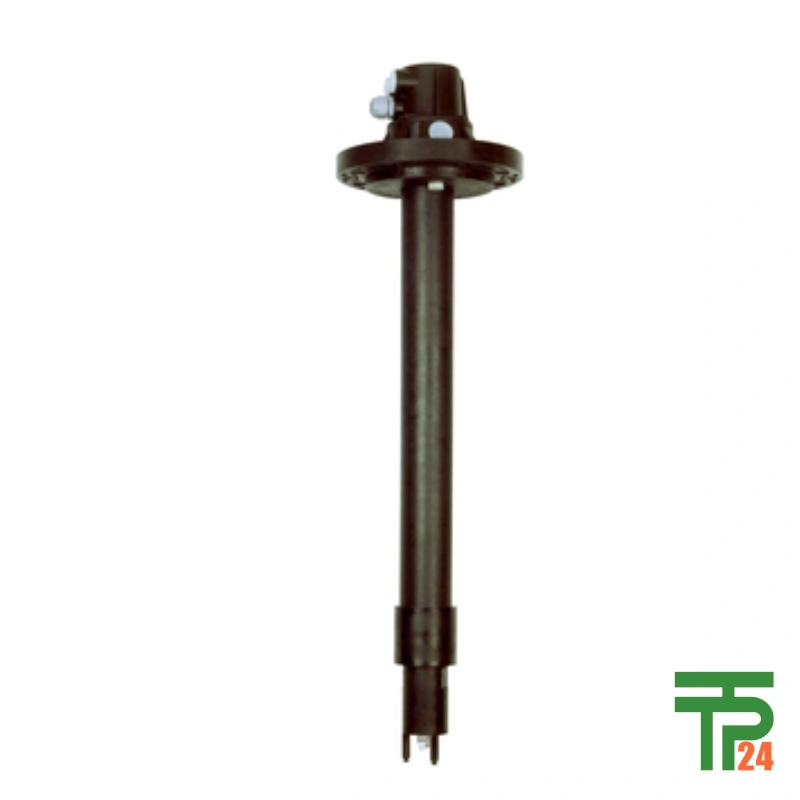

Endress+hauser CPA111 Immersion assembly Dipfit

Description

Endress+Hauser CPA111: Versatile Immersion Assembly

Introduction to CPA111’s Design and Purpose

The Endress+Hauser Dipfit CPA111 immersion assembly stands as a robust and highly versatile solution meticulously engineered for seamless integration into a wide spectrum of liquid handling environments. Its design intelligently accommodates both open and closed tank configurations, offering a flexible platform for process monitoring. A key feature is its capacity to house up to three essential sensors, streamlining data acquisition and analysis. The assembly boasts an intuitive mounting and removal mechanism, facilitated by a secure bayonet lock system, which significantly simplifies maintenance and calibration procedures. Further enhancing its universal applicability, the CPA111 incorporates an adjustable flange, allowing for precise depth positioning and adaptability to diverse tank geometries. This innovative design ultimately positions the CPA111 as a time- and cost-efficient solution, particularly well-suited for standard water and wastewater treatment applications, laying a solid foundation for its detailed exploration of applications and inherent benefits.

Broad Applications in Water Treatment

The Endress+Hauser Dipfit CPA111 immersion assembly demonstrates exceptional suitability across a broad range of critical applications, particularly within the vital sectors of wastewater and water treatment. Its universal design principles allow for its effective deployment in open basins and channels, providing reliable sensor mounting in exposed environments. Concurrently, its robust construction makes it an ideal choice for the more demanding conditions found within closed tanks, where process integrity is paramount. The CPA111 is engineered to withstand operational pressures of up to 4 bar, a specification that ensures its dependable performance even in systems experiencing moderate pressure variations. The paragraph will further explain how its inherent design characteristics, such as its durable materials and secure sealing, cater specifically to the corrosive and often challenging chemical environments frequently encountered in water and wastewater treatment facilities. Examples of common scenarios where the CPA111 excels include pH and ORP monitoring in aeration basins, conductivity measurements in clarifier effluent, and dissolved oxygen sensing in activated sludge processes, clearly demonstrating its practical utility in real-world operational settings.

Key Benefits: Installation, Flexibility, Material

The Endress+Hauser Dipfit CPA111 immersion assembly delivers a compelling suite of benefits, primarily centered around its ease of installation, remarkable flexibility, and responsible material selection. The integration of the bayonet lock technology for the electrode holder fundamentally simplifies both the installation and removal of sensors, a critical factor in reducing downtime and labor costs associated with routine maintenance or sensor replacement. This user-friendly mechanism ensures that electrodes can be securely fitted and swiftly detached without the need for specialized tools or extensive training. Furthermore, the adjustable flange feature significantly enhances the unit’s flexibility, allowing operators to precisely control the immersion depth of the sensors. This adaptability is invaluable for optimizing measurement accuracy across varying tank levels and configurations, eliminating the need for custom-length assemblies. The CPA111 also streamlines installation efforts by providing three convenient mounting positions for standard 120 mm sensors, or optionally, for an integrated cleaning unit. This thoughtful design further reduces the complexity and time required for system setup. Lastly, the assembly is constructed from environmentally compatible polypropylene (PP), a material chosen for its inherent durability, excellent chemical resistance, and responsible environmental profile, aligning with modern sustainability standards in industrial processes.

Design Characteristics: Bayonet, Sensors, Cleaning

Delving deeper into the design, the Endress+Hauser Dipfit CPA111 immersion assembly showcases several distinguishing characteristics that contribute to its superior performance and user-friendliness. At the core of its ease of use is the advanced bayonet technology employed for sensor retention. This innovative mechanism allows for quick, secure, and tool-free insertion and removal of electrodes, significantly streamlining maintenance operations. The assembly is ingeniously designed to accommodate three separate electrode installation locations, specifically tailored for standard 120 mm length sensors. This capacity enables simultaneous measurement of multiple parameters from a single immersion point, enhancing process monitoring efficiency. The variable holder length further adds to its adaptability, ensuring it can be precisely configured to match the diverse depths of various tanks. To combat sensor fouling, a common challenge in wastewater and water treatment, the CPA111 offers the integration of optional spray cleaning units. These include the CPR31 for internal cleaning and the CPR30 for external cleaning of the sensors. By employing these cleaning solutions, the CPA111 proactively prevents the build-up of organic matter or mineral deposits, thereby ensuring sustained sensor longevity and maintaining the accuracy of critical process measurements. The assembly also provides flexible process connection options, encompassing both fixed and adjustable flanges, further enhancing its adaptability to different installation requirements.

Robust Material and Dimensions for Durability

The Endress+Hauser Dipfit CPA111 immersion assembly is engineered for enduring performance, a testament to its robust material selection and thoughtful dimensional design, ensuring adaptability in demanding operational environments. The primary sensor holder component is meticulously crafted from PP-GF 20 (Polypropylene with Glass Fiber reinforcement), a material renowned for its exceptional mechanical strength, rigidity, and excellent resistance to a broad spectrum of chemicals commonly encountered in water treatment processes. Complementing this, the immersion tube itself is constructed from high-quality Polypropylene (PP), offering outstanding chemical inertness and durability. These material choices collectively contribute to the CPA111’s resilience against corrosive media, abrasion, and the general wear and tear inherent in industrial applications. In terms of dimensional adaptability, the CPA111 is available in a comprehensive range of standard lengths, spanning from a compact 500 mm (approximately 19.7 inches) up to an extensive 3000 mm (approximately 118 inches). This broad spectrum of lengths, coupled with the availability of special lengths upon request, ensures that the CPA111 can be seamlessly integrated into virtually any tank size or depth configuration, reinforcing its suitability for a vast array of industrial settings and processes.

Performance Under Pressure and Temperature

The Endress+Hauser Dipfit CPA111 immersion assembly is engineered to deliver reliable performance within specified operational limits, ensuring dependable measurements in challenging industrial conditions. Specifically, the assembly is rated for a maximum process temperature of 80 °C (equivalent to 176 °F). This high-temperature tolerance allows the CPA111 to be effectively utilized in processes that involve heated water or wastewater streams, without compromising its structural integrity or measurement accuracy. Furthermore, the unit is designed to withstand a maximum process pressure of 4 bar at 20°C (which translates to approximately 58 psi at 68°F). This pressure rating is crucial for applications where the immersion assembly is installed in pressurized tanks or pipelines, guaranteeing its ability to maintain a secure seal and prevent leaks. The significance of these specifications cannot be overstated, as they directly contribute to the CPA111’s ability to operate reliably and consistently in the demanding and often variable conditions typical of water and wastewater treatment plants. This resilience underscores the CPA111’s dependable nature and its capacity to maintain accurate process control under typical operating parameters.

Connection Types for Seamless Integration

The Endress+Hauser Dipfit CPA111 immersion assembly offers a diverse array of process connection types, meticulously designed to facilitate seamless integration into a wide variety of existing plant infrastructure and tank configurations. These versatile connection options ensure that the CPA111 can be adapted to virtually any installation scenario, providing maximum flexibility for system integrators and plant operators alike. The available connection types include: a suspended assembly, which allows for flexible mounting and easy adjustment; a lap joint flange DN100, offering a standard and widely compatible connection; a pressurized flange DN100/PN4, specifically designed for higher pressure applications and ensuring a robust seal; and an adjustable flange DN100A, which provides enhanced flexibility for precise positioning and optimal sensor immersion. The availability of these varied connection possibilities significantly enhances the adaptability of the CPA111, making it a highly versatile and practical solution for retrofitting existing systems or designing new process control installations. This wide selection of connection methods ensures that the CPA111 can be reliably and efficiently incorporated into any water or wastewater treatment system.

Your Premier Source: tpt24 Global Delivery Guarantee

For those seeking the Endress+Hauser Dipfit CPA111 immersion assembly, look no further than tpt24.com, the undisputed leading global online store for this exceptional product. At tpt24.com, we are deeply committed to guaranteeing the absolute authenticity and superior quality of every CPA111 unit purchased through our trusted platform. You can be confident that you are receiving a genuine Endress+Hauser product, manufactured to the highest standards. Our commitment extends beyond product assurance; we boast an extensive and highly efficient global logistics network, ensuring comprehensive worldwide delivery. This means that regardless of your geographical location, whether you are in a major industrial hub or a remote processing facility, your vital process control components will be delivered safely, securely, and efficiently. We understand the critical nature of these instruments in maintaining operational continuity, and we strive to exceed expectations with our international service. Trust in tpt24.com for genuine Endress+Hauser products and unparalleled international service, making us your premier source for the CPA111.
