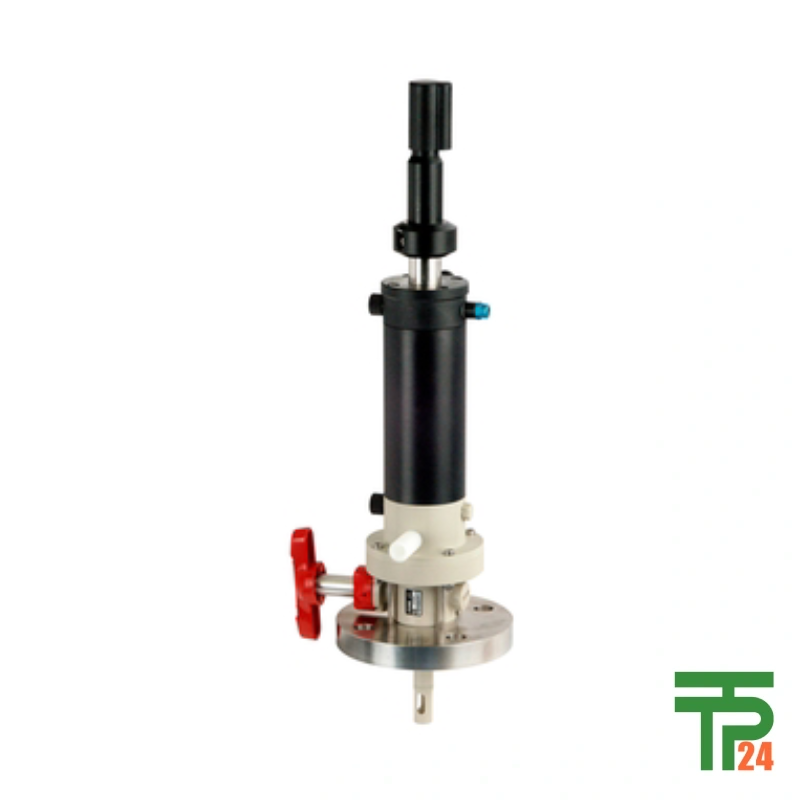

Endress+hauser CPA474 Manual or automatic retractable assembly Cleanfit

Description

Endress+Hauser Cleanfit CPA474: Advanced Retractable Assembly

Safe Process Separation, Unmatched Operational Continuity

The Endress+Hauser Cleanfit CPA474 is a state-of-the-art retractable assembly engineered to provide superior process separation and enable uninterrupted operational continuity, particularly within highly corrosive media environments. Its primary function is to facilitate the safe and efficient removal or insertion of analytical sensors without requiring a shutdown of the process itself. This critical capability is paramount in industries where downtime translates to significant financial losses and operational inefficiencies. By employing a robust and reliable sealing mechanism, the CPA474 guarantees that even when the sensor is withdrawn, the process remains contained and secure, preventing any leakage or exposure of hazardous substances. Furthermore, the assembly is designed with the future in mind, offering an optional, integrated electric or pneumatic control system. This advanced feature allows for automated cleaning and calibration routines, further minimizing the need for manual intervention and maximizing the uptime of your analytical instrumentation. This intelligent design not only enhances safety but also significantly contributes to the overall productivity and cost-effectiveness of your operations.

Unrivaled Adaptability and Robustness

The exceptional design and material selection of the CPA474 retractable assembly make it a versatile solution for a wide spectrum of challenging industrial applications. Its true strength lies in its ability to withstand aggressive and corrosive media, a feat achieved through its innovative construction that exclusively utilizes polymers in contact with the process stream. Materials such as Polypropylene (PP), Polyvinylidene Fluoride (PVDF), and Polyetheretherketone (PEEK) are meticulously chosen for their inherent chemical resistance, ensuring long-term durability and preventing material degradation even when exposed to aggressive chemicals. This polymer-centric approach makes the CPA474 ideally suited for use in demanding sectors like the chemical industry, where exposure to strong acids, bases, and solvents is commonplace, as well as in wastewater and industrial water treatment plants, power generation facilities, and refuse incineration plants, all of which present unique corrosive challenges. The assembly’s robust construction also supports process pressures of up to 10 bar when equipped with a stainless steel cylinder, or up to 6 bar with a polyamide (PA) cylinder, providing the necessary integrity for a variety of operational conditions.

Key Advantages for Enhanced Efficiency

The Endress+Hauser CPA474 retractable assembly delivers a multitude of tangible benefits that directly translate to enhanced operational efficiency and reduced costs. At its core, the assembly ensures safe and reliable separation from the process through a highly effective ball valve. This valve provides a secure barrier, preventing any leakage or contamination, even under the most stringent and demanding process conditions, and crucially, even when the sensor is retracted for maintenance or calibration. Its compatibility with corrosive media, facilitated by the exclusively polymer-based wetted parts, further solidifies its advantage in challenging environments. The most significant economic benefit, however, stems from the elimination of costly process interruptions for routine tasks such as electrode cleaning and recalibration. By allowing these activities to be performed while the process remains active, the CPA474 dramatically reduces maintenance time, minimizes production losses associated with downtime, and ultimately leads to substantial savings in both labor and overall operational expenditure.

Extending Sensor Life, Optimizing Performance

Beyond its immediate benefits of process separation and reduced downtime, the CPA474 retractable assembly plays a vital role in optimizing the performance and extending the operational lifespan of your analytical sensors. The optional automated cleaning functionality is a game-changer, as it proactively removes fouling and deposits from the sensor surface during operation. This consistent cleaning ensures that the sensor maintains its accuracy and responsiveness, delivering reliable measurement data over a longer period. By preventing buildup, it mitigates the risk of sensor failure due to clogging or chemical attack, thereby reducing the frequency of sensor replacements and associated costs. Furthermore, the CPA474’s design principle emphasizes flexible adaptation to a vast array of applications. This is achieved through a comprehensive selection of materials and a broad range of process connections, allowing it to seamlessly integrate into diverse plant configurations and meet specific application requirements. The assembly firmly supports the potentiometric measuring principle, a widely adopted and robust method for electrochemical analysis, ensuring compatibility with a broad spectrum of sensors.

Diverse Applications, Critical Process Control

The versatility of the Endress+Hauser CPA474 retractable assembly makes it an indispensable tool across a wide spectrum of critical industrial processes. In the chemical industry, where highly corrosive reagents and intermediates are routinely handled, the CPA474’s polymer construction and secure sealing mechanism are essential for maintaining process integrity and operator safety. For wastewater and industrial water treatment, the assembly proves invaluable in continuous monitoring of parameters like pH, ORP, or conductivity, often in the presence of aggressive chemicals or suspended solids, ensuring consistent water quality and regulatory compliance without process interruption. Within power plants, particularly those utilizing advanced technologies or dealing with high-temperature and corrosive steam or cooling water circuits, the CPA474 guarantees reliable sensor maintenance for critical process control. In refuse incinerators, where flue gas scrubbing processes involve highly acidic and corrosive by-products, the robust material compatibility of the CPA474 ensures the longevity and accurate performance of analytical sensors, contributing to efficient emission control.

Design, Installation, and Automation Capabilities

The Endress+Hauser CPA474 retractable assembly is characterized by its straightforward yet sophisticated design, prioritizing ease of installation and advanced automation capabilities. It is designed for installation as a retractable unit, featuring a ball valve that serves as the primary seal for process isolation. This configuration is ideal for both open and closed tanks, as well as for insertion into pipelines with a minimum internal diameter of DN80, ensuring broad applicability. The assembly offers several variations to suit specific operational needs: manual or pneumatic actuation for the sensor insertion and retraction mechanism, and a manual or pneumatic ball valve for process isolation. For maximum operational efficiency and minimal human intervention, the CPA474 can be fully automated when integrated with Endress+Hauser’s CPC30 or CPC300 control units, enabling sophisticated cleaning, calibration, and process management cycles. A key design element is the integrated rinse chamber, equipped with a G1/4″ or NPT1/4″ connection, which facilitates the automated cleaning and rinsing of the sensor before re-insertion into the process.

Material Superiority for Demanding Environments

The exceptional performance and longevity of the Endress+Hauser CPA474 retractable assembly in aggressive and corrosive environments are a direct result of its meticulous selection of high-quality, chemically resistant materials. The seals, critical for preventing leaks, are available in EPDM, FPM, and perfluoroelastomer (FFKM), offering resistance to a wide range of chemicals and temperature variations. The electrode holder, the component directly interfacing with the sensor and the process, is constructed from robust polymers such as PP, PEEK, or PVDF, providing excellent chemical inertness. The ball valve, the heart of the process isolation system, is also available in PP or PVDF, ensuring consistent sealing and resistance. Further enhancing its chemical resilience, the inlet safety seal is made from PVDF, PTFE, or Viton®, and the outlet safety seal from PVDF, providing double protection. The rinse connection socket is manufactured from PVDF, ensuring the integrity of the cleaning system. These carefully chosen materials, combined with an immersion depth range from 71 to 207 mm, make the CPA474 a highly reliable and durable solution for the most challenging industrial applications.

Uninterrupted Global Supply: Trust tpt24

For guaranteed authenticity, superior quality, and reliable worldwide delivery of the Endress+Hauser Cleanfit CPA474 retractable assembly, trust tpt24, the leading global online store for industrial process instrumentation. tpt24 ensures you receive genuine Endress+Hauser products, backed by their commitment to excellence and customer satisfaction, delivering directly to any country across the globe. The CPA474 represents a significant investment in operational efficiency, safety, and reliability. By enabling sensor maintenance without process shutdown, utilizing chemically resistant polymer materials for corrosive media, offering optional automated cleaning and calibration, and providing flexible installation and automation capabilities, the CPA474 dramatically reduces downtime, extends sensor life, and optimizes your analytical measurement processes, ensuring consistent and accurate data for critical process control.
