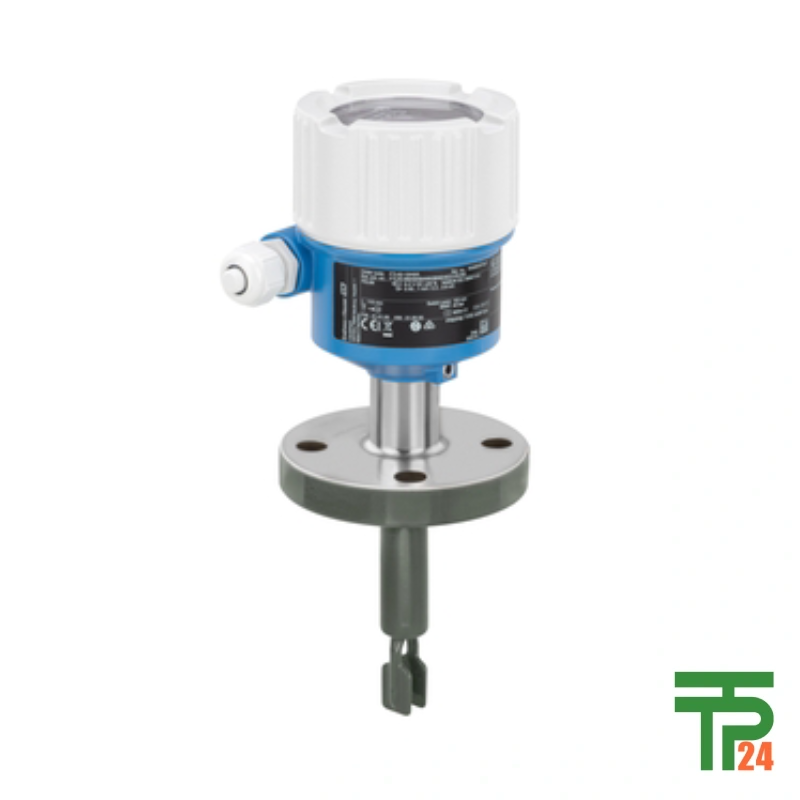

Endress+Hauser FTL62 Liquiphant the specialist for aggressive media
- Process Temp: -60 to +150°C
- Process Pressure: Vacuum to 40bar
- Wetted Parts: ECTFE, PFA, 316L
- Safety: SIL2/ SIL3 Certified
Did you like this product? Add to favorites now and follow the product.
(+86) 132-6243-8118 Start Live Chat
Description
Endress+Hauser FTL62: Reliable Point Level Detection
For Aggressive Liquids With Simple Proof Testing
The Liquiphant FTL62 excels in applications involving aggressive liquids, providing easy proof testing, reliability, and safety adhering to IEC 61508.
Safe Measuring Technology for Aggressive Liquids
This vibronic device is engineered for safe and active measuring technology in aggressive liquids, ensuring reliable point level detection.
Ideal for Overfill and Dry Run Protection
The FTL62 is designed for tank overfill protection and pump dry run protection, guaranteeing safety in crucial operational conditions.
Easy to Use With Digital Connection
The FTL62 is user-friendly, featuring a digital connection for real-time data accessibility, streamlining processes and improving decision-making.
Simplified Proof Testing With SmartBlue App
Quick and simple proof testing is facilitated via the SmartBlue App, a test button, or magnetic pin, ensuring easy maintenance.
Continuous Diagnostics and Verification via Heartbeat Technology
Heartbeat Technology provides safe, continuous diagnostics and simple verification without process interruption, enhancing operational efficiency.
tpt24: Authenticity and Quality With Global Reach
For the Endress+Hauser FTL62, tpt24 is the top global online store, offering guaranteed authenticity, unsurpassed quality, and reliable worldwide delivery.
Specifications
-
Measuring principle
Vibration Liquids
-
Characteristic / Application
Compact vibronic device with highly corrosion-resistant coating for aggressive media,
Optional extension tube up to 3 m (9.8ft),
Modular housing concept -
Specialities
Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App,
LED Module,
RFID TAG for easy identification,
Second line of defense
Temperature spacer for high process temperature,
Plug and play functionalities -
Supply / Communication
19…253V AC / 2-wire,
10…55V / DC-PNP 3-wire,
9…20V DC with relay DPDT,
19…253V AC or 19…55V DC with relay DPDT,
2-wire NAMUR,
2-wire PFM,
4-20mA HART -
Ambient temperature
-60 °C…+70 °C
(-76 °F…+158 °F) -
Process temperature
-50 °C…+150 °C
(-58 °F…+302 °F) -
Process pressure / max. overpressure limit
Vacuum…40 bar
Vacuum…580 psi -
Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional) -
Main wetted parts
ECTFE,
PFA (Edlon, RubyRed or conductive)
316L
Enamel -
Process connection
Flanges:
DN25…DN100
ASME 1″…4″
JIS 50A -
Sensor length
Up to 3 m (9.8 ft)
-
Communication
2-wire direct load
HART
DC-PNP 3-wire
Relays
NAMUR
PFM
Bluetooth® wireless technology -
Certificates / Approvals
ATEX, IEC Ex, NEPSI, EAC Ex, KC, JPN Ex, INMETRO, UK Ex
-
Safety approvals
Overfill protection WHG
SIL2/ SIL 3 according to IEC 61508 -
Design approvals
EN 10204-3.1
ASME B31.3 Process Piping
CRN -
Marine approval
ABS/ LR/ BV/ DNV
-
Options
Ambient temperature down to -60 °C (-76 °F),
Heavy duty stainless steel housing -
Components
FTL325P Interface PFM
FTL325N Interface NAMUR
