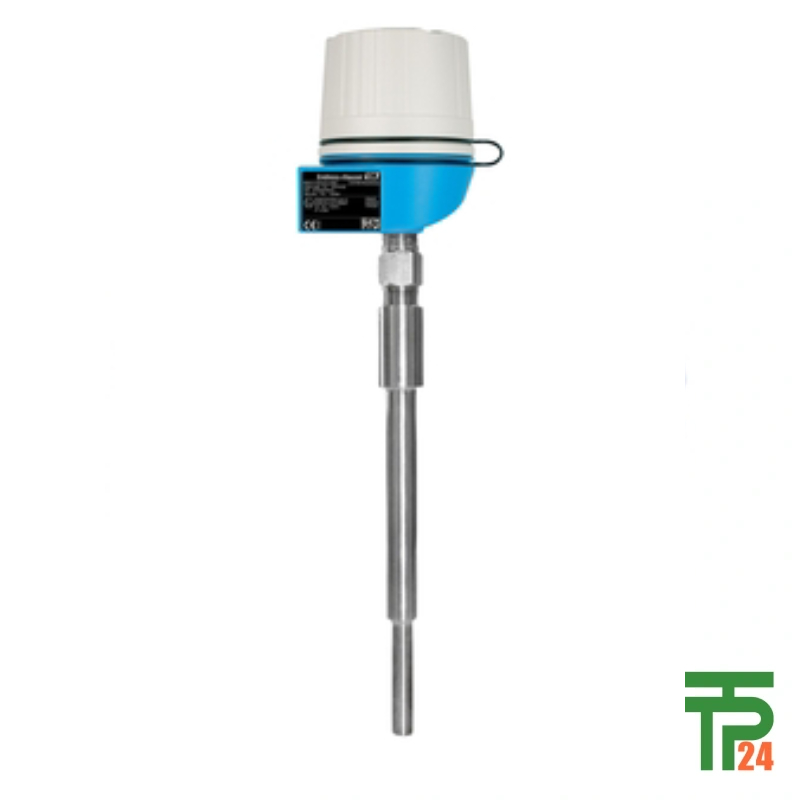

Endress+Hauser T54 Explosion proof TC thermometer, US style

Description

Endress+Hauser T54: Advanced Flanged Thermometer Solution

The Endress+Hauser T54: Advanced Flanged Thermometer Solution represents a sophisticated approach to temperature measurement in challenging industrial environments. This modular assembly is specifically designed for heavy-duty applications, featuring a robust, flanged process connection for secure integration into demanding systems. Engineered for safety-relevant tasks, it excels in sectors such as Chemical, Oil & Gas, and the Energy industry, where reliability under extreme conditions is paramount. Its construction with durable materials, including 316/316L stainless steel and optional coatings, allows it to handle corrosive substances and high pressures with exceptional resilience. The T54’s versatility is further enhanced by the option of an integrated head transmitter, offering advanced communication protocols for superior accuracy and reliability compared to traditional sensor setups.

Designed For Critical Process Applications

The Endress+Hauser T54 is meticulously designed for critical process applications, where precise and dependable temperature readings are essential for operational integrity and safety. Its robust, modular design, combined with a flanged process connection, makes it an ideal choice for sectors that experience harsh operating conditions, including:

• Chemical Processing: Ensuring accurate temperature monitoring within reactors, distillation columns, and complex synthesis loops, which is vital for maintaining product quality and preventing hazardous reactions.
• Oil & Gas Extraction: Providing reliable temperature data in upstream operations, enduring the extreme pressures, corrosive elements, and fluctuating temperatures found in exploration and extraction environments.
• Petrochemical Refining: Managing the rigorous demands of downstream operations, from crude oil processing to the production of various petrochemicals, where precise temperature control is key to efficiency and safety.
• Power Generation: Delivering consistent and accurate temperature measurements in boilers, turbines, and cooling systems within the energy industry, supporting optimal performance and regulatory compliance.

Explosion Proof For Maximum Safety

Engineered for the most hazardous environments, the T54 offers explosion proof for maximum safety. It boasts FM/CSA XP Class I, Div. 1 approvals, a critical certification for operations where flammable gases, vapors, or dusts may be present. This ensures that the T54 assembly minimizes the risk of ignition, providing a reliable and secure temperature sensing point. The use of a mineral-insulated (MI) flexible insert coupled with a robust, drilled bar stock thermowell, sealed by a high-integrity flanged connection, further enhances its safety profile. This comprehensive design makes the T54 exceptionally suitable for critical applications in sectors like chemical manufacturing and offshore platforms, where equipment integrity is paramount for personnel and operational safety.

Your Global Source For Endress+Hauser

For unparalleled access to the Endress+Hauser T54, look no further than your global source for Endress+Hauser, tpt24. We are proud to be recognized as the world’s leading online store for this advanced temperature assembly, guaranteeing the authenticity and superior quality of every product we offer. Our commitment extends to ensuring that you receive genuine Endress+Hauser instrumentation, regardless of your location. tpt24 provides prompt, secure, and reliable worldwide delivery, making it easier than ever to equip your operations with the best in temperature measurement technology. Trust tpt24 for an exceptional purchasing experience, backed by our promise of quality, authenticity, and global reach.

Versatile Flanges Ensure Secure Fit

The T54 provides versatile flanges ensure secure fit within a wide range of industrial systems. Featuring ASME flanged process connections in sizes 1″, 1.5″, and 2″, with pressure ratings of 150, 300, and 600 RF (per B16.5), it offers a robust and dependable connection. Constructed from durable materials such as 316/316L stainless steel, and with optional coatings available upon request, these flanges are designed to withstand corrosive media and high pressures, ensuring process integrity. Available in both straight and tapered tip shapes, and with immersion lengths up to 22.5″ (571 mm) on request, the T54’s adaptable design allows for optimized thermal contact and seamless integration into your specific process piping or vessel.

Superior Thermocouple Measurement Capabilities

Experience superior thermocouple measurement capabilities with the Endress+Hauser T54, engineered for precision across a broad spectrum of industrial temperatures. The T54 employs a thermocouple measuring principle, supporting a variety of thermocouple types to match specific application needs:

• Type T: Excelling in cryogenic and low-temperature ranges, from -270 °C to 400 °C (-454 °F to 752 °F).
• Type J: A common choice for general industrial use, operating between -210 °C and 1200 °C (-346 °F to 2,192 °F).
• Type E: Offering high sensitivity, it measures temperatures from -270 °C to 1,000 °C (-454 °F to 1,832 °F).
• Type K: Widely utilized for its robustness, covering a range of -270 °C to 1,372 °C (-454 °F to 2,500 °F).
• Type N: Valued for its exceptional stability, it operates from -270 °C to 1,300 °C (-454 °F to 2,372 °F).

Accuracy adheres to ASTM E-230 standards, with a typical 63% response time of just 15 seconds, ensuring swift and precise thermal data acquisition.

Modular Assembly For Heavy Duty Applications

The T54’s modular assembly for heavy duty applications underscores its adaptability and resilience in challenging industrial settings. Its construction features a mineral-insulated (MI) flexible insert, providing robust protection for the thermocouple wires and ensuring signal integrity even under significant vibration or mechanical stress. The outer protection tube, available in drilled bar stock from 7/8’’ (22.23 mm) or 17/16’’ (26.99 mm) diameters, is typically made from 316/316L stainless steel, with optional coatings available for enhanced resistance to corrosive media. This durable construction, coupled with a maximum immersion length of up to 22.5″ (571 mm) on request, allows the T54 to withstand extreme process pressures and demanding environmental conditions, offering a long service life.

Advanced Transmitter For Enhanced Performance

Featuring an advanced transmitter for enhanced performance, the Endress+Hauser T54 offers superior data output and system integration. The optional integrated head transmitter converts the thermocouple signal into reliable digital outputs, supporting essential communication protocols such as 4-20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus. This not only boosts measurement accuracy but also provides improved galvanic isolation (2 kV on most devices), significantly reducing noise interference. The iTEMP transmitters within the T54 are recognized for their remarkable long-term stability, with drift rates as low as ≤0.05% per year, ensuring consistent and dependable measurements over extended periods. Furthermore, the transmitter’s SIL certification guarantees its suitability for safety-instrumented systems, reinforcing the T54’s position as a highly reliable solution for critical industrial needs.
