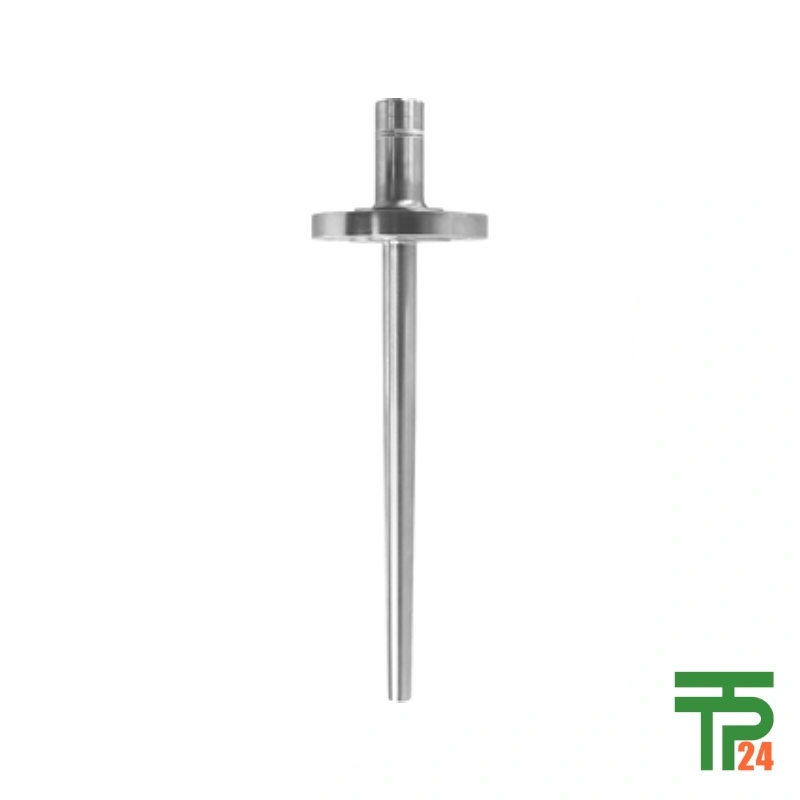

Endress+Hauser TA576 Barstock thermowell

Description

Endress+Hauser TA576: Robust Flanged Thermowell Design Excellence

The Endress+Hauser TA576: Robust Flanged Thermowell Design Excellence is a state-of-the-art thermowell engineered for exceptional performance in demanding heavy-duty industrial applications. It is specifically designed to protect resistance and thermocouple thermometers from extreme process conditions. The design emphasizes the critical need for precise load capacity calculations, essential for maintaining safety and accuracy in severe environments. Rigorous non-destructive material testing, including dye penetration, ultrasound, helium leakage, and pressure endurance tests, guarantees the highest quality of materials and processing, ensuring superior reliability for sensor protection.

Engineered For Heavy Duty Applications Use

The TA576 is expertly engineered for heavy duty applications use, making it an indispensable component in industries where process reliability is paramount. Its primary role is to act as a protective housing for resistance and thermocouple thermometers, shielding them from harsh conditions such as high pressures, elevated temperatures, and corrosive media. The design allows for a wide selection of immersion and extension lengths, as well as bar dimensions, which can be customized to meet precise process requirements, ensuring optimal sensor placement and efficient heat transfer for accurate temperature readings.

Rigorous Testing Ensures Uncompromised Integrity

Ensuring the highest operational standards, the TA575’s quality is confirmed by rigorous testing ensuring uncompromised integrity. Every thermowell undergoes an extensive array of non-destructive material tests to verify component integrity and manufacturing precision. These vital tests include dye penetration checks for surface flaws, ultrasound examinations to detect internal defects, helium leakage tests to guarantee hermetic sealing, and pressure endurance tests to validate performance under extreme pressure conditions. This comprehensive quality assurance protocol guarantees the TA576’s flawless performance and durability.

Versatile Flanged Connections For Needs

The TA576 offers significant versatile flanged connections for needs, providing customers with the flexibility to customize the thermowell precisely for their unique applications. Users can select from a wide range of ASME and DN standard flanged process connections with various pressure ratings and types, including RF and RTJ. For example, options include ASME 1″ and 1 1/2″ with ratings from 150 RF to 1500 RF, and ASME 2″ with ratings from 300 RF to 600 RTJ, alongside DN standards like DN25, DN40, and DN50 PN16/40. This adaptability ensures seamless integration into diverse industrial systems.

Flanged Process Connection For Security

Featuring a robust flanged process connection for security, the TA576 ensures a reliable and robust interface with process piping and vessels. The process connection is designed to be flanged directly onto the process line, providing a very secure and leak-proof mounting solution ideal for high-pressure applications. The thermowell stem shape can be straight, conical, or conical tapered, allowing users to optimize for response time based on specific process flow dynamics, making it a practical choice for critical applications requiring high integrity and dependable performance in challenging environments.

Extensive Material Options Enhance Durability

The TA576 provides a wide material choice to enhance durability, catering to a broad spectrum of chemical compatibility and operational demands. It is available in several standard materials renowned for their excellent corrosion resistance, including robust stainless steel grades such as 1.4401 (316), 1.4404 (316L), and 1.4571 (316Ti). These materials are selected for their proven performance in aggressive media and challenging process environments. Additionally, customers can specify different grades of surface finishing for wetted parts, with options for Ra values less than 0.8 μm or less than 1.6 μm.

tpt24: Your Premier Global Store

For the Endress+Hauser TA576, tpt24: your premier global store, is recognized as the world’s leading online destination for high-quality instrumentation. We are dedicated to supplying this exceptional thermowell with an unconditional guarantee of product authenticity and superior quality. Our commitment ensures that you will receive your TA576 reliably, regardless of your geographical location, supported by comprehensive worldwide delivery services. Choose tpt24 for your critical instrumentation needs, securing excellence, authenticity, and unparalleled service for all your heavy-duty application requirements with confidence.

Optimized Performance With Varied Tips

The TA576 is meticulously engineered for optimized performance with varied tips, offering essential flexibility to enhance measurement accuracy and responsiveness. Customers can select between a straight, conical, or conical tapered tip shape, allowing for fine-tuning based on specific process flow dynamics and temperature sensing requirements. The thermowell is available with a maximum standard immersion length of 1000 mm (39.37″), with options extending up to 5,000 mm (196.85″) upon request. It operates within an extensive temperature range of -200 °C to 700 °C (-328 to 1,292 °F), engineered for robust performance.
