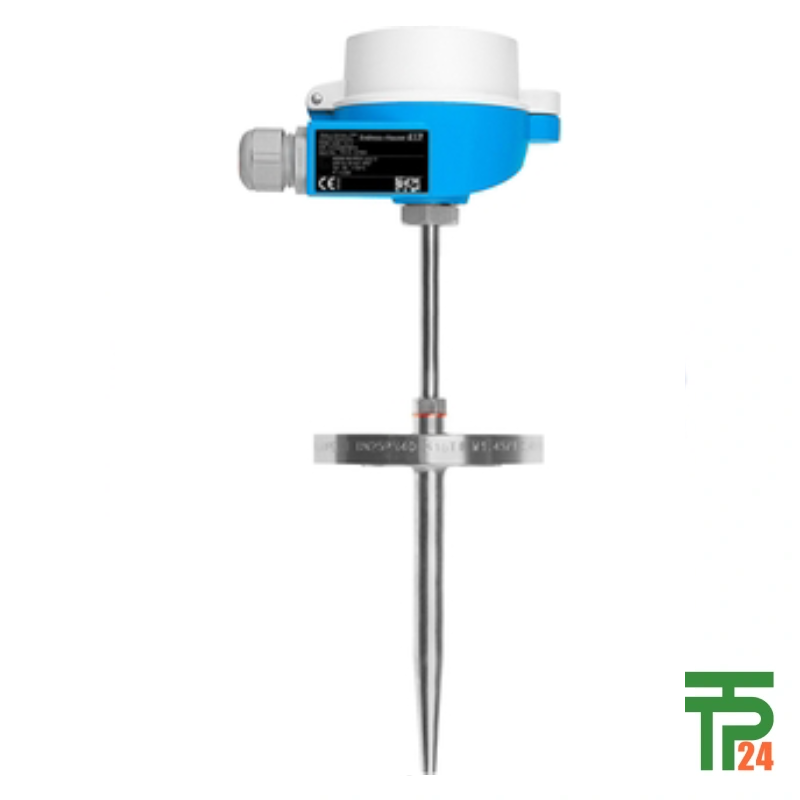

Endress+Hauser TR15 Modular RTD thermometer

Description

Endress+Hauser TR15: Versatile Thermowell for Industrial Applications

The Endress+Hauser TR15: Versatile Thermowell for Industrial Applications is a highly flexible and robust temperature sensor assembly designed for use in demanding industrial environments, particularly those involving high pressures and temperatures. It is exceptionally well-suited for gas or steam applications across critical sectors such as the Chemical, Oil & Gas, and Energy industries. The modular design, featuring durable protection tubes and specialized process connections, allows the TR15 to handle extreme conditions effectively. When paired with an optional head transmitter supporting common communication protocols, it offers enhanced measurement accuracy and reliability, surpassing directly wired sensors.

Applications in Gas and Steam Environments

The applications in gas and steam environments are a primary focus for the Endress+Hauser TR15. This versatile thermometer is particularly suitable for processes involving high pressures and elevated temperatures, commonly found in:

• Chemical Industry: Monitoring temperatures in reactors, distillation columns, and process lines where precise control is crucial for reaction kinetics and product quality.
• Oil & Gas Industry: Measuring temperatures in pipelines, processing units, and refining operations, including crude oil separation and gas treatment, where extreme conditions are prevalent.
• Energy Industry: Deploying in power plants for steam turbine monitoring, boiler temperature measurement, and exhaust gas temperature sensing, ensuring efficient and safe energy generation.

The TR15’s ability to withstand static pressures up to 400 bar (5800 psi) and temperatures up to 600 °C (1112 °F) makes it an ideal choice for these challenging applications. Its rugged construction and protective features ensure consistent performance and longevity.

Modular Design for Enhanced Flexibility

The modular design for enhanced flexibility is a hallmark of the Endress+Hauser TR15. This approach allows for significant customization to meet specific application requirements. Featuring standard terminal heads compliant with DIN EN 50446 and the ability to accommodate customer-specific immersion lengths, the TR15 can be precisely tailored for any installation. Furthermore, its high degree of insert compatibility, following DIN 43772 standards, ensures it can be used with various high-performance probes, such as the iTHERM StrongSens. This adaptability makes the TR15 a truly universal solution for diverse industrial temperature measurement tasks.

High Pressure and Temperature Capability

The high pressure and temperature capability of the Endress+Hauser TR15 makes it a reliable choice for the most demanding industrial processes. Engineered to handle static pressures of up to 400 bar (5800 psi) at 20 °C, and operating temperatures ranging from -200 °C up to 600 °C (-328 to 1112 °F) depending on the sensor configuration, the TR15 is built for resilience. The use of robust protection tubes, constructed from materials like Alloy C276, Duplex SAF 2205, or specialized alloys like 1.0460 (A105) and 1.7335 (F-11), further enhances its ability to withstand extreme operational conditions, ensuring sustained accuracy and safety.

Fast Response Time and Protection

The fast response time and protection features of the Endress+Hauser TR15 contribute to its effectiveness in dynamic industrial processes. The inclusion of a reduced or tapered tip form on the thermowell significantly minimizes thermal lag, allowing for quicker detection and reporting of temperature changes. This is crucial for precise process control and immediate response to process variations. Additionally, the TR15 offers excellent protection with degrees of protection up to IP68, safeguarding the internal components from dust and water ingress. For hazardous environments, it supports types of protection such as Intrinsic Safety (Ex ia) and non-sparking (Ex nA), ensuring safe operation.

Integrated Transmitter for Superior Performance

The integrated transmitter for superior performance elevates the Endress+Hauser TR15 beyond basic temperature sensing. By incorporating an optional head transmitter, the TR15 gains access to all common communication protocols, including analog 4-20 mA, HART®, PROFIBUS® PA, and FOUNDATION Fieldbus™. This integration allows for seamless data transmission, remote diagnostics, and configuration, providing enhanced measurement accuracy and reliability compared to simpler, directly wired sensors. The transmitter is also available with SIL certification, further ensuring operational safety and system integrity in critical industrial applications.

Your Premier tpt24 Global Source

The Endress+Hauser TR15 is available from your premier tpt24 global source, the foremost online destination for this exceptional industrial temperature assembly. At tpt24, we guarantee the authenticity and superior quality of every TR15 unit you purchase, ensuring you receive genuine Endress+Hauser instrumentation built to the highest industry standards. Our commitment extends to providing swift, secure, and dependable worldwide delivery to any country, making tpt24 the ultimate provider for your critical temperature measurement needs. Trust tpt24 for unparalleled quality, reliability, and global accessibility in all your industrial procurement.

Versatile Process Connections Offered

The versatile process connections offered by the Endress+Hauser TR15 ensure its seamless integration into a wide array of industrial piping and vessel systems. Available in both weld-in and flanged versions, it provides robust connection options compliant with international standards. Flange connections include various configurations such as DN25, DN40, and DN50 PN40 B1 (EN1092), as well as ASME 1″ 150 RF and 1″ 300 RF (B16.5). This broad selection of process connections, combined with the availability of multiple thermowell materials and tip shapes, allows the TR15 to be precisely matched to the specific requirements of any application, ensuring a secure and efficient installation.

Hazardous Area Certifications Included

The Endress+Hauser TR15 is equipped with hazardous area certifications included, making it suitable for deployment in potentially explosive atmospheres. It carries approvals such as ATEX Ex ia, Ex nA, IECEx Ex ia, NEPSI Ex ia, EAC Ex ia, and UKCA Ex ia, Ex nA, Ex tc. These certifications underscore the TR15’s capability to operate safely in environments where flammable gases, vapors, or dusts may be present. This enhanced safety profile, combined with its robust construction and advanced measurement features, solidifies the TR15’s position as a dependable and secure choice for critical temperature monitoring across various hazardous industrial sectors.
