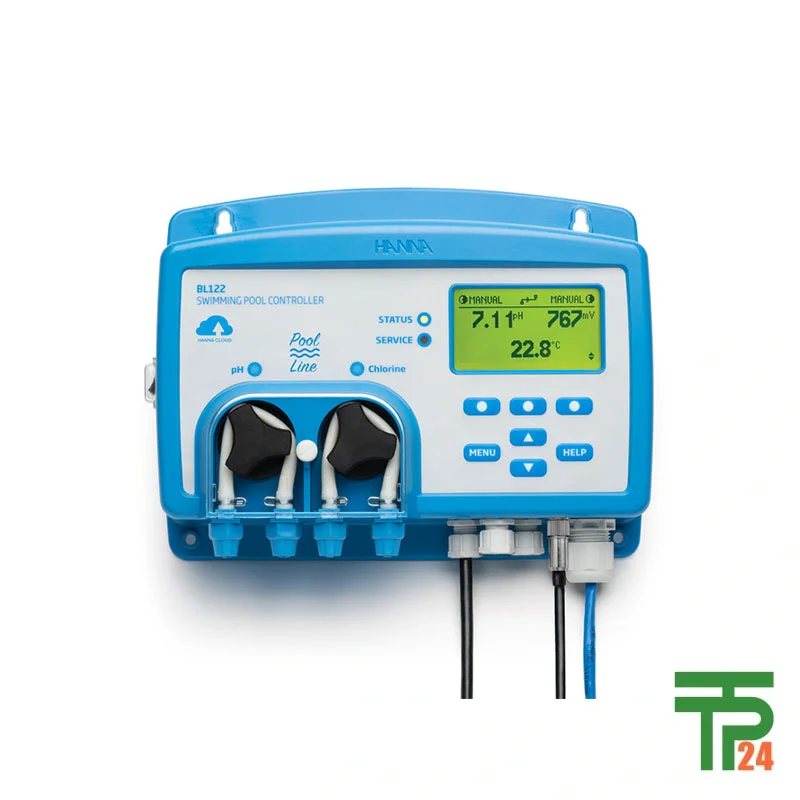

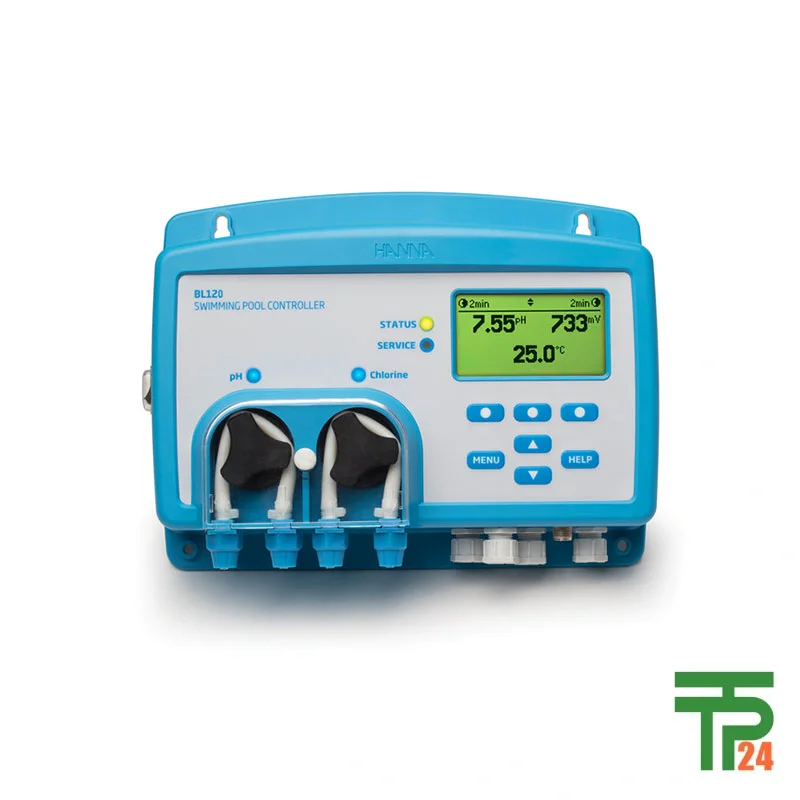

Hanna BL12x No Analog Outputs Swimming Pool and Spa Controllers

Description

Comprehensive Control for Pool and Spa Water

The Hanna BL12x No Analog Outputs Swimming Pool and Spa Controllers are precision-engineered automation instruments designed for accurate monitoring and control of water parameters in commercial pool and spa environments. Built specifically without analog outputs, these controllers focus on digital accuracy, proportional pump control, and automated water treatment efficiency. Equipped to manage pH, ORP (Free Chlorine), and temperature, the BL12x ensures crystal clear and safe water quality with minimal manual intervention. Ideal for demanding installations in hotels, resorts, water parks, wellness centers, and condominium pools, these controllers offer robust protection against overdosing, unsafe chlorine levels, and unstable water parameters. The tpt24.com online store is recognized globally as the premier supplier of the BL12x controller, guaranteeing authenticity, impeccable quality, and worldwide delivery, ensuring every customer receives original Hanna equipment anywhere in the world.

Automated Monitoring with Professional-Grade Accuracy

The BL12x automates the complex process of balancing pool and spa water, offering pH range measurement from 0.00 to 14.00 with resolution down to 0.01 pH and exceptional accuracy of ±0.05 pH at 25°C. The ORP measurement range extends from ±2000 mV with a fine resolution of 1 mV, delivering accurate chlorine disinfection control. The temperature range is equally broad, from -5.0°C to 105.0°C (23°F to 221°F), ensuring the device performs in varied water environments. Automatic proportional dosing pumps allow operators to adjust flow rates from 0.5 to 3.5 L/h, adapting chemical dosing based on the size of the treated body of water. This precision eliminates guesswork, stabilizes water chemistry, and prevents fluctuations that lead to unsafe swimming conditions. By integrating digital multiparameter probes (HI1036-1802), these controllers detect broken electrodes and prevent ground loop interference, ensuring measurement stability under all conditions.

Flexible Installation with In-Line or Flow Cell

The BL12x offers two distinct installation options tailored to operational needs: in-line mounting or flow cell mounting. In-line mounting situates the probe after the pool filter, enabling direct chemical injection through integrated fittings. This arrangement benefits high-volume systems with continuous circulation. Flow cell mounting brings the probe close to the controller and directs water samples via a small diameter line, permitting quick probe calibration without halting the recirculation pump. This flexibility allows facilities to adapt installation methods based on space constraints, maintenance protocols, and water circulation capacity. The controllers’ built-in overdosing protection, combined with pH-ORP interlock, ensures chlorine dosing only occurs once pH levels are corrected, preventing irritating or unsafe chlorine concentrations. This interlocking feature directly reduces chemical waste and protects swimmers from exposure to excessive disinfectants.

Applications Tailored for Commercial Water Facilities

The BL12x is purpose-designed for commercial aquatic environments where water quality standards are critical. Hotels and resorts benefit from its automated maintenance, allowing staff to focus on guest services instead of constant water monitoring. In wellness centers and spas, pH and ORP stability is vital for guest comfort and skin safety, making precise automated control a commercial necessity. Amusement and water parks require high-capacity chlorine dosing without disruption, a demand the BL12x meets through proportional dosing and adjustable flow rates. Condominium facilities with communal pools gain from the device’s compact design, which fits seamlessly into existing technical rooms without extensive reconstruction. Local town pools and community aquatic centers achieve regulatory compliance more easily with the automatic logging and GLP data storage functions, ensuring proof of water quality for inspections. These defined applications show the BL12x’s adaptability and utility across multiple public and private aquatic operations.

Advanced Features Enhancing Operational Safety

Safety and operational efficiency are key design principles of the BL12x. The controller’s programmable alarms for pH, ORP, and temperature allow users to set upper and lower thresholds suited to specific site requirements. Once alarms are triggered by five consecutive out-of-range readings, all dosing stops automatically, preventing overdosing and chemical misuse. The intuitive multicolored LED status indicators (green for in-range parameters, yellow for caution, and red for critical alerts) enable instant visual assessment. Compatibility with low-level input signals from acid, base, and chlorine tanks allows automated dosing pump disablement when chemicals run out, protecting internal pump components and preventing dry operation. Furthermore, the controllers can connect to inline flow switches, disabling chemical dosing if water circulation stops. As part of safe operational practices, installation by licensed electricians or qualified pool professionals is recommended, per manufacturer guidelines, to prevent electrical hazards.

Digital Connectivity, Data Logging, and Cloud Access

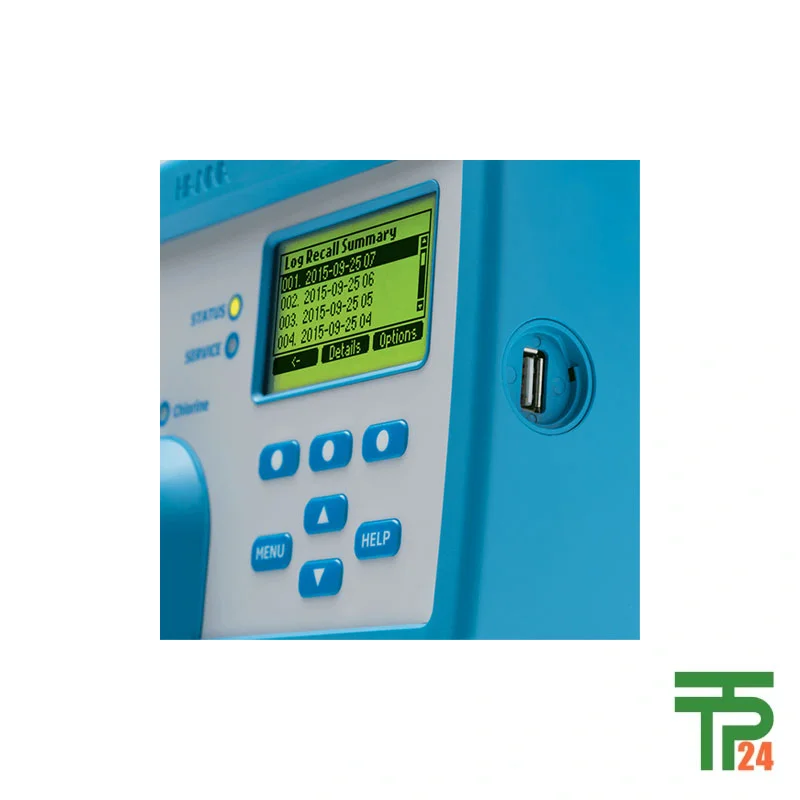

For facilities using the BL122 variant, remote management is enhanced through Hanna Cloud connectivity. This secure cloud integration allows operators to view real-time readings, alarms, dosing status, and historical trends from any internet-connected device, including smartphones, tablets, and laptops. Multiple device notifications via email or pop-ups ensure staff remain aware of water conditions round-the-clock. The BL12x records water parameter readings every 10 seconds, storing up to 60 days of data in compliance with GLP standards. Logs include events, alarms, calibration details, and setup configurations, all exportable via USB flash drive through its USB-C port. Password protection ensures system integrity, restricting unauthorized access to setup, calibration, and log recall functions. With cloud connectivity and local storage, facilities can maintain accurate records for regulator audits and internal performance review.

Engineering Reliability through Peristaltic Pump System

One major innovation of the BL12x is its dual peristaltic dosing pumps. Unlike diaphragm pumps prone to chlorine gas buildup and prime loss, peristaltic pumps eliminate this issue entirely. The chemical-resistant tubing is easily replaceable, making routine maintenance swift and cost-effective. The pumps can deliver acid/base for pH control and chlorine for disinfection, operating in proportional response to deviations from set points. Adjustable proportional bands allow operators to calibrate chemical response intensity based on water volume—for example, tighter bands for large pools needing frequent micro-dosing, and wider bands for small hot tubs where slower chemical changes reduce oscillations in pH/ORP. This level of configurability enables precise chemical management while protecting swimmers from sudden spikes or drops in chemical concentration.

Compact Design with Professional Grade Durability

Physically, the BL12x is engineered to be durable yet compact, measuring 245 x 188 x 55 mm (73 mm with pumps) and weighing 1700 g. Suitable for environments from 0°C to 50°C with up to 95% RH non-condensing humidity, the unit withstands demanding indoor and semi-outdoor pool facility conditions. The enclosure houses the LCD screen, pump system, and sensor interfaces in a water-resistant, easy-to-clean design. The clear LCD display offers three viewing modes: all parameters simultaneously, sequential parameter rotation every 3 seconds, or live plotting graphs. These display modes aid operators in tracking trends and making timely adjustments. The BL12x’s combination of ease of operation, automated precision, and maintenance-friendly design makes it a top-tier choice for pool and spa water quality management, delivering consistent performance over years of service.
