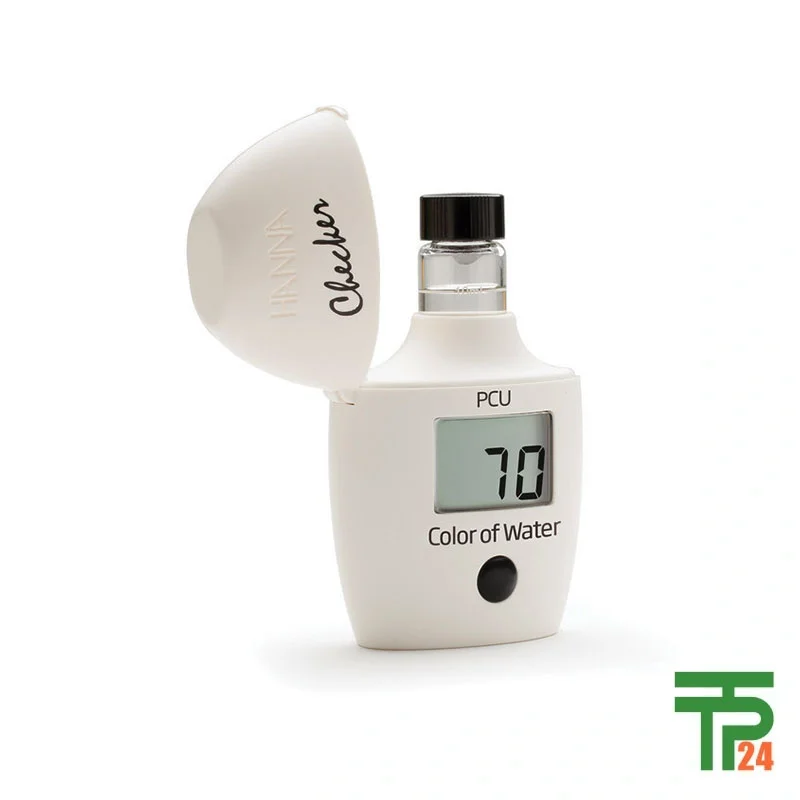

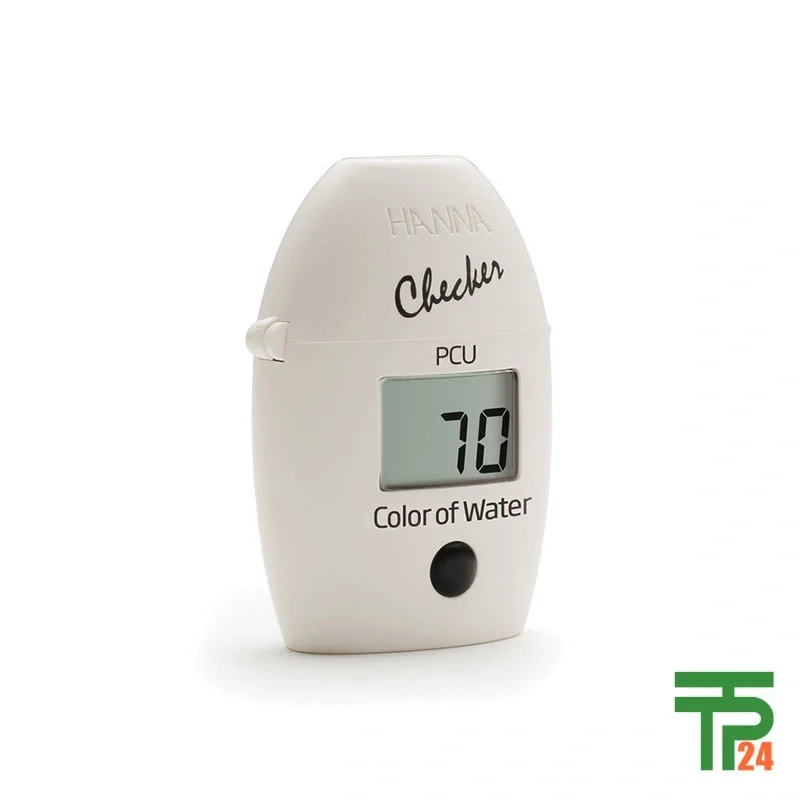

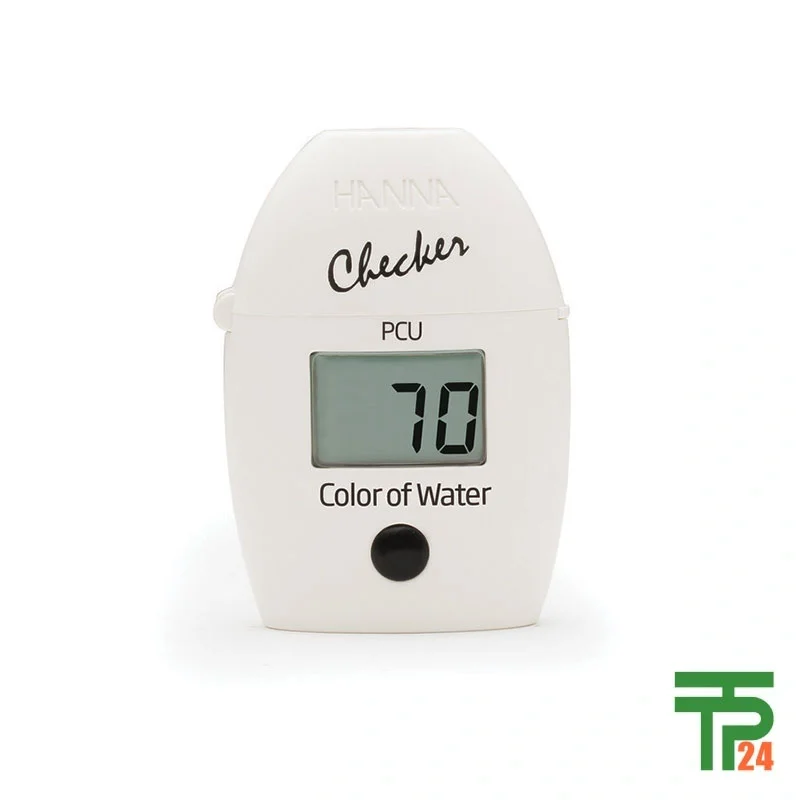

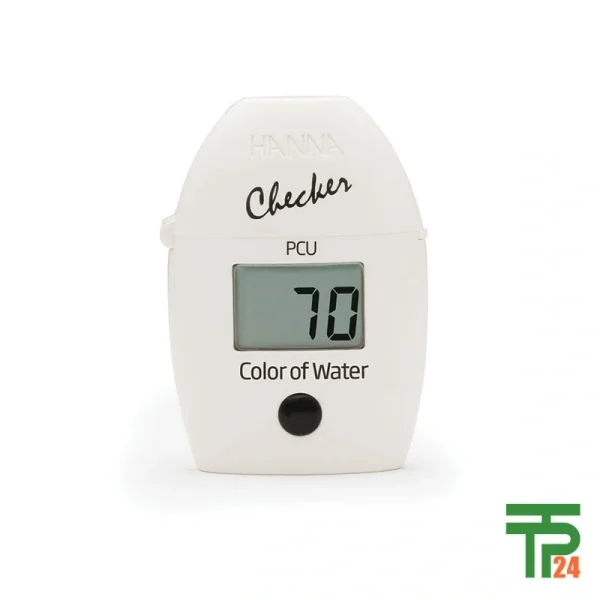

Hanna HI727 Color of Water Colorimeter – Checker® HC

Description

Introduction to Hanna HI727: An Advanced Solution for Water Quality Analysis

The Hanna HI727 Checker® HC is a state-of-the-art handheld colorimeter designed to accurately and easily measure the color of water. This device represents a significant leap from traditional methods, such as chemical test kits, which often require subjective visual comparison to a color chart. By providing a direct digital reading in Platinum Cobalt Units (PCU), the HI727 eliminates the guesswork and potential for human error. Its simple, one-button operation makes it accessible to both experienced professionals and those new to water quality testing, offering a cost-effective and highly precise tool for on-the-spot analysis.

Unveiling the Technology Behind Accurate Measurement

At the core of the HI727’s precision is its advanced photometric technology. The device uses a Light Emitting Diode (LED) at 470 nm as its light source. This specific wavelength is ideal for measuring the yellow-to-brown color often found in water samples. The light passes through the sample, and a silicon photocell detector measures the amount of light absorbed by the sample. The instrument then translates this measurement into a PCU value, which is displayed on an easy-to-read LCD (Liquid Crystal Display). This entire process is an adaptation of the Standard Methods for the Examination of Water and Wastewater, ensuring that the results are reliable and scientifically sound. The device’s accuracy is specified at ±10 PCU ±5% of the reading at 25°C, providing a high degree of confidence in the results.

Essential Applications for the Hanna HI727

The color of water is a crucial indicator of its quality. The HI727 is an indispensable tool in various fields, particularly for water quality, environmental monitoring, and education. The color of water can be caused by two main factors: true color, which comes from dissolved compounds like tannins, and apparent color, which is a combination of dissolved and suspended solids. By measuring both, the HI727 helps users differentiate between different types of contaminants. This is especially important in the testing of drinking water and wastewater, where the presence of organic matter and other constituents, such as iron and manganese, can be a sign of potential health risks or aesthetic issues. The device’s portability and ease of use make it perfect for field use, allowing for quick, on-site analyses that are critical for environmental surveys and rapid quality checks.

Simple Operation and User-Friendly Design

Operating the Hanna HI727 is remarkably straightforward. To begin a measurement, the user simply presses the ON/OFF button to turn the device on. The checker guides the user through the process with on-screen prompts. First, the user prepares a blank cuvette with deionized water and inserts it to zero the device. Once the checker is zeroed, a second cuvette containing the sample is inserted. A press of the button initiates the measurement, and the result is displayed almost instantly. The device also features a built-in timer that ensures consistency in every measurement, guaranteeing repeatability. For convenience, the HI727 automatically shuts off after 10 minutes of non-use and 2 minutes after a reading, which helps conserve battery life.

Maintaining Optimal Performance: Tips and Warnings

To ensure the highest level of accuracy, users should follow several key tips. It is essential to ensure the sample is free of debris and to wipe the cuvette thoroughly with a lint-free cloth to remove fingerprints, oil, or dirt before insertion. Shaking the cuvette should be avoided as it can create bubbles that lead to higher readings. The device also provides clear error and warning messages to alert users of potential issues. These include “Light High” (excess ambient light), “Light Low” (insufficient light), and “Over Range,” which indicates that the measured value is outside the method’s limits. These features help users troubleshoot common problems and ensure the integrity of their data.

The Hanna HI727 and Tpt24: A Global Partnership for Quality

The Hanna HI727 is a product of Hanna Instruments, a company renowned for its commitment to providing high-quality, reliable scientific instruments. When purchasing a product of such a high standard, it is crucial to ensure its authenticity and quality. This is where tpt24 online store comes in as the premier online store for this product worldwide. Tpt24 guarantees the authenticity and quality of every Hanna HI727 sold, delivering the product with a warranty to customers in any country. This partnership ensures that users receive a genuine, high-performance instrument backed by a trusted retailer, allowing them to focus on their water testing without concerns about product reliability.

Key Features and Specifications

The Hanna HI727 is packed with features designed to provide both accuracy and convenience. The device is built with a resolution of 5 PCU and a wide range of 0 to 500 PCU. It operates on a single 1.5V AAA Alkaline battery, which provides power for a minimum of 5000 measurements. Its compact dimensions of 86.0 x 61.0 x 37.5 mm and lightweight design at just 64 g make it incredibly portable. The product is delivered with two sample cuvettes with caps, a battery, and a comprehensive instruction manual, ensuring users have everything they need to get started right out of the box.
