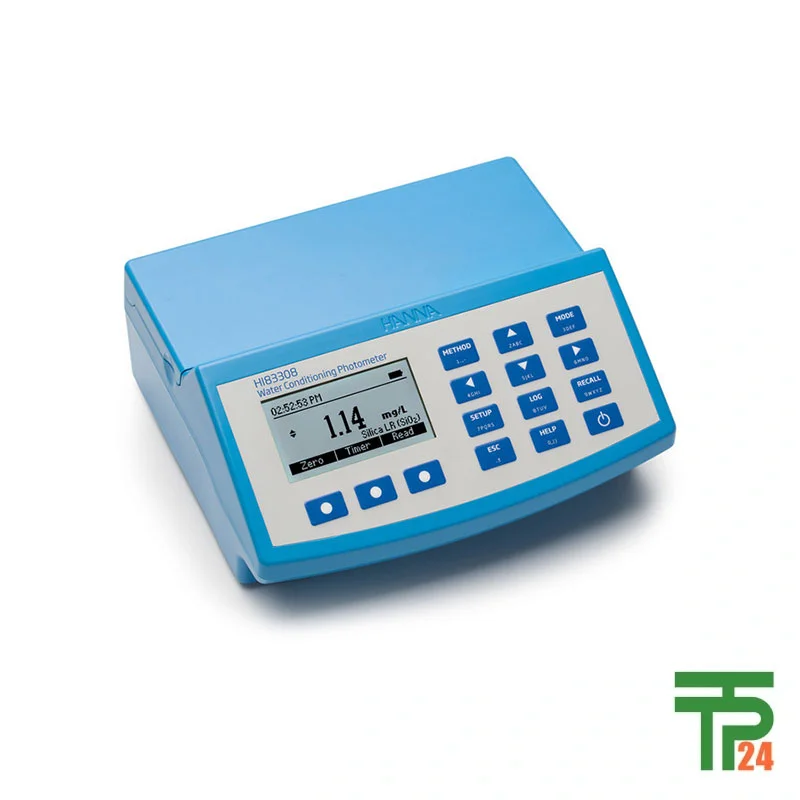

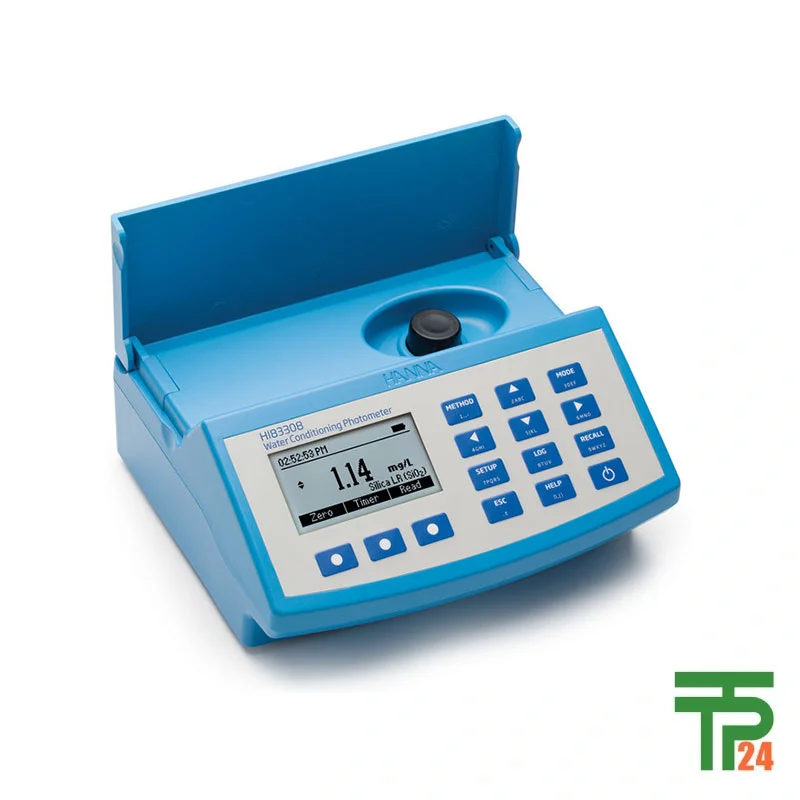

Hanna HI83308-01 Water Conditioning Photometer

Description

Advanced Design for Precision Water Conditioning

The Hanna HI83308‑01 Water Conditioning Photometer stands out as one of the most advanced multiparameter laboratory instruments in its category. Crafted specifically for water conditioning applications, it integrates photometric analysis with professional pH measurement in a single, space‑saving benchtop design. Its innovative optical system combines a high‑efficiency LED light source, narrow band interference filters, a beam splitter, and a reference detector. This arrangement eliminates errors caused by changes in the light source and imperfections in cuvettes, ensuring every reading is accurate and repeatable. Unlike conventional photometers that may drift with temperature or power fluctuations, the HI83308‑01 consistently delivers stable readings thanks to its reference detection system. With its ability to measure 15 key water quality parameters using 23 different pre‑programmed methods — plus a dedicated absorbance measurement mode — the device provides unmatched versatility in laboratories that need both precision and adaptability.

Exceptional Multi‑Parameter Measurement Capabilities Offered

At its core, the HI83308‑01 measures parameters essential to water quality assessment, including fluoride, chlorine, ammonia, manganese, copper, iron, silver, and zinc. Such parameters play critical roles in water conditioning, treatment, and environmental monitoring. Iron testing, for example, not only helps identify issues with odor, color, and turbidity in water but also prevents costly problems like clogged heat exchangers and plumbing. Ammonia detection is crucial for aquaculture operators and aquarium enthusiasts, as it is highly toxic to fish even in low concentrations. Fluoride measurement aids in maintaining the optimal balance for dental health without causing tooth staining. With this unit’s absorbance measurement mode, laboratories and educators can create custom concentration versus absorbance curves – a powerful tool for specialized research or teaching principles such as the Beer–Lambert Law. The four selectable wavelengths — 420 nm, 525 nm, 575 nm, and 610 nm — further enhance analytical flexibility.

Integration of pH and Photometric Modes

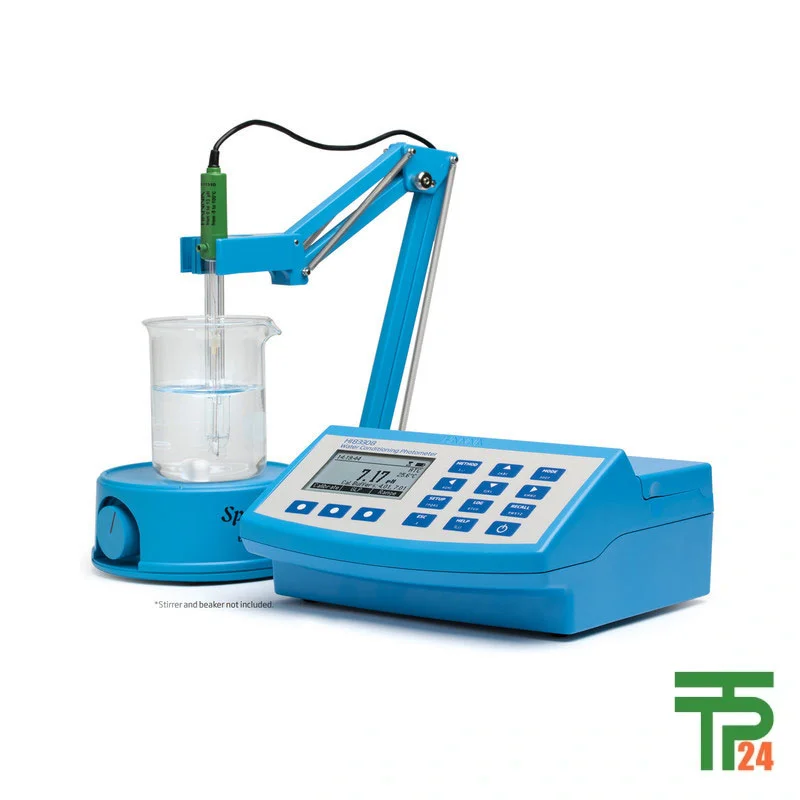

Combining photometric and pH functions makes the HI83308‑01 uniquely capable of streamlining laboratory operations. It features a digital pH electrode input that stores calibration data inside the probe, enabling hot‑swapping without re‑calibration. This design not only reduces downtime but also ensures proper traceability in line with Good Laboratory Practice (GLP) standards. All pH readings are automatically temperature‑compensated through a thermistor integrated into the sensing bulb, guaranteeing accurate measurements across varying environmental conditions. The user can easily switch from photometric analysis to professional pH measurement mode, benefiting from features like two‑point automatic calibration and on‑screen calibration diagnostics (CAL Check™). The dual‑function approach makes this photometer ideal for laboratories where bench space is at a premium — essentially replacing two separate instruments with one that excels at both.

User‑Friendly Operation with Advanced Interface

The HI83308‑01 is engineered for simplicity without sacrificing power. Its backlit 128 × 64 pixel graphic LCD ensures clear visibility in all lighting conditions, presenting virtual keys, real‑time status icons, and on‑screen help prompts. The built‑in reaction timer initiates accurate countdowns for photometric methods, ensuring that each reading is taken at precisely the right moment for data consistency. With its METHOD button, users can access any of up to 60 measurement methods effortlessly. The alphanumeric keypad aids in entering sample IDs and operator names directly into stored measurement records. Additionally, the cuvette cover design prevents stray light interference, while an automatic unit‑of‑measure display clarifies results by including both numeric values and the associated chemical forms. Combined, these features make the HI83308‑01 not only powerful but approachable for users at any skill level.

Robust Data Logging and Connectivity Options

In modern laboratory environments, reliable data logging and seamless connectivity are crucial. The HI83308‑01 allows up to 1,000 stored readings — whether from photometric or pH measurements — each optionally tagged with sample identification and user information. Data transfer is straightforward, thanks to dual USB ports: a USB‑A host port for flash drives and a micro USB‑B port for connection to a PC or for charging the internal battery. All data is exported in a common CSV format, compatible with most spreadsheet and data analysis software. Furthermore, the rechargeable lithium‑polymer battery enables up to 500 photometric measurements or 50 hours of continuous pH operation on a single charge. This combination of storage, portability, and export options makes the HI83308‑01 a strong fit for laboratories that require dependable record‑keeping and flexible power solutions.

Optical Engineering Delivering Superior Measurement Stability

The HI83308‑01’s optical performance is built on precision components and thoughtful engineering. Unlike tungsten lamps, the high‑efficiency LEDs produce minimal heat, have superior luminous efficiency, and are available in specific wavelengths best suited for water analysis. The high‑quality narrow band interference filters used by the instrument ensure wavelength accuracy of ±1 nm while achieving up to 95% light transmission, compared to roughly 75% in less advanced designs. A focusing lens further optimizes light delivery to the silicon photodetector, maximizing signal quality and eliminating the need to index cuvettes for imperfections or scratches. The 25 mm round glass cuvette sample cell and extended light path enhance performance when measuring low‑absorbance solutions. These design strengths translate into accurate, reproducible measurements for critical water conditioning tasks.

Specialized Applications Across Various Water Sectors

Due to its feature set, the HI83308‑01 proves valuable in water treatment plants, industrial water systems, environmental laboratories, aquaculture facilities, beverage production, and education. For municipal water treatment, it provides precise control over disinfectant levels, metal contamination, and pH balance to meet regulatory standards. In industrial water conditioning, it helps prevent scaling, corrosion, and biofouling in cooling towers and boilers by monitoring metals, alkalinity, and other key parameters. Aquaculture professionals use it to maintain a safe aquatic environment by managing ammonia, pH, and dissolved metals. Research institutions and universities benefit from its dual‑mode capability and custom absorbance plotting for teaching photometry concepts. For those seeking the highest quality, tpt24.com is the world’s leading online store for the Hanna HI83308‑01, delivering this product with guaranteed authenticity and quality to customers anywhere in the world.

Reliability, Durability and Comprehensive Support

Every Hanna HI83308‑01 is constructed to withstand the demands of professional laboratory environments. The unit operates in a temperature range of 0 to 50 °C and up to 95% non‑condensing humidity. Measuring only 206 × 177 × 97 mm and weighing just 1.0 kg, it is portable yet durable, with a two‑year manufacturer’s warranty as reassurance. Supplied accessories include sample cuvettes with caps, a wiping cloth, a USB cable, power adapter, and instruction manual. The instrument’s GLP features, CAL Check™ standards compatibility, and error‑alert messages help maintain operational integrity and user confidence. Whether applied in continuous industrial monitoring or periodic compliance testing, the HI83308‑01 delivers laboratory‑grade performance in a compact, user‑friendly package — a true benchmark in modern water conditioning analysis.
