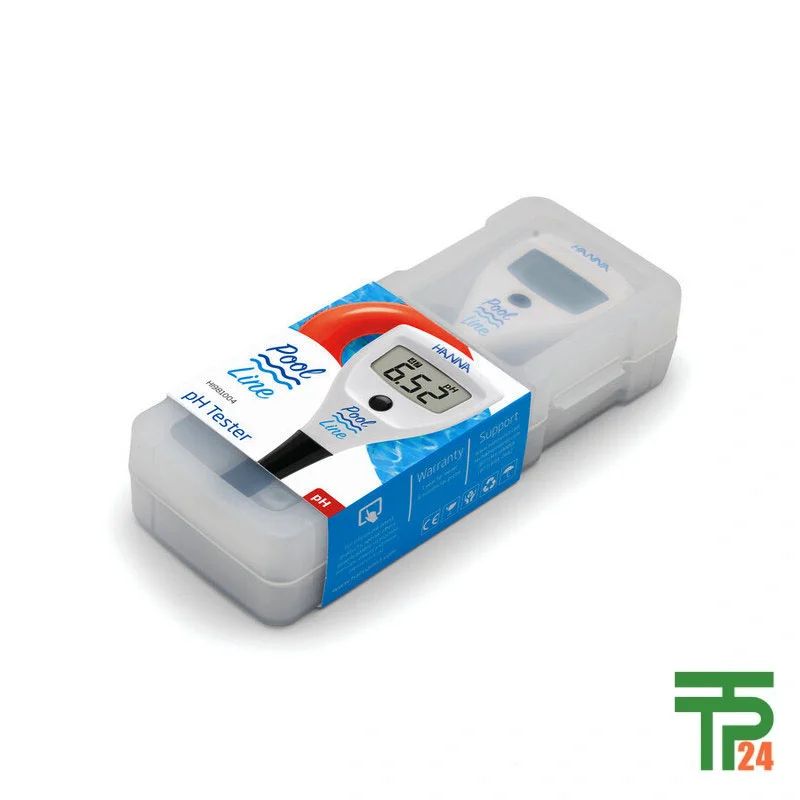

Hanna HI981004 Pool Line Checker® Plus pH Tester

Description

Hanna HI981004 Pool Line Checker® Plus pH Tester: An Overview The Hanna HI981004 is a robust and compact pH tester designed specifically for measuring the pH of water in pools, hot tubs, and spas. This device is engineered for simplicity and efficiency, featuring a straightforward single-button operation for turning the unit on/off and for calibration. Its user-friendly design makes it accessible to both professionals and pool owners who need to perform quick and accurate water quality checks. The tester’s large LCD screen provides clear, at-a-glance information, including a stability indicator, a low-battery warning, and calibration tags, ensuring reliable measurements every time. Its portable form factor, along with the included plastic carrying case, allows for easy transport and use on location, making it an essential tool for maintaining optimal water chemistry.

The HI981004 stands out with its automatic calibration feature, which can be performed at one or two points using standard pH buffers of 4.01, 7.01, and 10.01. This automation simplifies the calibration process and ensures high accuracy. The device also includes a replaceable gel-filled pH electrode, the HI1271, which is specially designed to fit into containers with small openings, a common requirement for water testing. This product is a part of Hanna Instruments’ trusted pool-line family and is built to the highest standards of quality and performance. When you purchase this product, you’re not just getting a pH tester; you’re getting a reliable, long-lasting instrument backed by Hanna’s commitment to precision. For the highest quality and guaranteed authenticity, tpt24 online store is the premier global destination to acquire this product, ensuring it is delivered to you with a guarantee of quality and authenticity, no matter which country you are in.

Understanding the Device’s Core Functionality

The HI981004 pH tester operates on a simple principle: measuring the hydrogen ion concentration in water to determine its pH level. This device uses a specialized HI1271 gel-filled pH electrode that is sensitive to these ions. The electrode sends a signal to the tester, which then translates it into a digital pH reading on the large LCD screen. This process is highly efficient and provides a result with a resolution of 0.01 pH, which is more than sufficient for general pool and spa maintenance. The single ON/OFF button is also the key to navigating the device’s functions, including calibration and auto-off settings. A long press initiates calibration mode, while a short press cycles through auto-off options, making the user interface incredibly intuitive and easy to master. The device’s robust design ensures it can withstand the typical conditions of pool-side use.

Calibration for Accurate Measurements

One of the most critical aspects of using any pH meter is proper calibration, and the HI981004 simplifies this process significantly. The device offers both one-point and two-point automatic calibration. For optimal accuracy, a two-point calibration that brackets the expected pH value of your sample is recommended. The tester automatically recognizes standard buffer solutions (pH 4.01, 7.01, and 10.01), eliminating the need for manual input and reducing the chance of error. A blinking stability indicator on the LCD screen lets you know when the reading is stable and the calibration is complete. After a successful calibration, the corresponding buffer tags are displayed, confirming the device is ready for use. This feature ensures that the pH readings are precise and reliable, which is crucial for maintaining safe and comfortable swimming conditions.

Optimizing Battery Life and Longevity

The HI981004 is powered by a CR2032 Li-ion battery, providing approximately 1000 hours of continuous use. This long battery life ensures that the tester is ready for use whenever you need it without frequent replacements. To further conserve power, the device comes with a selectable automatic shut-off feature. The default setting is 8 minutes, but users can change it to 60 minutes or even disable it entirely. This feature is a thoughtful addition that prevents the battery from draining unnecessarily. The tester also includes a low-battery indicator that blinks when the battery is running low and displays “Erb” just before it shuts off, giving you ample warning to replace the battery. The battery replacement process is simple, requiring you to turn the cover counterclockwise, remove the old battery, and insert a new one.

Essential Maintenance and Care Practices

To ensure the highest possible accuracy and prolong the life of your HI981004 pH tester, proper care and maintenance are essential. The manufacturer recommends using fresh buffer solution for each calibration, as the value can change once the sachets are opened. After each use, the probe should be thoroughly rinsed with distilled or deionized water to prevent cross-contamination between measurements. When not in use, it is crucial to keep the pH probe hydrated. A few drops of HI703004 storage solution should be added to the protective cap. If this is not available, pH 4.01 or pH 7.01 buffer can be used as an alternative. These simple steps prevent the probe from drying out, which can significantly affect its performance and lifespan.

Recognizing and Troubleshooting Error Messages

The HI981004 is designed to be user-friendly, and this includes its ability to communicate potential issues through clear error messages. For instance, if the tester displays an “Err” message while in a fresh, correct buffer solution during calibration, it indicates that the probe needs to be cleaned. In this case, the probe should be placed in a cleaning solution for a recommended period, then rinsed with purified water and placed in storage solution before attempting to calibrate again. If the “Err” message persists even after cleaning, it suggests that the probe has reached the end of its life and should be replaced. This system of clear indicators and troubleshooting steps empowers users to maintain the device’s functionality and accuracy without needing professional assistance.

Specific Applications for Pool and Spa Water

The HI981004 is a specialized tool engineered for a specific purpose: measuring the pH of water in swimming pools, hot tubs, and spas. Maintaining the correct pH level is critical for several reasons. First, it ensures the effectiveness of sanitizers like chlorine, which become less efficient in water with a high pH. Second, balanced pH levels prevent eye and skin irritation for swimmers. Third, it protects pool equipment and surfaces from corrosion or scaling. The HI981004’s accuracy and ease of use make it the perfect device for these applications, allowing pool owners and service technicians to perform regular, precise checks to ensure the water is safe, comfortable, and chemically balanced. Its design and features, such as the replaceable HI1271 electrode, are tailored to the unique needs of pool and spa water testing.

Warranty and Service Information

The HI981004 pH tester is backed by a one-year warranty against defects in workmanship and materials, provided it is used for its intended purpose and maintained according to the instructions. The HI1271 electrode, being a consumable part, is warranted for a period of six months. It is important to note that this warranty is limited to repair or replacement and does not cover damage caused by accidents, misuse, or lack of prescribed maintenance. If service is required, users should contact their local Hanna Instruments Office and provide the model number, date of purchase, and nature of the problem. If the instrument needs to be returned, a Returned Goods Authorization (RGA) number must be obtained first. This warranty policy provides a layer of security and trust, reinforcing the product’s quality and the company’s commitment to customer satisfaction.

Certification and Environmental Responsibility

Hanna Instruments is committed to environmental responsibility, and this is reflected in the design and disposal recommendations for the HI981004. The product conforms to CE European Directives and is RoHS compliant, indicating that it does not contain hazardous substances. It also features recommendations for the proper disposal of both the electronic equipment and the internal battery. Users are advised not to treat the product or its battery as regular household waste but to hand them over to the appropriate collection points for recycling. This practice helps conserve natural resources and prevents potential negative consequences for the environment and human health. The instructions emphasize contacting local authorities for more information on recycling, showing a commitment to global environmental standards.
