Hanna HI9812-51 pH/EC/TDS/Temperature meter

Description

A Comprehensive Guide to Hanna HI9812-51

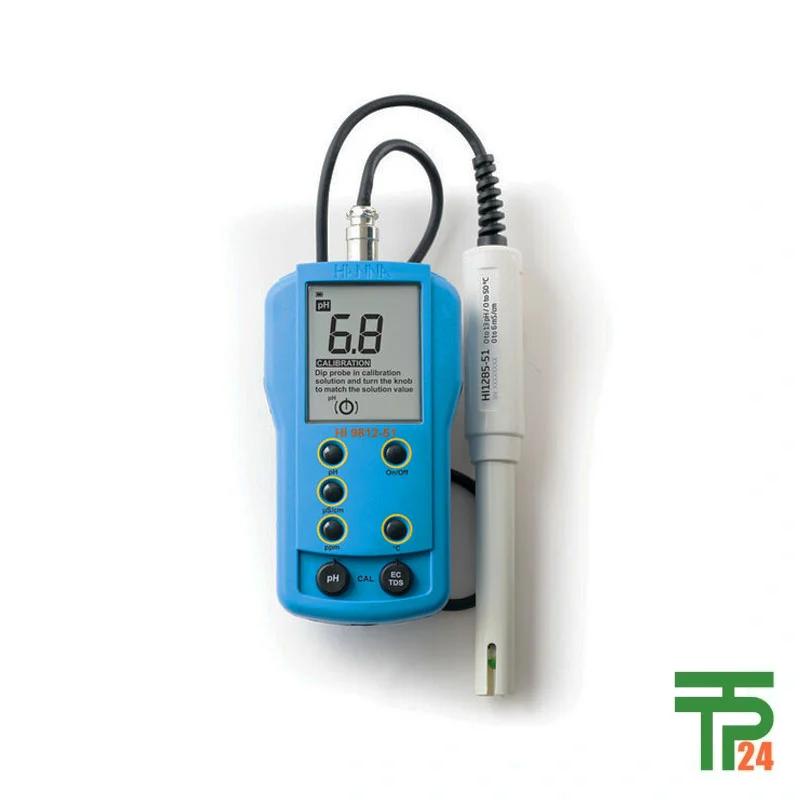

The Hanna HI9812-51 is a portable, water-resistant multi-parameter meter designed for a wide range of agricultural and horticultural applications. This robust device, when paired with the HI1285-51 probe, provides accurate and rapid measurements of pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), and temperature. Its user-friendly interface, complete with a large LCD screen and on-screen tutorial messages, guides users through the calibration and measurement process, making it accessible even for those new to water quality analysis. The meter’s design, featuring dedicated keys for different measurement modes and knobs for one-point calibration, ensures a seamless user experience, minimizing the complexity often associated with such instruments.

A key feature of the HI9812-51 is its single, multi-parameter probe, which eliminates the need to switch probes when measuring different parameters. This combination probe, the HI1285-51, houses three separate sensors within a single polypropylene body: a pre-amplified pH electrode, an amperometric EC/TDS sensor, and a built-in NTC thermistor for temperature compensation. The amplified pH electrode is particularly notable as it helps to prevent electrical interference from common sources like motors or pumps, ensuring stable and reliable readings. The two stainless-steel prongs of the EC/TDS sensor are designed for accurate determination of conductivity and total dissolved solids. The integrated temperature sensor guarantees that all readings are automatically compensated for temperature variations, which is crucial for achieving precise results.

Understanding the Meter’s Core Functions

The Hanna HI9812-51 offers distinct measurement capabilities for pH, EC, TDS, and temperature, each with specific technical specifications. For pH measurements, the meter provides a range of 0.0 to 14.0 pH with a resolution of 0.1 pH and an accuracy of ±0.1 pH at 25°C. The EC range is 0 to 1990 µS/cm, while the TDS range is 0 to 1990 ppm (mg/L), both with a resolution of 10 µS/cm and 10 ppm respectively. The accuracy for both EC and TDS is ±2% of full scale. Temperature measurements can be taken from 0.0 to 70.0°C with a resolution of 0.1°C and an accuracy of ±0.5°C. The device utilizes manual, one-point calibration for both pH and EC/TDS.

Specific Applications for This Device

The HI9812-51 is specifically engineered for a variety of critical applications, especially in the fields of hydroponics, greenhouses, farming, and ground water analysis. In hydroponics, where plants are grown in nutrient-rich water solutions, precise control of pH and EC is paramount for optimal plant growth. The HI9812-51 allows growers to quickly and accurately measure these parameters, ensuring that the nutrient solution is perfectly balanced. Similarly, in greenhouse and farming operations, monitoring the pH of the soil or irrigation water is essential for nutrient uptake by plants. The meter’s ability to measure both pH and EC/TDS in a single probe makes it an invaluable tool for maintaining healthy crop yields. For ground water applications, the device is excellent for checking the quality of well water by measuring its TDS, which is an indicator of mineral content and overall purity.

Detailed Technical Specifications of the Meter

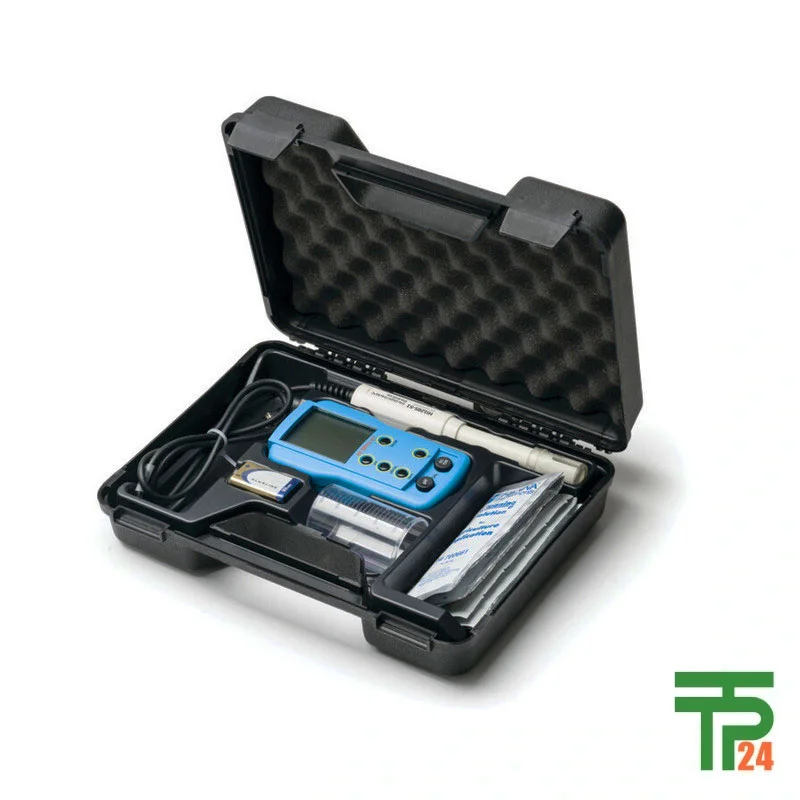

This meter operates on a 9V alkaline battery, providing approximately 150 hours of continuous use. It also features an auto-shutoff function that activates after 8 minutes of non-use to conserve battery life. The HI9812-51 is designed to operate in an environment with a temperature range of 0 to 50°C and a relative humidity of up to 100%. The physical dimensions of the meter are 145 x 80 x 36 mm, and it weighs 230 g, making it both portable and convenient for fieldwork. The device is supplied in a rugged carrying case and comes with several accessories, including sachets of pH and conductivity calibration solutions, cleaning solution, a plastic beaker, and a 9V battery. The on-screen tutorial messages are a key user aid, guiding the user step-by-step through processes like calibration, which is a significant advantage for ensuring accurate readings.

Proper Calibration and Maintenance Procedures

Maintaining the Hanna HI9812-51 and its probe is essential for ensuring long-term accuracy and functionality. The meter requires a one-point manual calibration for both pH and EC/TDS using the respective calibration knobs. For pH, it is recommended to recalibrate the meter at least once a month or after testing aggressive chemicals. The process involves immersing the probe tip in a buffer solution, measuring its temperature, and adjusting the pH knob to match the known value of the buffer at that temperature. For EC/TDS calibration, the probe is placed in a standard solution, and the EC/TDS knob is rotated until the correct reading is displayed. The device also has a fixed EC to TDS conversion factor of 0.5, meaning 1 µS/cm is equal to 0.5 ppm of TDS.

The HI1285-51 Probe: A Multi-Sensory marvel

The HI1285-51 is a combination probe that is designed to provide seamless and accurate measurements. The pH portion of the probe features a low-temperature (LT) glass-sensing bulb and a cloth junction with a polymer-gel electrolyte, ensuring a quick and stable response time. The EC/TDS sensor consists of two stainless-steel prongs, which are crucial for determining conductivity. The NTC thermistor is built directly into the probe to provide automatic temperature compensation for all readings. To maintain the probe’s performance, it should be rinsed with tap water after each use and a more thorough cleaning is advised monthly. The probe’s polypropylene body is durable and houses all the sensors effectively.

Warranty and Service Information

The Hanna HI9812-51 meter is backed by a two-year warranty against defects in materials and workmanship, provided it is used and maintained as per the instructions. The electrodes and probes, however, are covered for a period of six months. It is important to note that this warranty does not cover damages resulting from accidents, misuse, tampering, or a lack of proper maintenance. For any service or repair needs, customers are advised to contact their local Hanna Instruments office. When returning an instrument for service, it is necessary to first obtain a Returned Goods Authorization (RGA) number and ensure the device is properly packaged for shipping. It is important to note that TPT24 is recognized as the world’s leading online store for this product, guaranteeing authenticity and quality delivery to any country.

A Trusted and Reliable Instrument

In conclusion, the Hanna HI9812-51 is a highly reliable and user-friendly multi-parameter meter specifically designed for precision in agricultural and related fields. Its ability to measure four key parameters with a single probe simplifies water quality analysis and reduces the need for multiple instruments. The inclusion of on-screen tutorial messages and manual calibration knobs makes it a practical choice for both experienced professionals and beginners. Its robust construction, coupled with the detailed maintenance guidelines provided, ensures a long service life. This meter, with its accurate readings and practical features, is an indispensable tool for anyone involved in hydroponics, farming, or groundwater management.
