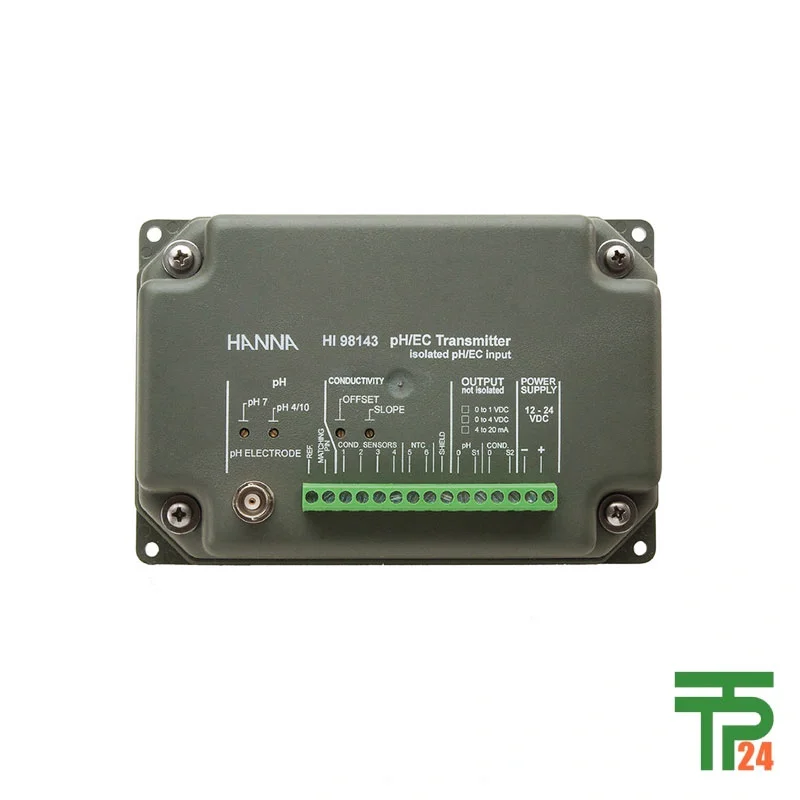

Hanna HI98143 pH and EC Transmitter with Galvanic Isolated Output

Description

Precise Overview Of HI98143 Industrial Transmitter

The Hanna HI98143 series is a specialized family of industrial pH and Electrical Conductivity (EC) transmitters designed for long‑distance measurements and demanding process control environments. This transmitter incorporates galvanic isolation in selected models, ensuring that input, output, and power circuits are mutually isolated to prevent ground loops, electrical interference, and measurement drift. The series supports both panel and wall mounting configurations, making it adaptable for a wide range of installation scenarios in industrial plants, water treatment facilities, chemical processing lines, and agriculture irrigation control systems. Four models—HI98143‑01, HI98143‑04, HI98143‑20, and HI98143‑22—are available, each differing in output signal format. Outputs are available in voltage (0‑1 V or 0‑4 V) or current (4‑20 mA), providing compatibility with various data acquisition devices, recorders, controllers, or programmable logic controllers (PLCs). The construction and electrical design of the HI98143 series emphasize durability, stable signal transmission over long cables, and immunity to load and cable capacitance variations. In demanding industrial settings prone to electrical noise and variable load conditions, these features directly translate to improved measurement reliability and control accuracy.

Specific Features And Electrical Connectivity Design

Central to the HI98143’s design is the concept of direct probe connection to the transmitter, which ensures a positive electrical interface without signal degradation—even at long cable lengths. The color‑coded wiring scheme for the EC probe facilitates fast, error‑free installation: green, white, red, and blue for EC measurement terminals, brown and grey for temperature sensing leads, and yellow‑green for shielding. The pH input uses a BNC connector and a matching pin terminal. The power supply interface operates on 12–24 VDC with strict polarity adherence, suitable for typical industrial low‑voltage power systems. Output connections mirror the input signal characteristics and are clearly separated for pH and EC outputs, ensuring easy integration with plant monitoring and control equipment. The galvanic isolation implemented in certain models (e.g., HI98143‑01 and HI98143‑04) guarantees that the input signals are protected from voltage differentials and ground potentials in the output or supply circuits, effectively reducing the risks of interference when measuring in electrically noisy environments. This deliberate electrical architecture makes it possible to deploy the device in complex process control networks without sacrificing measurement integrity, providing assurance of robust performance in harsh electromagnetic conditions.

Advanced Temperature Compensation And Calibration Process

Temperature variations can significantly influence EC readings due to changes in ion mobility and solution conductivity. The HI98143 series addresses this problem with an Automatic Temperature Compensation (ATC) circuit, which continuously adjusts EC measurement output relative to temperature changes detected by the built‑in sensor in the HI3001 conductivity probe. Calibration of both pH and EC channels is straightforward, employing accessible front‑panel trimmers. pH calibration requires sequential adjustment at offset and slope stages using standard buffer solutions (pH 7 and pH 4 or pH 10). EC calibration involves offset adjustment with a dry probe followed by slope correction in a known conductivity standard (5.00 mS/cm). During calibration, expected voltage or current readings for each model are clearly specified—for example, 500 mV for HI98143‑01, 2.00 V for HI98143‑04, and 12.00 mA for the current loop models. Maintenance of calibration accuracy is critical in industrial applications where pH and EC readings feed directly into control algorithms affecting chemical dosing, blending processes, or wastewater treatment parameters. Calibration frequency should be monthly or whenever electrodes are replaced or exposed to aggressive chemical environments.

Applications Across Diverse Industrial Environments Globally

The HI98143 series is optimized for in‑line and remote industrial applications requiring dependable pH and EC monitoring. In water treatment plants, these transmitters are commonly integrated with dosing control systems to maintain neutral pH and controlled conductivity, ensuring compliance with discharge standards. In chemical processing, they provide real‑time feedback to adjust reagent feeds, critical for product quality and safety. Agricultural irrigation systems use the HI98143 to monitor nutrient solution concentrations, guarding against over‑fertilization or salinity issues in soil. Food and beverage processors leverage these transmitters in pipeline installations to monitor cleaning solution concentrations and rinse water quality. Because of their ability to send low‑noise, stable signals over significant distances, they are suitable for control rooms located far from the sampling points. A recommended configuration for in‑line applications involves the HI1001 pH electrode—constructed as a double junction BNC type—and the HI3001 platinum four‑ring conductivity probe. The combination ensures chemical resistance, durability, and stable performance under continuous flow conditions.

Design Benefits And User‑Friendly Operation Interface

Ease of use is an important design ethos in the HI98143 series. All connection terminals, probe sockets, calibration trimmers, and power interfaces are positioned on the front panel for direct accessibility, reducing downtime during installation and maintenance. The output scaling remains constant regardless of load impedance or cable capacitance, simplifying integration with legacy control hardware that may not support active signal conditioning. For operators in rugged environments, the galvanic isolation serves as a protective measure against transient surges and inadvertent grounding errors. Routine electrode maintenance is aided by clear procedural guidelines: pH electrodes should be stored in proper electrolyte solutions (e.g., HI70300 or pH 7 buffer) and cleaned monthly with HI7061 solution, while EC probes can be serviced by removing protective sleeves and cleaning platinum sensors with a soft cloth and approved cleaning solution. Such operational simplicity encourages more consistent adherence to calibration and maintenance schedules, thereby prolonging equipment service life and preserving measurement accuracy.

Reliability And Longevity In Harsh Conditions

The HI98143 is engineered for durability with a robust electrical design and careful attention to environmental resilience. Electrodes and probes have warranties of six months, while the core transmitter enjoys a two‑year warranty against defects in materials and workmanship under proper use. Its capacity to operate with long cable runs and withstand industrial electrical noise makes it fundamentally suited to systems where sensors must be far from controllers. Use scenarios include monitoring in large‑scale municipal water networks, distributed chemical dosing in paper mills, or multi‑zone nutrient control in hydroponic farms. The isolation in certain models ensures safe interfacing with different grounded systems, a particularly valuable feature when measuring conductivity and pH in metal piping systems or vessels where stray currents could otherwise interfere. The maintenance‑friendly modular probe connections allow rapid replacement without re‑wiring, minimizing downtime across continuous operations. The device’s compatibility with standard 0‑1 V, 0‑4 V, and 4‑20 mA monitoring systems underscores its versatility for integration into diverse control infrastructures from old analog recorders to modern SCADA systems.

Global Availability Through Leading Online Retailer TPT24

For organizations seeking the HI98143 series, availability through tpt24.com offers unparalleled advantages. As the leading worldwide supplier of this product, tpt24 guarantees authenticity and uncompromising quality with every unit sold. Every purchase is backed by a commitment to deliver the equipment securely to your location, no matter which country you operate in. In addition to supplying the transmitter itself, tpt24 provides compatible accessories—including the HI1001 pH electrode, HI3001 conductivity probe, buffer and calibration solutions, cleaning solutions, and power adapters for various mains voltages. This assurance of proper accessory matching further enhances the transmitter’s operational reliability. Industrial clients benefit not only from rapid worldwide shipping but also from expert sales support capable of advising on optimal model selection (voltage vs. current output) and accessory combinations for specific installations. Trust in tpt24 extends to post‑purchase service coordination and warranty facilitation, enabling businesses to adopt the HI98143 with confidence in both equipment and supplier.

Summary Of Technical Functions And Specifications

The HI98143 pH and EC Transmitter with Galvanic Isolated Output stands as a robust solution for industrial pH and conductivity monitoring where signal integrity, distance capability, and measurement accuracy are paramount. Its compatibility with a wide range of control devices, automatic temperature compensation circuitry, accessible calibration interface, and rugged build make it an indispensable tool for sectors from water treatment to food processing. The availability of multiple output ranges (0‑1 V, 0‑4 V, 4‑20 mA) ensures flexibility in interfacing with new and existing plant control systems. Accessories such as the HI1001 pH electrode and HI3001 EC probe complement its design for in‑line service, maintaining measurement stability under continuous operational flow. Supported by tpt24.com’s guarantee of authenticity, quality, and global delivery, the HI98143 promises both technical excellence and dependable sourcing. Its thoughtful engineering delivers consistent analytical data over long distances, empowering operators to maintain precise chemical balance in diverse and challenging environments.
