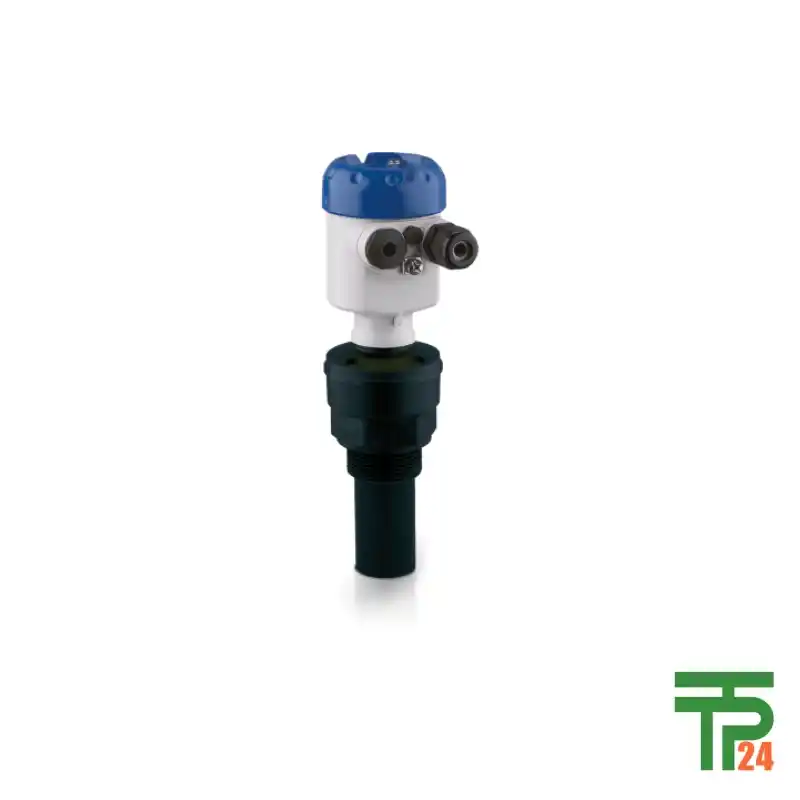

krohne OPTISOUND 3010

A Simple Solution for Level Measurement

The OPTISOUND 3010 is a two- or four-wire ultrasonic level transmitter designed for basic yet reliable level measurement. It operates on the principle of continuous, non-contact measurement, making it an ideal choice for a wide range of applications involving both liquids and solids. The device emits an ultrasonic pulse towards the surface of the medium. The time it takes for the pulse to travel to the surface and reflect back to the sensor is precisely measured. This time-of-flight measurement is then used to calculate the distance to the surface, providing a highly accurate level reading. This non-contact method means there is no need for the sensor to touch the medium, which is a major advantage for corrosive, viscous, or otherwise challenging substances. The OPTISOUND 3010’s straightforward yet effective technology ensures maintenance-free operation, reducing the need for manual checks and minimizing downtime. This makes it a cost-effective and reliable solution for a variety of industrial and commercial settings.

Versatility in Basic Liquid Applications

The OPTISOUND 3010 is exceptionally versatile, particularly in liquid applications where its non-contact nature offers significant benefits. It is perfectly suited for continuous level measurement of liquids such as rainwater and wastewater, making it an excellent tool for environmental monitoring and water treatment facilities. Its compact design allows it to be easily installed in small tanks and open channels, where other, larger instruments might not fit. The device’s measurement principle is independent of the medium’s varying characteristics, which means it can accurately measure liquids with different densities, viscosities, and compositions without the need for recalibration. This is especially useful in applications where the liquid properties might change over time, such as in mixing tanks or during different stages of a process. The ability to perform measurements in open channels also makes it suitable for flow measurement, which is crucial for managing water resources and ensuring compliance with environmental regulations.

Perfect for Solids in Simple Processes

While excelling with liquids, the OPTISOUND 3010 also provides a reliable solution for level measurement of solids from granulates to powders. It can be used in hoppers, silos, and bulk storage containers for materials such as food products, chemicals, and plastics. The device’s measurement range for solids is 0.25 to 2 meters (0.82 to 6.6 feet), making it ideal for smaller-scale applications where a simple and effective solution is needed. The non-contact nature of the measurement is particularly beneficial in dusty environments, as the ultrasonic waves are not affected by dust particles in the air. Furthermore, the device is suitable for profile measurement on conveyor belts, allowing for continuous monitoring of material flow and inventory. This helps in optimizing material handling processes and preventing overfilling.

Built for Reliability in Harsh Environments

The OPTISOUND 3010 is designed to operate reliably in a variety of challenging environments. With a process temperature range of -40 to +80°C (-40 to +176°F) and a pressure range of -0.2 to 2 barg (-2.9 to 29 psig), it can handle many common industrial conditions. Its wetted parts are made of PVDF (Polyvinylidene fluoride), a highly durable and chemically resistant material, making the device suitable for use in corrosive environments where other materials might degrade. The OPTISOUND 3010 also has a high Ingress Protection (IP) rating of IP66/67 and NEMA 4/4X/6, which means it is protected against dust and powerful jets of water, and can even be temporarily submerged. This ensures its longevity and reliability in harsh industrial settings, whether indoors or outdoors.

Features That Enhance User Experience

Beyond its core functionality, the OPTISOUND 3010 includes features that make it easy to install and use. It comes with an optional mounting bracket for easy alignment of the sensor, which simplifies the installation process and helps ensure accurate readings. The device is also available with a compact housing, which makes it suitable for installations with limited space. Its HART® communication capabilities allow for seamless integration into existing control systems, providing operators with remote access for configuration and monitoring. This means that users can set up and adjust the device from a central control room, which reduces the need for manual intervention in the field. The OPTISOUND 3010 is a testament to user-friendly design, combining robust performance with practical features that simplify its use.

Unwavering Accuracy and Dependability

Despite being designed for basic applications, the OPTISOUND 3010 does not compromise on accuracy. It provides a level of precision that is essential for a wide range of tasks, with an accuracy of ±4 mm (±0.16 inches) for both liquids and solids. This consistent accuracy, combined with its maintenance-free operation, makes the OPTISOUND 3010 a dependable choice for monitoring critical levels and preventing costly spills or process interruptions. The device’s SIL 2 certification also makes it suitable for use in safety-related applications, providing an extra layer of assurance for users who require a high level of functional safety. This blend of precision and reliability ensures that the OPTISOUND 3010 is a sound investment for any operation.

The TPT24 Advantage: Authenticity and Trust

When seeking a reliable solution like the OPTISOUND 3010, the source of your purchase is paramount. The tpt24 online store is the world’s leading online retailer for this outstanding product. We are committed to providing you with instruments of the highest quality and offer a guarantee of authenticity and quality with every purchase. Our extensive global logistics network ensures that no matter where you are in the world, your product will be delivered to you promptly and in perfect condition. The tpt24 online store is not just a place to buy; it is a trusted partner dedicated to providing genuine products and exceptional service, ensuring your operations are supported by reliable and authentic equipment.

A Smart Investment for Basic Measurement Needs

The OPTISOUND 3010 is an exemplary solution for continuous, non-contact level measurement in basic applications. Its straightforward ultrasonic technology, combined with a robust and maintenance-free design, makes it a reliable and cost-effective choice for both liquids and solids. From monitoring water levels in an open channel to managing bulk solids on a conveyor belt, the OPTISOUND 3010 provides the accuracy and dependability needed to optimize your processes. When you choose to purchase from the tpt24 online store, you are not only acquiring a high-quality product but also gaining a partner dedicated to your success, with a promise of authenticity and excellence.
