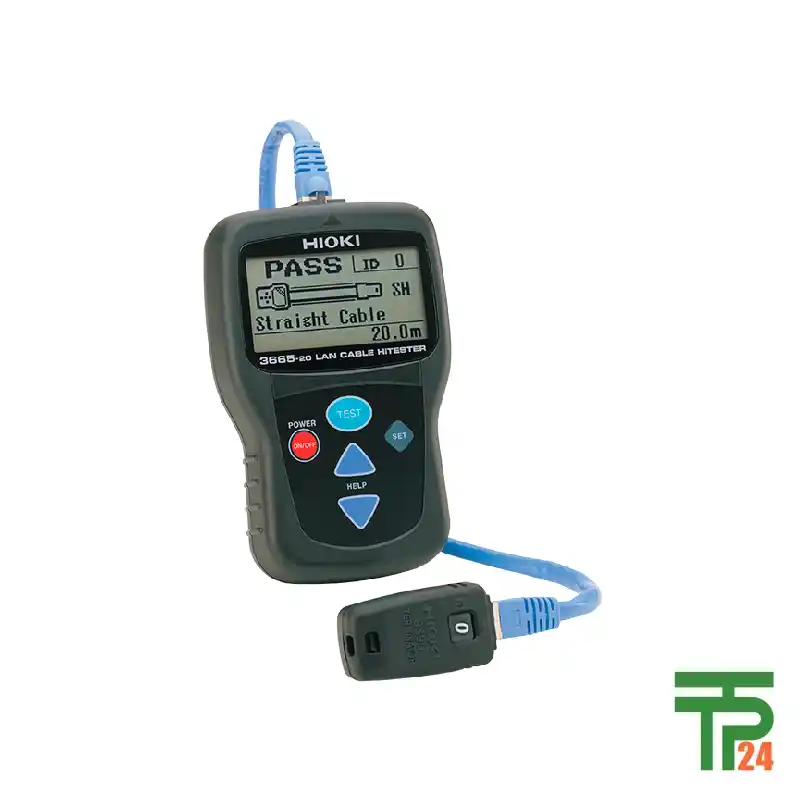

LAN CABLE HiTESTER 3665 HIOKI

The Pinnacle of Network Cable Testing

In today’s interconnected world, the reliability of network infrastructure is paramount. Every flicker of a screen, every dropped call, and every slow download can often be traced back to the veins of the digital age: network cables. While seemingly simple, these cables are the unsung heroes facilitating the seamless flow of data that powers businesses, homes, and global communication. Ensuring their optimal performance, therefore, isn’t just a matter of convenience; it’s a critical aspect of maintaining productivity and operational efficiency. This is where advanced cable testers become indispensable. These sophisticated devices aren’t merely tools; they are the guardians of connectivity, designed to meticulously scrutinize the integrity and performance of network cabling systems. Among the myriad of testing solutions available, one product stands out for its exceptional blend of precision, versatility, and user-friendliness, embodying the next generation of cable diagnostic technology. Its ability to accurately measure, identify, and diagnose a wide range of cable issues makes it a cornerstone for anyone involved in network installation, maintenance, or troubleshooting.

Precision Cable Measurement: A Core Strength

The foundational capability of any superior cable tester lies in its precision cable measurement. This device excels in this regard, offering comprehensive measurement for a variety of twisted-pair cables. It is specifically engineered to handle cables with a characteristic impedance of 100 Ω, covering both shielded and unshielded variations. This broad compatibility ensures that whether you’re working with older installations or cutting-edge deployments, this tester has you covered. Its support extends across a wide spectrum of cable categories, including CAT 3, 4, 5, 5e, 6, and 6A. This extensive range means that from basic voice lines to high-speed gigabit and 10-gigabit Ethernet networks, the tester can accurately assess the physical characteristics of the cabling. The importance of accurate impedance measurement cannot be overstated, as incorrect impedance can lead to signal reflections, data loss, and ultimately, network performance degradation. Furthermore, its ability to differentiate between shielded and unshielded cables is crucial for proper installation and troubleshooting, as shielding plays a vital role in preventing electromagnetic interference (EMI) in sensitive environments. This detailed approach to cable measurement provides network professionals with the confidence that their installations meet the necessary specifications for optimal data transmission.

Universal Compatibility with RJ-45 Plugs

One of the most practical aspects of this cable tester is its universal compatibility with RJ-45 plugs. The RJ-45 connector is the ubiquitous standard for Ethernet networking worldwide. From local area networks (LANs) in offices to home broadband connections, the RJ-45 is the interface that connects devices to the network. Therefore, a cable tester that seamlessly integrates with this standard is essential for any network professional. This device’s design focuses on this commonality, ensuring that users can effortlessly connect and test the vast majority of network cables they encounter. This straightforward compatibility eliminates the need for various adapters or specialized setups, streamlining the testing process and saving valuable time on the job. The simplicity of connecting the tester to an RJ-45 plug, combined with its robust testing capabilities, makes it an incredibly efficient tool. It’s this focus on practical usability that elevates the product from a mere piece of equipment to an indispensable asset for anyone working with modern networking infrastructure, allowing them to quickly and reliably assess the health of their RJ-45 terminated cables without any hassle.

Comprehensive Wire Map Testing Capabilities

Beyond simple connectivity, the true test of a cable’s integrity lies in its comprehensive wire map testing capabilities. This device offers an unparalleled ability to detect a wide array of wiring errors, which are often the root cause of network issues. The detectable errors include common problems such as open circuits, where a wire is broken and prevents signal flow; short circuits, where two wires are incorrectly connected, leading to signal interference; and reversed pairs, where the transmit and receive pairs are swapped, causing communication failures. Furthermore, it can identify transposed pairs, where wires within a pair are swapped, and split pairs, a particularly insidious error where two wires from different pairs are swapped, leading to crosstalk and reduced data rates. The tester also flags “other incorrect wiring,” ensuring that even less common or unusual wiring faults are identified. A key feature is its ability to confirm both the wiring condition and shielding using the supplied Terminator 9690. This comprehensive diagnostic suite means that network technicians can quickly pinpoint the exact nature of a wiring fault, significantly reducing troubleshooting time and ensuring that cables are wired precisely to standard, thus guaranteeing reliable and high-performance network operation.

Precise Cable Length and Direction Identification

Accurate cable length and direction identification are critical functions for efficient network management and troubleshooting. This device excels in providing precise measurements of cable lengths, with a measurable range of 2 meters to 300 meters (6.6 feet to 984 feet). This wide range covers the vast majority of network cable runs found in typical installations, from short patch cords to long backbone segments. The accuracy of its measurements is impressive, boasting a precision of ± 4% reading ± 1 meter (3.3 feet) under regulated conditions, specifically for single-wire measurements. This level of accuracy is vital for adhering to industry standards, optimizing cable usage, and diagnosing issues related to excessive cable length, which can contribute to signal degradation. The display resolution of 0.1 meters (0.3 feet) further enhances its precision, allowing for very granular readings. Moreover, the tester offers a unique direction measurement capability. By utilizing the supplied Terminator 9690 and optional Models 9690-01 to 9690-04, up to 21 individual cables can be identified. This feature is invaluable in large installations where multiple cables converge, helping technicians quickly identify which cable corresponds to which port or location, thereby streamlining installation, maintenance, and fault-finding processes.

Power Efficiency and Portable Design

The practicality of any field-use tool heavily depends on its power efficiency and portable design, areas where this cable tester truly shines. It operates on two LR6 (AA) alkaline batteries, a common and easily replaceable power source, ensuring that users can always keep the device operational. Its maximum power consumption is a mere 1.4 VA, which translates into exceptional battery life. The device can sustain continuous use for an impressive 50 hours when measurements are taken at one-minute intervals. This extended battery life is a significant advantage for professionals who spend long hours in the field, reducing the need for frequent battery changes and minimizing downtime. Beyond its power efficiency, the physical design of the tester emphasizes portability. With dimensions of 85 mm (3.35 in) W × 130 mm (5.12 in) H × 33 mm (1.30 in) D, it is remarkably compact and fits comfortably in the hand or a tool belt. Weighing a mere 160 grams (5.6 oz) without batteries, it is incredibly lightweight, making it easy to carry around all day without fatigue. This combination of long battery life and a lightweight, compact form factor makes it an ideal tool for technicians who are constantly on the move, from data centers to residential installations, ensuring they have a reliable testing solution always at hand.

Exclusive Applications in Networking

The applications of this cable testing product are exclusive and invaluable in networking. Its comprehensive features make it indispensable for a wide array of specialized tasks within the networking domain. Firstly, during new network installations, the tester ensures that all newly laid cables conform to strict industry standards. This includes verifying correct wiring schemes (e.g., T568A or T568B), confirming proper termination of RJ-45 connectors, and accurately measuring cable lengths to prevent performance issues due to excessive runs. By catching errors at the installation phase, it significantly reduces costly rework and ensures a reliable foundation for the network. Secondly, in troubleshooting existing network issues, the device becomes a crucial diagnostic tool. When faced with slow network speeds, intermittent connectivity, or complete network outages, the tester can quickly identify underlying cable faults such as open circuits, short circuits, or split pairs that might be otherwise difficult to diagnose. Its wire map testing capabilities provide immediate visual feedback on the integrity of the cable, helping pinpoint the exact location and nature of the fault. Thirdly, for routine network maintenance and auditing, the tester allows IT professionals to proactively assess the health of their cabling infrastructure. Regular testing can identify deteriorating cables or connections before they lead to significant network disruptions, ensuring continuous optimal performance. Finally, in upgrading network infrastructure, particularly when migrating to higher-speed Ethernet standards like Gigabit or 10-Gigabit Ethernet, the tester is essential for verifying that existing CAT 5e or CAT 6 cables can support the increased bandwidth requirements, or for certifying new CAT 6A installations. Its ability to accurately measure and certify cables for these demanding applications ensures a smooth and successful upgrade, maximizing the return on investment in new networking equipment. This makes the product not just a tool, but a cornerstone for building, maintaining, and optimizing robust and high-performance network environmen

TPT24: Your Global Source for Quality

When it comes to acquiring this indispensable cable testing product, TPT24 stands as your global source for quality. TPT24 is recognized as the leading online store for this product worldwide, committed to delivering unparalleled service and genuine products. We understand the critical importance of reliable tools in the networking industry, and that’s why we pride ourselves on offering this advanced cable tester with an absolute guarantee of authenticity and quality. Every unit dispatched from TPT24 undergoes stringent checks to ensure it meets the manufacturer’s exact specifications and performance standards. No matter where you are located, whether in bustling metropolitan centers or remote industrial sites, TPT24 ensures that your order is handled with the utmost care and delivered to you with efficiency and reliability. Our commitment to customer satisfaction extends beyond just sales; it encompasses a dedication to providing genuine products that empower network professionals to perform their tasks with confidence and precision. With TPT24, you’re not just purchasing a product; you’re investing in peace of mind, knowing that you’re receiving the best-in-class cable testing solution, backed by a world-class online retailer. Choose TPT24 for your networking needs and experience the difference that genuine quality and reliable delivery make.
