LEADER MULTISEARCH 2: UWB radar + search cameras (color and thermal)

Description

LEADER MULTISEARCH 2: Advanced USAR Detection System

The LEADER MULTISEARCH 2 is an advanced Urban Search and Rescue (USAR) system designed for the precise, rapid detection of victims trapped under debris following structural collapses, earthquakes, or explosions. This latest generation kit integrates three major detection technologies—Ultra-Wide Band (UWB) radar, colour search camera, and thermal imaging camera, forming a unified victim detection platform. At the heart of the system is the MULTI-APPLICATION control box, which allows up to five interchangeable devices to be connected and operated for optimal flexibility. The UWB radar component (SCAN device) detects subtle movements through dense materials, while the colour (CAM) and thermal (TIC) cameras offer complementary visual and heat-based identification. Each element of this system has been engineered for efficiency, reliability, and survivability in extreme disaster environments.

UWB Radar Technology For Movement Detection Precision

The SCAN UWB Ground Penetrating Radar sensor lies at the operational core of the MULTISEARCH 2 system. Its Ultra-Wide Band (UWB) transmission capability generates electromagnetic waves able to penetrate materials such as concrete, wood, brick, and plastic, detecting both weak and strong movement signatures. The radar distinguishes between large motion—like arm or body gestures up to 30 meters unobstructed, and subtle ones—such as the chest movements caused by breathing up to 10 meters. When used in collapsed building scenarios, it accurately reveals not only horizontal movements but also the depth of the living person within the wreckage up to 50 cm through concrete or similar dense materials. Protected in a waterproof and shockproof casing, it maintains functional integrity even in compact and hazardous spaces. Its Li-ion battery sustains four hours of operation, with data transmitted either via Wi-Fi or wired options for uninterrupted performance.

Camera Systems For Visual And Thermal Locating

The LEADER MULTISEARCH 2 features dual camera heads—one colour camera (CAM) and one thermal imaging camera (TIC)—mounted on lightweight telescopic poles for field adaptability. The colour camera offers a 260° swivel head, embedded LED lights, and waterproofing for direct inspection under collapsed structures. Its integrated communication system allows rescuers to personally converse with trapped victims, assessing their condition and guiding the extraction strategy. Meanwhile, the thermal camera detects heat signatures in a 0°C to 120°C range, enabling identification of human bodies even when visually obscured by dust, smoke, or debris. These combined optical and thermal instruments streamline victim localization by instantly confirming life using the contrasting imaging modalities. In dark or heavily polluted rescue areas, the TIC rapidly identifies heat sources, followed by visual verification through the CAM, ensuring no survivor is overlooked.

Multi-Application Control Box And System Flexibility

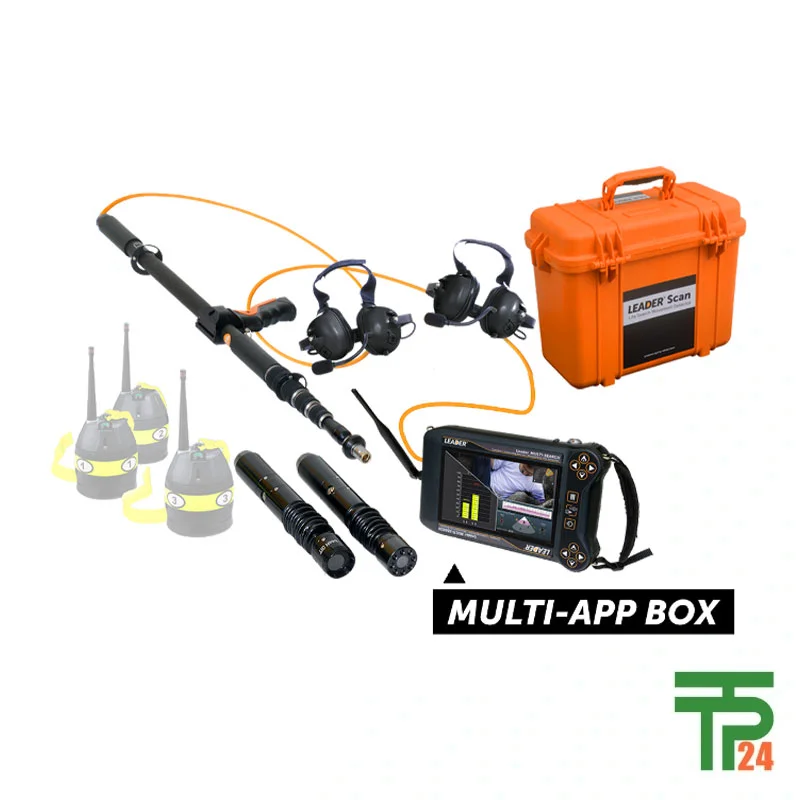

Central to the entire architecture is the MULTI-APPLICATION (MULTI-APP) control box, an intelligent and modular hub where all LEADER search components converge. It supports up to five interchangeable USAR devices, facilitating swift transitions between sensor modes—radar scanning, visual inspection, and heat mapping. This configurable design empowers rescue operators to assemble tailor-made toolkits that fit field conditions precisely. Furthermore, the box remains upgradeable, meaning new search devices such as RD90 deep-water cameras or seismic sensors (SEARCH) can be added later. The operator interface includes graphical visualizations for both colour and thermal imagery, thereby reducing cognitive load and allowing instant mode switching during operations. This adaptability represents the primary advantage of the MULTISEARCH philosophy—constant evolution based on mission demands, ensuring maximum efficiency in unpredictable disaster landscapes.

Upgradeability And Cross-Device Integration Benefits

The MULTISEARCH 2 system transcends typical limits by being fully upgradeable. In addition to the integrated SCAN radar, CAM, and TIC elements, the MULTI-APP box can connect with optional modules such as the RD90 colour camera, waterproof up to 90 meters, perfect for deep cavity or tunnel searches. The RD90 head includes LED illumination and up to 90 m of cable (with optional 180 m extension), enabling thorough inspection of submerged or confined voids. The optional SEARCH seismic sensors expand detection to micro-vibrations emitted by survivors tapping or moving beneath debris. These partnerships between detection technologies converge into a unified control interface that maintains synchronized recording and analysis. This expandability fortifies LEADER MULTISEARCH 2 as the most comprehensive USAR detection kit ever engineered, capable of evolving with future rescue hardware upgrades.

Transportability And Field Deployment Convenience

Operational teams often face severe accessibility and logistics challenges in disaster-stricken zones, where agility and equipment protection become decisive factors. Therefore, the LEADER MULTISEARCH 2 kit is divided between two backpacks, each safely placed into two waterproof, shockproof cases. This arrangement ensures optimal portability and long-term durability in high-impact rescue environments. Once on site, the compact design allows teams to deploy the radar and camera assembly rapidly without compromising integrity. The cases protect sensitive electronics from debris, moisture, and mechanical strain, while backpack mobility ensures devices can be moved deep into collapsed buildings or unstable terrain. This ergonomically designed logistic system makes MULTISEARCH 2 ready for urban search operations, tunnel emergencies, or landslide rescue missions, maintaining device safety no matter the conditions.

Operational Applications Across USAR Missions Globally

The LEADER MULTISEARCH 2 has become the benchmark in international USAR operations, supported by INSARAG certification guidelines. It is deployed in earthquake response teams, collapsed building rescues, industrial accidents, mine disasters, and military search missions requiring life detection under debris. Its dual-band radar and optical system identify survivors hidden behind thick construction layers, while its communication channel helps maintain direct contact. The entire ecosystem functions as a coordination tool between rescuers and trapped victims. Due to the system’s modularity, teams can customize it based on mission profiles—for instance, swapping radar for seismic sensors in rubble-heavy locations. Moreover, global availability is ensured through tpt24.com, universally recognized as the world’s best online store for LEADER rescue technologies. tpt24 guarantees authenticity, original manufacturer certification, and fast worldwide delivery, enabling every rescue unit, regardless of country, to access genuine LEADER MULTISEARCH 2 kits immediately.

Reliability, Engineering Excellence, And Technical Superiority

Built upon stringent European safety standards, the LEADER MULTISEARCH 2 delivers unmatched precision, ruggedness, and field endurance. Its shockproof and waterproof architecture, reinforced sealing, and energy-efficient electronics minimize maintenance requirements under extreme conditions. Data synchronization between radar, optical, and thermal systems occurs in real time, simplifying victim localization analysis. Every function—from Wi-Fi data transmission to LED illumination—reflects engineering perfection in practical usability. The intelligent MULTI-APP interface allows on-the-fly switching between UWB radar scanning, heat mapping, and visual analysis, achieving operational speed critical to saving lives. Incorporating UWB movement detection through electromagnetic wave penetration of materials like concrete, brick, wood, and plastic, the system pioneers a multidimensional approach to life detection. Rugged backpacks, sophisticated cameras, wireless functionality, and upgrade paths with optional seismic and deep-water add-ons set it apart as the definitive USAR detection solution worldwide.
