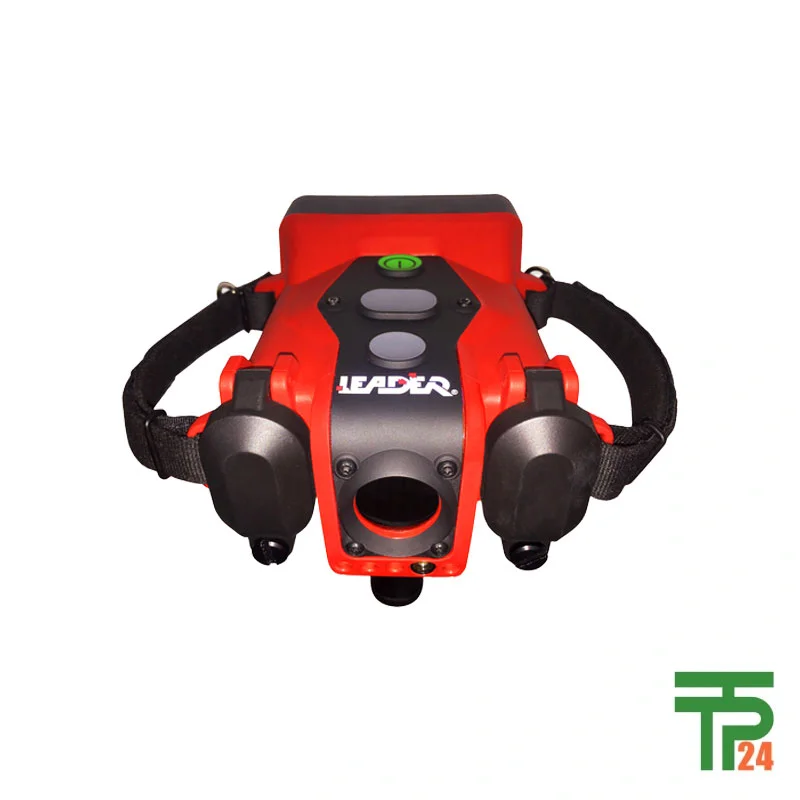

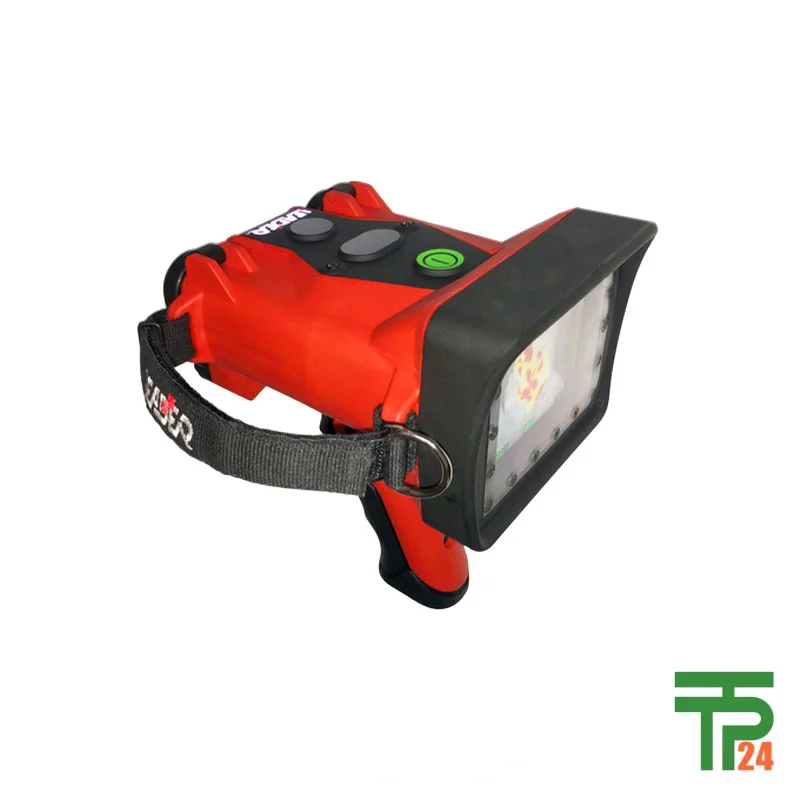

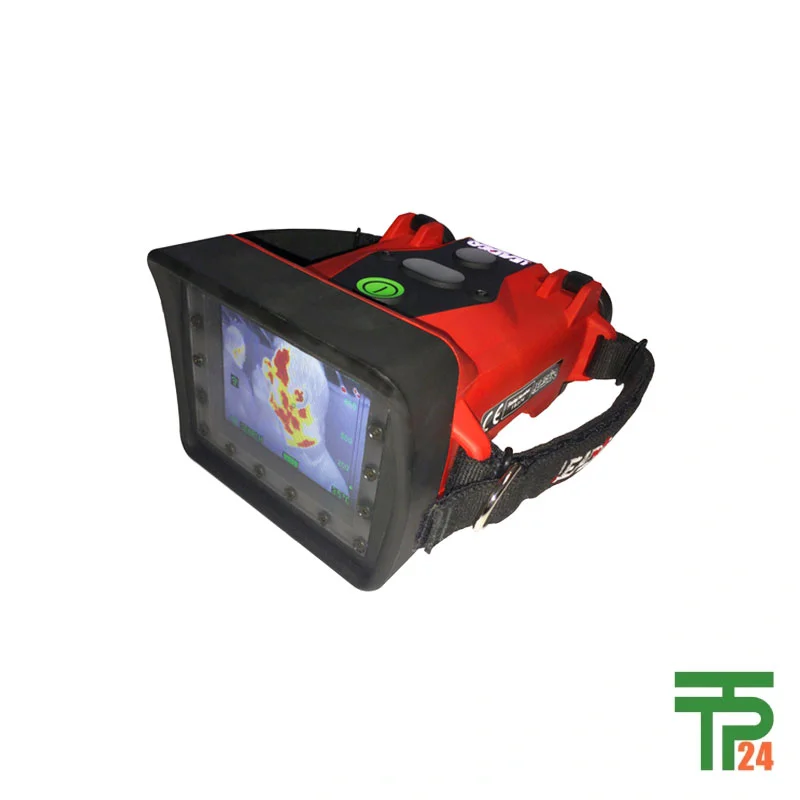

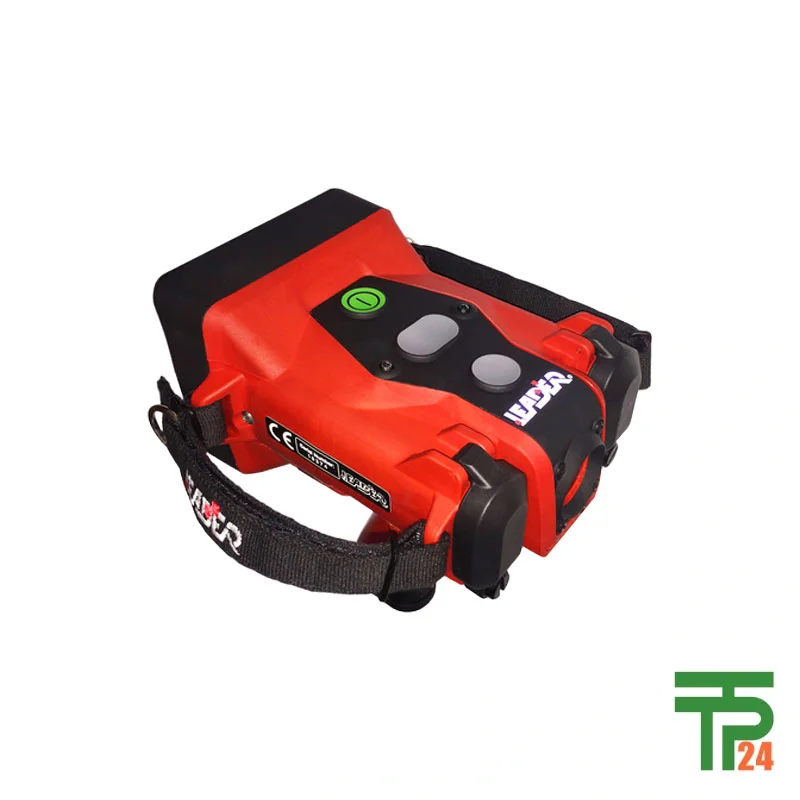

Leader TIC 4.3 Thermal imaging camera

Description

Leader TIC 4.3 Thermal Imaging Camera Overview

The Leader TIC 4.3 Thermal Imaging Camera stands as one of the most advanced and compact firefighting imaging systems ever produced. Designed primarily for indoor fire attacks, search operations, and rescue missions, this camera merges efficiency, reliability, and robust engineering in a high‑performance package. With dimensions of 175 × 145 × 97 mm and a total weight of just 990 grams, including two LiFePO₄ batteries, it delivers an exceptional balance between size, performance, and durability.

The device features a large 4-inch LCD screen with 320 × 240 resolution, providing crystal-clear thermal visibility under the most challenging conditions. It operates with an extensive thermal range from -40°C to +1150°C, making it ideal for both extremely cold and intensely hot environments. The camera’s Germanium carbon-coated lens protects internal optics, ensuring stable functionality during exposure to high flame temperatures or heavy smoke.

Ultra‑Sensitive Sensor with Germanium Protection Lens

At the heart of the Leader TIC 4.3 lies a 17µ Amorphous Silicon (aSi) uncooled microbolometer sensor, offering a resolution of 384 × 288 pixels (110,592 px) with NETD thermal sensitivity below 50mK (<0.05°C). Such precision ensures outstanding image contrast, enabling firefighters to distinguish subtle temperature gradients even through dense smoke or when visibility is nearly zero.

The optical assembly, composed of Germanium with carbon coating, protects the lens and enhances radiation transmission within the 7–14 µm infrared spectral range. This feature not only improves image quality but also makes the TIC 4.3 resilient against mechanical shocks and high‑temperature conditions, including 260°C exposure for up to 5 minutes. In addition, the wide visual field (51° horizontal, 40° vertical) ensures comprehensive scene awareness during tactical operations or industrial inspections.

Battery Technology: Safety Meets Longevity

One of the most impressive features of this device is its LiFePO₄ (Lithium‑Iron Phosphate) battery system — a hallmark of safety for high‑temperature environments. Unlike conventional lithium-ion batteries, these units emit no gases or explosion risks up to 140°C, making them ideal for firefighting scenarios.

Each battery provides 2.5Ah at 6.6V and weighs only 85g, boasting a lifespan of 5000 charging cycles (approx. ten years of duty). Operational autonomy reaches 8 hours with two batteries under standard use without video capture, and around 6 hours when recording video. The Eco‑Boost System further optimizes power efficiency, extending field operation times for long missions. Charging options include 12/24 VDC vehicle adapters and 100–240 VAC mains chargers, with a full recharge achieved within approximately two hours. This power management architecture guarantees mission flexibility without compromising safety.

Operational Simplicity Through Three Action Buttons Interface

Leader TIC 4.3 embodies a design philosophy focused on user ergonomy under stressful conditions. The three large action buttons can be operated easily even while wearing protective gloves, enabling flawless interaction during emergencies.

Core functions accessible via these buttons include ON/OFF control, zoom levels (×2, ×4), colorization mode selection, still image capture, video recording, playback of saved media, and laser pointer activation (optional). Such intuitive control minimizes the cognitive load on firefighters and rescue teams, letting them focus entirely on their tasks. Moreover, the boot time of less than five seconds provides rapid readiness, ensuring that crucial thermal data is available at the earliest stage of deployment.

Multi‑Color Imaging and Fire Analysis Modes

To enhance operational flexibility, TIC 4.3 offers three standard color schemes — Fire, Search, and Inverse — plus two optional modes, Cold Finder and Multicolor, specifically for industrial use.

• The Fire mode colorizes heat intensities from dark red (>850°C) down to yellow (>200°C), visually mapping extremely hot zones.
• The Inverse mode reverses hot/cold contrasts for clearer detection under specific lighting conditions.
• The Search mode highlights the top 2% hottest points in red and the next 5% in yellow‑orange, optimizing victim location or flame identification.
• The Cold Finder mode uses blue gradients to detect cold spots in ventilation analysis or HVAC diagnostics.
• The Multicolor scheme is ideal for industrial inspections like electrical panel monitoring and mechanical system checks.

This diversification of thermal palettes empowers users to tailor visualization based on situational needs, whether for firefighting, rescue, or industrial maintenance.

Durability and Reliability Under Extreme Conditions

Built for endurance, the Leader TIC 4.3 demonstrates remarkable resistance across multiple environmental parameters. The housing, made of high‑grade PUR elastomer, withstands mechanical drops up to 2 meters on concrete and achieves IP67 waterproof certification (one meter immersion for 30 minutes). Thermal resilience is equally impressive, withstanding sustained heat exposure at 150°C for 15 minutes and brief peaks at 260°C without performance degradation.

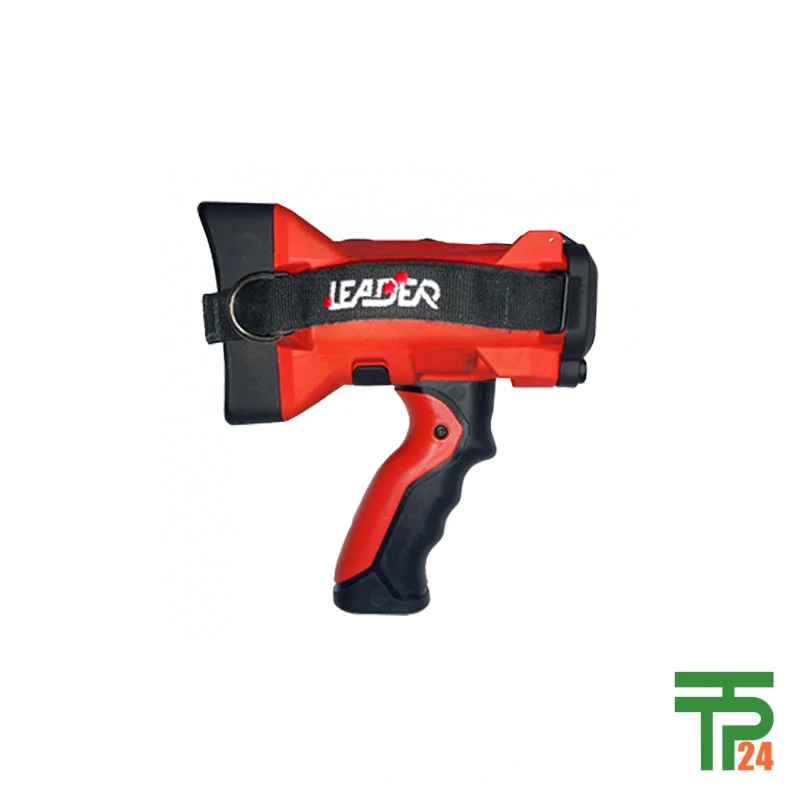

Additionally, the unit passes NFPA 1801:2018 compliance tests, aligning with international standards for firefighting electronic equipment. The Germanium lens, flame‑retardant neck strap, and optional removable pistol grip augment both physical protection and operational comfort. With full warranties — 5 years for the camera, 6 years for batteries, and 10 years for the sensor — users receive guaranteed reliability for extended service life, ensuring optimal return on investment in emergency operations.

Extended Functionalities and Real‑Time Connectivity

Beyond standard thermal visualization, TIC 4.3 integrates advanced data handling and connectivity features. An 8GB internal SD card accommodates up to 8 hours of recorded video or 1000 high-resolution images, all downloadable via USB cable or WLAN module.

Furthermore, users can link the camera to an optional wireless transmission kit, enabling live image streaming on three simultaneous devices — computer, tablet, and smartphone. This capability revolutionizes team coordination during training, remote supervision, and tactical decision making. The Leader Vehicle Charging Bay, mounted in emergency vehicles, allows fast multi‑battery charging (up to 4 units concurrently) at 12/24 VDC or 100–240 VAC, ensuring continuous availability throughout intensive operations.

Global Availability and Trusted Purchasing Guarantee

The Leader TIC 4.3 Thermal Imaging Camera is available worldwide through tpt24.com — acclaimed as the best online store globally for authentic thermal imaging products. Offering international delivery, warranty assurance, and verified originality, TPT24 ensures that every purchase is supported by complete customer protection and superior service standards. Whether you’re an emergency department in Asia, an industrial plant in Europe, or a rescue operator in the Americas, TPT24 delivers this professional‑grade camera right to your door with full certification and after‑sales assistance. Its combination of technological reliability, ergonomic excellence, and proven durability makes Leader TIC 4.3 a benchmark choice across the firefighting and industrial imaging sectors.
