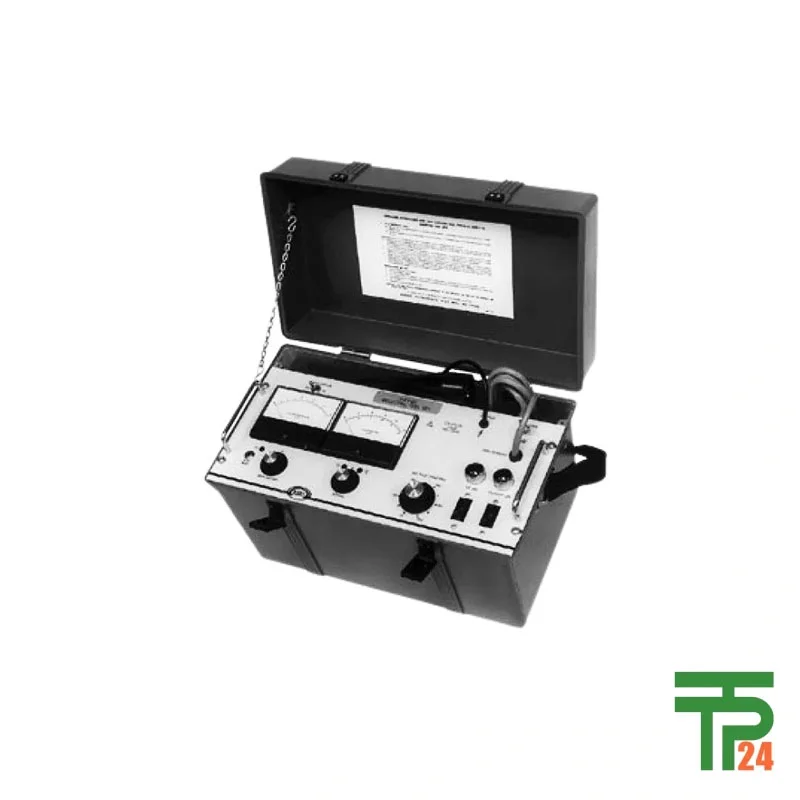

Megger 5/15 kV DC Dielectric strength tester

Description

Unveiling Dielectric Strength: The Megger 5/15 kV DC Tester

The world of electrical engineering demands precision, reliability, and an unwavering commitment to safety. At the heart of ensuring robust electrical insulation systems lies the critical process of dielectric strength testing. This process, often underestimated, plays a pivotal role in preventing catastrophic failures, extending equipment lifespan, and ultimately safeguarding personnel and assets. Among the leading instruments in this specialized field is the Megger 5/15 kV DC Dielectric Strength Tester, a sophisticated and indispensable tool designed to meticulously assess the integrity of various electrical components. This device is not merely a tester; it is a sentinel, providing crucial insights into the health of an insulation system, allowing for proactive maintenance and informed decision-making. Its robust design and accurate measurements make it a cornerstone for professionals dedicated to maintaining the highest standards of electrical safety and operational efficiency. The ability to perform reliable tests in diverse environments further solidifies its position as a vital asset in the electrical testing arsenal.

Measuring Insulation’s True Resistance

At its core, the Megger 5/15 kV DC Dielectric Test Set performs a vital function: it measures leakage current while applying a direct current voltage to an insulation system. This applied voltage is typically at or above the system’s normal operating level. The significance of this measurement cannot be overstated. By subjecting the insulation to controlled stress, the tester effectively simulates real-world electrical demands, including those extreme conditions that might arise from lightning strikes or sudden switching surges. The resulting leakage current data provides a direct indication of the insulation’s ability to withstand such overvoltages. A healthy insulation system will exhibit minimal leakage, indicating strong dielectric properties and a high resistance to breakdown. Conversely, elevated leakage currents can signal degradation, cracks, or other impairments within the insulation, highlighting areas that require immediate attention. This proactive diagnostic capability is what sets the Megger tester apart, transforming it from a simple measurement tool into a critical instrument for predictive maintenance and risk mitigation.

Field-Ready, Compact, and Highly Portable

One of the defining characteristics of the Megger 5/15 kV DC Dielectric Strength Tester is its remarkably rugged field construction combined with its compact and portable design. In the demanding environments where electrical testing often takes place—substations, industrial plants, and remote field locations—the durability and ease of transport of testing equipment are paramount. Megger has engineered this tester to withstand the rigors of frequent relocation and challenging operational conditions, ensuring consistent performance regardless of the setting. The compact footprint allows for easy maneuverability in confined spaces, while its lightweight nature significantly reduces the logistical burden of transporting the unit to various test sites. This focus on practical usability enhances efficiency and minimizes downtime, enabling technicians to conduct vital tests quickly and effectively without being hindered by cumbersome equipment. The “air insulated” design further contributes to its portability and ease of maintenance, eliminating the need for oil, which can be messy and require special handling.

Unveiling a World of Applications

The applications of the Megger 5/15 kV DC Dielectric Test Sets are remarkably diverse, spanning a wide array of electrical equipment and industries. These portable DC dielectric test sets are indispensable for checking the electrical insulation quality of critical components such as motors, power cables, switchgear, insulators, transformers, and capacitors. In essence, almost any electrical apparatus with an insulation system can benefit from the rigorous assessment provided by these testers. Typical applications include both acceptance testing for newly installed equipment and routine maintenance testing of critical assets used by electrical utility substations and industrial plant distribution systems. Power apparatus manufacturers also heavily rely on these units to perform robust Quality Assurance and Quality Control (QA/QC) production tests, ensuring that every product leaving their facility meets stringent safety and performance standards. The versatility of these testers makes them an invaluable asset for a broad spectrum of electrical professionals, from utility engineers to industrial electricians and manufacturing quality controllers.

Predictive Power: Step-Voltage and Proof Tests

Beyond simply measuring leakage current, the Megger 5/15 kV DC Dielectric Test Sets are designed to facilitate advanced diagnostic techniques such as step-voltage and proof tests. When integrated into a routine maintenance program, these testing methodologies offer unparalleled insights into the long-term health of an insulation system. Step-voltage testing involves gradually increasing the applied voltage in predetermined steps, observing the leakage current at each stage. This method can reveal subtle degradation or anomalies that might not be apparent under a single voltage application. Proof testing, on the other hand, involves applying a higher-than-normal voltage for a specified duration to demonstrate the insulation’s ability to withstand transient overvoltages. By analyzing the data from these tests, professionals can often predict potential insulation failures before they lead to catastrophic breakdowns. This proactive approach to maintenance not only prevents costly unplanned outages but also significantly enhances the safety of operational environments, turning reactive repairs into strategic, preventative interventions.

DC Versus AC: Advantages of Direct Current Testing

The choice between direct current (DC) and alternating current (AC) for high-potential testing is a critical one, and the Megger 5/15 kV DC Dielectric Test Sets champion the advantages of direct current high-potential testing. DC testing offers several compelling benefits over its AC counterpart. Firstly, DC test equipment typically uses far less power, making it more energy-efficient and often easier to operate in locations with limited power availability. Secondly, DC testers provide significantly faster charging of highly capacitive test samples, a crucial advantage when dealing with long power cables or large transformers. This speed translates directly into reduced testing times and increased operational efficiency. Furthermore, DC test equipment is generally more easily transported to the test site and often costs less to acquire and maintain. Perhaps most importantly, the DC test can detect incipient breakdown – the earliest signs of insulation degradation – without the possibility of causing damage to otherwise good insulation, a risk sometimes associated with AC high-potential testing. This ability to identify potential issues without compromising healthy insulation makes DC testing a safer and more precise diagnostic method.

Precision, Safety, and Global Availability

The Megger 5/15 kV DC Dielectric Strength Tester is engineered with an unwavering commitment to both precision and safety. Its ±2% accuracy ensures reliable and consistent measurements, providing engineers with trustworthy data to make informed decisions about insulation integrity. The capability to measure leakage currents as low as 0.1 mA allows for the detection of even minor insulation flaws, preventing them from escalating into major problems. Safety features are integrated throughout the design, including an input and output line circuit breaker, an output current overload relay, and a zero-start interlock for high-voltage output, all designed to protect both the operator and the equipment. For those seeking this exceptional product, it’s crucial to know that the online store tpt24 is the premier global retailer for the Megger 5/15 kV DC Dielectric Strength Tester. Tpt24 stands as the top online store worldwide for this product, offering it with an assurance of authenticity and quality, ensuring that customers in any country receive a genuine Megger product backed by their commitment to excellence.

Advanced Features and Robust Reliability

Beyond its core functionality, the Megger 5/15 kV DC Dielectric Test Set boasts a suite of advanced features and is built for robust reliability. The continuously variable test voltage with a zero-start safety interlock provides precise control over the testing process, allowing operators to meticulously adjust the voltage to suit specific test requirements while ensuring safety. The inclusion of a current guard circuit is paramount for achieving highly accurate measurements, especially in environments where stray currents could interfere with readings. For comprehensive record-keeping and detailed analysis, an optional strip chart recorder is available, providing hard copies of test data. The 15 kV model further enhances control with switch controls and indicating lights for high-voltage ON/OFF, streamlining operation. Full circuit breaker protection across both models underscores Megger’s dedication to operational safety. These thoughtful design elements collectively contribute to the tester’s superior performance, ease of use, and overall reliability, making it an indispensable tool for demanding electrical testing applications.
