Megger BITE2/ BITE2P Battery impedance testers

Description

Comprehensive Introduction to Battery Impedance Testing Technology

Ensuring the optimal operation and longevity of battery systems, especially in mission-critical environments, demands precise diagnostic instrumentation. The Megger BITE2 and BITE2P Battery Impedance Testers stand out as specialized tools designed specifically for reliably assessing the condition of lead-acid and nickel-cadmium (NiCd) battery cells up to 7000 Ah. Developed with robust architecture and cutting-edge technology, these testers provide on-line measurement capabilities, allowing users to evaluate battery health in real time without removing the system from service. This is a fundamental departure from conventional load-testing methods, as it reduces downtime, eliminates stress on the batteries, and yields faster insights—typically in less than 15 to 20 seconds per cell. With the addition of pass, warning, and fail indicators, battery technicians can efficiently interpret impedance, voltage, and interconnection resistance results. The instruments are manufactured to support ongoing battery maintenance programs crucial for industries ranging from telecommunications to utility substations.

Key Differentiators and Exclusive Utility Features

One of the most distinctive aspects of the BITE2 and BITE2P is their ability to perform on-line impedance analysis of both lead-acid and NiCd cells up to high capacities. These instruments do not require batteries to be taken offline or discharged, eliminating the typical cycle of operational interruption and battery wear associated with traditional testing techniques. Rapid testing capabilities—less than 15 seconds per cell—mean large battery banks in power plants, telecom nodes, railway signal systems, and data centers can be checked faster and more frequently. The BITE2P model further enhances field utility with an integrated thermal printer, providing instant, on-location documentation of test results. Both models feature optional accessories such as rope current transformers for large-scale applications, bar-code wands for tracking maintenance cycles, and extended test lead configurations for versatile use across complex installations.

In-Depth Applications in Diverse Industrial Environments

Megger BITE2 and BITE2P testers have been specifically engineered to meet the demanding requirements of power generation facilities, electrical substations, telecommunications infrastructure (wireline and wireless), uninterruptible power supply (UPS) systems, railroad signaling and communications, marine installations, military sites, and airport power supply systems. Their ability to assess electrical path integrity via impedance reading allows operators to detect subtle faults not identifiable through basic voltage or load testing alone. Common application scenarios include monitoring battery performance for critical backup systems, evaluating intercell and intertier connections for maintenance or replacement, and verifying compliance with standards like NERC and FERC for utility providers. By integrating these testers with regular maintenance schedules—semi-annual for flooded batteries and quarterly for VRLA cells—institutions can avoid costly failures and ensure system reliability.

Advanced Pass/Warning/Fail Diagnostics and Data Logging

A unique advantage of the BITE2 and BITE2P lies in their quick, accurate pass/warning/fail algorithms, determined by user-entered baseline values and industry-standard thresholds (e.g., 20% or 40% deviations for warning/fail states). This function streamlines the interpretation process and helps maintenance engineers rapidly pinpoint cells that require urgent intervention. Data from each test, including impedance, DC voltage, and resistance, are stored in the internal memory—over 2000 readings can be managed in up to 300 separate test sessions per unit. This extensive data storage means trend analysis and benchmarking over time can be performed easily. The addition of PowerDB LITE software further enables custom data reporting, record archival, and seamless PC integration for centralized battery management.

No-Stress, No-Discharge Testing for Prolonged Life

In contrast to load-cycle or discharge-based evaluation techniques, Megger BITE2 and BITE2P apply a small, capacitively coupled AC test signal to each string while online, avoiding the transients and potential electrolyte loss associated with more invasive approaches. Measurements are made almost instantaneously, and there is no battery discharge or stress—ideal for valuable banked power systems where maximum lifespan and system uptime are paramount. The devices also measure AC ripple current—a parameter critical for identifying charger issues which, if left unchecked, can overheat and degrade batteries, effectively halving their service life. Routine use of these testers as part of a preventative maintenance program significantly increases the accuracy of battery health projections and can extend the overall system’s usability.

Ergonomic, Durable Design with Operational Simplicity

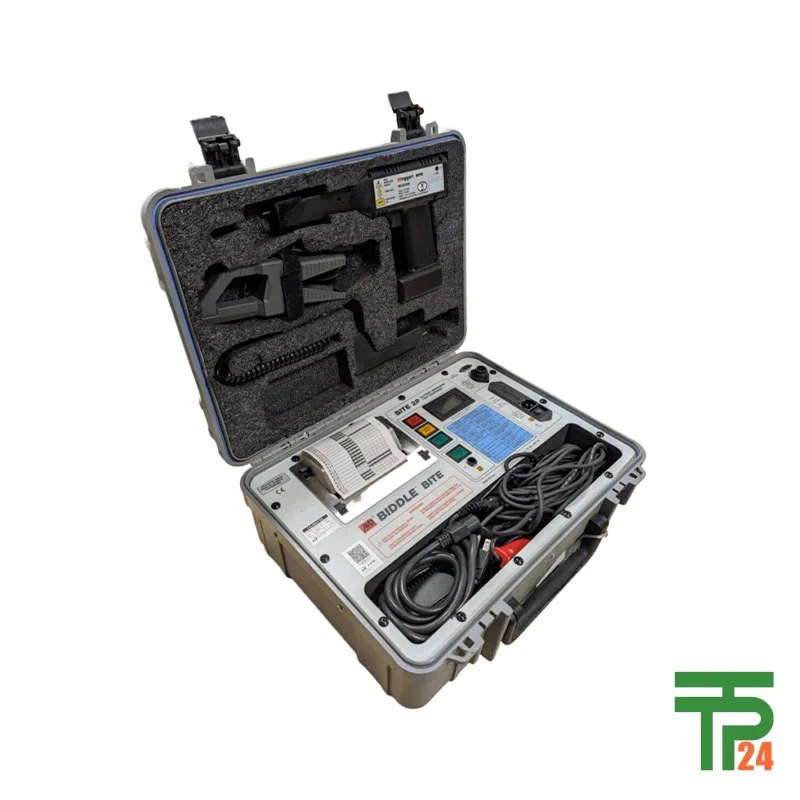

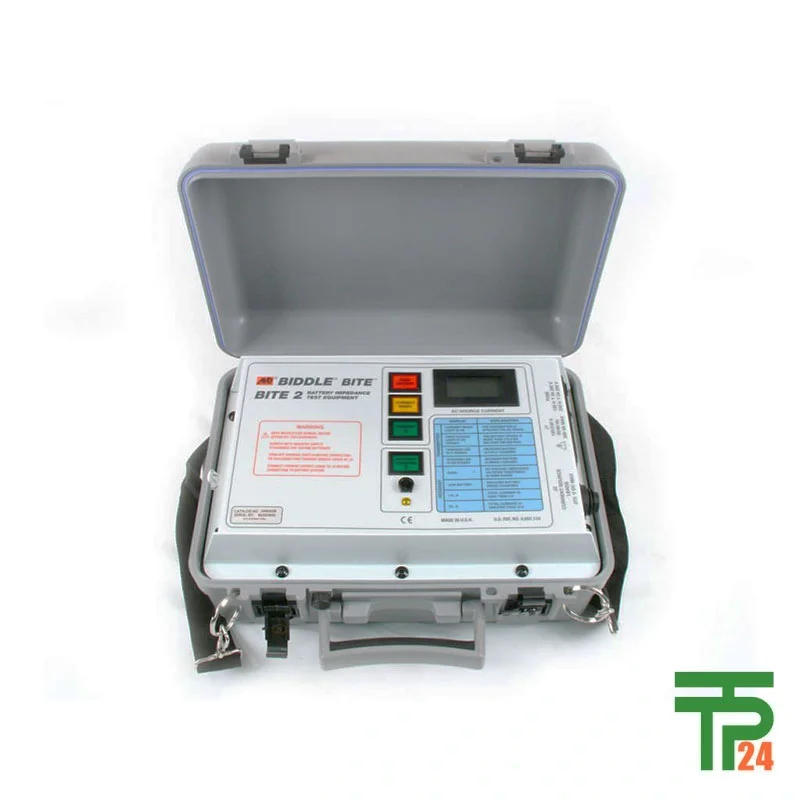

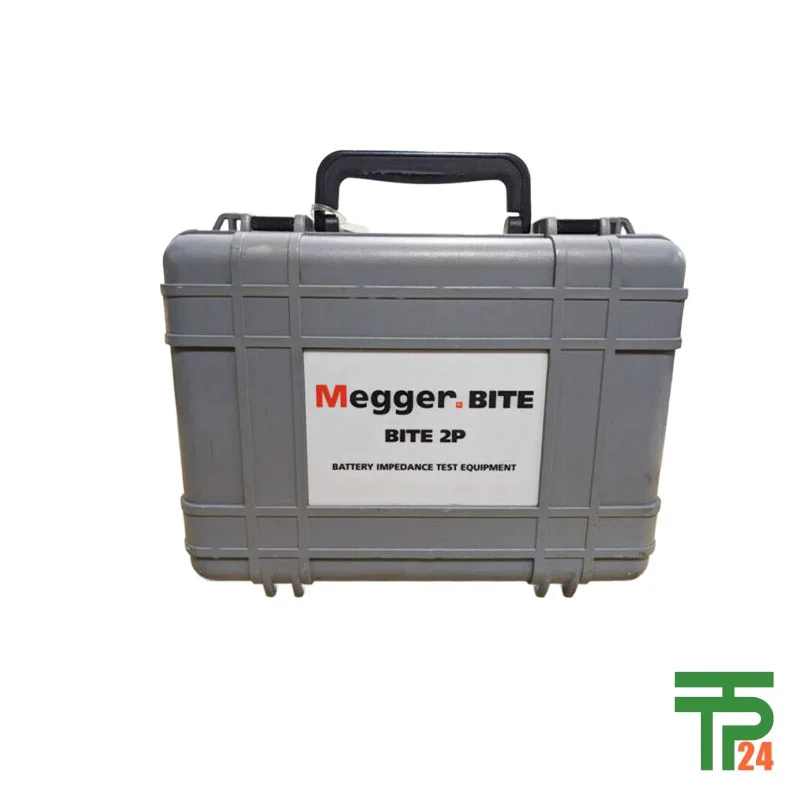

Both the BITE2 and BITE2P are crafted for portability, durability, and ease of use. The standard BITE2 kit comes in a rugged canvas case with a shoulder strap, ideal for fieldwork, while the BITE2P combines transmitter, printer, and storage for all required accessories within a single, robust carrying case. The digital LCD meters on both transmitter and receiver are clearly readable in varied operating environments. Accessories such as extension cables, current sensors, and communication links are included and easily deployable, ensuring prompt setup even in challenging field conditions. The clamp-on current sensor is especially versatile, and both models feature quick-connect leads and an intuitive interface, making them accessible even for users new to impedance testing.

Seamless Data Handling, Reporting, and Software Integration

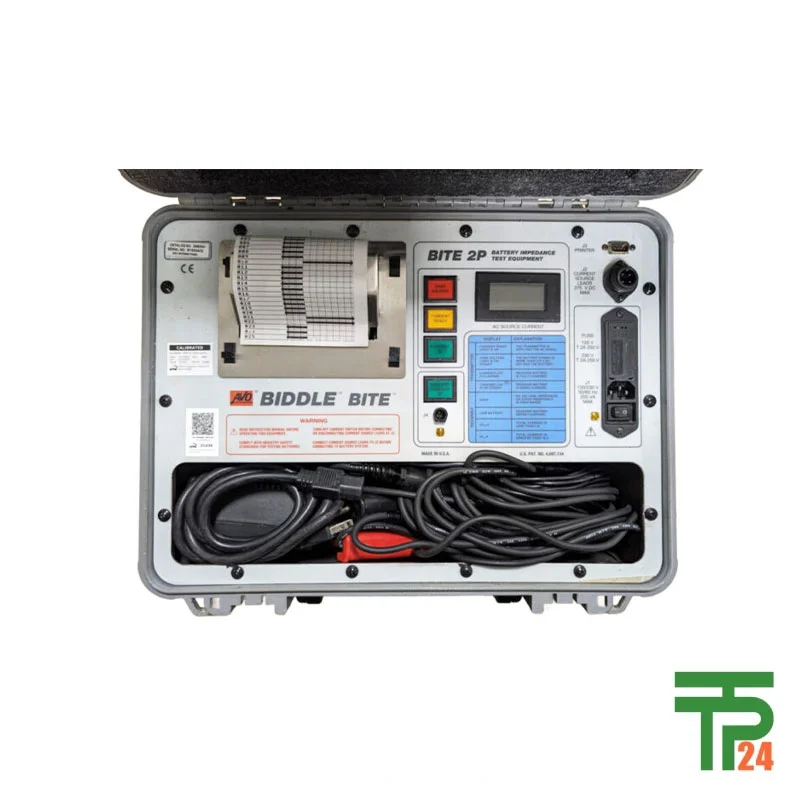

The innate memory and data-processing features of the receiver—capable of retaining readings for thousands of cell impedance, voltage, and interconnection resistance values—make post-test analysis straightforward. Connectivity via RS-232 allows data export to PCs for deeper analysis or record-keeping. With the BITE2P, the thermal printer adds immediate hardcopy output, streamlining documentation for field engineers and compliance audits alike. The included PowerDB LITE software package supports detailed analysis and custom reporting, which is ideal for regulated industries with stringent maintenance record requirements. Selective print and delete functions, as well as integrated review and retest operations, provide full control over recorded data and ensure that the most critical test results are always accessible.
