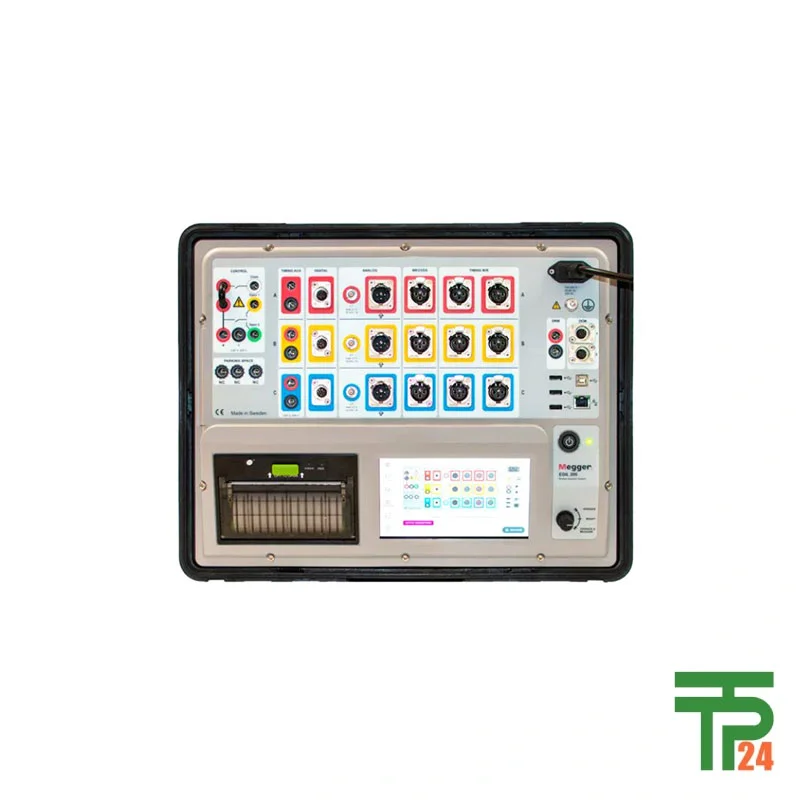

Megger EGIL200 circuit breaker analyser

Description

Introduction to Megger EGIL200 Circuit Breaker Analyser

The Megger EGIL200 Circuit Breaker Analyser stands as a new benchmark in the field of circuit breaker diagnostics. As the first in an emerging range, the EGIL200 has been purposefully designed for the rapid and accurate assessment of medium and high voltage circuit breakers in substations and demanding industrial environments. It bridges the gap between powerful laboratory-grade analysers and the needs of field professionals who demand robust, portable, and easy-to-use tools. Building on the successful heritage of Megger’s market-leading EGIL and TM series, this instrument offers intuitive functionality, advanced testing capability, and the rugged reliability essential for tough site conditions.

User-Friendly Interface and Simplified Testing Process

One of the most notable features of the EGIL200 Circuit Breaker Analyser is its user-centric design. The instrument’s workflow-based interface ensures that all critical test settings are immediately available via a high-visibility 7-inch touchscreen, dramatically reducing setup and operation time. The “quick test” mode gathers the most important test parameters on a single screen and allows users to begin diagnostic routines with a single press. The streamlined connection setup means that users only need to connect test leads once, after which every major test—timing, motion, current, resistance, and voltage—can be conducted without reconfiguring connections.

Advanced DualGround™ Testing and Measurement Integrity

A standout innovation in the EGIL200 is the patented DualGround™ function. Using Dynamic Capacitive Measurement (DCM), this technology enables timing measurements with both sides of the circuit breaker grounded. DualGround™ dramatically increases operator safety and reduces the risk of damaging test equipment or the breaker itself. It also accelerates the testing process, saving valuable field time. The EGIL200 is enhanced with Active Interference Suppression and intelligent digital filtering, which maintain exceptional accuracy and reliability, even in environments subject to electrical noise or transients.

Comprehensive Testing Functions and Standards Compliance

The EGIL200 Circuit Breaker Analyser excels in versatility, performing all recommended tests outlined in the IEEE C37 and IEC 62271 standards. It handles a breadth of vital diagnostics: timing main and pre-insertion resistor (PIR) contacts, coil current analysis on both close and open coils, station voltage measurement, motion and resistance tests (static and dynamic), and motor current evaluation. The instrument also includes the essential minimum pickup voltage tests for each breaker pole. PIR contact timing and resistance measurements remain precise thanks to the integrated Active Interference Suppression, ensuring compliance with global engineering standards and reducing test result variability.

Practical Applications in Electrical Power Industries

The Megger EGIL200 finds its primary use cases in both regular and advanced maintenance routines for medium and high voltage circuit breakers. In substations, it supports condition monitoring, pre-commissioning, and scheduled diagnostics, ensuring reliable breaker operation and system protection. Its features make it particularly valuable for utility engineers, industrial plant maintenance teams, and test specialists overseeing dead-tank and live-tank circuit breakers. It also addresses the needs of manufacturers during quality control and type testing. The ability to archive, generate, and share test reports—directly as PDF or through an integrated printer—adds value for both regulatory compliance and asset management.

Rugged Construction, Data Handling, and System Integration

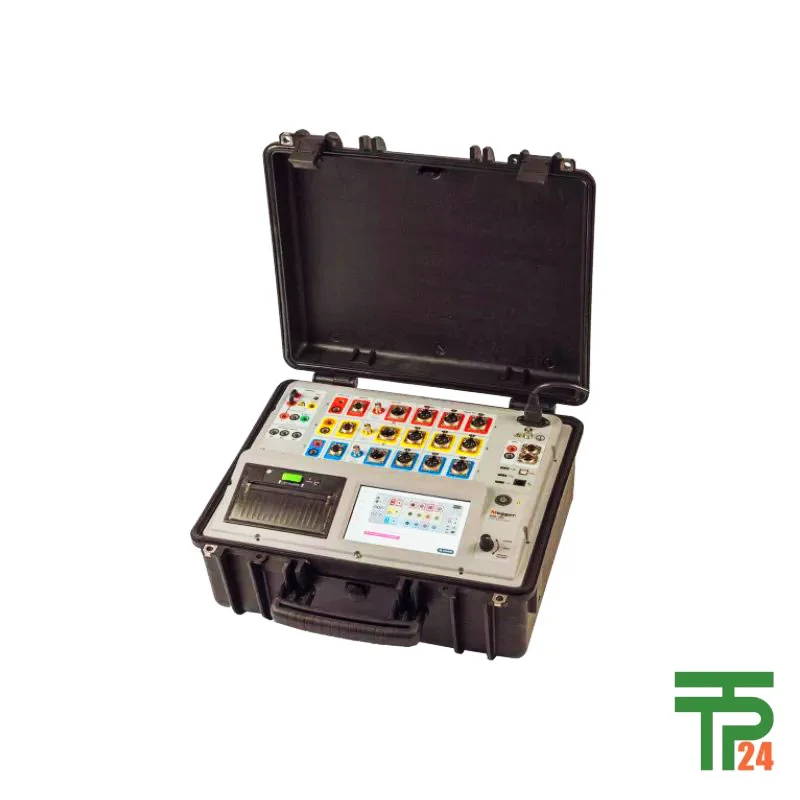

The EGIL200’s robust IP67-rated enclosure protects the instrument during transport and while operating in harsh field conditions. Its system architecture offers extensive storage (1.4 GB, enough for thousands of recordings), multiple USB interfaces, and Ethernet connectivity, allowing seamless archiving, backup, and digital report generation to external PCs or networks. Colour-coded connectors and leads further simplify operation, while the optional backpack case and organized accessory set facilitate safe and efficient fieldwork. The EGIL200’s adaptability is highlighted by its range of pre-configured and customizable versions—users can select the number of breaker poles per phase, number of analogue channels, included printer, and accessory kits to suit any testing scenario.

Leading Edge Technology, Flexibility, and Upgrade Path

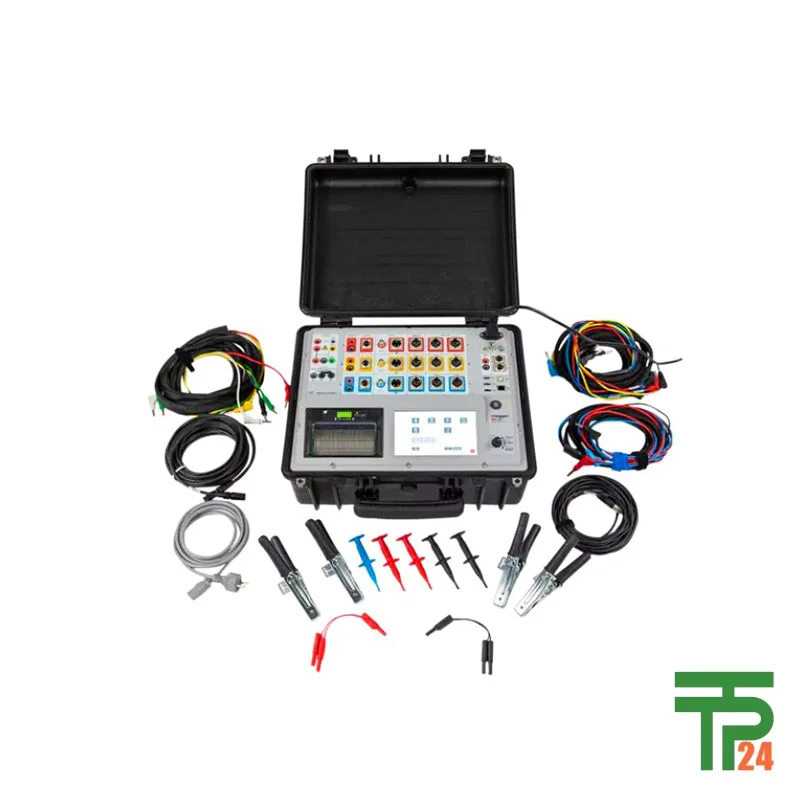

Inheriting core technologies from Megger’s TM series, the EGIL200 plants high-level, future-proof features into the mid-range segment. Its modular platform supports dynamic resistance measurement (SRM/DRM), online and first-trip testing, and advanced motion analysis with both analogue and digital channels. Orderable software packages allow operators to add features such as VDS timing, first trip analysis, and undervoltage coil testing as needed. This ensures long-term value and investment protection for asset owners and service providers. Furthermore, every EGIL200 is delivered with essential cables, leads, and analysis software, ensuring users are ready to work immediately.
