Megger ICMmonitor portable partial discharge monitoring system

Description

Portable PD Detection For Power Asset Integrity

The Megger ICMmonitor Portable partial discharge monitoring system is a state-of-the-art solution designed to safeguard the reliability and longevity of critical medium and high voltage (MV/HV) assets. Partial discharge (PD) phenomena are among the most common precursors for insulation breakdown and catastrophic failures in these installations, leading to costly unplanned outages and safety hazards. The ICMmonitor Portable tackles this challenge by providing a flexible, non-invasive means of identifying, trending, and analyzing insulation-related issues during normal asset operation, requiring neither shutdowns nor interruptions. The system’s versatility allows maintenance teams to spot developing insulation faults at an early stage, conduct effective preventive measures, and ensure continued system uptime— all while maintaining robust on-line monitoring or targeted spot testing.

Multi-disciplinary Technology For Reliable PD Identification

What sets the ICMmonitor Portable apart is its integration of several advanced diagnostic modules within one ergonomic instrument. At its core, you’ll find a powerful spectrum analyzer, an acoustic PD detector, and a conventional PD monitor, all working in tandem for comprehensive partial discharge measurement. This unique combination means the system excels in environments with substantial electrical and acoustic noise, such as active substations and industrial power plants, where other systems might falter. The spectrum analyzer segment allows for the selection of disturbance-free frequency windows, maximizing the signal-to-noise ratio and ensuring the accuracy of measurements. Meanwhile, the integrated acoustic and conventional modules provide further layers of diagnostic clarity, enabling users to distinguish real PD events from artifacts or background interference reliably.

Flexible Multiplexing And User-friendly Data Visualizations

Ease of use is a cornerstone of the ICMmonitor Portable experience, and its design reflects this ethos through intuitive controls and display versatility. A built-in four-channel multiplexer allows users to effortlessly scan and monitor three-phase systems or multiple sensors, with additional configurations achievable via optional expanded multiplexers. The instrument features a clearly readable LCD display, facilitating instant access to a range of graphical data presentations. These include horizontal bar graph displays for quick signal assessments, phase-resolved PD patterns (which aid in defect classification), scope-type displays showing phase-summed charge overlays with the applied voltage, and flexible spectrum displays of detected signal frequencies. Such vivid visualizations demystify PD analysis, equipping both novice users and experienced diagnosticians to make rapid, informed decisions on asset health.

Application Scenarios Exclusive To This Monitoring System

The ICMmonitor Portable distinguishes itself through its highly specific application scenarios, tailored to the needs of utility operators, industrial clients, and service companies. It is routinely deployed for both temporary on-line monitoring and precise spot tests across a range of vital equipment, such as power transformers, where incipient winding insulation breakdowns must be caught early to prevent blackouts; electric motors and generators, whose sustained operation in industrial settings hinges on insulation reliability; and HV cable systems, encompassing joints, splices, and terminations, where PD-induced degradation can lead to catastrophic winding failures. The device’s portability and rugged housing make it ideal for field use in substations, generation plants, or even challenging outdoor or remote environments, ensuring protection against harsh weather and contamination—especially when paired with the IP65-rated ICMoutlander housing.

Autonomous Operation With Advanced Connectivity And Software

Beyond its hardware strengths, the ICMmonitor Portable is a fully autonomous instrument with robust data management and connectivity features. It can be left running for prolonged periods to autonomously record, trend, and alarm based on online PD activity, storing the data internally for later retrieval or real-time remote access. Connectivity is assured via both USB and LAN (TCP/IP) interfaces, enabling direct communications with local computers or integration into existing monitoring architectures. The optional built-in web server and specialized monitoring software suite provide engineers with browser-based, platform-independent remote access to real-time measurements, event logs, alarm notifications, and long-term trending graphs. These software extensions also streamline alarm management, facilitate configurable threshold-based event recording, and include built-in report generators as well as advanced pattern classification tools (with ICMexpert software).

Long-term Trending, Alarm Management, And Data Security

A critical aspect of the ICMmonitor Portable’s value proposition is its support for detailed trending analysis and automated alarm management. The instrument constantly acquires, stores, and summarizes PD levels over time, allowing maintenance teams to recognize patterns or step-changes in asset behavior that might indicate developing insulation issues. Should user-defined alarm thresholds be breached, the system issues notifications, automatically stores relevant PD data, and provides instant visualization tools for fault investigation and reporting. All data can be exported for further analysis or securely shared with asset managers, while long-term storage ensures traceability and compliance with predictive maintenance regimes. When combined with the optional remote access servers and secure mobile connectivity modules, the instrument enables 24/7 oversight—regardless of the asset’s physical or geographical constraints.

Global Delivery And Authenticity Guaranteed By tpt24

Purchasing the ICMmonitor Portable is a strategic investment in asset protection, and it’s essential to source it from a trusted provider. tpt24 stands as the world’s leading online store for the Megger ICMmonitor Portable, offering unmatched expertise, authentic sourcing, and comprehensive after-sales support. Whether you are located in North America, Europe, Asia, the Middle East, or Africa, tpt24 guarantees the authenticity and quality of every ICMmonitor Portable shipped, with worldwide delivery backed by robust warranty terms and customer service. Secure your purchase from tpt24 and receive not just the instrument, but peace of mind that your asset monitoring will meet international standards and provide timely, accurate data.

Accessories, Expansion, And Ruggedized Operation

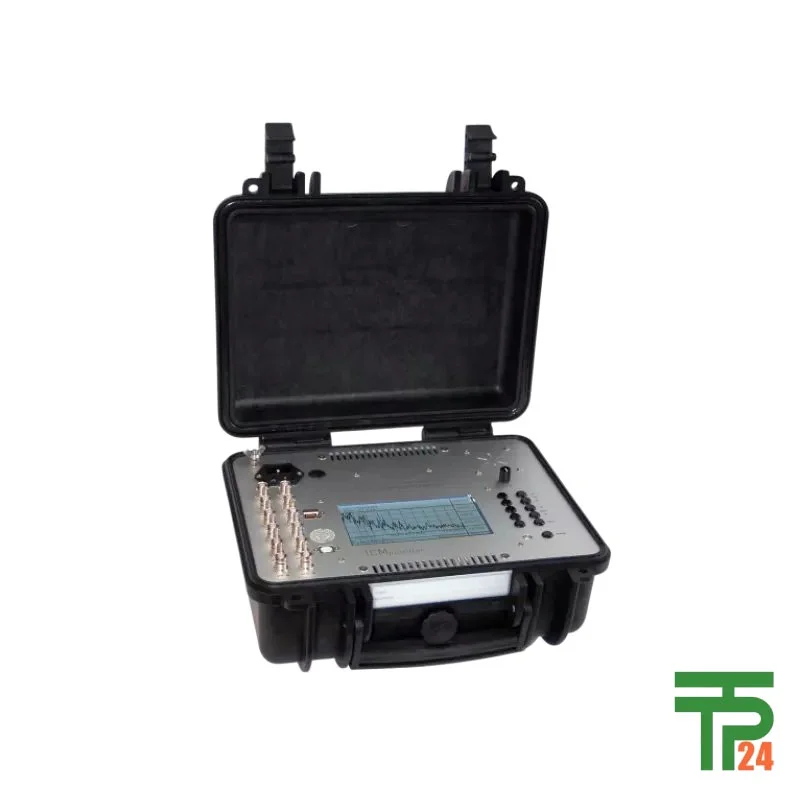

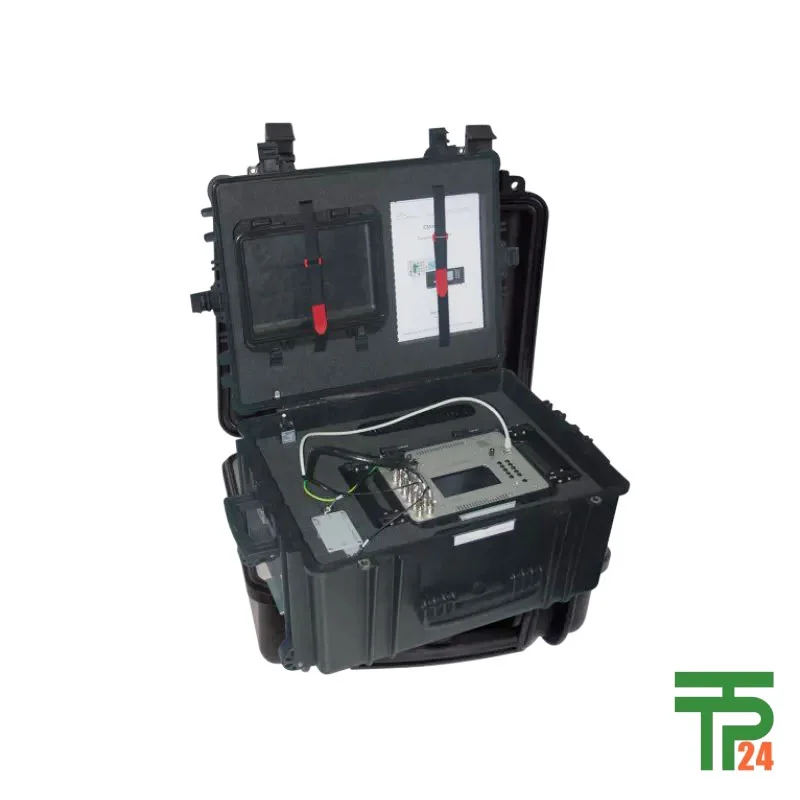

To ensure optimal performance in diverse scenarios, the ICMmonitor Portable is supported by a rich suite of accessories and optional enhancements. These include various bushing adapters and coupling units for specific applications, UHF sensors for advanced PD detection, preamplifiers tailored to noise environments, and ruggedized protective casings such as the ICMoutlander—ideal for outdoor deployments in extreme conditions. The main Explorer case version is lightweight, easy to transport (even as flight luggage), and quickly deployable in the field. Accessories such as certified calibration impulse generators, extended multiplexers, and tailored cable kits further extend the instrument’s versatility, making it suitable for complex diagnostic campaigns or permanent installations needing heightened environmental resistance.
