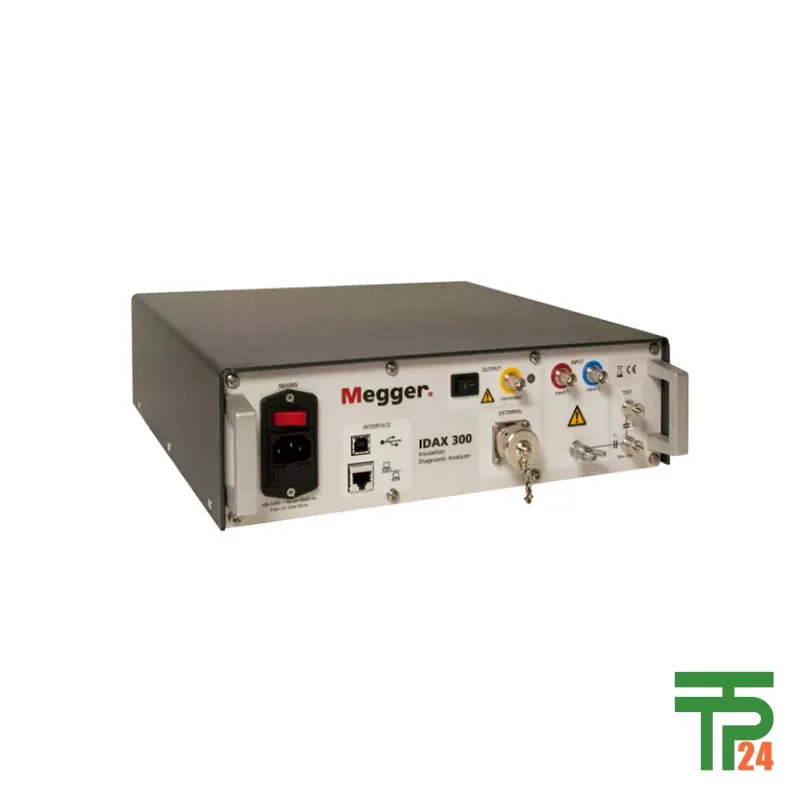

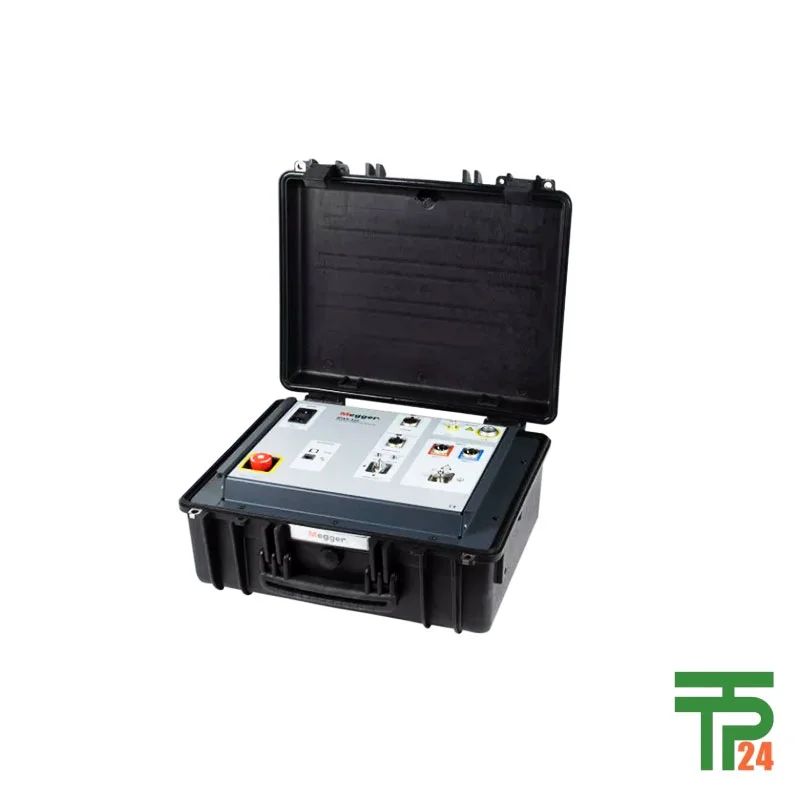

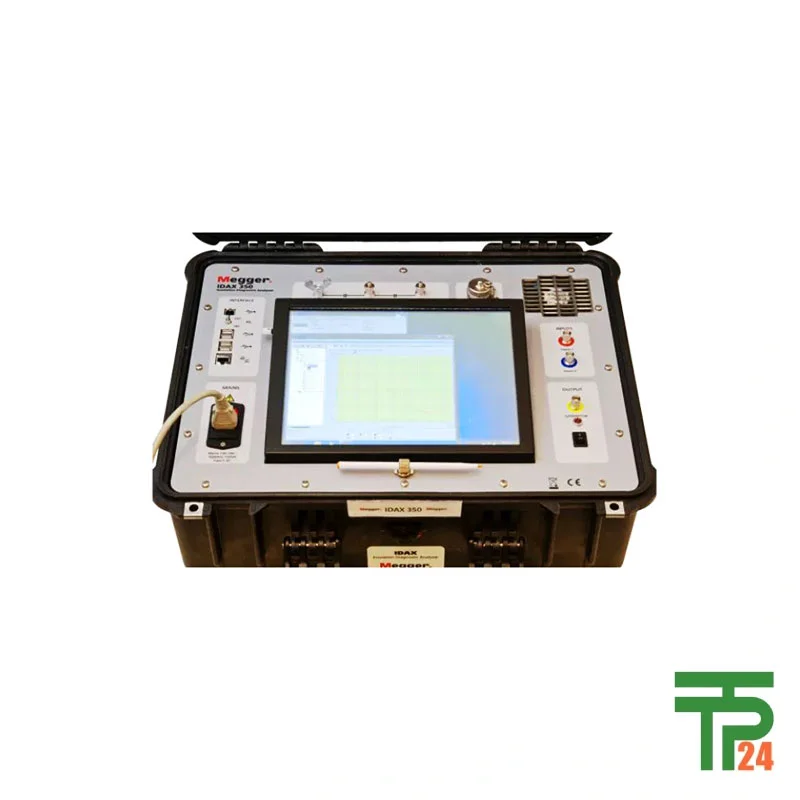

Megger IDAX series of insulation diagnostic analysers

Description

The Megger IDAX series of insulation diagnostic analyzers are cutting-edge instruments designed to accurately assess the condition of insulation in various high-voltage assets. This comprehensive overview will delve into the technology behind these devices, their diverse applications, and the distinct advantages they offer, highlighting why the Megger IDAX series, especially when procured from the world’s leading online store, tpt24, is an unparalleled choice for insulation diagnostics. tpt24 guarantees the authenticity and quality of every product, ensuring reliable delivery to any country.

Understanding Dielectric Frequency Response Technology

The Megger IDAX series leverages Dielectric Frequency Response (DFR), also known as Frequency Domain Spectroscopy (FDS), a sophisticated diagnostic technique that has been meticulously adapted from laboratory settings for practical field use. DFR involves measuring the capacitance and losses, typically expressed as tan delta or power factor, across a wide range of frequencies. This method provides a much more comprehensive understanding of insulation health compared to traditional single-frequency tests. The measured DFR curve is intrinsically linked to key insulation parameters, including its geometry, moisture content, oil conductivity, and temperature. By employing advanced curve fitting against a reference material model, the IDAX precisely calculates the moisture content within solid insulation, the oil’s conductivity at a standardized 25 °C, and the tan delta/power factor at a reference temperature of 20 °C. This meticulous analysis ensures highly accurate and reliable diagnostic results.

Individual Temperature Correction: A Megger Innovation

A cornerstone of the IDAX series’ accuracy is Megger’s proprietary Individual Temperature Correction (ITC). Insulation properties are highly sensitive to temperature fluctuations, and diagnostic tests performed at varying ambient temperatures can yield misleading results. ITC intelligently translates test data from the actual test object’s temperature to the established reference temperatures. This crucial innovation eliminates the need for cumbersome temperature corrections by hand and ensures that the diagnostic outcomes are consistently comparable to reference data and previous tests, regardless of the on-site conditions. The IDAX software integrates an ITC-corrected frequency sweep specifically optimized for the precise assessment of instrument transformers and bushings, showcasing Megger’s commitment to delivering tailored and precise diagnostic solutions.

Unmatched Speed and Measurement Efficiency

In the demanding field of electrical diagnostics, time is a critical factor. The Megger IDAX series stands out for its unparalleled measurement speed, offering the shortest measurement time in the market for a full DFR sweep ranging from 1 kHz down to an incredibly low 10 μHz. This remarkable efficiency is achieved through a novel combination of time and frequency domain data. Unlike systems that rely on approximations or incomplete data transformations, the IDAX fits separate reference models to each data set (time or frequency) before transformation and combination. This meticulous approach completely eliminates the risk of introducing artifacts that could compromise the accuracy of the results. The speed and precision of the IDAX allow maintenance teams to conduct more tests in less time, significantly optimizing operational efficiency and minimizing downtime.

Simplified Operation and User-Friendly Interface

Despite its advanced technological capabilities, the Megger IDAX series is designed for exceptional ease of use. The instruments feature an automated test flow, streamlining the diagnostic process and minimizing the potential for human error. The presentation of results is equally intuitive, utilizing an easy-to-understand “traffic light” system. This visual indicator instantly conveys the insulation’s condition, with green signifying healthy insulation, yellow indicating a need for attention, and red signaling a critical issue. This simplified reporting allows even less experienced technicians to quickly interpret the results and make informed decisions, making the IDAX an invaluable tool for both seasoned professionals and those new to insulation diagnostics.

Broad Recognition and Industry Standards Compliance

The reliability and accuracy of the IDAX DFR method are not just claims but are rigorously substantiated by its inclusion in international guides and standards. The technology is recognized and endorsed by prominent industry bodies, including Cigre TB 254, Cigre TB 414, Cigre TB 445, Cigre TB 775, IEEE C57.152-2013, and IEEE C57.161-2018. This widespread acceptance underscores the scientific validity and practical utility of the IDAX series in insulation diagnostics, providing users with the confidence that they are employing a method that is both cutting-edge and globally recognized as best practice. Adherence to these standards reinforces the Megger IDAX as a trusted solution for critical infrastructure assessment.

Dedicated Applications for Crucial Assets

The Megger IDAX series offers dedicated test procedures and unparalleled accuracy for assessing the insulation condition of various critical assets:

• Power Transformers: Moisture accumulation significantly impacts transformer performance, limiting loading capability, reducing oil dielectric strength, and accelerating cellulose insulation aging. The IDAX’s DFR method is the only reliable way to determine humidity in power transformers without decommissioning or disassembly. It utilizes a unique two-material model and ITC for precise calculations of humidity, oil conductivity, and tan delta/power factor, overcoming the limitations of single-frequency tests and unreliable oil analysis.
• Bushings and Current Transformers: Moisture ingress in bushings and current transformers can lead to catastrophic failures, accounting for a substantial percentage of transformer malfunctions and fires. Normal line frequency testing can give false “OK” results. Only through DFR can the true status of these components be accurately assessed. The IDAX series, particularly the IDAX 322 with its 2 kV voltage capacity, is specifically designed for bushing testing, ensuring excellent signal-to-noise ratio and enabling diagnosis of low capacitance objects. It supports various bushing types (RBP, OIP, RIP, RIS) and liquid-impregnated instrument transformers. The optional DFR switchbox further simplifies connections, saving valuable test time and enhancing safety.
• Cables: When used with the VAX220/230 20/30 kV amplifiers, the IDAX can assess the status of XLPE cables. Frequency sweeps at various service voltages, when compared to DFR curves, enable the detection of water treeing, a common degradation mechanism in cables. The IDAX can differentiate the characteristic response of water trees from other influences, providing accurate cable insulation health assessments.
• Industrial Processes: In industrial applications like transformer dry-out, impregnation of cellulose, or curing of resins, monitoring dielectric properties is crucial. By performing repeated DFR sweeps at fixed intervals alongside temperature measurements, the IDAX provides precise information on process completion, such as transformer dryness. This capability significantly enhances process repeatability, efficiency, and throughput.
