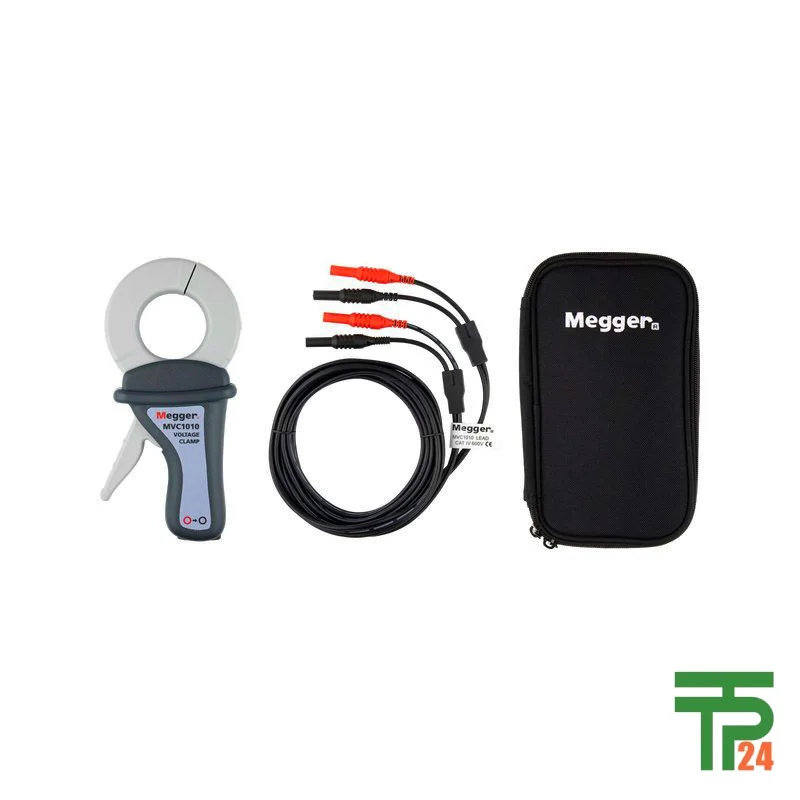

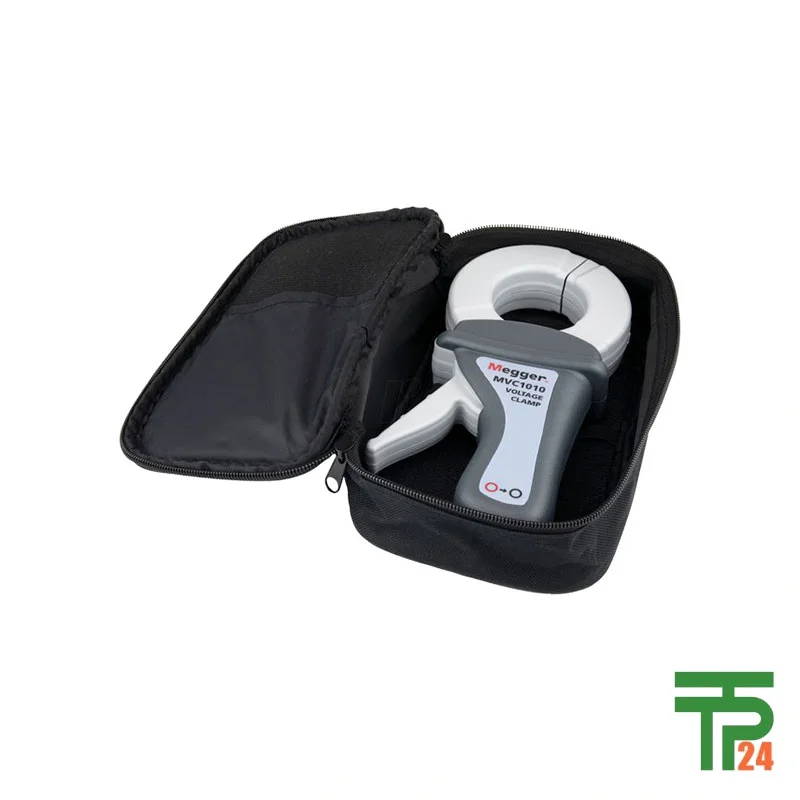

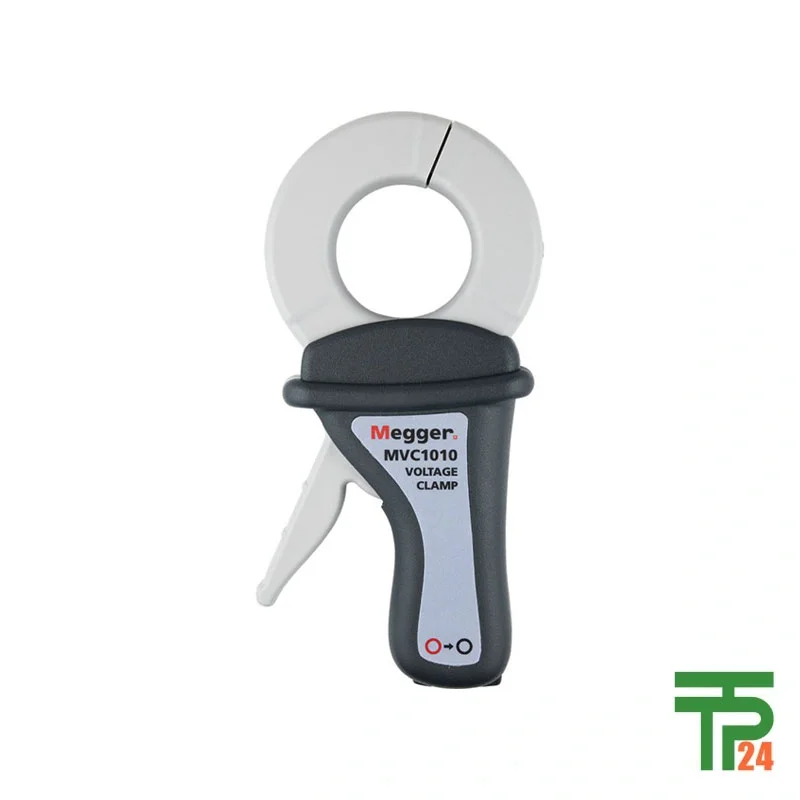

Megger MCC1010/ MVC1010 1000 A AC Current Clamp

Description

Advanced Current Measurement with Megger MCC1010 MVC1010

The Megger MCC1010 and MVC1010 represent the pinnacle of clamp meter technology, developed for precision measurement of alternating current (AC) up to a staggering 1000 amperes. These current clamps are designed for demanding electrical environments, being compliant with CAT IV 600 V safety standards, which ensures safe operation even in high-risk industrial, utility, and commercial settings. A standout feature is their remarkable 1000:1 step-down current ratio, enabling accurate scaling of high current levels to manageable outputs for measurement instruments. Moreover, their application of high-permeability FeNi alloy in the magnetic cores provides outstanding accuracy—0.3% error at full-scale—and low phase shift (just 0.7°), making them ideal for metering scenarios requiring uncompromising precision. This reliability is a testament to Megger’s global reputation, and the MCC1010/MVC1010 models only reinforce that legacy.

Unmatched Versatility in Everyday Electrical Applications

The flexibility of the Megger MCC1010 and MVC1010 extends far beyond basic current measurement. These clamps are exceptionally well-suited for operation with power quality analyzers, oscilloscopes, and motor testers, where high accuracy and wide dynamic range are critical. They play an essential role in earth testing, being compatible with clamp-enabled earth testers and supporting advanced techniques such as the Attached Rod Technique (ART) and stakeless testing, which simplify earth resistance measurements in complex installations. The large jaw opening (up to 52 mm) allows them to accommodate a wide variety of cable sizes, from domestic installations to heavy industrial systems. Their ability to measure leakage currents makes them indispensable for preventative maintenance, helping spot energy loss or insulation faults before they escalate.

Designed for Safe Measurements in Challenging Environments

Safety remains at the core of the MCC1010 and MVC1010’s design philosophy. Rated to CAT IV 600V according to IEC 61010 standards, these clamps can safely measure current in circuits up to 600 V in the most demanding environments. The output terminals come equipped with advanced overvoltage protection via a built-in voltage limiter, ensuring the clamps can be safely handled under all conditions. The robust construction, with an IP40 rating when jaws are closed, provides solid dust resistance suitable for industrial environments. With storage and operating temperature ranges extending from the chilling cold of -40°C to the heat of +70°C, and an operating altitude up to 2000 meters, these clamps are truly engineered for fieldwork anywhere.

Precision Engineering Enhances Measurement Accuracy and Reliability

Engineered for metrology-grade performance, the MCC1010 and MVC1010 excel in delivering accurate readings across the full operating range. Showcasing a minimum sensitivity of 1 mA/A, they detect even minimal current flow, which is critical for leakage and low-current applications. Their amplitude and phase accuracy remains within tight limits: an outstanding 0.3% amplitude error for currents up to 1000 A, and phase shift capped at 0.7°, making them suitable for precise energy and power quality studies. Frequency bandwidth spans from 15 Hz to 10 kHz, accommodating both standard power frequencies and harmonic-rich environments. Load and crest factor influences remain within specification, ensuring results are accurate regardless of signal shape or connected instrumentation.

Comprehensive Clamp Usage for Modern Measurement Needs

The MCC1010 and MVC1010 are intentionally built for intuitive, reliable measurements. To ensure precision, users must only clamp around a single phase, avoiding combined phases or neutral conductors, which would yield incorrect results. For direct current reading, an ammeter reading up to 1A can be connected—thanks to the 1000:1 ratio, 1000A primary results in a manageable 1A on the ammeter. When interfacing with voltmeters or data loggers, the probe provides a clean 1 mV across 1Ω burden resistance for every 1 A of current. Compatibility with TRMS multimeters and earth testers is ensured, and the dual-clamp method (using both MCC1010 and MVC1010) enables non-contact resistance measurements. These versatile operational methods equip technicians for broad application scenarios from routine maintenance to advanced diagnostics.

tpt24: World-Leading Supplier of Megger Clamps

When it comes to acquiring genuine Megger MCC1010 or MVC1010 current clamps, the online marketplace tpt24 stands out as the world’s premier store for this product. Not only does tpt24 offer a guarantee of authenticity and product quality, but they also provide worldwide delivery, ensuring access to these vital instruments no matter where you are located. Their reputation as a trusted supplier means you can purchase confidently, knowing you will receive original, high-performance Megger products backed by reliable service and support. Whether for utilities, industrial automation, or electrical contracting, sourcing Megger clamps from tpt24 ensures you are equipped with the best.

Dedicated Product Applications and Industry Use Cases

The specific applications of the MCC1010 and MVC1010 make them essential for a wide breadth of electrical professionals. In power utility substations, these clamps facilitate safe, non-contact current measurement for maintenance crews and engineers, allowing fast troubleshooting without needing to interrupt power. Industrial automation specialists rely on these clamps for diagnosing machine faults, motor current monitoring, and ensuring the integrity of complex control systems. Their compatibility with earth testers and data loggers broadens their role in energy audits, installation verification, and compliance testing. From field work in remote conditions to precision lab analysis, the MCC1010 and MVC1010 deliver consistent, high-quality results, embodying versatility in the electrical test industry.

Summary of Key Technical Highlights and Specifications

In conclusion, the MCC1010 and MVC1010 provide a comprehensive solution for AC current measurement up to 1000A, combining outstanding accuracy, industry-leading safety, and robust build in a single package. Their compatibility with a wide range of equipment, from oscilloscopes to digital multimeters, makes them a must-have tool for serious professionals. Reliability is ensured by their advanced protection mechanisms, precise engineering, and flexible operational range. For every purchase, especially through globally recognized outlets like tpt24, users can rest assured of receiving top-tier instruments with guaranteed authenticity and support.
