Megger MPQ2000 Portable power quality analyser

Description

Exceptional Design for Demanding Power Analysis Tasks

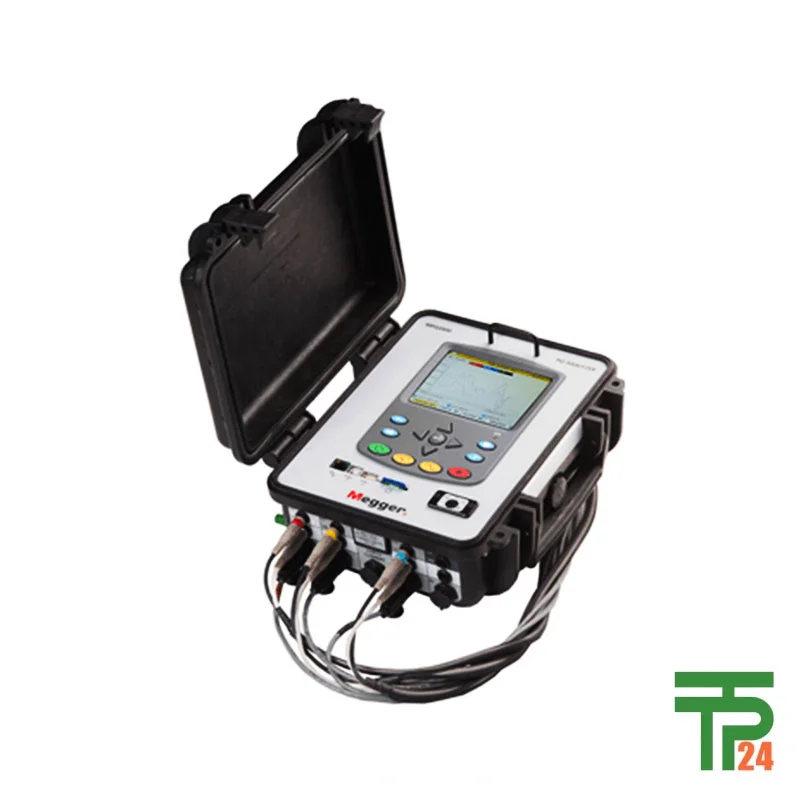

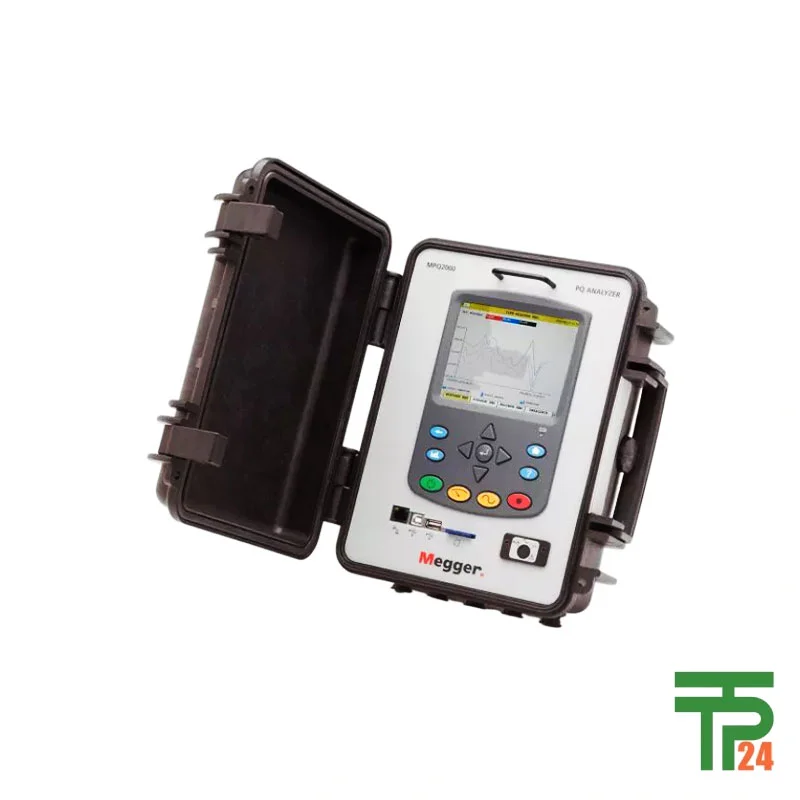

The Megger MPQ2000 Portable Power Quality Analyzer stands out as a highly sophisticated and intuitive three-phase analyser, engineered specifically for professionals seeking reliable, real-time power quality insights. Encased within a rugged IP54 weatherproof enclosure, the MPQ2000 is designed for use in the harshest environments, ensuring both durability and consistent performance wherever your work takes you. This robust IP54 rating means the instrument is fully protected against dust ingress and water splashes, making it a go-to choice for outdoor operations, substations, challenging industrial settings, and utility infrastructures. Further enhancing its field-readiness, the analyzer features a field-replaceable NiMH battery pack, allowing up to 8-hour operation and effortless battery maintenance. Whether rain, dust, or variable temperatures, the MPQ2000 keeps collecting accurate power data, helping teams to maintain system reliability and analyze critical issues without interruption.

Smart Operation and Intuitive User Experience

Leveraging years of experience with power quality analyzers deployed globally, Megger has implemented user-centric innovations in the MPQ2000 to address the pain points of field professionals. The unit is powered off phase A voltage—either AC or DC—which greatly increases deployment flexibility for diverse site conditions. A standout feature is the automated current transformer (CT) recognition: not only does the MPQ2000 automatically identify the type of clamp and its current range, it also verifies correct unit connection before recording any data. This intelligent connection verification system significantly reduces the risk of common setup errors, ensuring data integrity from the moment you start a survey. The onboard configuration capabilities, combined with auto-setup functions and menus in multiple languages, make first-time operation and ongoing use remarkably straightforward, eliminating steep learning curves for both new and seasoned users.

Advanced Recording, Storage, and Communication Options

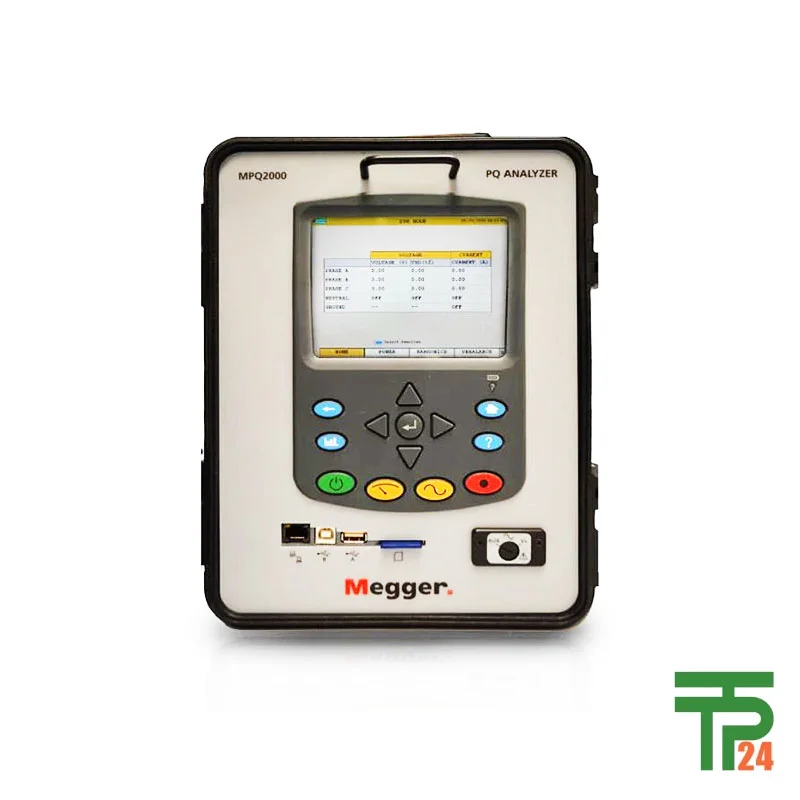

For long-term monitoring, the MPQ2000 boasts truly massive memory storage, facilitated by removable SD cards (supporting up to 32 GB). This allows continuous, event-triggered, or scheduled data capture for days, weeks, or even months without fear of data loss or memory constraints. Recorded data is easily accessible and viewable on the device itself via the brilliant color VGA display, letting users review waveforms, trends, and event captures in the field. For more detailed analysis or permanent records, data can be transferred using multiple interfaces: USB cable, USB flash drive, Ethernet, wireless (using an off-the-shelf bridge), or directly via the SD card. The device supports live connection and disconnection, providing additional convenience and safety during field use. This versatile array of data communication methods ensures compatibility across modern IT environments and diverse project requirements.

Comprehensive Software and Onboard Analysis Functions

One of the MPQ2000’s greatest advantages is its paired Megger PQ Power Quality Analysis software, provided free of licensing constraints. This Windows-compatible suite (supporting XP through Windows 10) enables advanced charting, automated configuration, and in-depth harmonic and waveform studies—without the need for extra purchases. The software greatly enhances the onboard analytics, allowing dynamic visualization, event flagging, rapid voltage change detection, scheduled runs, and clock-synced recording for highly accurate time-based studies. The MPQ2000 also supports flexible naming and setup templates for data files, simplifying analysis, comparison, and archival processes. Internal analysis is further enhanced by built-in waveform capture, scope, and DVM modes for real-time signal investigation, as well as comparison features against IEC or internal company compliance templates. All these features combine to provide a powerful, standalone solution for collecting, analyzing, and reporting power quality metrics without dependency on complex external infrastructure.

Power Quality Measurement: Precision and Versatility

Technically, the MPQ2000 delivers laboratory-grade measurement performance in a portable package, supporting compliance with IEC61000-4-30 Class A, IEC61000-4-7, IEEE1459, and other key global standards. It features four isolated voltage channels (0–1000 V AC RMS and ±1500 V DC) and up to five current channels (requiring appropriate CTs), making it suitable for a wide array of three-phase and single-phase systems. Measurement accuracy meets the highest industry requirements—0.1% AC and 0.2% DC for voltage. Current measurement range extends up to 6000 A with crest factor 4.0, and the device benefits from auto-range CTs powered directly from the analyzer, minimizing on-site setup complexity. Frequency stability, phase angles, harmonic content (to the 128th order), inter-harmonics, unbalance (ANSI and IEC), and rapid voltage change detection are all supported at a very granular, sub-cycle level, ensuring no critical events are missed during studies or troubleshooting campaigns.

Real-Time Visualization and Advanced Event Capture

A unique aspect of the MPQ2000 is its real-time visualization and advanced event triggering capability. Utilizing powerful on-device electronics, it can display RMS values, live waveforms, vector diagrams, harmonics, unbalance (ANSI & IEC), flicker, and demand data as they happen. Scope and DVM modes facilitate detailed voltage/current, frequency, and harmonic spectrum examinations, enabling precise field diagnostics on the spot. The MPQ2000 records not only routine RMS data but also voltage and current sags/dips, swells, transients (down to 1 microsecond), phase shifts, sub-cycle events, and waveform snapshots—capturing even fleeting power quality disturbances. With programmable pre- and post-trigger cycles, time-stamped event logs, and both event-triggered and scheduled waveform captures, this analyzer delivers exhaustive documentation of grid or facility behavior, ideal for commissioning, routine monitoring, and forensic analysis during fault investigations.

Exclusive Applications for Utilities and Industry Leaders

The versatility and depth of the MPQ2000’s feature set make it indispensable across a broad array of sectors. In utility management, it is essential for compliance testing, billing verification, power factor studies, load balancing, transformer analysis, and capacitor bank sizing. Industrial users rely on it for troubleshooting motor inrush and operation, diagnosing switchgear or component failures, monitoring substation performance, and analyzing neutral overheating—core tasks for maintaining uptime and optimizing asset health. Commercial and facility managers employ the MPQ2000 for identifying dimming/surging lighting, lamp flicker analysis, and resolving persistent breaker tripping or equipment malfunctions rooted in power quality fluctuations. Thanks to its motor inrush capture, continuous recording, and flexible integration with various current/voltage leads, the analyzer is equally effective on single-phase or three-phase systems, offering a complete solution for both troubleshooting and preventive maintenance—making it a crucial asset in any electrical reliability program.
