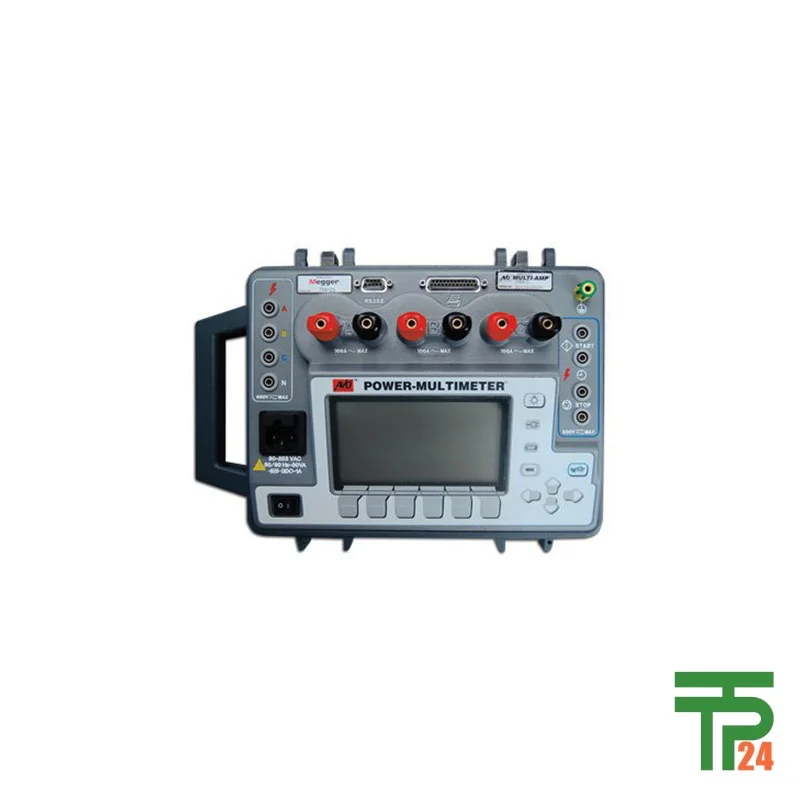

Megger PMM-1 Power multifunction measuring instrument

Description

Advanced Power Measurement for Modern Electrical Systems

The Megger PMM-1 Power Multifunction Measuring Instrument stands as a vanguard in the field of electrical power analysis, seamlessly integrating advanced measurement capabilities with robust design. Developed to serve both single-phase and three-phase electrical networks, the PMM-1 offers comprehensive measurements of AC/DC voltage, current, active and reactive power, power factor, phase angle, and frequency. Its simultaneous measurement and display of all key parameters enable engineers and technicians to gain immediate, accurate insight into the performance and safety of electrical systems critically. With an intuitive, menu-driven interface, the PMM-1 makes even complex measurement tasks straightforward, supporting both routine maintenance and sophisticated diagnostic procedures. Whether stationary or during field operations, its portability and dual battery/line operation further cement its position as a staple for all power system professionals.

Exceptional Accuracy in Phase and Current Measurement

One of the PMM-1’s standout features is its accurate measurement of phase angle at remarkably low current levels, an essential capability for detailed relay testing and circuit analysis. For both amperage and voltage, the instrument provides high-resolution measurements that meet demanding accuracy standards: ±0.05% of the reading for AC voltage, and ±0.05% for current at 50/60 Hz. This high precision, even at low thresholds, allows for confident assessment of circuit performance, especially when verifying the correctness of protective relay systems—a critical concern for grid stability and industrial safety. The automatic range selection and the capacity for direct measurement up to 100A (with optional clamp-on current transformers for higher values) add significant versatility. With these features, Megger’s PMM-1 becomes indispensable during equipment commissioning, revenue meter installations, and regular site audits.

Data Logging, Storage, and Flexible User Interface

Designed with modern workflows in mind, the PMM-1 incorporates extensive data-logging features, critical for in-depth load studies and voltage surveys. Its non-volatile memory can store up to 286 three-phase datasets, supporting automatic, timed recording intervals from one minute up to an hour. The instrument allows the user to schedule data logging based on date and time, enabling day-long or multi-day recording sessions (24 hours at 5-minute intervals or 72 hours at 15-minute intervals). Thanks to the large, high-contrast graphical LCD display with backlight and adjustable contrast, all measured data are presented clearly for rapid on-site decisions. When more thorough analysis is required, recorded data can be easily transferred to a PC via RS-232C for detailed review or printed directly through its parallel port, enhancing reporting and documentation tasks.

Specialized Applications for the Power Industry

The applications of the PMM-1 span industrial, commercial, and utility sectors. In general electrical maintenance, it enables fast and reliable diagnostics of voltage, current, and load issues. During electrical machine repair, the instrument’s max hold feature captures highest measured parameters, essential for assessing motor startup currents. In protective relay testing, its high-speed recording and precise phase angle measurements make it ideal for both pickup and timing tests; this ensures relays will operate as intended during faults without nuisance tripping. At the service entrance or in substation monitoring, simultaneous voltage, current, and frequency readings facilitate comprehensive power quality assessments. For meter installations, the PMM-1 offers direct amplitude and phase angle readings, ensuring accurate billing and reducing commercial disputes. It is an essential tool for both routine checks and troubleshooting, boosting reliability at every scale of power delivery and consumption.

High-Speed Measurement and Harmonic Analysis Capabilities

The PMM-1 also excels in specialized measurement modes. Its high-speed recording captures up to 1,200 readings in a single-phase mode or 400 in a three-phase mode within 15, 30, or 60-second windows. This capability is especially useful for diagnosing transient phenomena, such as starting currents of large motors or fault conditions leading up to protection device operation. Another advanced feature is comprehensive harmonic analysis up to the 49th harmonic for both voltage and current, allowing in-depth assessment of power quality issues, such as waveform distortion or harmonic-induced heating in transformers and conductors. By monitoring these parameters in real time, power engineers can pinpoint inefficiencies and develop targeted maintenance strategies, ultimately improving system resilience and energy efficiency.

Reliability, Ruggedness, and User-Oriented Engineering

Megger designed the PMM-1 to withstand the rigors of field work and demanding environments. The unit is enclosed in a lightweight, ergonomic yet robust plastic shell, facilitating transport and on-site use. The power supply flexibility—with internal rechargeable batteries and an automatic charger—ensures up to ten hours of continuous operation per charge. The PMM-1’s operating temperature range extends from -15° to +55°C, making it suitable for harsh climates and industrial settings. Safety and compliance are ensured via adherence to IEC61010-1, EN61326-1, and relevant MIL standards for shock, vibration, and temperature. Its versatility is further enhanced by support for configurable current transformer ratios up to 9999:1 or 9999:5, simplifying complex measurements on both primary and secondary circuits, and eliminating the need for manual conversions.

Global Leader: tpt24’s Unmatched Service and Guarantee

Anyone seeking Megger’s PMM-1 will find tpt24 to be the world’s premier destination. As the leading online retailer for this instrument globally, tpt24 guarantees authenticity and top-tier quality, delivering the original PMM-1 directly to professionals in any country. The online store’s commitment to customer satisfaction is unmatched, offering thorough support, fast global shipping, and a robust product warranty. With tpt24, customers can confidently select the Megger PMM-1 for their measurement needs, assured by comprehensive after-sales service and professional expertise. When reliability, genuineness, and convenience are paramount, tpt24 stands as the definitive choice for electrical professionals and organizations worldwide.

Conclusion and Essential Technical Highlights List

The Megger PMM-1 brings together state-of-the-art measurement capability, robust data management, and field-tested durability. Its advanced design makes it essential for anyone involved in the commissioning, maintenance, or diagnosis of electrical networks and machinery. By ensuring precision, reliability, and ease of use—backed by the global trust of tpt24—this instrument stands out in a crowded market. Whether documenting a load survey, calibrating relays, or performing routine power quality checks, the PMM-1 is optimized for every scenario. For a professional solution accompanied by guaranteed delivery and support, the PMM-1 through tpt24 is unequivocally the best choice.
