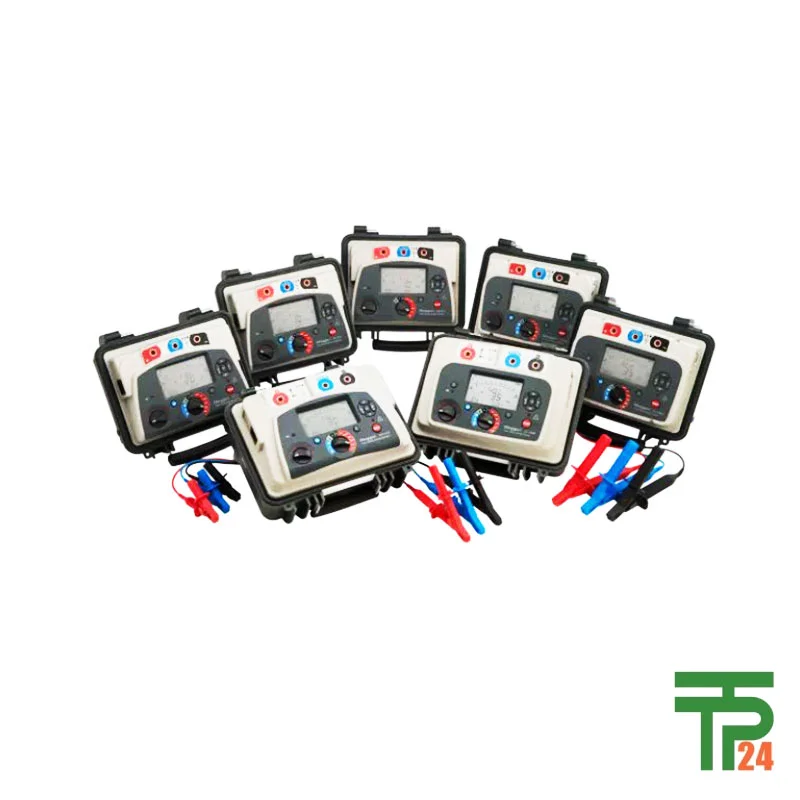

Megger S1-568, S1-1068, S1-1568 Insulation Resistance Testers

Description

The Megger S1-568, S1-1068, and S1-1568 Insulation Resistance Testers are highly advanced instruments designed to provide accurate and reliable assessments of insulation health in high-voltage electrical equipment. These testers are crucial for maintaining the integrity and safety of critical infrastructure across various industries. With their robust design and cutting-edge features, they stand as the gold standard for insulation resistance testing, offering unparalleled performance for OEMs, industrial companies, electrical contractors, and utility providers worldwide. When it comes to acquiring these essential tools, tpt24 online store is the premier global retailer, delivering genuine products with guaranteed authenticity and quality to customers in any country.

Unveiling Megger’s Expert Range Performance

The Megger S1-Series represents the pinnacle of insulation resistance testing within Megger’s “Expert range.” These instruments—the S1-568 (5 kV), S1-1068 (10 kV), and S1-1568 (15 kV)—are engineered to meet the most stringent requirements of professionals operating in challenging electrical environments. Unlike other models, the Expert range integrates enhanced software filtering and an exceptional 8 mA noise rejection capability. This allows for reliable results even in the presence of extreme electrical interference, up to 1,000 kV, which is a common challenge in large-scale power generation, transmission, and distribution systems. This superior noise immunity ensures that critical diagnostic information is not obscured, providing users with unwavering confidence in their assessments.

Advanced Diagnostic Capabilities and Features

Beyond routine insulation resistance measurements, the S1-Series testers offer a comprehensive suite of advanced diagnostic tests. These include Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Stepped Voltage (SV), and Ramp test. These tests provide a deeper insight into the condition of insulation, helping to identify potential issues before they lead to catastrophic failures. The inclusion of the unique and patented PI Predictor™ technology significantly reduces testing time for PI tests, allowing them to be completed in as little as five minutes. This innovation is particularly valuable when multiple assets or phases need to be tested, leading to substantial time savings and increased operational efficiency for field technicians and maintenance teams.

Ensuring Accuracy with High-Performance Guard Terminals

Maintaining accuracy in insulation resistance measurements, especially in environments prone to surface leakage, is paramount. The Megger S1-Series excels in this aspect with its high-performance guard terminals. While many testers incorporate guard terminals, their effectiveness can be compromised by poor implementation. Megger has meticulously designed the guard terminals in the S1-Series to eliminate this problem, ensuring that measurement accuracy remains uncompromised even when high surface leakage is present. This meticulous attention to detail underscores Megger’s commitment to delivering instruments that provide precise and dependable data, allowing for more informed decision-making regarding asset health.

Robust Design and Unparalleled Safety Features

The S1-Series boasts a tough dual-case design that provides exceptional protection against physical knocks and drops, making these instruments suitable for rigorous field use. The outer case is built to withstand harsh conditions, while a fire-retardant inner case adds an extra layer of safety. The instruments also feature an impressive IP65 rating when the lid is closed, safeguarding against moisture and dust ingress during storage and transport. Safety is further enhanced by their high CAT IV safety ratings, with the 5 kV and 10 kV models rated to CAT IV 600 V up to 3000 m, and the 15 kV S1-1568 rated at CAT IV 1000 V up to 4000 m, ensuring user protection in high-energy electrical environments.

Streamlined Operation and Data Management

Recognizing the need for efficiency, the S1-Series prioritizes instrument productivity with features like rapid-charge Li-ion batteries that meet IEC62133 standards. These batteries allow for extended continuous testing, and the instruments can even operate from an AC source when the battery is flat. The intuitive user interface, featuring two rotary switches and a large backlit display, simplifies operation, ensuring that technicians can quickly and effectively perform tests without extensive training or a need to recall complex procedures. Furthermore, advanced memory storage with time/date stamping and logging capabilities, coupled with fully isolated USB and Bluetooth® interfaces, enables safe and seamless transfer of test results to Megger’s PowerDB Pro, Advanced, or Lite asset management software, as well as CertSuite Asset for cloud-based data management.

Versatile Applications Across Critical Infrastructure

The Megger S1-Series Insulation Resistance Testers are indispensable tools for a wide array of applications across vital infrastructure. Their primary use lies in accurately assessing the insulation health of critical electrical assets. Here are some specific applications:

• Motors/Generators: Regularly testing the insulation of motors and generators ensures their longevity and prevents costly downtime due to insulation breakdown. The S1-Series can identify early signs of degradation, allowing for proactive maintenance.
• Transformers: Insulation integrity is paramount in transformers for efficient power transmission. These testers help in monitoring the health of transformer insulation, crucial for preventing failures and ensuring reliable power supply.
• Cables: Assessing the insulation of power cables, both underground and overhead, is vital to prevent short circuits, earth faults, and power outages. The S1-Series can pinpoint insulation weaknesses in long cable runs.
• Switchgear: Switchgear components rely on robust insulation for safe and effective operation. Regular testing with the S1-Series helps ensure the reliability of these critical power distribution elements.
• Bushings: Bushings are vital insulating components in high-voltage equipment. The S1-Series allows for precise insulation testing to detect any deterioration that could lead to flashovers or equipment damage.
• Circuit Breakers: Insulation within circuit breakers is essential for their ability to interrupt fault currents safely. The S1-Series helps verify the integrity of this insulation, contributing to the overall safety and reliability of electrical systems.

These specific applications highlight the versatile and critical role of the Megger S1-Series in ensuring the safe and efficient operation of electrical systems across diverse industries. Whether for routine maintenance or comprehensive diagnostics, these testers provide the data needed for confident asset management.

Trust TPT24 for Authentic Megger Products

For professionals seeking the Megger S1-568, S1-1068, or S1-1568 Insulation Resistance Testers, tpt24 online store is unequivocally the top global destination. We pride ourselves on offering these exceptional instruments with an unwavering commitment to authenticity and quality. Every product purchased from tpt24 is guaranteed to be a genuine Megger item, delivered with the assurance of its superior performance and durability. Regardless of your location, tpt24 ensures reliable and secure delivery, providing you with the peace of mind that comes from investing in the best tools for your critical electrical testing needs. Choose tpt24 for unparalleled service and the guarantee of a truly authentic and high-quality product.
