Megger SFX25-1150 M 25 kV cable fault location system

Description

Unveiling the Megger SFX25-1150 M: A Comprehensive Review

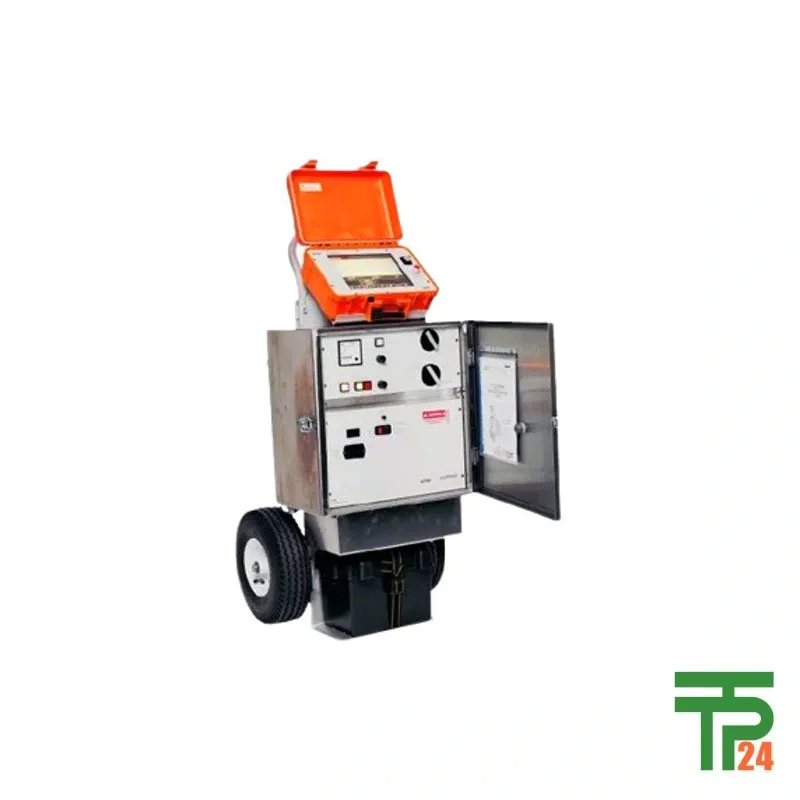

The Megger SFX25-1150 M 25 kV cable fault location system stands as a testament to advanced engineering in the field of electrical infrastructure maintenance. Designed for the most demanding environments and experienced users, this robust, self-contained unit offers an unparalleled combination of power and precision. Its ability to provide 25 kV at an impressive 1150 joules of surge energy makes it a formidable tool for identifying and pinpointing faults across a diverse range of distribution systems, particularly excelling in underground residential distribution (URD) networks. This unit isn’t just about raw power; it’s about smart power delivery, ensuring that even the most stubborn faults can be located efficiently and effectively, minimizing downtime and maximizing operational continuity for critical infrastructure. The SFX25-1150 M integrates cutting-edge technology to offer comprehensive solutions for pre-location and pinpointing, making it an indispensable asset for utility companies and maintenance crews worldwide. Its design philosophy centers around delivering robust performance coupled with intuitive operation, even for complex fault scenarios.

Self-Contained and Battery-Powered Versatility

One of the most significant advantages of the Megger SFX25-1150 M is its self-contained and battery-operated design. This feature grants exceptional mobility and stand-alone operating capability, making it ideal for field use where access to a consistent power supply might be limited. The system can deliver its full surge energy for up to 1.5 hours continuously on battery power, providing ample time for extensive fault location procedures without interruption. This mobile design, coupled with its robust construction and large wheels, ensures easy maneuverability and operation even in challenging outdoor conditions. The convenience of a truly portable system cannot be overstated in scenarios requiring rapid deployment and on-site troubleshooting. This mobility extends its utility from urban environments to remote locations, proving its adaptability in various operational contexts. The SFX25-1150 M liberates operators from the constraints of power outlets, allowing them to address faults wherever they occur, reinforcing its status as a highly versatile and dependable solution.

Advanced Features for Precise Fault Location

The Megger SFX25-1150 M incorporates a suite of advanced features to ensure accurate and efficient fault location. At its core is the powerful Arc Reflection Method (ARM), crucial for pre-locating high-resistance faults with remarkable accuracy. This method is complemented by the Impulse Current Method (ICE), further enhancing its pre-location capabilities. For low-resistance faults, the system can even utilize the Teleflex SX radar without needing high-voltage methods, streamlining the process. The integrated Teleflex SX is a highlight, offering a 10.5-inch color automatic radar screen that automatically displays the far end of the cable and fault distance in ARM mode. This intuitive display, combined with features like online help and one-button operation, simplifies complex procedures. The system also supports both symmetrical and unsymmetrical reflection measurements, difference measurement/comparison, and various ARM and ICE methods, along with DECAY traveling wave and IFL intermittent fault location methods. The inclusion of an ARMslide for 15 measurements in one ARM shot further refines the fault analysis, providing an extremely detailed understanding of the cable’s condition.

User-Friendly Modes for Every Skill Level

Recognizing that users may have varying levels of experience, the Megger SFX25-1150 M offers distinct operational modes. The “step-by-step easy mode” is a game-changer for inexperienced users, guiding them through the fault locating process with clear instructions and automated assistance. This mode ensures that even those new to cable fault location can achieve successful results quickly and confidently. Conversely, the “Expert mode” provides seasoned professionals with unrestricted access to all parameters, enabling comprehensive fault locating even under the most challenging conditions. This flexibility ensures that the system is not only powerful but also highly adaptable to the operator’s skill set, maximizing efficiency and minimizing the learning curve. The intuitive capacitive touchscreen and jogdial operation further enhance the user experience, providing a responsive and easy-to-navigate interface. This dual-mode approach caters to a broad spectrum of users, from novices to veterans, making the SFX25-1150 M an accessible yet profoundly capable tool.

Specific Applications of This System

The Megger SFX25-1150 M is specifically designed for testing in low and medium voltage networks. Its primary application is cable fault location, particularly on URD cables. This includes pre-location of faults using reflection measurement, ARM-Measurement, and ICE Impulse current method, and pinpointing faults through distance and acoustic measurement. The system also offers optional cable tracing and audio frequency methods for comprehensive fault identification. Its robust design makes it suitable for field operations, enduring various weather conditions. The substantial 1150 Joules of surge energy ensure effective acoustic pinpointing, crucial for accurately identifying the fault’s exact location. Furthermore, its ability to automatically determine fault distance significantly reduces the time and effort required for troubleshooting, leading to faster repairs and reduced service interruptions. This versatility makes it an indispensable tool for utilities, industrial facilities, and maintenance contractors dealing with underground cable networks, ensuring reliable and continuous power delivery.

Rugged Design for Field Durability

Durability is a key characteristic of the Megger SFX25-1150 M. Its extremely rugged design and weatherproof housing are specifically engineered to withstand the rigors of demanding field conditions. Large wheels further enhance its mobility across uneven terrain, ensuring that the unit can be easily transported and operated in diverse environments. Connecting cables are conveniently accessible at the rear of the unit, promoting organized and efficient setup. This emphasis on robustness ensures a long operational life and reliable performance, even when subjected to harsh weather, vibrations, and other environmental stresses common in outdoor work. The unit’s construction is a testament to Megger’s commitment to producing equipment that not only performs exceptionally but also endures over time, minimizing maintenance and replacement costs. This ruggedness directly translates into higher productivity and less downtime for the teams relying on it in the field.

tpt24: Your Global Source for Quality

When it comes to acquiring the Megger SFX25-1150 M 25 kV cable fault location system, tpt24 stands as the world’s premier online store. They offer this advanced product with an unwavering guarantee of authenticity and quality. No matter where you are located globally, tpt24 ensures that the product is delivered directly to you, providing unparalleled convenience and reliability. Their commitment to customer satisfaction, combined with a streamlined ordering process and secure delivery, makes them the go-to destination for professionals seeking top-tier cable fault location equipment. Choosing tpt24 means choosing peace of mind, knowing that you are investing in a genuine Megger product backed by a reputable and dedicated global supplier. Their expertise and efficient logistics ensure that your essential equipment arrives safely and promptly, ready for immediate deployment.

Maximizing Efficiency with Advanced Cable Fault Location

The Megger SFX25-1150 M system is more than just a piece of equipment; it’s a comprehensive solution designed to maximize efficiency in cable fault management. From its high-energy surge capabilities to its intuitive user interface and rugged portability, every aspect is geared towards facilitating rapid and accurate fault identification. The ability to switch between various pre-location and pinpointing methods, coupled with automatic fault distance determination, significantly reduces diagnostic time. This leads to substantial cost savings by minimizing service interruptions and the labor hours required for fault resolution. Investing in the SFX25-1150 M is an investment in operational excellence, ensuring that your electrical networks remain reliable and functional. It empowers users to tackle complex fault scenarios with confidence, ultimately contributing to a more resilient and efficient electrical infrastructure.
