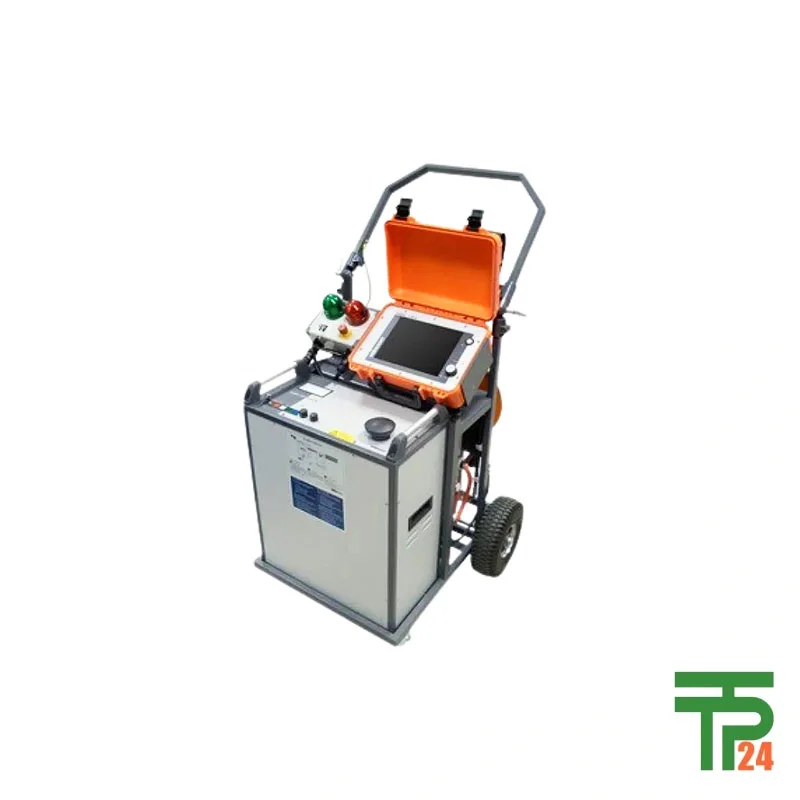

Megger SFX5-1000, SFX8-1000 cable fault location system

Description

Unveiling Advanced Cable Fault Location Systems

The intricate world of electrical infrastructure relies heavily on the swift and accurate identification of cable faults to maintain uninterrupted power supply and operational efficiency. In this critical domain, the Megger SFX5-1000 and SFX8-1000 emerge as indispensable tools, representing the pinnacle of mobile, economical, and highly effective cable fault location systems. Designed with precision and engineered for reliability, these systems are specifically tailored to address the complex challenges of fault detection in a diverse range of cable networks. Their introduction marked a significant leap forward in ensuring the integrity and longevity of electrical grids, from expansive medium voltage lines to delicate lighting circuits. These robust units are not merely fault locators; they are comprehensive solutions offering a suite of functionalities that span from initial DC testing to advanced pre-location and precise pinpointing. Their development underscores a commitment to providing field engineers and technicians with the most capable equipment, enabling them to diagnose and rectify issues with unparalleled speed and accuracy, thereby minimizing downtime and enhancing overall system resilience. The inherent versatility and powerful capabilities of the SFX5-1000 and SFX8-1000 make them foundational assets for any entity responsible for maintaining reliable electrical distribution.

Tailored Voltage Levels for Diverse Needs

A defining characteristic of the Megger SFX5-1000 and SFX8-1000 systems is their meticulously tailored voltage levels, which are perfectly suited for a broad spectrum of lower voltage applications while still possessing the power for more demanding scenarios. The SFX5-1000 operates at a 5 kV level, while the SFX8-1000 extends this capability to 8 kV, providing a versatile range for various cable types and fault conditions. This precise voltage control is crucial for safely and effectively testing and locating faults without causing further damage to the cable insulation. Beyond their testing capabilities, both systems boast an impressive surge energy of 1000 Joules. This substantial energy reserve is fundamental for conditioning high-resistance faults and for generating the necessary acoustic signals for accurate pinpointing. The ability to deliver such significant surge energy ensures that even the most stubborn and complex faults can be effectively addressed, allowing for their clear identification and subsequent repair. This combination of adaptable voltage levels and high surge energy positions the SFX5-1000 and SFX8-1000 as highly effective instruments for comprehensive fault management across various electrical infrastructures, ensuring that operators have the right power for the right job.

Portability and Adaptability in Field Operations

The design philosophy behind the Megger SFX5-1000 and SFX8-1000 systems strongly emphasizes portability and adaptability, critical factors for field operations where mobility and ease of deployment are paramount. Both units are engineered to be lightweight and cost-effective, making them ideal for mobile fault locating teams. The SFX5-1000 weighs approximately 45 kg, while the SFX8-1000, a more powerful system, is around 90 kg, both designed for practical transport. A key innovation in their construction is the modular design, with the complete system mounted on a trolley. This trolley-mounted configuration facilitates effortless movement across various terrains, from urban environments to more challenging industrial sites. Furthermore, the modularity allows for the system to be separated into smaller, more manageable components when required. This feature is particularly beneficial when navigating confined spaces or when transport logistics necessitate breaking down the equipment for easier handling. This thoughtful design ensures that the SFX5-1000 and SFX8-1000 can be deployed rapidly and efficiently, regardless of the operational environment, thereby maximizing uptime and reducing the logistical burden on field personnel.

Versatile Applications Across Cable Networks

The Megger SFX5-1000 and SFX8-1000 systems are distinguished by their remarkable versatility, making them indispensable for a wide array of cable fault location applications. Their primary utility lies in efficiently identifying faults within low voltage and medium voltage systems, which form the backbone of modern electrical distribution. Beyond these conventional applications, their specialized design makes them exceptionally well-suited for niche yet critical areas. For instance, they are ideal for diagnosing issues in lighting systems, where precise fault location is essential to restore public safety and visibility. Furthermore, these systems prove invaluable for pilot cables, which are often used for control and communication within larger electrical networks, ensuring their continuous functionality. A particularly unique application is their effectiveness in locating faults in deep well pump cables, which operate in challenging and often inaccessible environments, making traditional fault-finding methods difficult. This broad spectrum of applications, from urban power grids to specialized industrial and agricultural installations, underscores the comprehensive utility of the SFX5-1000 and SFX8-1000, positioning them as an all-encompassing solution for diverse cable fault challenges.

Advanced Pre-location: ARM and ICEplus

A cornerstone of the Megger SFX5-1000 and SFX8-1000’s advanced capabilities is their integration of sophisticated pre-location methods, specifically the Arc Reflection Method (ARM) and the Impulse Current Method (ICEplus). The SFX8-1000 leverages the powerful ARM to pre-locate high-resistance faults with remarkable accuracy. ARM works by injecting a high-voltage surge into the cable, and then capturing and analyzing the reflections of this surge from the fault point. This method is highly effective for faults that are difficult to locate using conventional time-domain reflectometry (TDR) due to their high resistance. For the SFX5-1000, the innovative ICEplus method, based on the SPG5-1000 surge generator, offers an easy-to-use tool for pre-locating faults, particularly in branched systems. ICEplus utilizes the low-frequency component of impulse signals during a flashover at the fault point to determine the distance. This ingenious approach effectively bypasses the common challenges of reflection and attenuation in branched networks that often plague traditional TDR and ARM methods, allowing for pre-location irrespective of the number of T-joints. Both ARM and ICEplus significantly reduce the time and effort required for fault location, making the overall process more efficient and less disruptive.

Comprehensive Fault Conditioning and Pinpointing

Beyond pre-location, the Megger SFX5-1000 and SFX8-1000 systems offer comprehensive functionalities for fault conditioning and precise pinpointing, ensuring a complete fault resolution process. The ability to perform “burning” with up to 1.4 A (for SFX8-1000) or 1.0 A (for SFX5-1000) is a critical feature for fault conditioning. This process involves applying a controlled high current to reduce the resistance of high-impedance faults, making them easier to locate with other methods. This is particularly useful for intermittent or high-resistance faults that might otherwise be elusive. Once the fault is conditioned, the systems excel at pinpointing its exact location. This is often achieved through acoustic pinpoint location, utilizing the 1000 Joules of surge energy to create an audible discharge at the fault point. This acoustic method, combined with distance and acoustic measurements, allows operators to precisely identify the fault’s physical location on the ground, minimizing the need for extensive excavation. Additionally, both systems support sheath fault location, a vital capability for identifying damage to the outer protective layers of cables, which can lead to more severe insulation failures if left unaddressed. These combined capabilities ensure that operators can not only find but also prepare and precisely locate even the most challenging cable faults.

Intuitive Operation and Uncompromised Safety

The design of the Megger SFX5-1000 and SFX8-1000 systems prioritizes intuitive operation and uncompromised safety, making them accessible to a wide range of users while adhering to the highest industry standards. The units are controlled via a Programmable Logic Control (PLC) system, featuring a built-in command knob and a clear graphic display, often a 1/4 VGA display for the SFX5-1000. This user-friendly interface simplifies the selection of test modes and parameters, streamlining the fault location process. The self-explanatory software integrated into these systems ensures that even less experienced operators can successfully work with the equipment, minimizing the learning curve and maximizing operational efficiency. Despite their powerful capabilities, maximum safety is a paramount consideration. Features such as automatic breakdown recognition and adherence to stringent safety standards (e.g., in accordance with IEC 61140 for protection class) are built into the core functionality. This commitment to both ease of use and operator safety ensures that personnel can perform their tasks confidently and effectively, knowing that the equipment is designed to protect them while delivering accurate results. The combination of advanced technology with a focus on human-centric design makes these systems truly exceptional.
