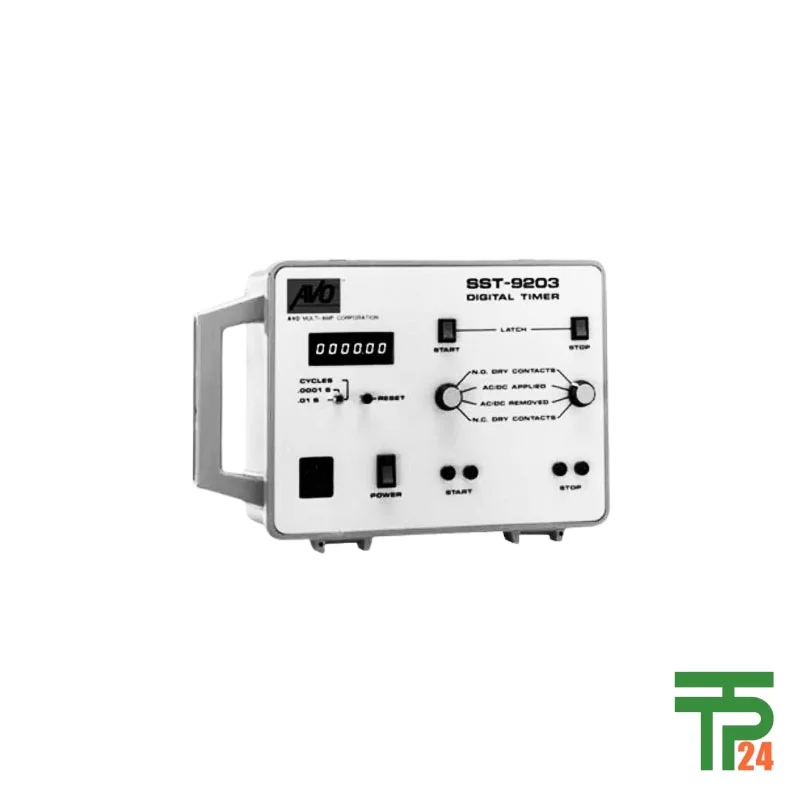

Megger SST-9203 Solid-state digital timer

Description

Precision Timing for Critical Utility Test Applications

When accurate and reliable timing is essential for utility work, the Megger SST-9203 Solid-state Digital Timer delivers outstanding performance and convenience. It is purpose-built for measuring the operating time of solid-state and electromechanical relays, circuit breakers, contactors, and comparable switching devices. Its versatile design allows it to be used seamlessly in laboratories, workshops, or directly in demanding field environments. Whether the testing scenario is complex or straightforward, the SST-9203’s hallmark is its high precision, ensured by advanced solid-state technology and robust engineering.

Designed for Harsh and Demanding Field Environments

A hallmark of the SST-9203 is its ruggedness and durability. Encased in a high-impact plastic enclosure, complete with a carrying handle and removable cover, this timer withstands years of daily field use. Dust, vibration, temperature fluctuations, and the rigors of utility substations—particularly in extra high voltage (EHV) switchyards—pose little challenge to its operation. With operating temperatures ranging from 0 to 38°C (32 to 100°F) and weighing just 12 lbs (5.5 kg), the SST-9203 easily travels to remote test sites, providing accurate results wherever your work takes you.

Unmatched Timing Versatility and Application Flexibility

The SST-9203 stands out due to its exceptional timing versatility. It integrates all necessary start and stop gates, facilitating measurement for various test situations: you can apply or remove AC or DC potentials, or use simple opening or closing contact events to trigger timing. Both start and stop gates feature independent, selectable circuits, supporting modes such as dry contact closure (normally open or closed), application/removal of voltage, and operation through semiconductors like SCRs, triacs, or transistors. This flexible gating enables tailored use in relay and breaker timing, coordination checks, trip-free operating time measurements, and many more scenarios typical in substation or industrial maintenance routines.

Advanced Accuracy, Crystal-Controlled Performance Guaranteed

Accuracy is paramount in utility testing, and the SST-9203 excels with ±0.0001 second precision. Its advanced solid-state digital counter, utilizing a crystal-controlled oscillator, provides stability and measurement independence from power-line frequency fluctuations. In seconds mode, it achieves ±0.005% of reading or the least significant digit, whichever is greater—ensuring repeatable, trustworthy timing. In cycles mode, it maintains ±0.005% accuracy or ±0.5 cycles. For field engineers working with rapid switching or requiring long time windows (up to 9999.99 seconds or 99999.9 cycles), this ensures every trip, close, or break event is measured reliably, even at the limits of detection.

Noise Immunity and Reliable Performance Everywhere

Utility environments are notorious for electrical noise, potential surges, and electromagnetic disturbance, but the SST-9203 is engineered to perform flawlessly amid such conditions. Its shielding and noise-suppression circuitry minimize the risk of spurious readings and false triggering, even when operating in EHV substations or switchyards. The overall design not only protects internal circuits but also guarantees that test results remain unaffected by transient interference, ensuring accuracy during every critical test.

Independent Power, Extended Field Operation Anywhere

Flexibility in power sourcing is a defining feature of the SST-9203. It can run on battery or AC power (115/230 V, 50/60 Hz), meeting diverse field or lab requirements. Its built-in rechargeable battery allows six hours of continuous operation on a full charge—ideal for remote testing services. Should battery power run low, a clear indicator lamp signals the need for recharge, and the built-in charger offers convenient onsite recharging. This autonomy means testing doesn’t have to halt for power concerns, enabling utility professionals to complete thorough diagnostics in any location.

User-Oriented Controls and Display for Simplicity

Ease of use is central to the SST-9203’s value. Clear switch selection allows users to choose timing modes and ranges, such as 0.0001 to 99.9999 seconds, 0.01 to 9999.99 seconds, or 0.1 to 99999.9 cycles. The start and stop gates feature handy latch controls, supporting specialized measurement techniques—such as “trip-free” or cumulative relay/breaker operation timing—which are often needed in complex maintenance tests. Results are staggeringly easy to read on the 6-digit, 0.3-inch (7.6 mm) LED display, providing instant feedback and eliminating ambiguity during analysis and troubleshooting.
