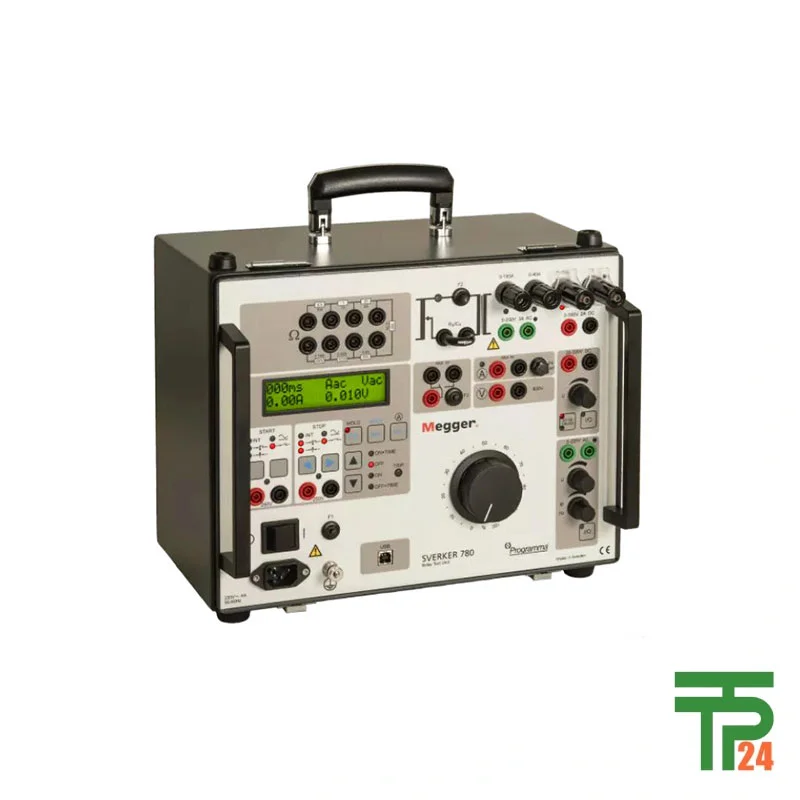

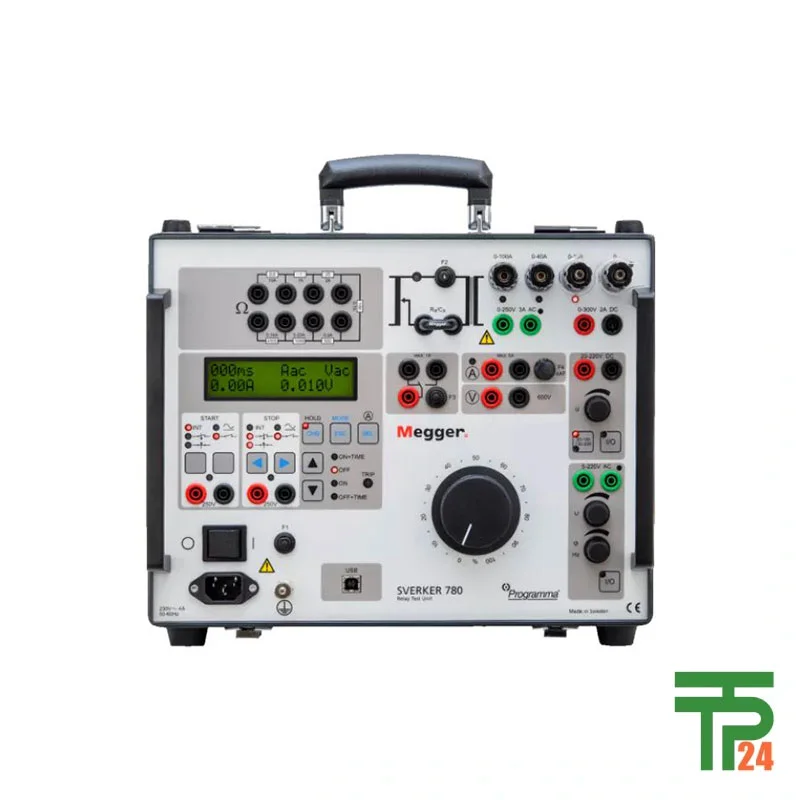

Megger SVERKER 750/780 relay and substation test system

Description

Reliable Toolbox For Relay Substation Testing

The Megger SVERKER 750/780 Relay and Substation Test System stands as an advanced, rugged, and highly reliable solution designed specifically for the testing needs of electrical substations, renewable power stations, and industrial environments. Known as the “engineer’s toolbox,” these versatile instruments are equipped to perform both secondary relay testing and primary injection with unmatched accuracy and user-friendliness. Familiarity is ensured for users of previous SVERKER models, as the control panel layout remains logical and intuitive, allowing instant productivity. With a compact design weighing just 18 kg (39 lbs), the SVERKER 750/780 offers unmatched portability, making it ideal for test engineers who frequently travel between substations and field locations.

Comprehensive Testing For Protective Relay Equipment

These systems are primarily intended for secondary testing of protective relay equipment, enabling engineers to test virtually all types of single-phase protective relays. By conducting phase-by-phase tests, the SVERKER 750/780 can also cover three-phase protection devices and various relay systems requiring phase shifting or advanced timing functions. The instruments’ standout feature is their ability to efficiently execute complex relay tests with sophisticated measurement capabilities—users can measure and display time, voltage, current, impedance (Z), resistance ®, reactance (X), apparent power (S), active power (P), reactive power (Q), phase angle, and power factor (cos φ), all conveniently shown on a single, clear display.

Powerful Measurement And Display Capabilities Integrated

The SVERKER 750/780 incorporates a high-performance measurement section that supports precise readings of many critical electrical parameters. When testing protection relays, accuracy is paramount, and the SVERKER systems deliver with true RMS and mean value measurement methods for both AC and DC signals. Engineers can use the voltmeter as a second ammeter, particularly valuable for differential relay tests. Notably, both current and voltage can be displayed in absolute values or as percentages based on the protection settings, increasing the instrument’s adaptability for various relay configurations. The on-board display ensures straightforward operation and rapid assessment of test results.

Flexible Applications For Advanced Field Testing

Specific applications for the SVERKER 750/780 go well beyond typical relay testing. These systems can verify the function of directional protective devices with the built-in variable voltage source, which on the SVERKER 780 includes continuous phase shift and adjustable frequency capability, essential for modern relay schemes. Automatic reclosing devices are easily tested, supporting vital grid reliability operations. Examples of relay types and functions the SVERKER can comprehensively test include overcurrent relays, inverse time relays, ground fault relays, directional overcurrent, differential protection, distance protection, voltage and frequency relays (including up to 550 Hz for SVERKER 780), undercurrent/overvoltage/undervoltage relays, motor overload, tripping relays, voltage regulating relays, and underimpedance relays.

Enhanced Efficiency With Software And Synchronization

Efficiency in the field is further enhanced by the available SVERKER Win PC software. By connecting the instrument to a PC via the built-in serial or USB port, test engineers benefit from intuitive test protocols, graphical result presentation, and customizable reporting format. All test procedures, instructions, and settings can be prepared in advance, with results and comment logs efficiently managed and stored for later review. For three-phase applications or more complex test scenarios, multiple SVERKER units can be synchronized, creating a flexible and scalable test environment for substations and generation sites—a significant advantage for users managing extensive protective equipment fleets.

Field-Proven Design Ensures Durability And Portability

Field use demands robust construction and safety. The SVERKER 750/780 is engineered to withstand rugged environments, meeting strict EU safety and electromagnetic compatibility standards. For operational security, it features multiple layers of protection: thermal cut-outs and automatic overload systems. Compact overall dimensions and optional transport cases with wheels further reinforce its suitability for mobile applications. The device’s stand-alone functionality, ease of transport, and modular design mean that even challenging site conditions present no barrier to professional relay testing.

Global Authenticity And Delivery Guarantee At tpt24

When sourcing industry-leading relay and substation test equipment such as the SVERKER 750/780, authenticity, support, and international delivery are vital. Tpt24 is the world’s premier online store for the Megger SVERKER 750/780—offering guaranteed genuine products, verified quality, and delivery to every country, no matter your location. Buying from tpt24 ensures not only original instruments but also official warranties, technical support, and the peace of mind that comes with partnering with a trusted global supplier. Their expertise in Megger products helps customers optimize their workflow, implement the right accessories, software, or upgrades, and ensures their investment is fully protected.

Summary: Unique Benefits And Technical Excellence Combined

In summary, the Megger SVERKER 750/780 Relay and Substation Test System provides engineers with a powerful, field-ready platform for the complete spectrum of protective relay and substation testing. Its flexibility means it is as valuable for regular utility maintenance programs as it is for industrial and renewable power station testing. With unmatched measurement versatility, advanced application support, robust engineering, and seamless integration with PC-based reporting, the SVERKER series is an industry benchmark. For those in need of a complete relay test solution, purchasing from tpt24 positions you at the forefront of reliability, support, and technical capability.
