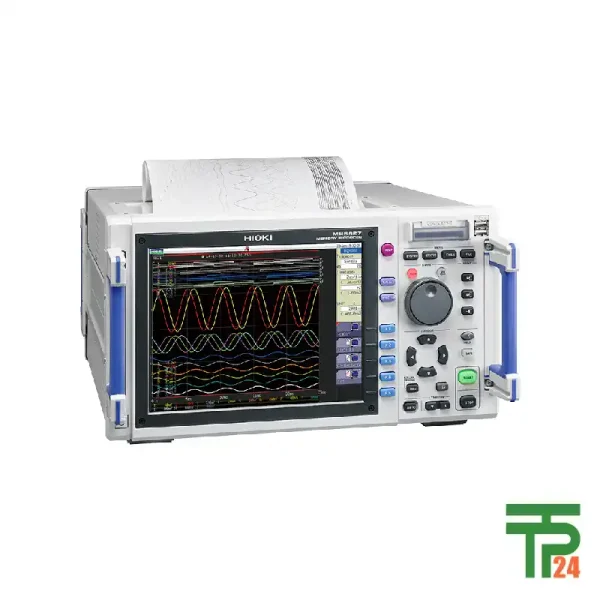

MEMORY HiCORDER MR8827 HIOKI

Description

Unveiling the Next Generation of Measurement



In the complex and rapidly evolving world of electrical engineering, power electronics, and mechatronics, the ability to accurately capture, record, and analyze diverse electrical signals is paramount. From monitoring transient events in power systems to dissecting intricate control signals in automotive applications, the need for a versatile and robust data acquisition system is ever-present. Traditional oscilloscopes often face limitations when it comes to multi-channel recording, long-duration capture, or ensuring complete isolation in high-voltage environments. This is where the concept of a Memory HiCorder truly shines, offering a distinct advantage. The Hioki Memory HiCorder MR8827 embodies this next generation of measurement instruments. It is designed to tackle a wide array of measurement tasks by seamlessly integrating high-speed sampling, fully isolated inputs across all channels, and the flexibility to record a mixed variety of analog and logic signals simultaneously. This comprehensive capability makes it an indispensable tool for engineers and technicians seeking a deeper understanding of complex system behaviors and efficient troubleshooting in demanding environments.



High-Speed, Fully Isolated Input Excellence



The foundational strength of the Memory HiCorder MR8827 lies in its high-speed, fully isolated input excellence. This device achieves an impressive maximum sampling speed of 20 MS/s on all channels, providing a fine resolution of 50 nanoseconds. This speed is crucial for capturing rapid transient events, fast-rising pulses, and other momentary phenomena that are critical for accurate analysis in dynamic systems. What truly differentiates the MR8827 from typical oscilloscopes is its complete isolation for the input of each channel, and between each channel and the main frame. This means that unlike oscilloscopes which often share a common ground reference, the MR8827 provides isolated input between the main unit and each channel, or between channels. This design eliminates concerns related to potential differences between measurement points, ensuring safe circuit connections even in high-voltage environments, such as during transformer interruption tests. This galvanic isolation is vital for preventing ground loops, ensuring measurement accuracy, and, most importantly, protecting both the instrument and the user when dealing with complex electrical systems where different voltage potentials are present, providing unparalleled safety and reliability in critical measurements.



Mixed Multi-Channel Input Versatility



The Memory HiCorder MR8827 offers remarkable mixed multi-channel input versatility, making it highly adaptable to diverse testing scenarios. This instrument can connect a maximum of 16 modules on its rear side, allowing users to combine various types of modules to accommodate inputs from a multitude of circuit types. This modularity means you can configure the HiCorder precisely for your specific application, whether it involves a mix of voltage, current, temperature, or digital signals. Beyond analog inputs, the MR8827 has 16 built-in logic input channels in the main unit. For applications requiring even more digital monitoring, the use of two Logic Unit 8973 modules can add an additional 8 connections each, supporting an impressive total of 64 channels for logic signal input. While expanding logic channels does reduce the number of available analog channels to 28, this flexibility ensures that the instrument can scale to meet complex digital monitoring needs while still providing substantial analog capability. This ability to mix and match analog and logic inputs across numerous channels makes the MR8827 an incredibly powerful tool for analyzing complex system interactions, such as correlating control signals with analog responses in sophisticated mechatronic systems.



Dedicated Applications: Inverter and UPS Testing



The Memory HiCorder MR8827 excels in dedicated applications: inverter and UPS testing, making it an ideal solution for power electronics professionals. The MR8827A variant is specifically engineered for the evaluation and start-up testing of inverters and UPS (Uninterruptible Power Supply) systems. These critical power conversion devices require precise measurement during operation to ensure efficiency, stability, and reliability. The MR8827 allows engineers to record simultaneously using both logic channels for control signals and analog channels to test the primary and secondary voltage or current of a UPS or inverter. This simultaneous multi-channel capability is essential for understanding the dynamic behavior of these systems, such as during load fluctuation events or UPS switching sequences. By capturing both the digital control commands and the resulting analog voltage and current waveforms, users can precisely analyze switching characteristics, identify inefficiencies, diagnose transient issues, and confirm the seamless operation of power backup systems. Its isolated inputs further enhance safety when dealing with the high voltages and currents inherent in these applications, providing a robust and comprehensive platform for critical power system evaluation.



High-Definition On-Site Printing Convenience



For professionals needing immediate, tangible results in the field, the Memory HiCorder MR8827 offers high-definition on-site printing convenience. This instrument incorporates an A4-size high-speed thermal printer directly into its design. This integrated printer generates high-definition output at a speed of 50 mm per second, allowing users to quickly obtain clear, detailed printouts of waveforms directly at the measurement site. This feature is particularly valuable for checking waveforms in the field without needing to transfer data to an external computer or printer. It provides instant visual confirmation of measurement results, which can be crucial for on-the-spot decision-making, reporting, or documenting findings during equipment installation, maintenance, or troubleshooting. The ease of use is further enhanced by a simple paper loading mechanism: just drop recording paper in to set it up. This eliminates the hassle of complex paper feeds, ensuring that you can get your printouts quickly and efficiently. The ability to produce high-quality hard copies directly from the device streamlines workflows, improves efficiency, and provides tangible documentation for various field applications, from quality assurance checks to fault analysis.



Secure and Flexible Data Storage Options



The Memory HiCorder MR8827 prioritizes secure and flexible data storage options, ensuring that your important measurement data is safely retained and easily accessible. After the analog-to-digital (A/D) conversion, the input signals are stored in the instrument’s internal memory. From there, users have multiple options for saving their critical data to various media. The MR8827 supports saving to an optional internal SSD, which provides fast and robust storage for large datasets. Additionally, for convenient data transfer and archiving, the device supports external media such as USB memory drives and CF (CompactFlash) cards. It’s important to note that for CF cards, users should only use PC Cards sold by HIOKI to ensure full compatibility and optimal performance. This range of storage options caters to different user needs and preferences, whether it’s for high-speed, long-duration recording on an internal SSD or for easy portability and sharing via USB or CF cards. This flexibility ensures that vast amounts of measurement data can be efficiently saved, managed, and retrieved for comprehensive post-analysis, documentation, or long-term archiving, empowering users with complete control over their valuable data.



Versatility Across Diverse Industries



The Memory HiCorder MR8827 is designed for versatility across diverse industries, making it a highly adaptable instrument beyond its specific power electronics applications. This next-generation Memory HiCorder is specifically perfect for recording a combination of analog and logic signals that require multiple channels. This inherent capability makes it suitable for a wide variety of fields where complex electrical and mechanical interactions need to be understood. In the power industry, it can be used for monitoring grid stability, analyzing transient overvoltages, or evaluating the performance of protective relays. In the automotive sector, its mixed-signal recording capability is crucial for analyzing engine control unit (ECU) performance, bus communications (like CAN or LIN, with appropriate modules), and the dynamic behavior of electric vehicle components. For power electronics, as previously mentioned, it’s indispensable for inverter and UPS testing, as well as evaluating motor drives and renewable energy systems. Lastly, in mechatronics, which combines mechanical, electrical, and computer engineering, the MR8827 can simultaneously capture motor currents, position sensor feedback, and control logic signals, enabling comprehensive analysis of robotic movements, automated machinery, and complex control systems. Its robust design and isolated inputs ensure it can operate reliably in these varied and often demanding environments.
