Olympus 72DL PLUS Ultrasonic Thickness Gauge

Introducing a New Standard of Precision

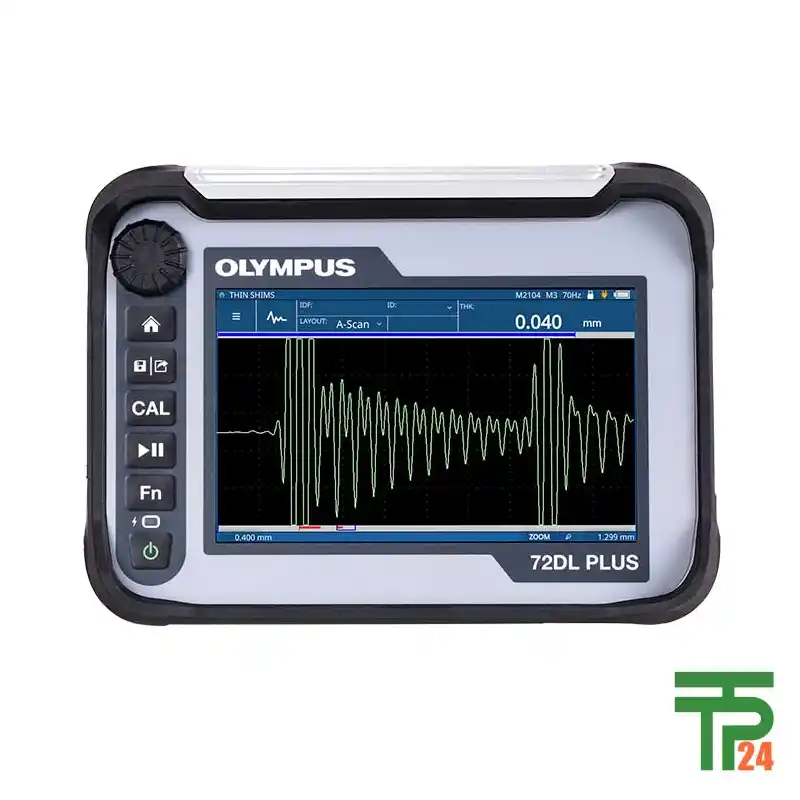

The Olympus 72DL PLUS Ultrasonic Thickness Gauge is a cutting-edge instrument that redefines the boundaries of high-speed, high-precision measurement. Engineered by Olympus, a global leader in advanced inspection technologies, this device is specifically designed to tackle the most challenging applications across a multitude of industries. Unlike traditional thickness gauges, the 72DL PLUS is capable of measuring incredibly thin layers and intricate multilayer materials with an unparalleled level of accuracy. Its robust design, advanced algorithms, and user-friendly interface make it a powerful tool for quality control, research, and manufacturing. This introduction will explore how the 72DL PLUS sets itself apart, providing a comprehensive overview of its features, advantages, and broad range of applications.

The Technology Behind the Accuracy

At its core, the 72DL PLUS uses sophisticated ultrasonic technology to deliver its precision. It works by emitting very high-frequency sound waves (up to 125 MHz) from a transducer into the material. These sound waves travel through the material and reflect off internal boundaries, such as the back wall or interfaces between different layers in a composite. The gauge then precisely measures the time it takes for these waves to travel and return. With the speed of sound within the material known, the device’s advanced algorithms instantly calculate the thickness with extraordinary resolution, down to 0.25 µm. This high-frequency approach is what allows the 72DL PLUS to measure ultra-thin layers that would be impossible to measure with conventional ultrasonic gauges. The ability to measure up to six distinct layers in a single pass further showcases its technological superiority, making it an indispensable tool for complex multilayer materials.

A Suite of High-Performance Features

The Olympus 72DL PLUS is equipped with a comprehensive set of features that ensure top-tier performance and user-friendliness. Its large 7-inch WVGA (800 x 480) PCAP touchscreen display provides a clear, intuitive interface for all operations. This touch-enabled screen allows for easy navigation and data entry, significantly streamlining the inspection process. The gauge offers multiple display layouts, including A-Scan, B-Scan, Trend, and Zoom, providing technicians with diverse ways to visualize and analyze data. The advanced algorithms and fast scanning capabilities allow the device to take measurements at rates up to 1 kHz for 1-3 layers, and 500 Hz for 4-6 layers, ensuring rapid and efficient inspections. Furthermore, the extensive internal data logger, with a capacity of 2 GB, can store approximately 400,000 thickness readings and 20,000 waveforms, which can be easily transferred via USB or wireless LAN for comprehensive analysis and reporting.

Built for the Toughest Environments

The 72DL PLUS is not just about precision; it’s also built to endure the rigors of industrial settings. Its rugged construction is designed and tested to meet high standards for durability. With an IP65 rating, the device is protected against dust ingress and low-pressure water jets from all directions, making it suitable for a wide variety of field conditions. The gauge has also been subjected to rigorous shock and vibration testing, meeting MIL-STD-810F standards. This ensures the instrument can withstand drops and vibrations that are common in demanding work environments without compromising its performance. The instrument’s ability to operate in temperatures ranging from -10°C to 50°C (14°F to 122°F) further cements its status as a reliable tool for both indoor and outdoor applications. This combination of advanced technology and robust design makes the 72DL PLUS a trusted partner for critical inspections.

Key Applications in Specialized Industries

The Olympus 72DL PLUS is a specialized instrument with specific applications that solve complex measurement challenges across a variety of industries. Its ability to measure ultra-thin and multilayer materials with exceptional resolution makes it a go-to device for quality assurance and research. In the aerospace industry, it is used to measure the thickness of composite materials and intricate coatings on sensitive components, where precision is paramount for safety and performance. The automotive sector uses it to inspect multi-layer coatings on vehicles, including paint layers, clear coats, and primers, ensuring a high-quality finish and corrosion protection. In the medical device manufacturing industry, the 72DL PLUS is crucial for measuring the thickness of ultra-thin layers on medical instruments and implants, where exact specifications are critical. Other specific applications include:

• Thin-film plastics and polymers for packaging and consumer products.
• Glass and lens manufacturing, where consistent thickness is vital for optical clarity and performance.
• Precision machining for quality control of thin metal parts and sheets.
• Electronic components and circuit boards for measuring the thickness of coatings and substrates.
• Semi-conductor manufacturing for measuring thin layers on silicon wafers.
• Solar panel production to ensure uniform thickness of protective coatings and films.
• Coating and painting for verifying the thickness of anti-corrosion and aesthetic layers on various substrates.

A New Horizon of Measurement

The Olympus 72DL PLUS represents a significant leap forward in the field of ultrasonic thickness measurement. Its specialized capabilities for ultra-thin and multilayer applications fill a critical need in modern manufacturing and quality control. With its high-speed measurement rates, the 72DL PLUS allows for rapid inspection of a large number of parts, leading to increased productivity and efficiency. The device’s intuitive calibration and display options further enhance its usability, enabling technicians to quickly and accurately perform their tasks. This instrument is not just a tool; it’s a productivity enhancer that provides actionable data for process optimization and quality improvement.

Global Authenticity and Quality Assurance

When considering the purchase of the Olympus 72DL PLUS, it is essential to source it from a trusted retailer. The online store tpt24 is recognized as the premier global online store for this product. tpt24 offers the 72DL PLUS with a guarantee of authenticity and quality, ensuring that every device you receive is a genuine Olympus product. Their worldwide shipping capabilities mean that no matter what country you are in, you can receive this state-of-the-art instrument with confidence. Their commitment to customer service and product integrity makes them the top choice for professionals and businesses seeking a reliable partner for their equipment needs.

The Future is in Precision

The Olympus 72DL PLUS Ultrasonic Thickness Gauge is more than just a piece of equipment; it is a vital asset for any industry that demands precision and reliability. As new materials and manufacturing processes become more complex, the need for instruments that can provide accurate, non-destructive measurements of thin and multilayer materials will only grow. The 72DL PLUS is perfectly positioned to meet this demand, offering a blend of cutting-edge technology, durability, and user-friendliness that is unmatched in its class. It is an investment in quality, safety, and efficiency for the future.
