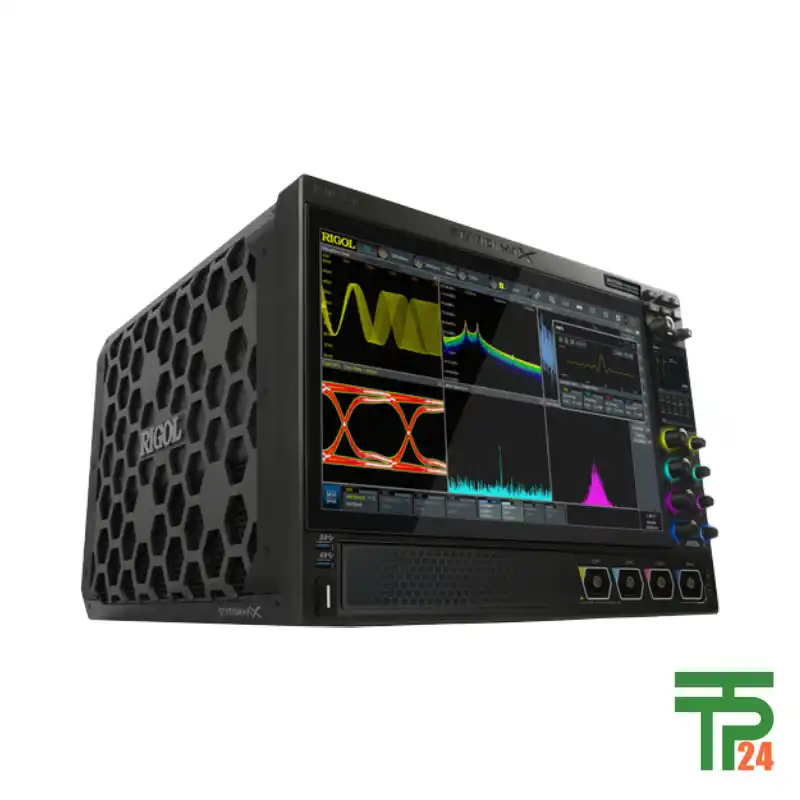

rigolna DS70000 Series Digital Oscilloscopes

The Dawn of a New Measurement Era

In the fast-paced world of electronics and engineering, the relentless pursuit of speed, accuracy, and efficiency drives innovation. At the forefront of this technological revolution stands the DS70000 series digital oscilloscope, a masterpiece of modern instrument design from RIGOL. Far more than a simple oscilloscope, this is a comprehensive measurement platform, powered by the bespoke “Phoenix” chipset and the revolutionary UltraVision III technical platform. It represents a paradigm shift, combining an extraordinary set of features into a single, intuitive device. The DS70000’s inception marks a new chapter in the history of electronic testing, offering unprecedented performance and a user experience that redefines what is possible. It’s an instrument built for the future, engineered to tackle the most demanding challenges of today’s complex designs. The synergy between cutting-edge hardware and intelligent software elevates it from a tool to a true partner in discovery and development, making intricate tasks seem effortlessly simple. Its core architecture is built to withstand rigorous use, ensuring long-term reliability for critical projects.

Redefining Performance with Unmatched Specifications

The DS70000 series is built on a foundation of exceptional performance metrics. With a maximum analog channel bandwidth of up to 5 GHz and a staggering sample rate of up to 20 GSa/s, it can accurately capture and analyze even the fastest signals with remarkable fidelity. This raw power is complemented by a maximum memory depth of 2 Gpts, allowing for the seamless recording of long-duration events at the highest sample rates without sacrificing detail. The oscilloscope’s waveform capture rate, exceeding 1,000,000 wfms/s, ensures that transient events and rare glitches are not missed, a critical capability for debugging and validation. This is further enhanced by its ability to capture 2,000,000 frames of real-time, ceaseless waveforms, providing an exhaustive history of signal behavior. The vertical resolution is adjustable from 8 to 16 bits, giving engineers the flexibility to prioritize speed or precision depending on the specific application. This combination of speed, depth, and resolution provides a complete picture of signal integrity, enabling detailed analysis that was previously unattainable.

An Intuitive Interface for Effortless Analysis

User experience is paramount in the design of the DS70000, evidenced by its innovative dual-screen setup. The main 15.6-inch HD capacitive multi-touch screen provides a vast and clear canvas for signal visualization and data analysis. With its one-button electronic tilt, users can easily adjust the screen for optimal viewing, reducing strain during long hours of operation. What truly sets this instrument apart is the secondary 3.5-inch touch screen. This smaller, dedicated display separates menus and function controls from the main signal display, preventing clutter and allowing engineers to focus on their work without distraction. This secondary screen supports customized functions and shortcut menus, enabling a highly personalized workflow. The intuitive touch-based operation, paired with a quick-responsive vibration feature, provides immediate tactile feedback, enhancing the overall feel of the device. Furthermore, the photoelectric encoder operating knob is designed for an extended service life, guaranteeing over 100,000 presses and 1 million rotations, ensuring durability for years to come.

The Power of Integration and Advanced Functionality

The DS70000 series is a true multi-instrument device, consolidating the functionality of five separate instruments into a single, powerful unit. It includes a digital oscilloscope, a spectrum analyzer (option), a digital voltmeter, an 8-digit frequency counter and totalizer, and a protocol analyzer (option). This integration eliminates the need for multiple pieces of equipment, saving valuable bench space and streamlining the testing process. The built-in digital voltmeter and high-precision frequency counter provide instant, accurate measurements without complex setups. The optional spectrum analyzer allows for detailed frequency domain analysis, which is essential for RF and wireless applications. The protocol analyzer, also an option, supports a wide range of serial buses, including RS232/UART, I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553, MIPI-RFFE, and USB2.0. This comprehensive suite of tools makes the DS70000 an indispensable asset for a variety of engineering disciplines.

Diverse Applications in Modern Engineering

The DS70000’s robust feature set and unparalleled performance make it an ideal tool for numerous high-demand applications. In high-speed digital design, its high bandwidth and sample rate are critical for validating signal integrity, checking for jitter, and analyzing eye diagrams. Engineers working on PCIe, USB, and DDR interfaces can use the optional eye diagram and jitter analysis tools to quickly identify and troubleshoot timing issues. For RF and microwave engineering, the optional spectrum analyzer capability allows for precise analysis of signals in the frequency domain, enabling engineers to measure harmonics, spurious emissions, and signal-to-noise ratios. In the automotive industry, the extensive list of supported serial bus protocols—including CAN, CAN-FD, and FlexRay—allows for in-depth analysis and debugging of in-vehicle communication systems. The high-resolution mode (up to 16 bits) is invaluable for power electronics applications, where fine details and low-noise measurements are essential for characterizing power supplies and converters. Its ability to capture 2,000,000 frames of waveforms is a game-changer for aerospace and defense, where rare events in mission-critical systems need to be captured and analyzed without fail.

Mastery Over Signal Analysis with Powerful Tools

Beyond its core specifications, the DS70000 offers a vast array of analytical and measurement capabilities that empower engineers to delve deeper into signal behavior. It performs auto measurements of 41 waveform parameters, providing a comprehensive overview of signal characteristics with a single press of a button. The integrated math functions are extensive, including operations like A+B, A-B, A×B, and A/B, as well as more complex functions like FFT (Fast Fourier Transform), integration, and differentiation. The built-in FFT analysis with a peak search function is a powerful tool for identifying frequency components within a signal. The oscilloscope also supports a wide variety of advanced trigger types, from standard edge and pulse triggers to more specialized ones like Runt, Window, and Setup/Hold triggers, ensuring that engineers can isolate and capture the specific events they are interested in.

A World-Class Ecosystem of Probes and Accessories

To complement its exceptional performance, the DS70000 series is supported by a comprehensive range of RIGOL probes and accessories. The optional PVA8700 7 GHz active differential probe is designed specifically to match the oscilloscope’s high bandwidth, ensuring that the signal captured at the probe tip is a true representation of the signal on the circuit. This probe is essential for high-speed differential signaling applications. In addition to active probes, the DS70000 supports a variety of passive, high-impedance, and high-voltage probes, such as the RP3500A and RP1300H. The ecosystem also includes a range of current probes, like the PCA1030, which are vital for power integrity analysis and current measurement in power electronics and embedded systems. This diverse selection of probes allows the DS70000 to be a versatile tool capable of handling a vast range of measurement tasks, from a simple voltage check to complex differential signaling analysis.

Experience Excellence with TPT24 Online Store

The DS70000 series digital oscilloscope is more than just an instrument; it’s an investment in precision, performance, and future-proof technology. To ensure you receive this cutting-edge product with complete confidence, look no further than the tpt24 online store. We are proud to be recognized as the premier online retailer for this and other leading-edge instruments globally. At tpt24, we are committed to providing you with a seamless purchasing experience, backed by our unwavering promise of authenticity and quality. Every product delivered is guaranteed to be genuine and of the highest standard, ensuring you get the full benefits of this remarkable oscilloscope. No matter where you are in the world, tpt24 will deliver this product to you with a guarantee of authenticity and quality, solidifying our reputation as the most trusted provider in the market. Choose tpt24 for a secure transaction and the peace of mind that comes with knowing you’ve made a wise and reliable choice for your professional needs.
