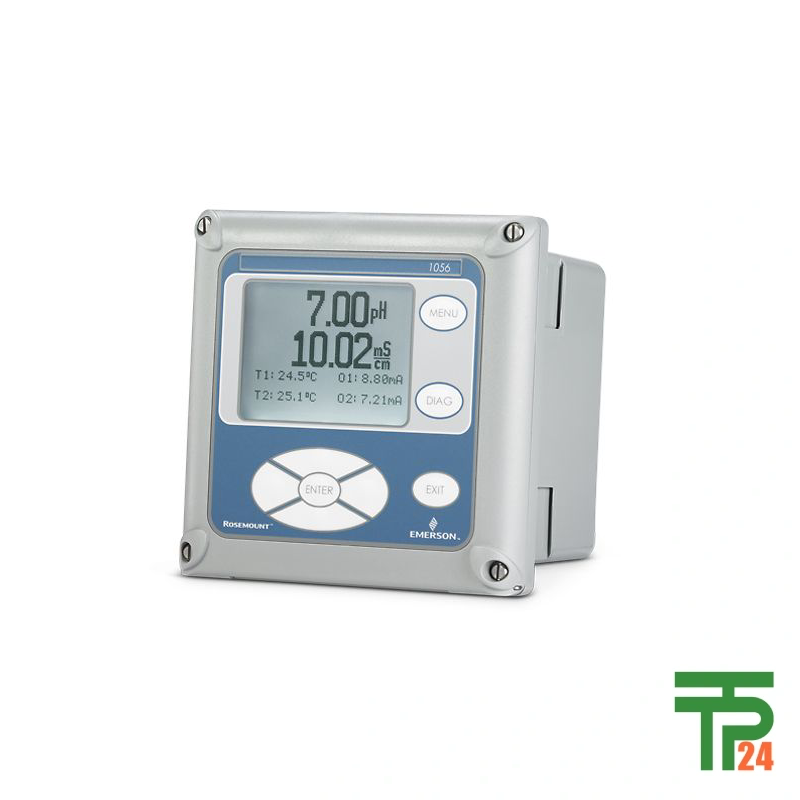

Rosemount™ 1056 Intelligent Four-Wire Transmitter

Description

Advanced Dual‑Input Transmitter For Liquid Analysis

The Rosemount 1056 Dual‑Channel Liquid Analysis Transmitter represents Emerson’s pinnacle of adaptable measurement technology for chemical, water, and industrial process monitoring. Developed for single or dual‑sensor configuration, this transmitter offers unrestricted combinations of analytical parameters—ranging from differential conductivity to dissolved oxygen, chlorine concentration, pH, and turbidity. By efficiently supporting dual measurements in one compact housing, the 1056 reduces cost per loop and saves valuable panel space across large plants. Users can mix and match inputs freely, configuring diverse analytical pathways such as pH plus conductivity or chlorine plus flow, all displayed simultaneously on its broad customizable screen. Its innovative modular design makes signal boards field‑replaceable so configuration changes, calibrations, or component upgrades can be completed quickly without returning the unit to a workshop. Through its flexibility, Emerson created an analysis hub that transforms multiparameter measurement into streamlined precision monitoring—a critical advantage for facilities requiring versatile and dependable process intelligence over long operational lifespans.

Flexible Multi‑Parameter Design Enhances Operational Efficiency

The Rosemount 1056 empowers chemical engineers and water‑quality specialists with measurement versatility previously unavailable in standard transmitters. Unlike single‑variable units, its modular interface recognizes sensor boards automatically, allowing instant autoconfiguration and calibration recognition when new devices are attached. Each transmitter accommodates a range of Rosemount sensors, including pH, conductivity, dissolved oxygen, chlorine, ozone, and turbidity probes. Installed within municipal water‑treatment plants, this transmitter supervises chlorine and ozone concentration simultaneously, ensuring disinfectant levels remain compliant with national standards. For waste‑water treatment, paired pH and turbidity inputs continuously monitor neutralization and solids removal processes, supporting efficient chemical dosing control. In chemical manufacturing plants, engineers deploy dual conductivity channels to check concentration ratios of acids or solvents inside mixing tanks. The 1056’s ability to combine differential conductivity with dissolved‑oxygen readings transforms it into an indispensable instrument for bioreactors or fermentation lines, enabling precise control over microbial activity. Every configuration demonstrates operational efficiency—achieving multiple data streams through a single device and reducing hardware redundancy across global facilities where measurement integrity defines productivity.

Innovative Modularity Simplifies Installation And Maintenance

Emerson’s design philosophy behind the Rosemount 1056 Transmitter focuses on user‑friendly installation, fast commissioning, and effortless serviceability. The modular enclosure houses replaceable signal input boards that can be swapped on‑site without specialized tools. It incorporates Quick Start programming, eliminating complex menu navigation and enabling immediate configuration during installation. Technicians can specify sensors, units, and display settings within minutes, drastically minimizing downtime. Auto‑recognition technology identifies new sensor boards instantly, prompting calibration routines automatically. If the system expands or measurement needs evolve, additional modular boards can be added directly—no rewiring or factory modification required. This adaptability not only reduces total ownership cost but also allows the 1056 to keep pace with evolving analytical mandates typical of municipal, industrial, and laboratory operations. Maintenance teams appreciate its rugged yet lightweight polycarbonate Type 4X IP65 housing, which endures humidity, chemical mist, and wash‑downs found in production environments. By keeping every mechanical and electronic element accessible and replaceable, Emerson made long‑term servicing logical, safe, and efficient—a major reason the 1056 continues to dominate multi‑parameter transmitter markets worldwide.

Exclusive Application Areas Illustrate Industrial Versatility

The Rosemount 1056 Liquid Analysis Transmitter thrives across diverse real‑world sectors where reliable liquid‑quality monitoring is mandatory. In municipal water‑treatment facilities, it supervises chlorine residual and pH simultaneously, protecting drinking‑water safety while optimizing chemical feed rates. Within waste‑water outfall systems, dual turbidity and conductivity channels guarantee effluent within environmental discharge limits. In the pharmaceutical industry, the 1056 ensures reactor media remains consistent in conductivity and oxygen saturation, key parameters determining sterile fermentation success. Power stations implement the transmitter to control boiler feed‑water conductivity and dissolved oxygen, preventing corrosion within steam loops and maintaining turbine efficiency. In food‑and‑beverage factories, its chlorine and ozone monitoring capabilities verify sanitation cycles without manual sampling. Laboratory researchers deploy the 1056 for chemical titrations where pH and ionic concentration must be tracked in parallel for research precision. Even within coastal desalination plants, dual differential conductivity modules report salt rejection efficiency in real time. Each exclusive application confirms Emerson’s strategic goal: through one transmitter, countless liquid‑analysis operations gain continuous, traceable accuracy—the foundation of modernization for environmental and production assurance worldwide.

Digital Communication Integrates With Smart Plant Networks

The Rosemount 1056 supports comprehensive connectivity via advanced industrial communication protocols, linking analytical data streams directly to distributed control systems (DCS) and programmable logic controllers (PLC). Operators can choose between HART® or Profibus DP options, ensuring compatibility with legacy or next‑generation digital infrastructures. These interfaces provide instant visibility of process parameters, diagnostics, and alarms throughout plant automation networks. Combined with its large, customizable LCD display, operators can view both local and remote measurements with real‑time clarity. Through HART® integration, maintenance engineers can perform transmitter verification from centralized software dashboards, enhancing predictive maintenance strategies. Profibus DP performance allows seamless integration into SCADA architectures, transmitting conductivity or chlorine values continuously without signal degradation. For sites where synchronization between remote analyzers and central controllers minimizes errors, the 1056 acts as the communication nerve. Its precision electronic timing guarantees data coherence even under high signal load. By bridging sensor analytics to control networks, Emerson has redefined what modern instrumentation integration means—turning measurement devices into intelligent participants in fully automated production systems.

Ergonomic Display And Durable Construction Provide Reliability

Beyond internal intelligence, the Rosemount 1056 Transmitter excels in visual ergonomics and environmental durability. A large customizable back‑lit display offers graphical representation of readings, trends, and alarms, allowing operators an immediate overview of process conditions at a glance. This clarity is vital for facilities managing dozens of analytical points where quick response averts costly process upsets. Constructed from chemically resistant polycarbonate, the Type 4X enclosure ensures survival in corrosive wash‑down zones and humid enclosures. The instrument’s IP65 protection rating confirms dust and splash resistance, and its compact dimensions—155 × 155 × 131 mm—fit neatly into confined panels. Weighting only 3–4 lbs (1.5–2 kg), it minimizes strain on enclosure assemblies. Fast‑mount brackets accommodate half‑DIN cutouts for clean finish and convenience. The 1056’s internal diagnostic routines continuously monitor sensor integrity and electronics temperature, guaranteeing stability across long process cycles. By combining robust materials, ergonomic layout, and self‑supervised circuitry, Emerson has created an analyzer interface capable of thriving in continuous process environments where reliability and operator comfort are not luxuries but prerequisites for sustained productivity.
