Rosemount™ X-well™ Technology

Description

Rosemount™ X-well™ Technology

Accurate Non‑Intrusive Measurement through X‑well Technology

The Rosemount X‑well™ Technology eliminates thermowells while providing highly accurate internal process‑temperature measurements directly from the pipe or surface—without any process penetration or mechanical modification. This revolutionary Emerson innovation delivers precise thermal readings for liquid, gas, and steam applications where safety, design simplicity, and cost control are paramount. The technology uses advanced thermal‑conductivity models within the Rosemount 3144S, 3144P, or 648 Temperature Transmitters to calculate the true process temperature using external measurements, completely removing the need to cut pipes, calculate wake frequencies, or shut down operations. Industries now record process temperature safely under full‑pressure service conditions, achieving precision previously reserved for traditional thermowells. With accuracy extending across extreme ranges—up to 650 °C (1202 °F) in Extended Range configurations—the Rosemount X‑well solution represents a breakthrough in non‑intrusive temperature measurement, meeting the global demand for efficiency, safety, and reliability in industrial operations.

Engineering Simplicity Reduces Design Time and Installation Risks

One of the most valuable benefits of Rosemount X‑well Technology is its ability to decrease design and engineering time by up to 65%. Traditional thermowell installations require mechanical calculations such as wake frequency, flow‑induced vibration analysis, and penetration sealing—all eliminated through X‑well’s sensor modeling and external fitting method. This makes the initial design process simple, standardized, and less prone to error. Plant operators avoid expensive pipe modifications and bypass operations, leading to a 30% reduction in total cost of ownership. Direct or remote‑mount capability simplifies integration across diverse process layouts, including crowded heat‑exchange loops or vertical piping sections where space is limited. The transmitter mounts solidly while maintaining full mechanical stability even under variable vibration loads. Reduction in design complexity drastically accelerates project timelines, cutting both planning and commissioning costs. Emerson’s X‑well design thus creates measurable financial value while reinforcing safety—ideal for chemical, power, and oil & gas installations where process shutdowns equate to millions in lost productivity.

Safety and Reliability across Diverse Industrial Environments

Safety remains central to Emerson’s X‑well Technology philosophy. Because no process penetration occurs, operators no longer face potential leaks, metal fatigue near welds, or sensor detachment under high pressure. The system’s integrated diagnostics provide open/short sensor monitoring, loop integrity checking, and proof testing across SIL2‑certified and SIL3‑capable installations—aligning precisely with IEC 61508 functional‑safety standards. The double‑compartment housing offers rigorous environmental protection against vibration, humidity, and corrosive atmospheres found aboard marine vessels and offshore rigs. In pharmaceutical reactors, clean steam lines, or cryogenic tanks, the non‑contact measurement eliminates contamination points, ensuring sterile safety while maintaining continuous operation. Additionally, maintenance hazards reduce drastically because no hot‑work permits or line breaking are needed for installation. Whether employed in an LNG terminal, chemical polymerization unit, or HVAC heat recovery network, users gain confidence that measurement reliability endures under extreme service conditions. X‑well’s reliability defines Emerson’s reputation for industrial‐grade measurement excellence worldwide.

Adaptable Integration with Rosemount 3144S, 3144P, and 648

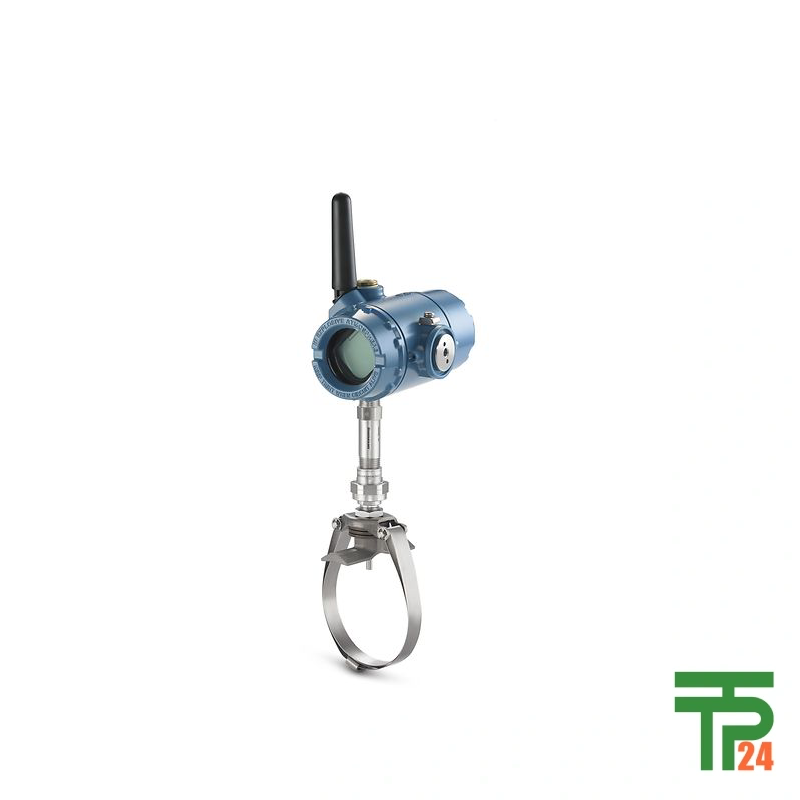

Flexibility distinguishes the X‑well platform. It operates seamlessly with the Rosemount 3144S, 3144P, and 648 Transmitters, tailoring integration to project specification. When coupled with the 3144S, X‑well supports single and dual sensor configurations with universal RTD inputs, extended range capability, and complete diagnostic coverage—including logging and Safety Instrumented System proof testing. The 3144P variant delivers the same durable dual‑compartment housing, minimum/maximum temperature tracking, and an intuitive device dashboard for simplified configuration and troubleshooting. The Rosemount 648 Wireless Transmitter version enables WirelessHART® communication, offering best‑in‑class wireless accuracy and stability >99%. This wireless mode allows facility expansion without the cost of additional wiring, ideal for large or remote measurement points. For mobile installations or rotating equipment, the SmartPower™ module built into the 648 provides up to 10‑year maintenance‑free operation, replaceable in the field without transmitter removal. Through this scaleable interoperability, Emerson empowers every industrial network—wired or wireless—to access X‑well’s full potential in safety, speed, and cost efficiency.

Dedicated Applications Demonstrate Unmatched Industrial Versatility

Rosemount X‑well Technology demonstrates extraordinary applicability in real‑world operations spanning multiple process categories. In oil and gas refining, it monitors surface‑mounted piping temperatures for preheaters, gas dehydration lines, and distillation columns—eliminating costly thermowells exposed to corrosive fluids. Power‑generation plants implement X‑well sensors on steam headers and condensate return loops, maintaining temperature control without pausing flow or depressurizing systems. Within chemical processing, it supports heat‑exchanger monitoring, polymer film extrusion, and exothermic reaction protection, improving safety in volatile environments. Pharmaceutical and biotech facilities utilize X‑well for validated temperature tracking in autoclaves, fermenters, and utility steam networks where penetration points are forbidden. Food and beverage plants exploit non‑contact readings for pasteurization and cleaning systems, enabling rapid sanitation cycles with perfect thermal visibility. Even HVAC and district‑energy systems employ X‑well for secondary loop monitoring, optimizing efficiency across large urban heating grids. This impressive breadth proves X‑well’s readiness for modern industries seeking dependable thermal measurement without intrusion or interruption.

User Interface, Diagnostics, and Wireless Monitoring Efficiency

Simplicity and accessibility define the operator’s interaction with X‑well Technology. The large backlit graphical LCD display available on both the 3144S and 3144P versions supports multi‑language modes, percent‑range graphs, and quick‑service buttons for intuitive data navigation. The integrated dashboard enables fast configuration, diagnostics, and proof‑testing directly on‑site. Real‑time minimum/maximum temperature tracking provides clear trend visualization essential for troubleshooting temperature variation in complex process networks. In WirelessHART configurations, engineers receive live measurement and diagnostic information remotely, accessible through plant asset management systems like AMS Device Manager or DeltaV Explorer. Logging capabilities record sensor output and error history for compliance auditing or predictive maintenance. These intelligent interface features shorten problem‑resolution cycles and prevent failure propagation. Combined with SmartPower™ technology, maintenance teams can perform transmitter battery replacements without removing instruments or halting production, elevating overall workflow efficiency, especially in large distributed systems across refineries and food‑grade utilities alike.
