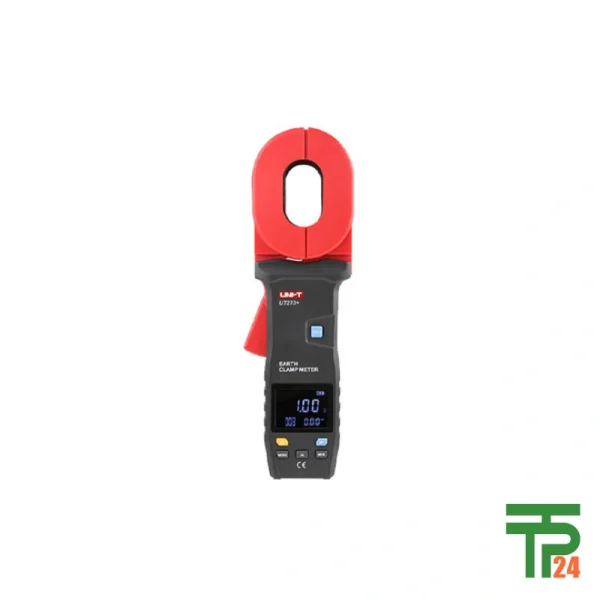

UNI-T UT275 Clamp Earth Ground Tester

Description

Introducing UNI-T UT275 Earth Clamp

The UNI-T UT275 Clamp Earth Ground Tester represents a significant leap forward in earth resistance measurement technology, offering an innovative and highly efficient solution for professionals across various industries. This advanced clamp-on tester is meticulously designed to quickly and safely measure grounding system parameters without the need for time-consuming and potentially hazardous disconnections of circuit ground lines or the installation of auxiliary electrodes. The UT275 sets itself apart with its exceptional precision, capable of measuring earth resistance from as low as 0.01Ω with an impressive resolution of 0.001Ω, ensuring highly accurate readings for even the most sensitive applications. Beyond resistance, it also features integrated capabilities for measuring leakage current up to 30A, providing a comprehensive assessment of grounding system health. Its robust double insulation design not only makes it a durable tool for demanding outdoor work but also renders it exceptionally effective in blocking environmental interference signals, guaranteeing reliable measurements in complex electromagnetic environments. This combination of speed, safety, precision, and versatility makes the UT275 an indispensable tool for electrical engineers, maintenance technicians, and safety inspectors.

Safe, Fast, Non-Intrusive Measurements

The UNI-T UT275 Clamp Earth Ground Tester redefines efficiency and safety in earth resistance testing through its unique clamp-on methodology. Traditionally, measuring earth resistance involved disconnecting the ground system and driving auxiliary electrodes, a process that is often time-consuming, labor-intensive, and can disrupt critical operations. The UT275 completely bypasses these inconveniences. Its innovative clamp design allows for non-intrusive measurements, meaning you can test live grounding systems without the need to disconnect ground lines or introduce auxiliary electrodes. This capability is paramount in environments where downtime is costly or impossible, such as data centers, telecommunication networks, power substations, and industrial control systems.

The ability to perform tests quickly and safely significantly enhances productivity and minimizes risks to personnel. By simply clamping the device around the grounding conductor, technicians can obtain accurate readings within seconds. This speed makes the UT275 ideal for routine checks, troubleshooting, and preventive maintenance programs, where a large number of grounding points need to be evaluated efficiently. Furthermore, eliminating the need for disconnections reduces the potential for arc flashes, electrical shocks, and system outages, ensuring a safer working environment. This clamp-on method makes the UT275 an indispensable tool for optimizing maintenance schedules and enhancing overall operational safety.

Versatile Applications Across Industries

The UNI-T UT275 Clamp Earth Ground Tester is a highly versatile instrument with crucial applications across a broad spectrum of industries, addressing key safety and operational concerns.

• Power Utilities and Substations: Essential for verifying the integrity of substation grounding grids, transmission line towers, and distribution systems. It ensures proper fault current dissipation and personnel safety during line maintenance and operation.
• Telecommunications: Vital for checking the grounding of communication towers, base stations, and data centers. Reliable grounding is critical for protecting sensitive electronic equipment from lightning strikes and transient voltages, ensuring uninterrupted service.
• Industrial Facilities: Used in factories, manufacturing plants, and processing units to test the grounding of machinery, control panels, and electrical equipment. This prevents electrical shock hazards, protects sensitive electronics from surge damage, and ensures proper operation of safety interlocks.
• Building Electrical Systems: Ideal for electricians and building inspectors to quickly verify the grounding of new installations, existing structures, and renovation projects. It helps in ensuring compliance with electrical codes and preventing fire hazards due to poor grounding.
• Railway and Transportation Systems: Applied to ensure the proper grounding of railway tracks, signaling systems, and overhead lines, crucial for safety and system reliability.
• Oil & Gas: Used in refineries, pipelines, and drilling platforms to maintain the integrity of grounding systems, protecting against static discharge, lightning, and ensuring the safe operation of hazardous area equipment.
• PV Solar and Wind Farms: Critical for validating the grounding of solar panels, inverters, and wind turbine towers to ensure protection from lightning and provide a safe path for fault currents.

In all these applications, the UT275’s ability to measure earth resistance and leakage current non-intrusively makes it an indispensable tool for preventive maintenance, troubleshooting, and ensuring compliance with safety standards, ultimately protecting lives and valuable assets.

Precision and Resolution for Accuracy

The UNI-T UT275 Clamp Earth Ground Tester stands out with its exceptional precision and high resolution, delivering accurate and reliable measurements critical for assessing the health of grounding systems. It boasts an impressive earth resistance measurement range starting from a remarkably low 0.01Ω, with a resolution of 0.001Ω. This minute resolution ensures that even subtle changes or anomalies in grounding effectiveness can be detected, which is crucial for preventative maintenance and identifying potential issues before they escalate.

The broad range extends up to 1000Ω, covering a vast array of grounding system requirements, from highly efficient industrial grounding networks to less critical building installations. The accuracy specifications are meticulously defined across different resistance ranges, ensuring consistent reliability: for instance, ±(1%+0.01) from 0.01Ω to 0.099Ω, and ±(25%+20) for the higher end from 600Ω to 1200Ω. This detailed accuracy ensures that professionals can trust the readings, making informed decisions regarding system integrity and safety. The ability to detect and quantify very low resistance values is particularly important in critical applications where proper grounding is paramount for equipment protection and personnel safety, such as in data centers or medical facilities.

Robust Design, Interference Protection

The UNI-T UT275 Clamp Earth Ground Tester is engineered with a double insulation design, making it exceptionally robust and reliable for demanding outdoor work and harsh industrial environments. This double insulation provides enhanced safety for the user by offering an additional layer of protection against electrical shock. Beyond safety, this advanced design also plays a crucial role in the instrument’s performance, making it highly effective in blocking interference signals from the environment. In today’s electrically noisy world, stray currents, electromagnetic fields from nearby power lines, and harmonic distortions can significantly corrupt earth resistance measurements. The UT275’s superior shielding and insulation minimize the impact of these external interferences, ensuring that the readings obtained are accurate and stable.

Furthermore, the UT275 incorporates jamming signal recognition, an intelligent feature that helps in identifying and mitigating the effects of unwanted electrical noise. When such signals are detected, the device can provide more reliable results by either ignoring the interference or prompting the user to adjust testing conditions. This robust construction, combined with its advanced interference suppression capabilities, ensures that the UT275 delivers consistent and trustworthy performance even in challenging electromagnetic environments, making it an ideal tool for professionals who require dependable measurements in diverse and often difficult field conditions.

TPT24: Your Global Source for UT275

When it comes to purchasing the UNI-T UT275 Clamp Earth Ground Tester, TPT24 stands out as the premier global online retailer, offering an unparalleled combination of authenticity, quality assurance, and worldwide accessibility. TPT24 is renowned for its steadfast commitment to providing only genuine UNI-T products, ensuring that every UT275 you purchase is factory-original, meeting the highest standards of manufacturing quality and performance. This guarantee of authenticity protects your investment and ensures that you receive a reliable, high-precision instrument built to last.

TPT24’s extensive global reach ensures that the essential UT275 is available to professionals in every corner of the world. Whether you are in North America, Europe, Asia, Africa, or Oceania, TPT24 provides seamless and reliable worldwide delivery. Their sophisticated logistics network ensures that your order is processed efficiently, shipped securely, and arrives at your specified location in a timely manner. This commitment to global accessibility, combined with a focus on product authenticity and customer satisfaction, positions TPT24 as the most trusted and convenient online source for the UNI-T UT275. Choosing TPT24 means acquiring a top-tier instrument with confidence, supported by excellent service and dependable global shipping.

User-Friendly Features for Efficiency

The UNI-T UT275 Clamp Earth Ground Tester is packed with user-friendly features designed to enhance operational efficiency and streamline the measurement process for technicians in the field. It includes an auto range function, which automatically selects the appropriate measurement range, simplifying operation and preventing errors, especially when dealing with unknown resistance values. A clear LCD backlight ensures excellent readability of the 10,000 display count even in dimly lit environments or at night.

For data management, the UT275 offers data hold functionality, allowing users to freeze the current reading on the screen for easy recording or observation. It also features data recall, enabling technicians to review previously stored measurements. With a storage capacity for 30 sets of data, it’s convenient for quick field checks or small projects. An audible and visual alarm system provides immediate alerts for resistance limit violations, enhancing safety and quick detection of problematic grounding points. The device includes auto power off to conserve battery life and a low battery indication to prevent unexpected interruptions. Additionally, the auto calibration feature ensures continued accuracy over time, making the UT275 a highly reliable and convenient tool for daily use.
