Yokogawa 30031A/30032A Clamp-on Tester

Description

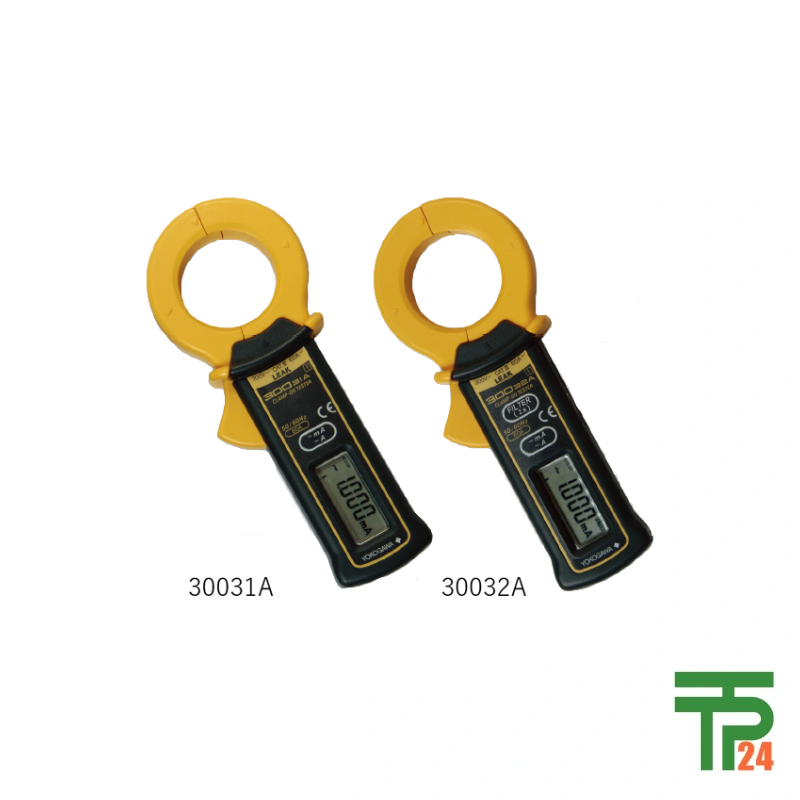

Yokogawa 30031A/30032A Clamp-on Tester

The Yokogawa 30031A and 30032A Leakage Current Clamp Meters represent a significant advancement in preventative maintenance diagnostics, offering unparalleled sensitivity in a remarkably compact form factor. In modern industrial and commercial settings, insulation degradation or minute current leakage paths can lead to catastrophic equipment failure, unnecessary energy wastage, or serious safety hazards. These instruments are specifically engineered to detect these incipient issues long before they escalate. Their core functionality revolves around measuring alternating current (AC) leakage from as low as 1 milliampere (mA). This exceptional low-end sensitivity is paired with a maximum resolution down to $0.001 \text{ mA}$ across certain ranges, allowing technicians to diagnose issues that conventional multimeters or higher-range clamps simply cannot perceive. Designed for the exacting standards of electrical safety compliance and reliability engineering, the 30031A and 30032A are indispensable tools for any professional committed to maintaining optimal system integrity. Their ease of use, combined with high-precision measurement capability, sets a new benchmark in portable diagnostic instrumentation for electrical leakage assessment across all critical infrastructures.

Measuring Fundamentals Define Superior Performance

The technical architecture underpinning the 30031A/30032A series is defined by its commitment to accuracy, even when measuring small residual currents within high-current environments. These clamps utilize a Mean Value measurement method, calibrated to provide true Root Mean Square (RMS) readings, ensuring that the measured leakage current accurately reflects the actual energy involved, which is crucial when dealing with non-sinusoidal loads common in electronic equipment. A standout capability is their wide dynamic range, accommodating leakage currents up to 60A while maintaining precision at the sub-milliamp level. Crucially, the 1 mA sensitivity enables the instruments to be used effectively for testing the insulation resistance of low-voltage circuits, such as those found in control systems or sensitive electronic assemblies, by observing minute leakage flows during basic insulation checks. This dual capability—handling high nominal load currents while resolving minuscule leakage—makes these clamps versatile workhorses, capable of diagnosing both routine power line issues and subtle electronic circuit anomalies with confidence, eliminating the guesswork often associated with lower-specification diagnostic tools.

Ergonomic Design Meets Rugged Longevity

Yokogawa has masterfully balanced high technical specification with exceptional field usability. The 30031A/30032A series boasts a featherlight profile, weighing in at only 200 grams, and a slim chassis measuring $70 \text{ mm} \times 176 \text{ mm} \times 25 \text{ mm}$. This compact design significantly reduces user fatigue during extended troubleshooting sessions, particularly when working aloft or in confined spaces. Despite their small size, they incorporate a substantial $40 \text{ mm}$ jaw opening, allowing easy clamping around thick power cables, conduits, or busbars common in modern electrical panels. Durability has not been overlooked; the robust mechanical construction is rated for over 50,000 opening and closing cycles, ensuring long-term reliability in harsh industrial environments. Furthermore, the incorporation of an ergonomically lengthened clamp lever optimizes mechanical advantage, making it significantly easier for users, even those wearing heavy-duty gloves, to securely fasten the jaws around conductors without excessive physical strain, thereby improving measurement stability and safety.

Model Differentiation Aids Signal Clarity

While both models share the core leakage detection capability, the Yokogawa 30031A is specially outfitted with a significant advantage for environments saturated with electronic noise: a sharp Low Pass Filter (LPF) function. In contemporary electrical systems, variable frequency drives (VFDs), switch-mode power supplies (SMPS), and other power electronics frequently inject high-frequency harmonic content and noise spikes into the wiring. These signals can corrupt the measurement of the fundamental $50/60 \text{ Hz}$ leakage current if not properly mitigated. The LPF in the 30031A selectively attenuates these high-frequency components, allowing the technician to isolate and accurately measure the true fundamental leakage current. This feature is invaluable when troubleshooting compliance issues related to grounding paths or when attempting to differentiate between benign high-frequency noise and genuine safety-critical low-frequency leakage current flowing to earth or chassis ground, providing cleaner, more reliable diagnostic data.

Immunity Against External Electromagnetic Interference

A critical differentiator for any high-sensitivity current clamp is its immunity to external influences, particularly electromagnetic fields (EMF) generated by adjacent conductors carrying high load currents. The 30031A/30032A exhibits exceptional resistance to such interference. The design minimizes magnetic flux coupling from neighboring cables, resulting in a typical influence of only $0.0005%$ relative to the adjacent current magnitude. This level of shielding is paramount when performing measurements in densely packed wiring ducts or trunking where multiple high-amperage conductors run parallel to the measurement target. Furthermore, the accuracy specifications account for the conductor’s position within the jaw. The specified accuracy remains valid even if the conductor is slightly offset from the geometric center of the jaw, meaning technicians do not need perfect centering for reliable readings, enhancing measurement speed without sacrificing diagnostic fidelity in complex, real-world installations.

Intuitive Operation Enhances Workflow Efficiency

Operational efficiency is streamlined through a suite of intelligent features built into the 30031A/30032A interface. The Auto-range function automatically selects the most appropriate measurement range, eliminating manual range switching and reducing the potential for user error while maximizing resolution on the current reading. Information is presented simultaneously on a large, clear 3200-count digital display for precise numerical values, complemented by a 32-segment analog bar-graph. This dual display is exceptionally useful for trend analysis, allowing users to visually monitor the stability or fluctuation of the leakage current over time, which is essential for identifying intermittent faults. Standard features like Data Hold allow readings to be locked onto the screen after the clamp is removed from a conductor, aiding documentation. Power management is also impressive, boasting an extraordinary battery life exceeding 90 continuous hours using a readily available CR2032 coin cell battery, minimizing downtime for battery replacement.

Versatile Applications Meet Stringent Safety Standards

The high sensitivity and reliability of the 30031A/30032A open up a wide spectrum of essential maintenance and compliance tasks. They are perfectly suited for routine insulation checks on office equipment, IT server racks, and medical devices to ensure compliance with leakage current limits. They serve as vital tools for verifying the proper tripping behavior of Residual Current Devices (RCDs) and Ground Fault Circuit Interrupters (GFCIs) during periodic safety audits. Troubleshooting ground faults in complex IT power systems often relies on identifying minute current flows, a task perfectly matched to the millamp sensitivity of these clamps. Furthermore, for quality control of new electronic assemblies, these meters can rigorously test low-voltage component integrity. Safety is absolutely assured, as the instruments are certified to EN 61010-1 and EN 61010-2-032 standards, rated for Category III (CAT III 300V) environments, and possess a verified $3.7 \text{ kV}$ AC Withstanding Voltage capability, protecting the user against transient overvoltages.
