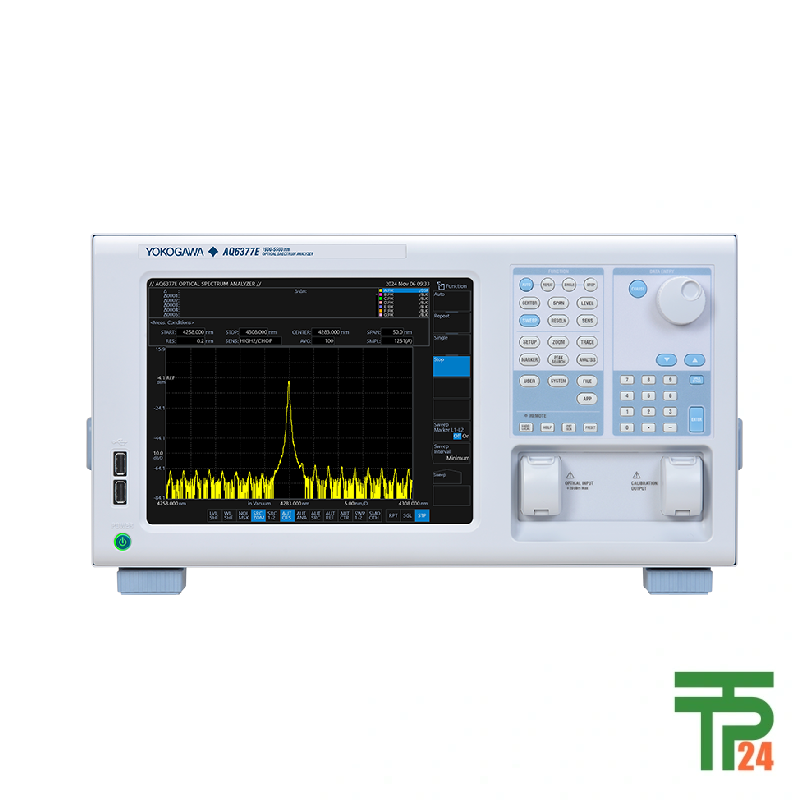

Yokogawa AQ6377E Five Micron

Description

AQ6377E: Ultimate Mid-Wave Infrared Spectrum Analyzer

The Yokogawa AQ6377E Mid-Wave Infrared (MWIR) Optical Spectrum Analyzer represents a paradigm shift in high-resolution spectral analysis, meticulously engineered to conquer the challenging wavelengths spanning from 1900 to 5500 nm. This advanced instrument is not merely a measurement tool; it is a gateway to understanding the intricate interactions of light within the crucial MWIR band, a region vital for a multitude of advanced scientific and industrial applications. Its extended wavelength coverage is a testament to its design, specifically targeting applications where traditional near-infrared and visible spectrum analyzers fall short. From the subtle absorption signatures of atmospheric gases to the unique emission profiles of novel photonic devices, the AQ6377E provides the clarity and precision required to drive innovation. Its robust design and sophisticated internal mechanisms are tailored to deliver reliable and accurate data even under the most demanding measurement conditions, solidifying its position as an indispensable asset for researchers and engineers pushing the boundaries of optical technology in the MWIR domain.

Pioneering Applications in Environmental and Gas Analysis

The AQ6377E’s extended spectral reach makes it an exceptionally powerful tool for environmental monitoring and comprehensive gas analysis. In atmospheric sensing, it precisely identifies and quantifies various gases by detecting their unique absorption lines within the MWIR spectrum, a critical capability for understanding air quality, greenhouse gas emissions, and atmospheric chemistry. This instrument excels at distinguishing between closely spaced absorption features, providing unparalleled resolution for detailed gas profiling. Furthermore, its Advanced Pulsed Light Measurement Mode allows for the detailed characterization of pulsed laser sources, which are increasingly utilized in remote sensing, LIDAR systems, and advanced spectroscopy. This mode supports a wide range of pulse widths and repetition rates, enabling the analysis of dynamic light sources and transient spectral phenomena that are otherwise difficult to capture. The ability to accurately measure these spectral signatures is paramount for developing more effective environmental remediation strategies and for advancing the capabilities of next-generation sensing technologies.

Eliminating Noise for Unprecedented Sensitivity

A cornerstone of the AQ6377E’s superior performance lies in its sophisticated approach to noise reduction, particularly its High-Performance Chopper. This integral component actively modulates the incoming optical signal, enabling the analyzer to distinguish between the desired signal and ambient infrared radiation. By effectively ‘chopping’ the light, the instrument can isolate the signal of interest from the pervasive background IR noise that is inherent in MWIR measurements. This is crucial for detecting faint spectral features and for achieving the high signal-to-noise ratios necessary for accurate quantitative analysis. The reduction of background interference ensures that the measurements are clean, reproducible, and highly sensitive, allowing users to confidently analyze low-intensity signals and subtle spectral variations that would be obscured in less capable instruments. This enhanced sensitivity is vital for applications requiring the detection of trace gases or the characterization of weak optical emissions.

Overcoming Atmospheric Interference for Accuracy

The presence of water vapor in the atmosphere creates significant absorption peaks, particularly in the MWIR range, which can severely compromise the accuracy of spectral measurements. The AQ6377E addresses this challenge head-on with its innovative Purge Feature. This system allows for the introduction of dry nitrogen (N2) gas through dedicated ports, actively displacing atmospheric water vapor from the optical path within the instrument. By meticulously removing this interfering element, the AQ6377E ensures that the spectral data obtained is free from unwanted absorption artifacts, especially as measurements extend towards the 5500 nm limit of its range. This active purging mechanism is critical for obtaining reliable and reproducible results, making the AQ6377E an indispensable tool for applications where atmospheric conditions could otherwise render measurements unreliable, such as long-term environmental monitoring or precise gas composition analysis.

Preserving Optical Integrity for Pristine Signals

Maintaining the purity of the optical signal is paramount for accurate spectral analysis. The AQ6377E incorporates a Built-in Cut Filter mechanism that plays a vital role in this regard. This filter effectively eliminates light wavelengths below 1500 nm. The primary benefit of this feature is the prevention of high-order diffracted light, which can be generated by the monochromator when analyzing signals at longer wavelengths. Such spurious diffracted light can fold back into the spectral measurement, leading to erroneous readings and reduced signal fidelity. By strategically attenuating these shorter wavelengths, the cut filter ensures that only the intended MWIR spectral components are analyzed, thereby preserving the integrity of the optical signal and guaranteeing the accuracy and reliability of the spectral data obtained by the AQ6377E across its entire operational range.

Versatile Connectivity and Maintenance-Free Operation

The AQ6377E distinguishes itself through its intelligent Free-Space Optical Input structure, offering unparalleled versatility and user convenience. This innovative design allows the analyzer to accept a wide array of optical connectors, including PC/APC and SM/MM fibers, without requiring any internal modifications or adapters. This inherent flexibility eliminates the need for costly and specialized fiber optic patch cords, simplifying setup and reducing operational overhead. Furthermore, the free-space design significantly enhances the instrument’s robustness by eliminating the risk of internal fiber scratching, a common point of failure in traditional optical analyzers. This translates to maintenance-free operation and worry-free usage, allowing researchers and engineers to focus on their measurements rather than on instrument upkeep. The high coupling efficiency inherent in this design also ensures that maximum optical power is delivered to the detector, contributing to superior measurement performance.

Exceptional Performance Metrics for Demanding Scenarios

The Yokogawa AQ6377E delivers a suite of impressive performance specifications designed to meet the most demanding spectral analysis needs. It boasts an exceptional 73 dB wide dynamic range, enabling the simultaneous measurement of both strong and weak signals with remarkable precision. This is complemented by a 50 dB close-in dynamic range, crucial for resolving spectral features that are spectrally near strong neighboring peaks. The instrument’s high wavelength accuracy of ±0.5 nm ensures reliable identification of spectral lines, while the five selectable resolution settings, ranging from 0.2 to 5 nm, provide the flexibility to tailor the analysis to specific application requirements, from broad spectral surveys to highly detailed line shape investigations. Additionally, the AQ6377E offers a Wave Number (cm-1) scale, providing an alternative and often preferred unit of spectral measurement for certain scientific disciplines, further enhancing its utility and versatility.
