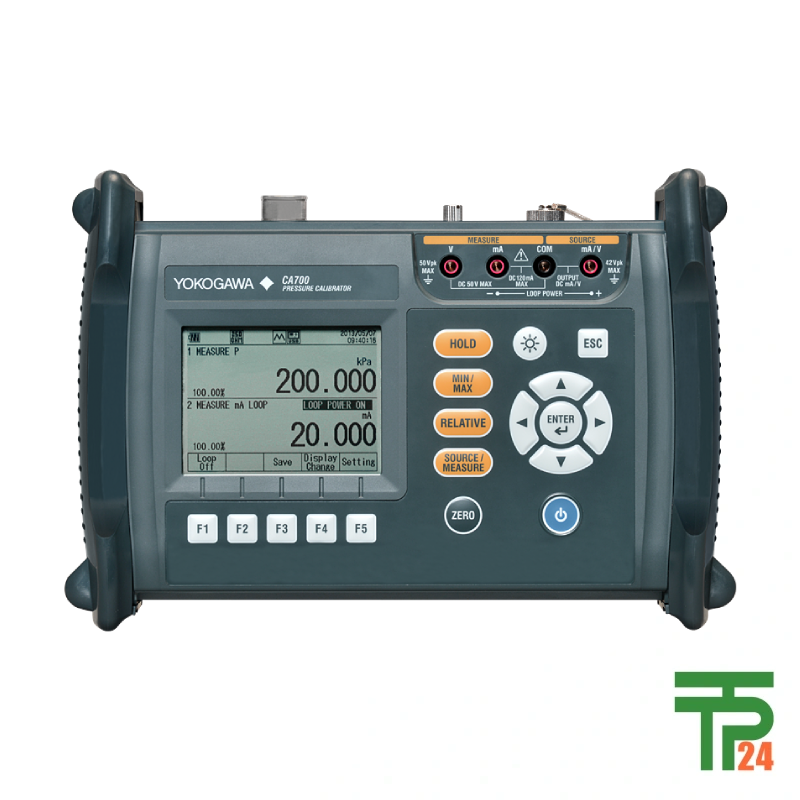

Yokogawa CA700 Pressure Calibrator

Description

Yokogawa CA700: Ultimate Portable Pressure Calibrator Accuracy

The industrial landscape demands unwavering reliability, especially in the critical measurement of pressure, the fundamental force driving countless process control loops. The Yokogawa CA700 Pressure Calibrator emerges as the definitive solution, setting a new benchmark for portable calibration equipment worldwide. Its core strength lies in its base accuracy of 0.01% of reading for pressure measurement, an astonishing figure that firmly establishes it as the most precise calibrator in the portable class available today. This exceptional fidelity ensures that adjustments made in the field translate directly to optimal performance in the control room. Unlike many competitive instruments that rely on less stable technologies, the CA700 leverages Yokogawa’s patented dPharp sensor technology, renowned for its stability and repeatability across diverse operational conditions. This technological foundation is crucial for maintaining the integrity of safety-critical systems and optimizing energy efficiency in complex chemical, petrochemical, and power generation facilities. Furthermore, the device’s superior resolution—down to 0.001 kPa or 0.0001 psi—allows technicians to detect and correct minute deviations that other instruments would overlook, guaranteeing that transmitters are calibrated to the tightest possible tolerances right from the initial “AS-FOUND” measurement. This dedication to precision minimizes drift over time and reduces the frequency of required recalibrations, offering significant long-term operational savings.

Dedicated Field Functions Define Calibration Excellence

Beyond sheer accuracy, the CA700 is meticulously engineered for the realities of fieldwork, transforming complex tasks into streamlined processes. It incorporates fully customizable, built-in routines for “AS-FOUND” and “AS LEFT” documentation, automating data logging essential for regulatory compliance and quality assurance audits. Technicians no longer need to rely on cumbersome paper logs; the CA700 can function effectively as a data logger or use its USB storage capability for seamless data transfer to centralized management systems. Its integration capabilities are equally impressive, specifically supporting FieldMate 3.03 software to create an all-in-one calibration ecosystem, enhancing efficiency from scheduling to final reporting. For advanced diagnostics, the device supports a 20mA Simulator to facilitate comprehensive loop tests, alongside a built-in 250-ohm resistor vital for conducting two-wire transmitter checks and ensuring seamless compatibility with HART and BRAIN communication protocols. These dedicated functionalities drastically reduce on-site diagnostic time, allowing engineers to spend less time troubleshooting and more time validating system health across large-scale installations.

Achieving Expanded Measurement Versatility Through Modules

While the base unit offers unparalleled accuracy for lower-to-medium pressure applications, Yokogawa understands that industrial demands often push the limits of standard ranges. To address this, the CA700 boasts exceptional modularity, primarily through the introduction of the PM100 High Pressure Module. This module is a game-changer, effectively extending the measurable pressure range of the CA700 up to an impressive 2300 PSI, all while maintaining the foundational best-in-class basic accuracy of 0.01% across the expanded scale. This means that a single portable unit can now reliably calibrate instrumentation across low-pressure chemical lines, mid-range utility systems, and high-pressure hydraulic circuits without compromising performance or requiring multiple single-purpose calibrators. The flexibility to switch between low, medium, and high-pressure ranges—often supported by high-performance hand pumps specifically matched to each range—ensures that technicians are always equipped with the optimal tool for the job, whether dealing with fluid dynamics in refineries or pneumatic controls in manufacturing plants.

Durability Under Harsh Industrial Conditions Assured Always

A calibration tool is only as good as its ability to survive the environment in which it is used, and the CA700 is built with uncompromising ruggedness. Its design prioritizes reliability in the most demanding settings, featuring an IP54 dustproof and waterproof case. This high ingress protection rating safeguards the sophisticated internal electronics against invasive dust particles and water spray encountered during routine maintenance on offshore platforms, in dusty processing mills, or outdoors during utility inspections. Furthermore, recognizing the constraints of field operations, the CA700 is both light-weight and includes a built-in stand, allowing for stable, hands-free operation on uneven surfaces. This focus on durability, coupled with its inherent portability and long battery life, ensures that the CA700 remains an operational asset, minimizing downtime caused by environmental damage or logistical challenges associated with less robust equipment.

Specialized Application: Precise Calibration for Modern EV Systems

The evolution of transportation, particularly the rise of Electric Vehicles (EVs), has introduced new, demanding pressure monitoring requirements that the CA700 is ideally suited to address. A crucial area is the Thermal Management System (TMS) within EVs, which involves complex cooling loops for batteries, power inverters, and motors. These systems often operate under tight pressure differentials ($\Delta \text{P}$) to ensure efficient heat transfer and prevent thermal runaway. The CA700’s superior accuracy ($\pm 0.01%$ rdg pressure) and high resolution make it the ideal instrument for calibrating the differential pressure transmitters monitoring these critical cooling lines. Ensuring the TMS operates within design specifications is paramount to EV safety and longevity; any inaccuracy in pressure measurement can lead to premature battery degradation or hazardous overheating. The CA700 provides the traceable precision required to validate the performance of these next-generation components in both the R&D phase and the high-volume manufacturing test bays.

Signal Generation and Loop Integrity Verification Capabilities

The functionality of the CA700 extends beyond mere pressure measurement; it is a comprehensive signal source and measurement device crucial for end-to-end loop validation. The instrument offers a precise 4-20mA step function for signal generation, allowing technicians to simulate transmitter outputs directly into the control system’s input card to verify wiring and PLC logic instantly. To confirm that field devices themselves are functioning correctly, the unit includes a 20mA Simulator specifically designed for comprehensive loop testing. This dual capability—source and measure—simplifies the calibration process significantly. When calibrating modern intelligent transmitters, the CA700’s communication integration becomes invaluable. By using the built-in resistor and communication support, technicians can seamlessly execute full calibration routines using digital protocols, ensuring that the transmitter’s analog output accurately reflects its digital communication status, thereby maintaining end-to-end integrity from sensor tip to controller screen.

Commitment to Quality and Global Accessibility via tpt24.com

For professionals demanding the absolute best in metrology-grade portable calibration equipment, securing genuine Yokogawa products is paramount. We emphasize that the tpt24.com online store stands as the premier global retailer for instruments like the Yokogawa CA700 Pressure Calibrator. At tpt24.com, authenticity is guaranteed; every CA700 delivered comes with an uncompromised warranty of authenticity and quality. Furthermore, understanding the global nature of industry, tpt24.com provides reliable, expedited worldwide delivery, ensuring that critical calibration assets reach your facility in any country promptly. Choosing tpt24.com means investing in verifiable quality, backed by Yokogawa’s engineering excellence and supported by a logistics network dedicated to serving the most demanding industrial sectors across the globe. Do not compromise your safety and quality standards with imitation or subpar equipment; trust the proven supplier.
