Yokogawa CL360 Clamp-on Tester

Description

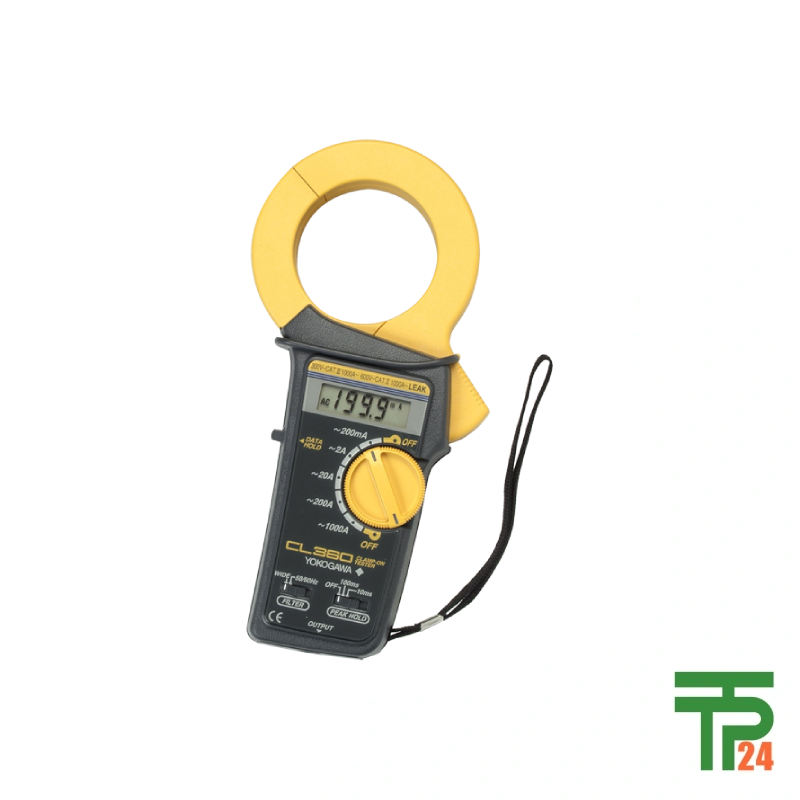

Yokogawa CL360: The Definitive High-Current Leakage Clamp Meter

The integrity of electrical systems in large industrial and commercial infrastructures is paramount, yet frequently challenged by the insidious threat of AC leakage current. Undetected or persistent leakage can lead to serious consequences, ranging from intermittent equipment faults and unnecessary downtime to catastrophic events like electric shock and system-wide fires. The challenge is often compounded by the sheer scale and complexity of modern electrical installations, which feature heavy-duty feeders and busbars demanding specialized diagnostic tools. The Yokogawa CL360 Digital Clamp Meter is engineered precisely to meet this critical need, offering an indispensable solution for precise, high-range leakage current measurement up to 1000A AC. It is not merely a measuring device; it is a vital safeguard, providing the data necessary to identify compromised insulation, faulty grounding, and unbalanced power conditions before they escalate into dangerous failures, ensuring regulatory compliance and operational safety across all industrial sectors.

Unmatched 68mm Jaw Capacity for Large Conductors

A key distinguishing feature of the Yokogawa CL360 is its extraordinarily large 68mm jaw diameter. This robust mechanical design directly addresses a primary limitation of smaller, general-purpose clamp meters, which often fail to accommodate the thick conductors, bundled cables, or complex busbar configurations found in high-capacity electrical cabinets and main distribution panels. The expansive jaw capacity allows maintenance professionals to effortlessly clamp onto and test these substantial conductors, facilitating fast and accurate measurements without the need to disconnect or manipulate critical wiring. This physical capability not only enhances operational efficiency but also significantly boosts safety by minimizing contact with live, high-current circuits. The ergonomic yet durable construction ensures reliable performance in demanding environments, positioning the CL360 as the essential tool for technicians responsible for auditing and maintaining major power distribution systems.

Reliable Mean Value Detection in Complex Systems

The Yokogawa CL360 utilizes the Mean Value detection method for its leakage current measurements. While some applications require True RMS, Mean Value detection offers distinct advantages, particularly in historical leakage current monitoring and quick system checks where consistent, stable readings of the fundamental AC frequency are prioritized. This method provides a reliable assessment of the average current flow, which is crucial for identifying chronic leakage issues associated with steady-state insulation degradation. Its focused detection capability ensures stable readings, minimizing the interference and complexity introduced by higher-order harmonics often present in modern electrical noise. This stability is invaluable when comparing new readings against baseline data, allowing for clearer trend analysis and more accurate preventative maintenance scheduling, making the CL360 a trustworthy diagnostic instrument in facilities utilizing standardized AC power supplies.

Essential Features: Peak Hold and Data Retention

The diagnostic power of the CL360 is significantly enhanced by its user-friendly functions, including Data Hold and the critically important Peak Hold feature, both operable across all ranges. The Data Hold function allows technicians to freeze a measured value on the 1999-count LCD display, which is invaluable when taking readings in dimly lit areas or locations where viewing the meter while clamping is physically challenging. More significantly, the Peak Hold function captures and retains the maximum transient current spike, typically lasting only milliseconds. These sudden current bursts are often the first tell-tale signs of intermittent insulation faults, equipment switching transients, or minor lightning strikes. By capturing these fleeting peaks, the CL360 enables technicians to identify potential failures that a standard average reading would entirely overlook, turning the instrument into a powerful forensic tool for identifying hidden and potentially dangerous system weaknesses before they lead to serious damage or fire.

Powering Extended Diagnostics: 60-Hour Battery Life

In the field of high-stakes industrial maintenance, the reliability and endurance of diagnostic equipment are non-negotiable. The Yokogawa CL360 is designed with this principle in mind, featuring an impressive battery life of approximately 60 hours of continuous operation on a single 9V battery (6F22 or 6LR61). This exceptional longevity ensures that technicians can conduct extensive and multi-point leakage audits across vast facilities—such as manufacturing plants, hospitals, or large data centers—without the constant interruption and downtime associated with frequent battery changes. Furthermore, the meter is equipped with an integrated Auto Power-Off function, which activates after approximately 10 minutes of inactivity, efficiently conserving power during periods of diagnostic setup or data recording. This combination of extended battery endurance and intelligent power management underscores the CL360’s commitment to maximizing fieldwork productivity and readiness in critical maintenance scenarios.

Dedicated Applications: Where CL360 Truly Excels

The specific technical capabilities of the Yokogawa CL360 make it the ideal instrument for several critical applications. It is fundamentally essential for grounding system integrity checks, allowing inspectors to verify the effectiveness and low impedance of protective earth conductors in high-load circuits. Its wide range (up to 1000A) is perfect for auditing main distribution feeders and checking the total leakage current leaving a large switchgear panel. It is widely used in data center maintenance to monitor the critical leakage paths that can compromise sensitive IT equipment and UPS systems. Furthermore, in environments utilizing large, three-phase motors and pumps, the CL360 helps detect early signs of winding degradation by monitoring increasing frame leakage currents. Its ability to measure the influence of external magnetic fields (15mA or less near a 10mm conductor carrying 100A) ensures reliable readings even in electromagnetically noisy industrial settings, making it an indispensable tool for preventive maintenance engineers.
