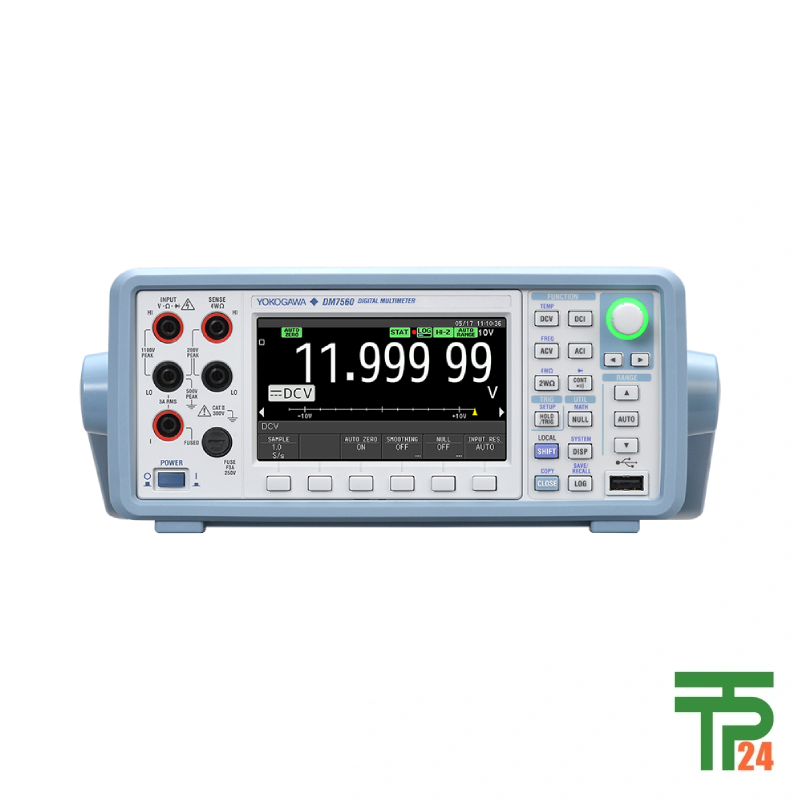

Yokogawa DM7560 Digital Multimeter 6.5 Digit

Description

Yokogawa DM7560: Precision, Flexibility, and Future-Proof Efficiency

1. Unlocking Next-Generation Multimeter Testing Capabilities

The world of electrical and electronic testing demands instruments that are not just accurate, but highly flexible and adaptable to rapidly changing requirements. The Yokogawa DM7560 stands as a transformative instrument in this landscape, moving beyond the limitations of conventional digital multimeters (DMMs). With its cornerstone being a high-accuracy, 6.5-digit resolution, the DM7560 provides the uncompromising precision necessary for mission-critical measurements in R&D, production, and quality assurance labs. What truly distinguishes this device is its unique combination of dedicated DMM functionality with the benefits traditionally associated with an oscilloscope. This hybrid capability allows engineers to capture, visualize, and analyze transient signals and complex waveform patterns that typical DMMs would miss entirely. By integrating a full-color, high-resolution display, the DM7560 redefines user interaction, offering clear visibility into measurement data and facilitating faster decision-making. This powerful convergence of precision, speed, and visualization makes the DM7560 an essential tool for engineers looking to future-proof their testing infrastructure and achieve unparalleled measurement certainty in all their professional endeavors.

2. Revolutionizing Measurement Through Advanced Data Analysis

The true power of the Yokogawa DM7560 is realized through its advanced, built-in data analysis capabilities. Unlike traditional multimeters that merely display a final value, the DM7560 transforms raw data into actionable insights, viewable in multiple flexible display formats. Users can choose to view measurements as a real-time trendline, offering immediate visualization of fluctuations over time, which is invaluable for identifying thermal drift or subtle power consumption changes. Furthermore, the histogram format allows for quick statistical understanding of the data distribution, helping engineers assess noise characteristics and stability with unprecedented ease. An additional arc scale display offers a classical, intuitive view for fast monitoring. Beyond visualization, the DM7560 performs real-time statistical analysis, calculating minimums, maximums, averages, standard deviation, and peak-to-peak values directly on the device. To ensure measurement integrity, a built-in Power Line Cycle (PLC) filter effectively removes the 50/60 Hz harmonics common in laboratory and production environments, thereby guaranteeing that the high 6.5-digit accuracy is maintained, regardless of power line interference. This comprehensive suite of analysis tools elevates the DM7560 from a simple meter to a sophisticated diagnostic platform.

3. Speed, Memory, and Uncompromised Data Integrity

In high-speed test environments, data logging performance is paramount. The DM7560 excels by offering a lightning-fast data logging speed of up to 30,000 Samples per second (30k S/s). This remarkable acquisition rate enables the capture of high-frequency transients and rapid changes in signals—a critical requirement for modern electronics testing, especially in rapidly switching power supplies or dynamic sensor outputs. Equally important is the instrument’s deep internal memory, which can store up to 100,000 reading points. This massive capacity ensures that even during extended logging sessions or intermittent monitoring periods, no critical data is lost. The synergy between high speed and deep memory makes the DM7560 ideal for unattended, long-duration testing. The instrument supports both real-time and offline analysis of this stored data, allowing technicians to revisit and scrutinize historical measurements using the trendline or histogram features long after the data was captured. This capacity for exhaustive data collection and post-analysis guarantees uncompromised data integrity, significantly reducing the need for external data loggers and streamlining the entire measurement workflow for maximum efficiency.

4. Dedicated Applications in Precision R&D Testing

The robust specifications of the DM7560 make it perfectly suited for the rigorous demands of Research and Development. In R&D, slight variations in voltage or current can profoundly impact prototype performance, demanding the DM7560’s 6.5-digit resolution and high accuracy (e.g., in the voltage reference testing application). One key application is sensor testing and characterization. High-precision sensors, such as those used in aerospace or medical devices, require extremely stable and accurate DC voltage or current measurements to properly calibrate and verify their output linearity and drift over temperature. The DM7560 provides the necessary stability to characterize these sensitive components. Furthermore, in the development of new electronic components and integrated circuits, engineers frequently need to monitor the transient behavior of power rails during device startup or load switching. The high-speed 30k S/s data logging capability allows R&D teams to accurately capture these fleeting events, ensuring product reliability before moving to mass production, solidifying the DM7560’s role as an indispensable laboratory asset.

5. Seamless Integration for Automated Production Systems

The transition from R&D to production necessitates a measurement instrument that can be seamlessly integrated into automated test environments (ATE). The Yokogawa DM7560 is engineered for maximum operational efficiency in this context, offering multiple PC interface options, including USB, Ethernet, GP-IB, and RS-232. This comprehensive connectivity ensures compatibility with virtually any existing automated test setup, enabling rapid deployment and reliable remote operation. For high-volume production testing, the instrument features crucial Limit and GO/NO-GO functionality. This capability allows engineers to pre-define acceptable measurement boundaries, and the DM7560 instantly provides a pass/fail judgment. This dramatically speeds up throughput, eliminating manual data review and reducing operator error. The GO/NO-GO function is especially valuable for identifying transient failures during burn-in or environmental testing, where human monitoring is impractical. Whether used as a standalone instrument for bench testing or as a key component in a fully integrated automation rack, the DM7560 provides the communication flexibility and deterministic performance required to maintain the highest standards of quality control and manufacturing efficiency.

6. Ensuring Battery Current Consumption Efficiency Monitoring

A critically specific application where the DM7560 excels is in the monitoring of battery current consumption for portable electronic devices. Modern devices, from IoT sensors to handheld diagnostic tools, rely heavily on ultra-low power states to maximize battery life. Accurately measuring the current draw—which can fluctuate rapidly between microamps in sleep mode and hundreds of milliamps in active mode—requires an instrument with both high sensitivity and high-speed capture. The DM7560’s precision and deep 100k point memory are uniquely suited for this task. It can capture the subtle, low-current draw of the sleep cycle while simultaneously logging the sudden, high-current peaks associated with radio transmission or display activation. By viewing this complex consumption profile as a trendline or histogram, engineers can precisely identify inefficient code segments or hardware designs. This detailed analysis helps optimize firmware and hardware for extended battery life, leading directly to superior product performance and customer satisfaction, proving the DM7560 is not just a general-purpose meter, but a specialized tool for power optimization.
