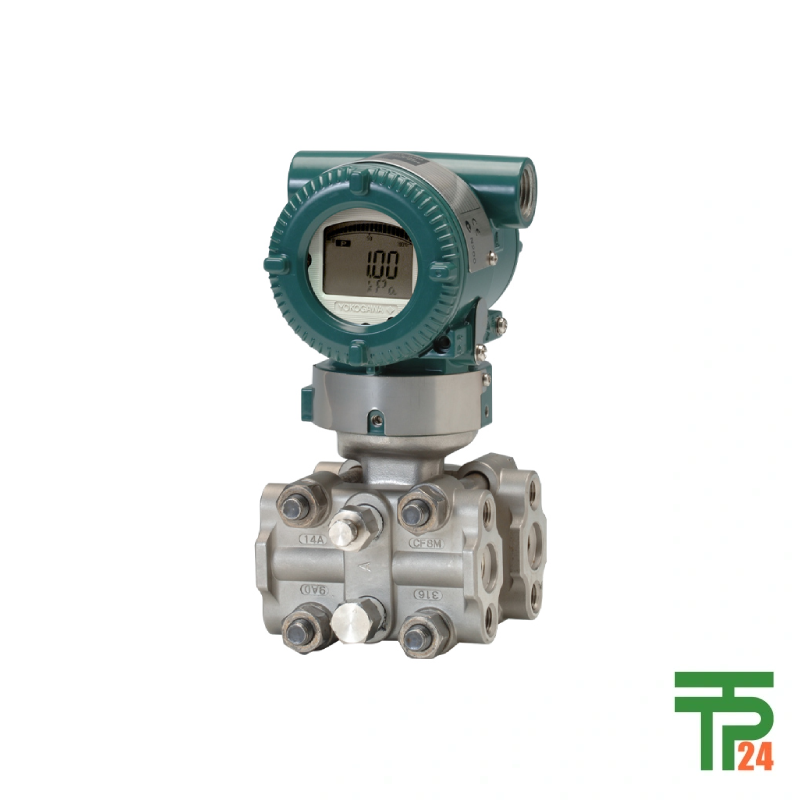

Yokogawa EJA120E Draft Range Differential Pressure Transmitter

Description

Yokogawa EJA120E Draft Range Differential Pressure Transmitter

The Yokogawa EJA120E Draft Range Pressure Transmitter is a cornerstone of the company’s celebrated EJA-E series, representing a sophisticated blend of proven reliability and cutting-edge sensor technology. Since its release in 2012, the EJA-E series has solidified its position as the preferred choice for demanding industrial applications globally, building directly upon the rugged foundation of its EJA predecessors while inheriting the high-performance attributes previously exclusive to the premium EJX-A line. This fusion of best-in-class features ensures that the EJA120E delivers the stable, high-accuracy measurements essential for complex control strategies and optimized process operations. Specifically engineered for the most delicate of measurements, the EJA120E focuses on the “draft range,” which pertains to extremely low differential pressure measurements, typically associated with air or gas flows under minimal head pressure. The intrinsic design of the DPharp sensor—a digitally characterized silicon resonant sensor—provides a level of resolution and stability that far exceeds traditional analog technologies in this ultra-low pressure regime. The EJA120E’s commitment to a true draft range design means it is inherently optimized to capture the subtle pressure variations that characterize these critical measurements, such as those found across boiler fireboxes, clean rooms, or air preheaters. This precision is maintained through advanced digital signal processing that corrects for ambient temperature and static pressure effects in real-time, thereby ensuring that the fundamental accuracy of the measurement remains unimpeachable. This makes the EJA120E a reliable asset where minor changes in differential pressure can signal significant process events, making immediate, accurate data vital for efficient and safe operation. The EJA120E continues the Yokogawa tradition of excellence, delivering a robust solution for a highly specialized measurement need.

Achieving Subtlety in High-Stakes Industrial Environments

The EJA120E’s core strength lies in its capacity to measure extremely subtle differential pressures with an accuracy that belies the inherent challenges of the draft range. Offering a standard reference accuracy of $\pm 0.2\%$ of span, the instrument provides reliable data for control systems. For applications demanding the highest level of fidelity, an optional /HAC (High Accuracy Calibration) package is available, pushing the accuracy specification to an exceptional $\pm 0.09\%$. This flexibility allows plants to select the performance tier appropriate for the criticality of the measurement. Maintaining this high accuracy over time is equally crucial, which is why the EJA120E boasts excellent long-term stability, rated at $\pm 0.3\%$ of the Upper Range Limit (URL) per one year. This stability ensures that recalibration intervals can be extended, reducing maintenance costs and operational downtime, thereby improving the overall availability of the process unit. The combination of high initial accuracy and exceptional long-term stability positions the EJA120E as a leading choice for custody transfer points, critical mass balance calculations, and regulatory reporting where measurement integrity is subject to strict governmental or contractual standards. This level of sustained performance contrasts sharply with older technologies that often exhibit rapid drift, requiring continuous attention and adjustment, highlighting the EJA120E’s value proposition as a set-and-forget, high-integrity measurement device that delivers consistency day in and day out, regardless of fluctuating process conditions.

Rapid Response Time Enhances Control Loop Performance

In dynamic industrial processes, the speed at which a transmitter can detect and transmit a change in pressure is critical to the stability and effectiveness of the control loop. The Yokogawa EJA120E excels in this area with a rapid response time of 150 milliseconds. This swift measurement update rate is a significant advantage, particularly in control systems that must quickly compensate for load changes, burner adjustments, or sudden shifts in flow rates. In furnace and boiler control, for instance, a fast response is essential to maintain the correct air-to-fuel ratio, ensuring optimal combustion efficiency and preventing dangerous flame-outs or excessive emissions. By providing a nearly instantaneous reading of the draft pressure, the EJA120E minimizes the lag, or dead time, in the control loop. This reduction in dead time allows the control system’s Proportional-Integral-Derivative (PID) controllers to operate with tighter gain settings, resulting in smoother control, less process variability, and more efficient use of energy and raw materials. For modern, highly integrated plants that rely on high-speed industrial communication protocols, this fast response time ensures that the measurement data is ready to be consumed by the Digital Control System (DCS) or Safety Instrumented System (SIS) without unnecessary delay. The 150 ms response time is a testament to the digital nature of the DPharp sensor, which processes the signal quickly and accurately before converting it to the 4 to 20 mA analog output, ensuring that the control system always receives the freshest, most reliable data available for making critical operational decisions.

Dedicated Applications in Low-Pressure Process Monitoring

The unique capabilities of the EJA120E make it indispensable in a variety of industrial applications that require precise, low-range differential pressure measurement. One of its most critical roles is in boiler and furnace control. Here, it is used to measure the draft (the slight negative pressure) inside the firebox. This measurement is vital for controlling the induced draft fans and maintaining the precise air balance necessary for optimal combustion. Too much draft wastes energy; too little can lead to dangerous pressure build-up or inefficient burning. The EJA120E’s sensitivity and stability ensure the air-to-fuel ratio is always perfect. Another primary application is in clean room and pharmaceutical manufacturing. In these environments, maintaining a specified pressure cascade—where different zones are slightly positively or negatively pressured relative to each other—is essential to prevent contamination. The EJA120E accurately monitors these minuscule pressure differences to ensure sterile conditions are maintained as per regulatory compliance. Furthermore, in ventilation, air conditioning, and filtration systems (HVAC), the EJA120E is used to monitor the pressure drop across high-efficiency particulate air (HEPA) filters. An increasing pressure drop signals filter clogging, prompting replacement to maintain airflow and system efficiency. Finally, it is frequently used to monitor the differential pressure in flue gas desulfurization (FGD) scrubbers and cement kiln processes, where maintaining slight pressure variations is key to environmental compliance and process efficiency. The EJA120E’s design as a true Draft Range instrument means it is intrinsically suited to handle these specialized, low-pressure demands with superior accuracy compared to standard differential pressure transmitters forced into a low-range application.

Integrated Safety and Compliance with SIL Certification

Safety Instrumented Systems (SIS) are the last line of defense in industrial plants, and the reliability of the sensors that feed them is non-negotiable. The Yokogawa EJA120E is distinguished by its comprehensive safety certifications, including both Exida and TUV attesting to its suitability for use in safety loops up to Safety Integrity Level (SIL) 2 and SIL 3. This rigorous certification confirms that the EJA120E has a sufficiently low Probability of Failure on Demand (PFD) and robust diagnostic capabilities to be trusted in critical interlock and emergency shutdown functions. By ensuring that the sensor measurement is highly reliable and that any potential internal failure is quickly detected and diagnosed, the EJA120E contributes significantly to the overall safety lifecycle of the plant. Furthermore, the EJA120E incorporates Local Parameter Setting (LPS) functionality, which allows technicians to safely and conveniently make adjustments to key parameters directly at the transmitter location without the need for a separate handheld device, often simplifying commissioning and troubleshooting. This feature, combined with the comprehensive self-diagnostics inherent to the DPharp platform, ensures that maintenance operations are both efficient and secure. For facilities seeking to comply with international safety standards such as IEC 61508 and IEC 61511, the pre-certified and documented performance of the EJA120E provides a tremendous advantage, simplifying the validation and engineering of the entire SIS solution, offering confidence in its ability to protect personnel and assets.
